Product Description:

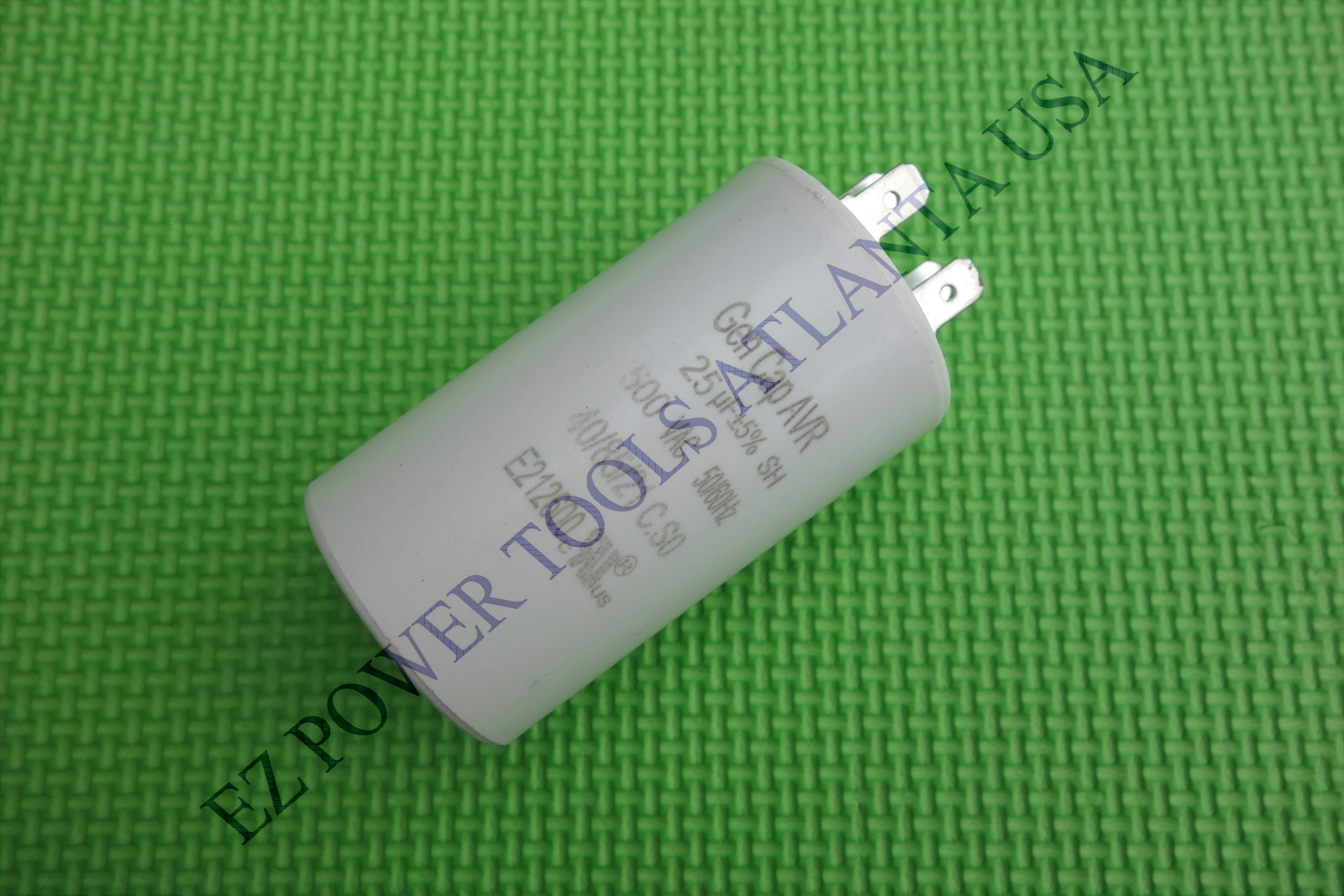

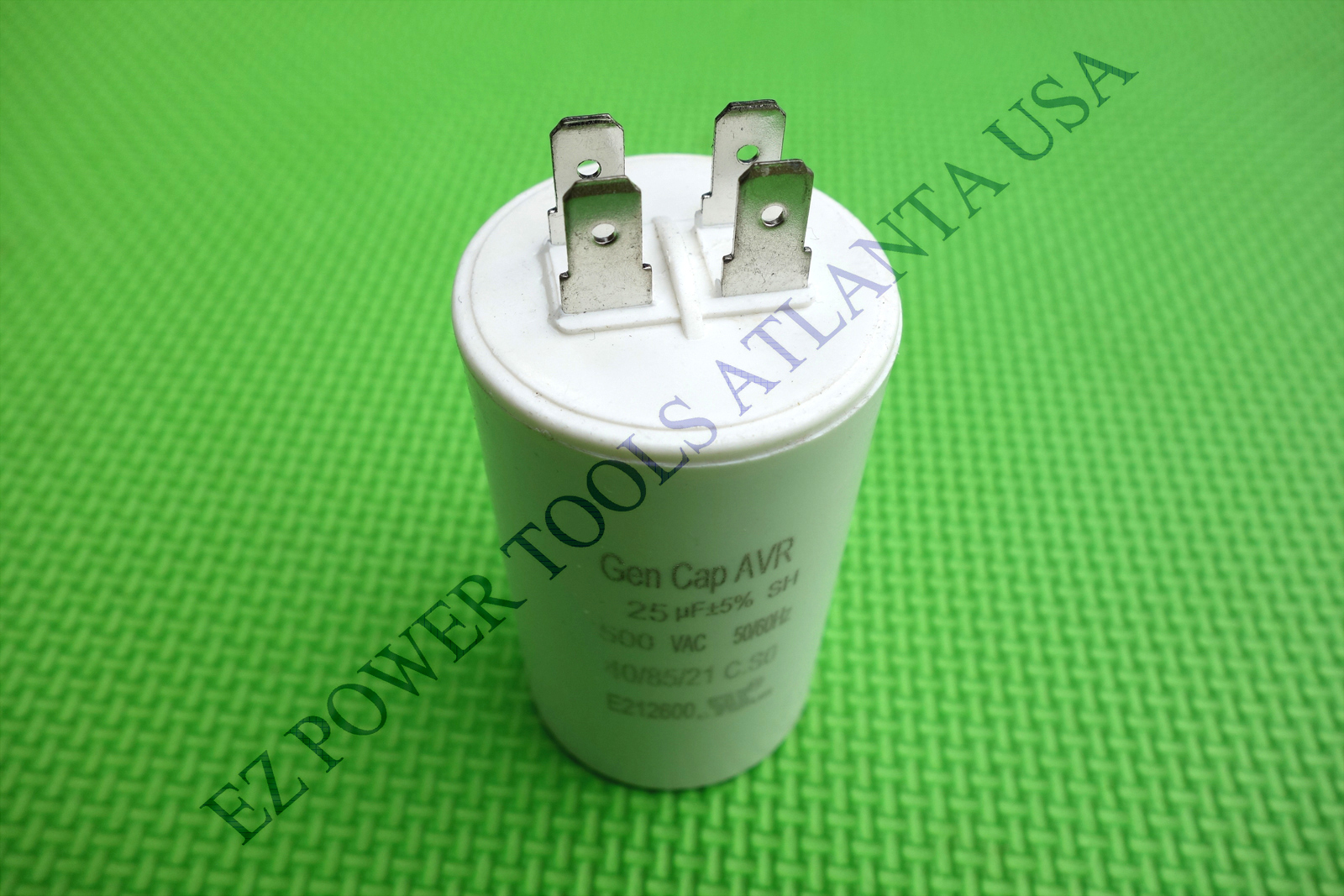

Premium UL Listed Metalized  Polypropylene Film (MKP) 450VAC/500VAC 50/60 Hz Generator Capacitor AVR for Briggs & Stratton Branded Elite Series 10000/12500 Watt Generator Models: 030207 & 30207. Our product is encapsulated with resin and housed in a self-extinguishing polypropylene plastic case for reliability and fire protection.

Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out of Atlanta, USA and EDT is about 1 to 3 business days for delivery in most areas of continental states.

Packing Contents: 1 X Generator Capacitor AVR.

Key Dimensions:
Diameter: 41.5MM/1.63"
Height: 91.5MM/3.6"
Spade Terminal Size: 6.35MM/0.25"

Part Number:
AVR-BS030207-TFD.


Main Technical Data:

  1.  Product Name: Generator Run Capacitor
  2.  Model: GenCap AVR
  3. Type: Metalized  Polypropylene Film (MKP) Capacitor
  4. Housing Material: PF
  5. Color: Black
  6. Rated Capacitance: 25uF (Micro Farads)
  7. Capacitance Tolerance: ±5%
  8. Rated Voltage: 450VAC/500VAC
  9. Loss Tan δ: Tan δ ≤ 0.004 (50Hz @ 20°C)
  10. Operating Frequency: 50/60Hz
  11. Performance Standard: IEC60252-2003
  12. Climate Type: 40/70/21 & 40/85/21
  13. Operating Temperature: - 40 ~ + 85°C
  14. Net Weight: 120g( 4.2Oz)
  15. Certificate: UL
  16. Packing Contents: 1 X AVR-BS030207-TFD.
