11 Languages YH800-3A LCD DRO Digital Readout Display Special Function

• 2022 LCD DRO

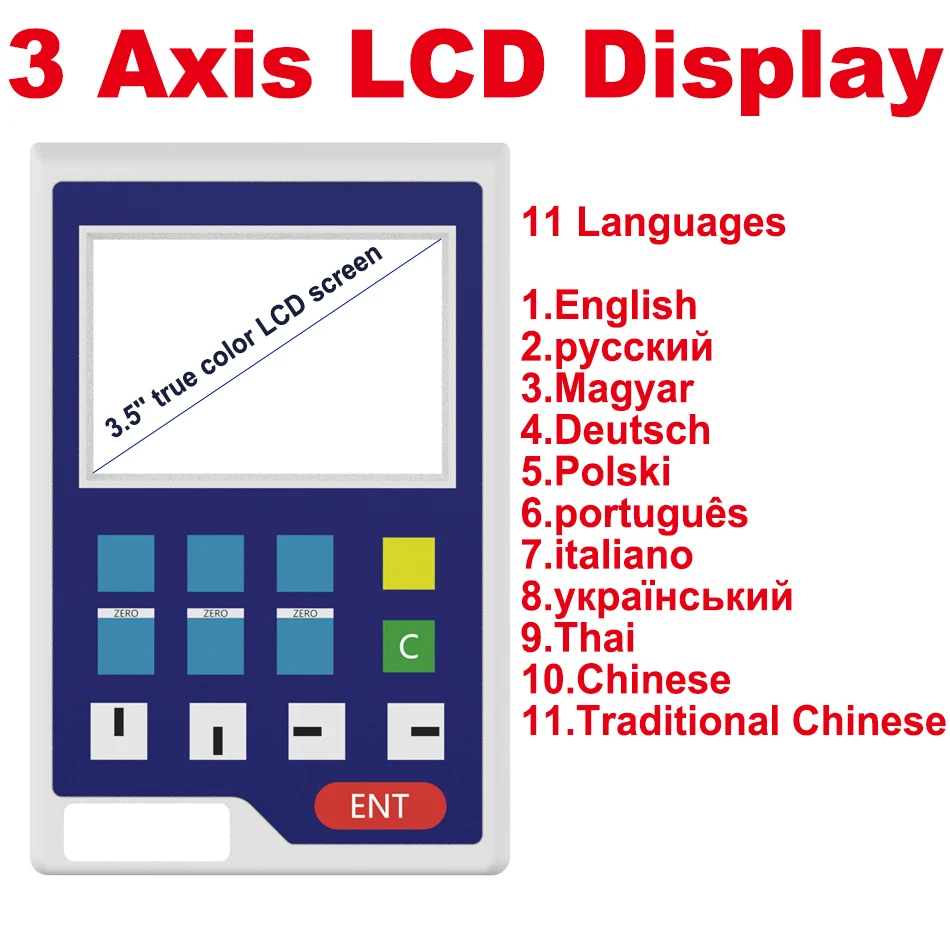

• Support 11 languages

• 1.English

• 2.русский

• 3.Magyar

• 4.Deutsch

• 5.Polski

• 6.português

• 7.italiano

• 8.український

• 9.Thai

• 10.Chinese

• 11.Traditional Chinese

11 Languages YH800-3A LCD DRO Digital Readout Display Parameter

• Voltage: AC 80V--240V ; 50-60HZ

• Power: 15W

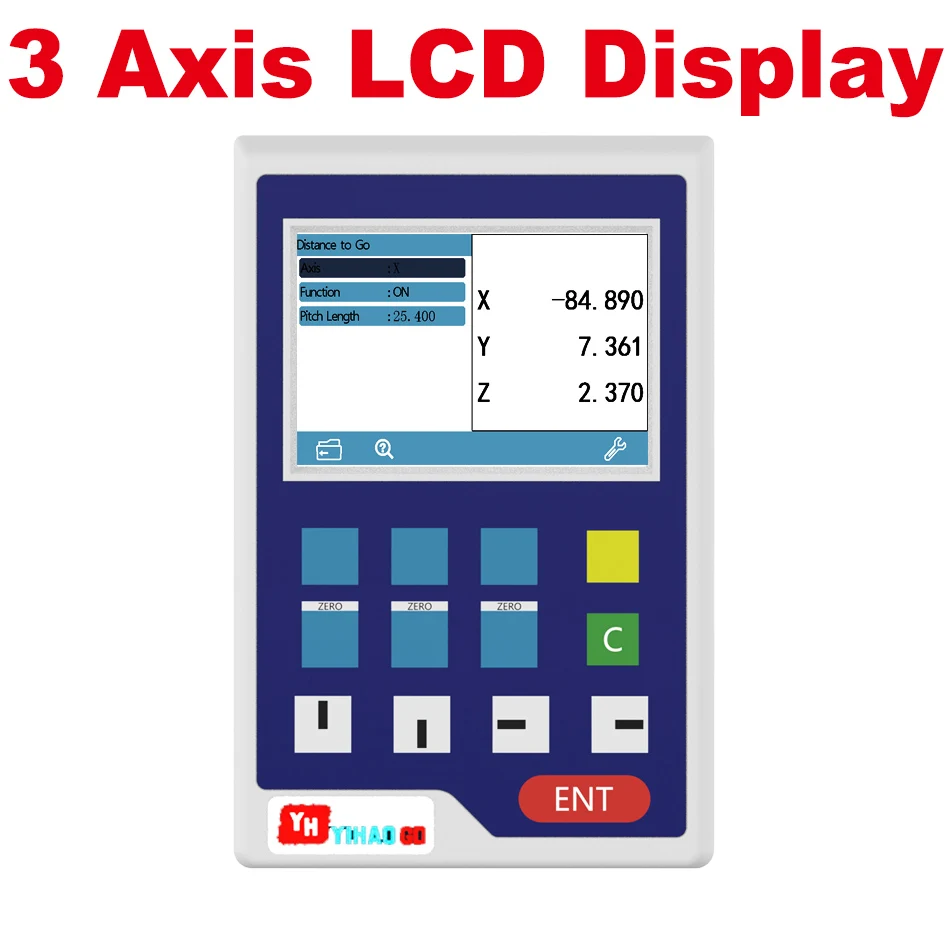

• Displaying: 3.5" true color LCD screen

• Working Temperature: -10°C--60C

• Storage Temperature: -30C--70%C

• Relative Humidity: <90% (25) >

• Axis Number: 1 axis,2 axis,3 axis

• Input Signal: 5V TTL

• Input signal Frequency: <1MHZ

• Resolution (Linear Encoder): 0.1 um，0.2 um, 0.5 um, 1um, 2 um,

• 2.5um, 5 um, 10 um, 20um, 25 um, 50 um, 100 um

• Highest Resolution(Rotary Encoder): <100000pprp

• Weight: 1.5 KG

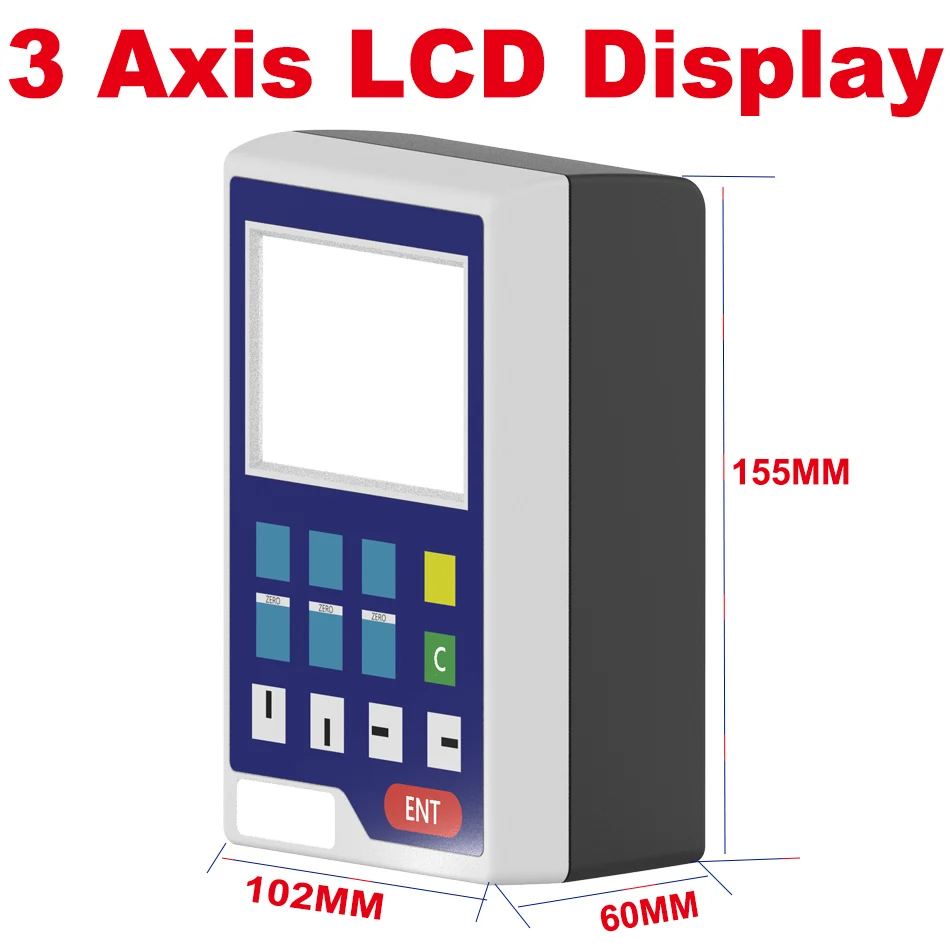

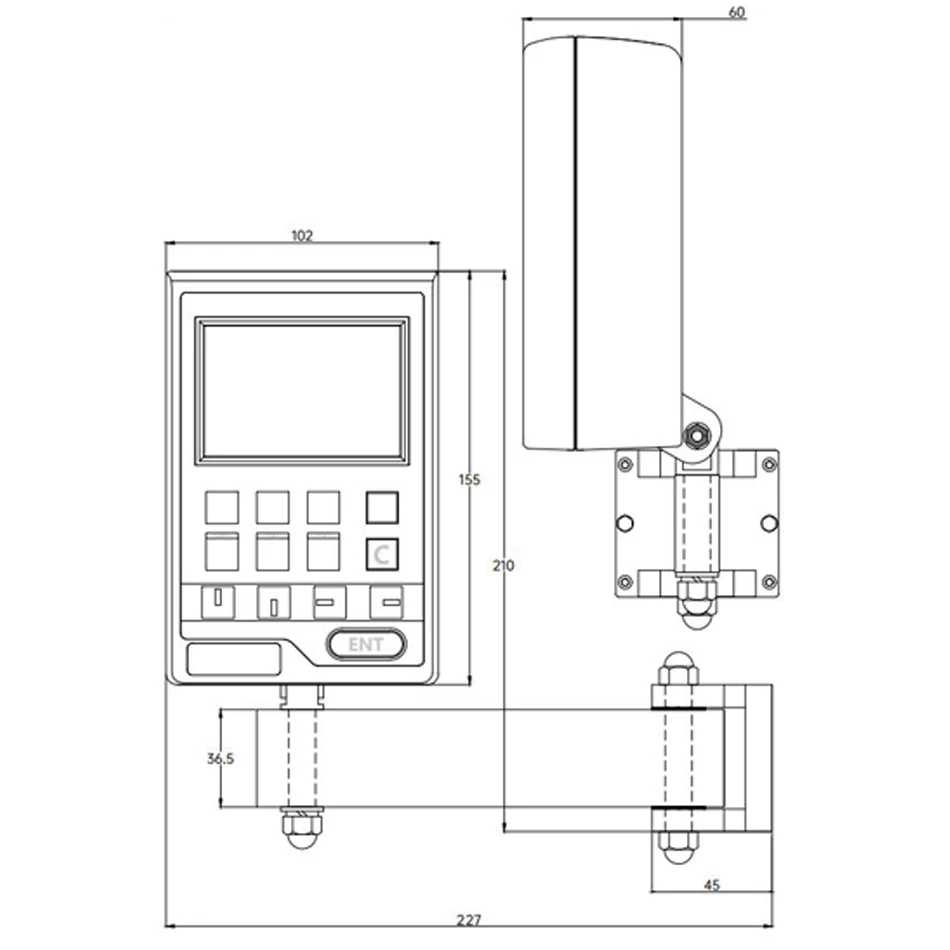

• Dimension: 155*102* 60 mm

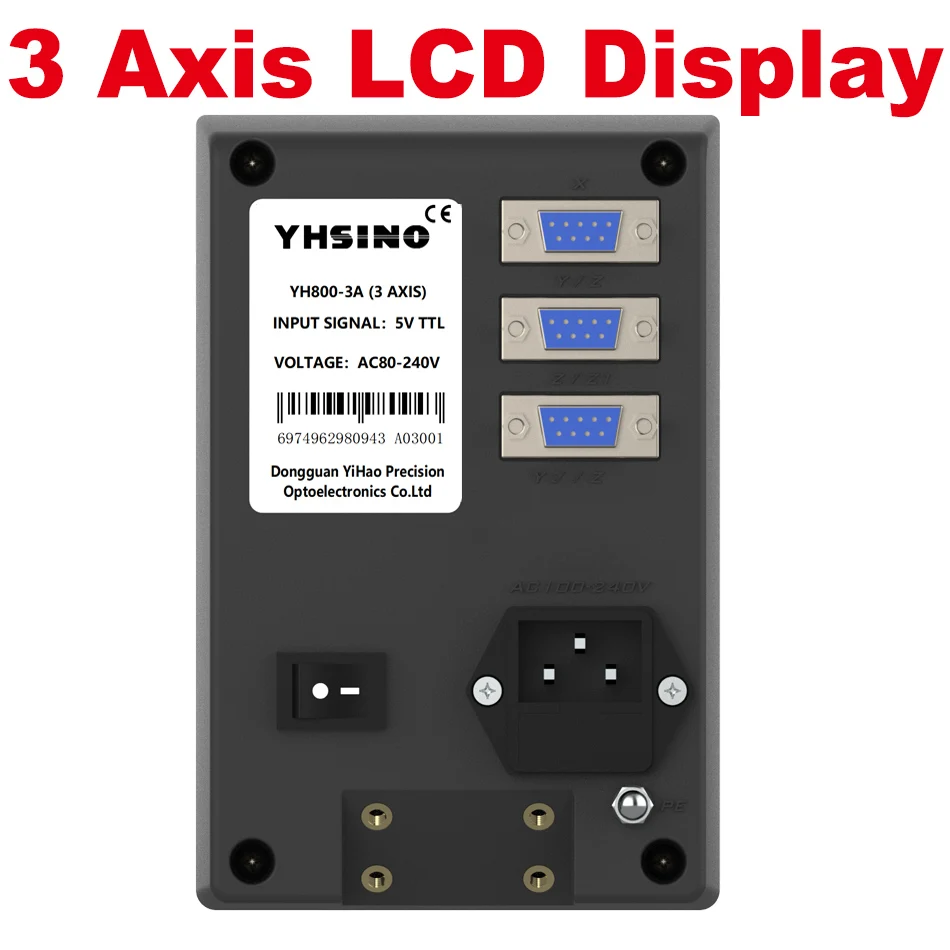

• DB9 Pin diagram

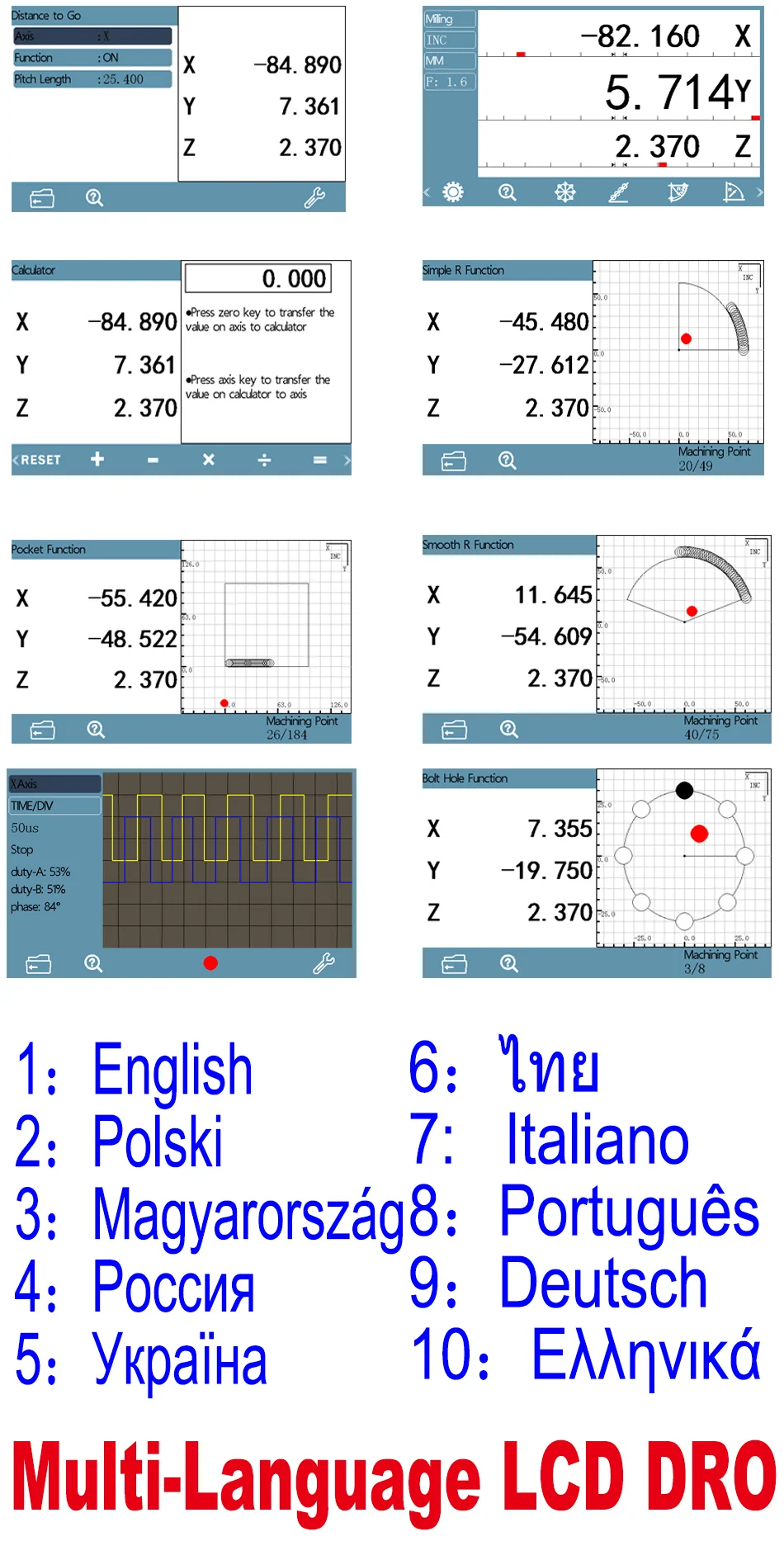

11 Languages YH800-3A LCD DRO Digital Readout Display Special Function

• Grid Hole Function

• Bolt Hole Function

• Radius and Diameter Conversion

• Vectoring Function

• Taper Measuring Function

Our Advantage

Send you from Russia Poland and Spain, can send you fast

Quick response, fast after-sale service, five-year warranty

11 Languages YH800-3A LCD DRO Digital Readout Display System Functions

• 1:Zero clearing
  2:Reset
  3:mm/inch mode
  4:ABS/INC coordinate conversion
  5: 200sets sub datum
  6:Power off Memory;
  7:Center of 1/2
  8:Liner error compensation
  9:Sleepping mode
  10:Clear 200 sets Sdm datum;
  11:ABS/INC mode
  12:Calculator
  13:Drilling of circumference
  14:Drilling of oblique line
  15:Machining of inclined plane
  16:Machining of circular arc
  17:Lathe function(match)
  18:Rectangular lumen gradual processing
  19:Digital filtering
  20:Vibration filtering
  21:Radius /Diameter fucntion
  22: Lathe function
  23: Big LCD(only for YH800-3A)
  24:11 languages

• 1.Voltage Range: AC 80V~250V/50HZ~60HZ
  2.Acceptable Signal: TTL
  3. Plug: DB9
  4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.
  5. If yo order only one piece dro, please confirm your old linear scales can work with our dro.

• 1. It is new 3 axis LCD dro YH800-3A(2022),smaller, better performance. Take less space on your machines.
  2. We are factory, price and quality are good, can quick solve your problem, saving much tims.

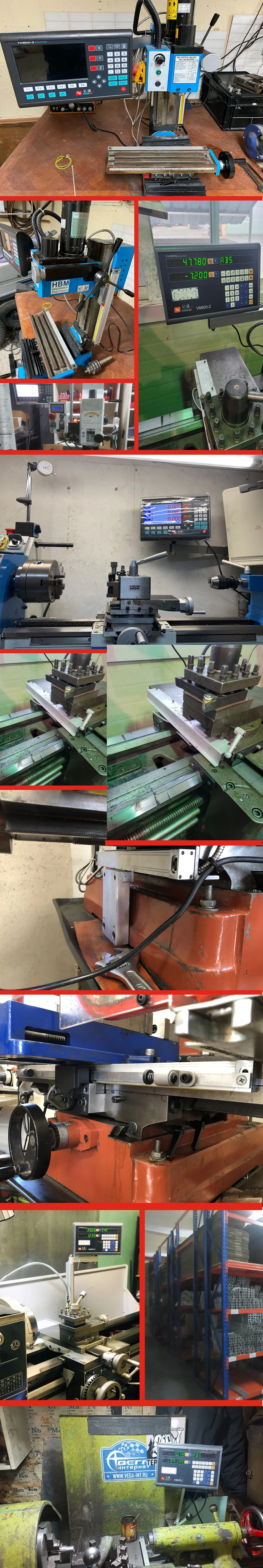

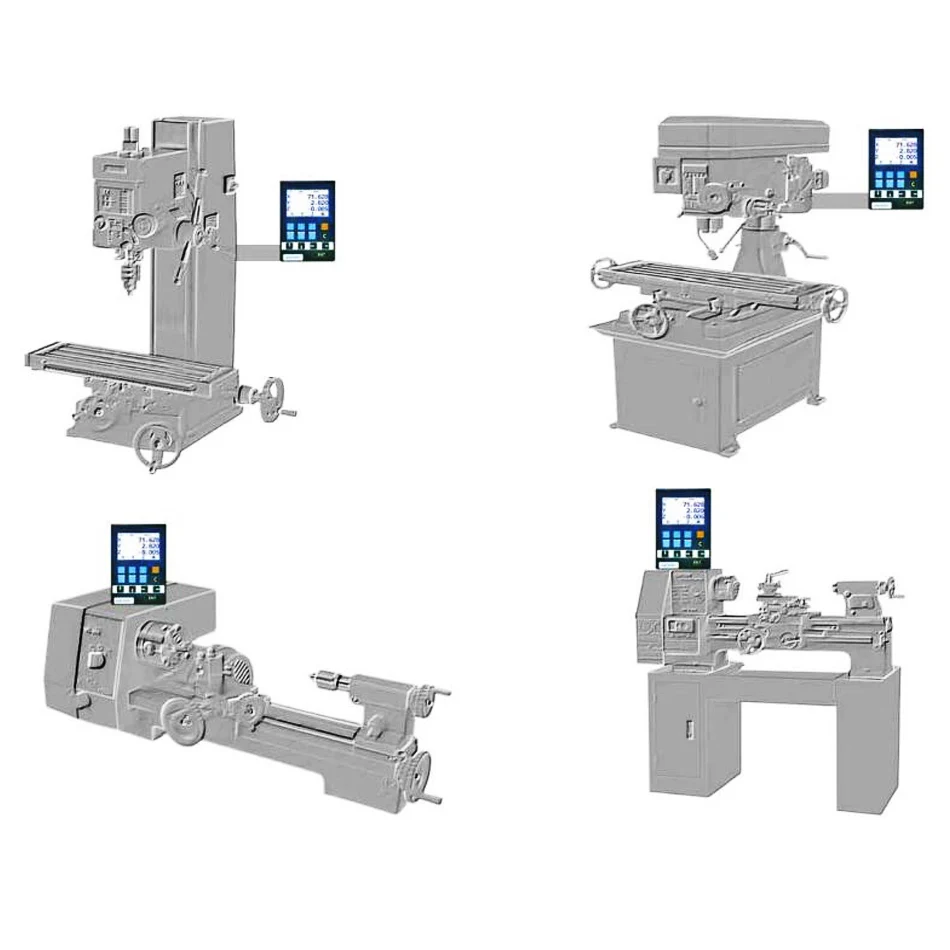

  3. can widely used for mill, lathe, drilling, boring, wire cutting machine.
  4. We offer different type plug suite for different countries if need.

11 Languages YH800-3A LCD DRO Digital Readout Display System Features

• 1.Super mini dimension. Best choice for bench lathe and small milling machine.

• 2.Small but not simple, adopting 32-bit chips with 64M running memory. Super fast speed for calculation, and strong ability of anti-interference.

• 3.Adopting 3.5 inch true color LCD screen, displaying with full information of setting and function. No composite keys, user-friendly.

• 4.Adopting top brand electronic components, ensure the long service time.

• 5.System language supports simple Chinese, traditional Chinese, English, German, Italian, Portuguese, Polish, Hungarian, Ukrainian, Russian, Greek, Thai…etc.

• 6.Besides the fundamental functions, Radius and diameter conversion, Taper measuring, Vectoring machining.This makes the DRO could meet most applications on various machines.

• 7.Adopting super hard carton and customized foam for packing.
