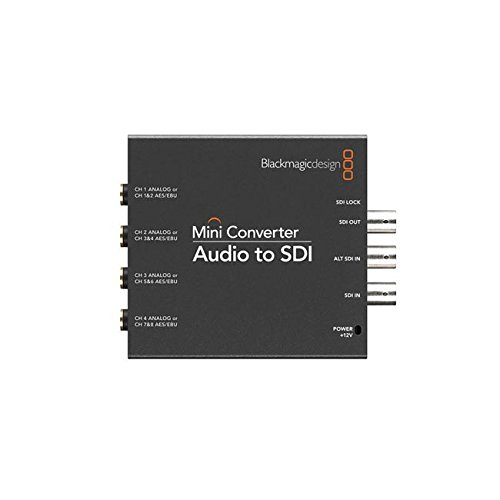

Blackmagic Design Audio to SDI Mini Converter



Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks. In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable.

Box Contains
    Blackmagic Design Audio to SDI Mini Converter
  • 12V Universal Power Supply
  • Set of International Socket Adapters

Box Contains
    Blackmagic Design Audio to SDI Mini Converter
  • 12V Universal Power Supply
  • Set of International Socket Adapters
  • Limited 3-Year Warranty

BrandBlackmagic Design
TypeAudio to SDI Mini Converter
SDI Input1 x SDI on BNC (switchable between 3G/HD/SD), 1 x 3G/HD/SD-SDI redundant input
Audio Input4 x 1/4 jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audi
SDI Output1 x SDI on BNC (switchable between 3G/HD/SD)
Updates and ConfigurationVia USB 2.0 high-speed (480 Mb/s)
ReclockingYes
SDI ComplianceSMPTE 292M/259M/296M/372M/424M-B/425M
SDI Video RatesSDI video connections are switchable between HD and SD
SDI Video Sampling4:2:2, 4:4:4
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit
SDI Color Precision4:2:2, 4:4:4
SDI Color SpaceYUV, RGB
SDI Auto SwitchingAutomatically selects between 3G/HD/SD
