Features

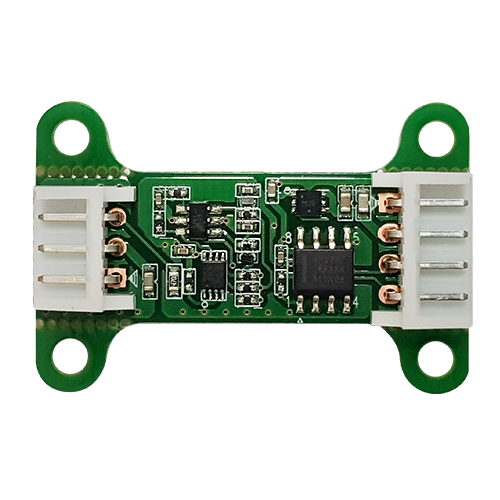

- The DYNAMIXEL Communication Bridge is an interface to convert signals between RS485 (4 Pin, JST type) and TTL (3 Pin JST type) logic level.



It can be fixed and used in various format due to its small size and bolting method.

Package Components

Item Quantity
DYNAMIXEL Communication Bridge 1

*Bolts and nuts for mounting are not included

H/W Specifications

Category Specifications
Operating Voltage 3.5V ~ 30.0V
Current Rating 3.0A
Baud Rate Max. 6Mbps
Caution

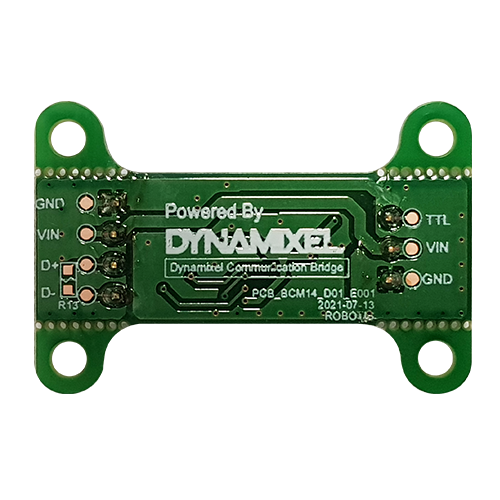

1. The VDD pins (No.2 pin) of the TTL connector and RS485 connector are connected to each other.

(When using different power sources for TTL and RS485, be sure to connect only one VDD to the DYNAMIXEL

Communication Bridge)



2. The bolted hole can be used and cut along the cutting line as needed.
