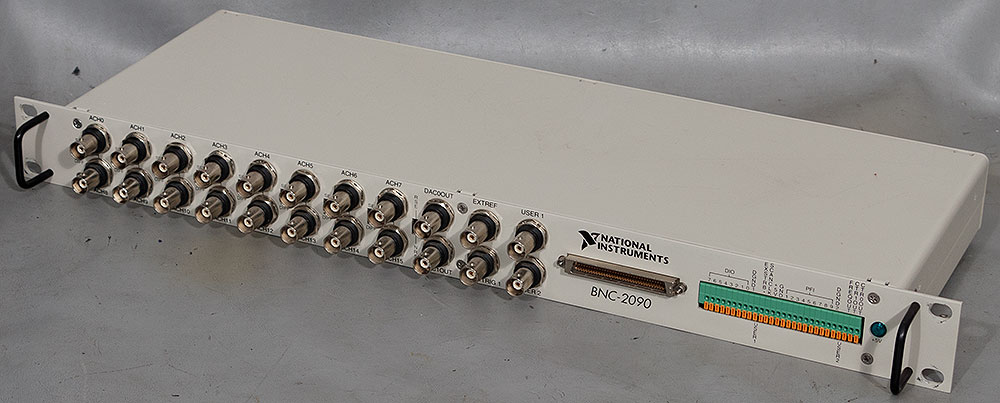

National Instruments BNC-2090 Rack-Mounted Shielded DAQ BNC Terminal Block
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from National Instruments and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit is guaranteed to work!

The Unit's Serial Number Tag Reads:
Model Number: BNC-2090
Part Number: 183468B-01
Revision: 001
Serial Number: Multiple Available!

Key Features:

  • NI recommends the BNC-2090A for all new applications
  • Shielded, rack-mountable BNC adapter chassis
  • 22 BNC connectors for analog, digital, and timing signals
  • 28 spring terminals for digital/timing signals
  • Silk-screened component locations for passive signal conditioning

    • Description:
    The National Instruments BNC-2090 is a shielded rack-mountable connector block with 22 signal-labeled BNC connectors and 28 spring terminal blocks to simplify connections to I/O signals from NI data acquisition devices. It connects to any 68-pin M Series, S Series, E Series, or B Series DAQ device. The NI BNC-2090 also includes component locations for passive signal conditioning.

    Analog Input Specifications:
    Input Characteristics:
      Number of Channels: 16 single-ended or 8 differential
      Field COnnection: 22 BNC connectors (18 analog,1 2 digital, and 2 user-defined), 28 spring terminal blocks
      Signal Conditioning Capability: 5 open component positions per channel that allow simple passive; lowpass or highpass filter; voltage attenuator circuits in signal path.

    Power Requirement (From Host Computer) Specifications:
    +5 VDC (±5%):
      Typical: 10 mA (no signal conditioning installed)
      Maximum: 1 A (fuse-limited by host DAQ board)

    Physical Specifications:
    Dimensions: 43.2 cm x 18.8 cm x 4.4 cm (19" x 7.5" x 1.7")
    I/O Connector: Two 68-position male connectors
    BNC COnnectors: 22
    Spring Terminal Blocks: 28

    Environmental Specifications:
    Operating Temperature: 0° to 70°C
    Storage Temperature: -55° to 125°C
    Relative Humidity: 5% to 90% noncondensing

    Notes:
    1: The DAC0OUT and DAC1OUT BNC connectors are for use only with MIO boards. These connectors are connected to ±12 VDC when the PC-LPM-16 is in use.
