18.0 GHz Micro-Coax Utiflex UFB311A Type (: MFL311SD ) Ultra Low Loss Cable Assembly

( Based on Solid Center Conductor )

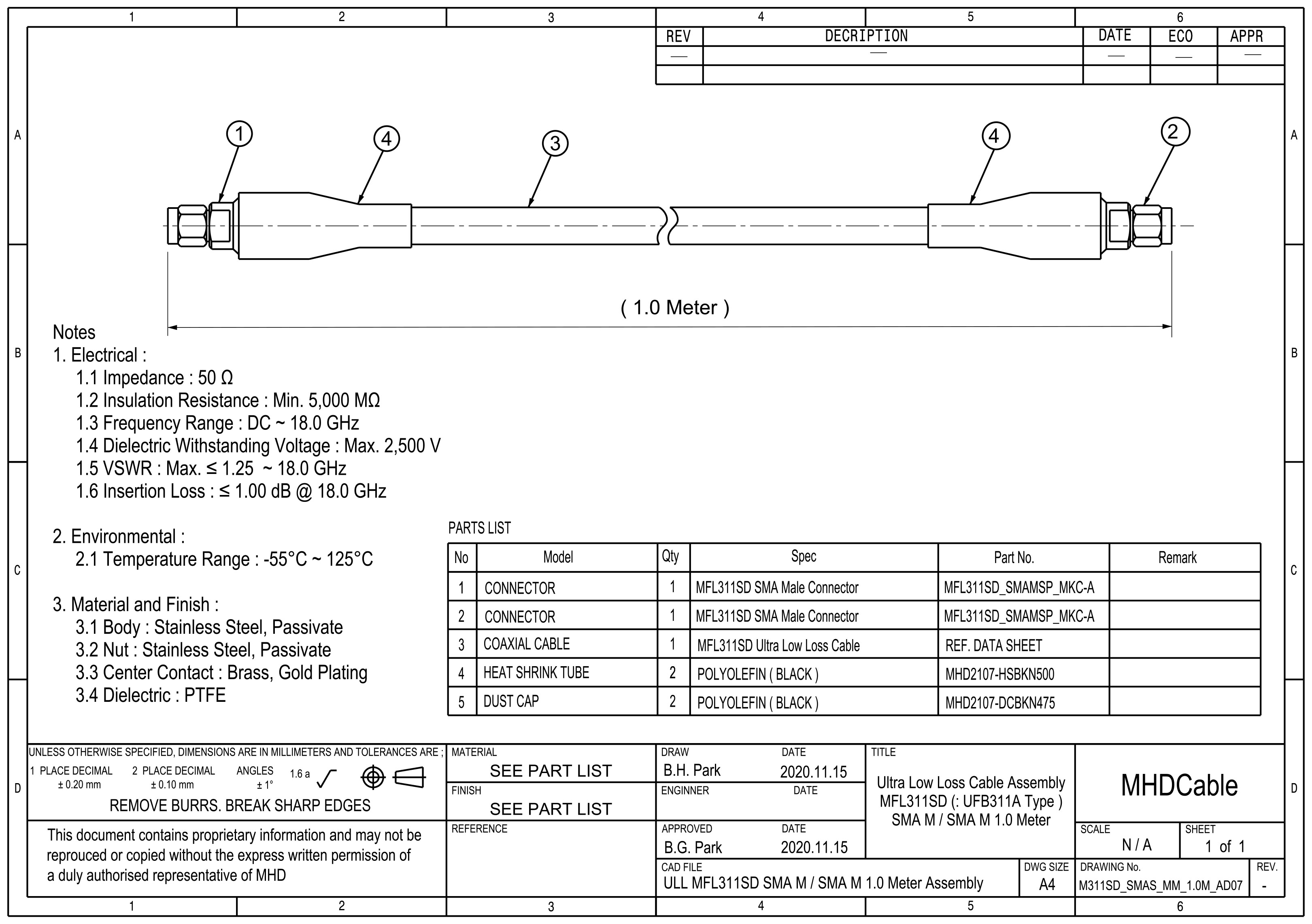

SMA Male / SMA Male Straight Plug 1.0 Meter Assembly  ~ 18.0 GHz

( VSWR : Max.  ≤ 1.25  ~ 18.0 GHz )





For Replacement of Micro-Coax Utiflex UFB311A, Rosenberger RTK 081

Huber+Suhner ( Sucoflex 106, Sucoflex 118 ), Harbour Industries LL335

Semflex LA290, Semflex HP305, IW Microwave 2801

Times Microwave Systems HF-290 ...

Most of Solid Center Conductor Ultra Low Loss Cable for up to 18.0 GHz

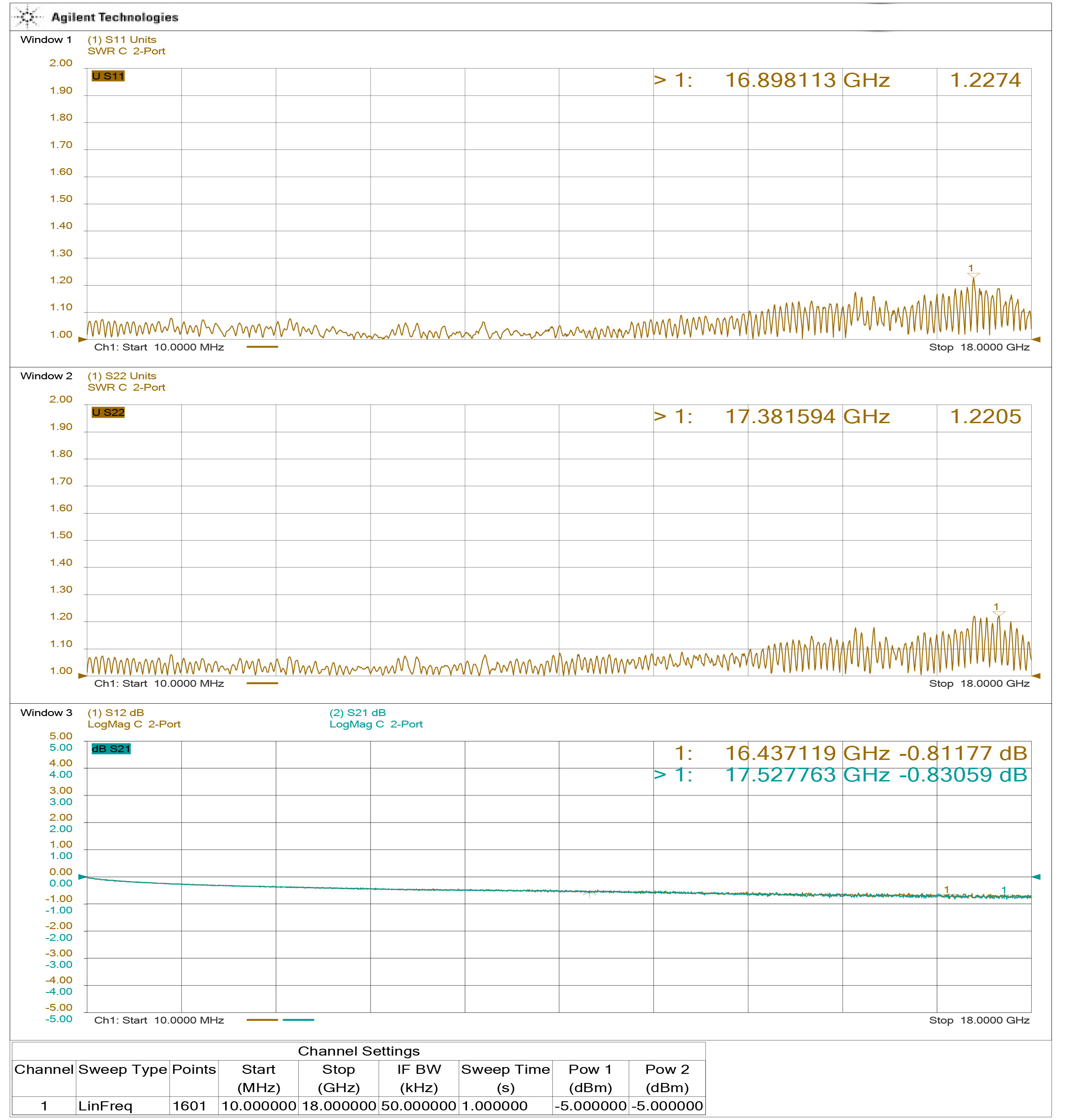

( Individual Test Report up to ~ 18.0 GHz will be included with assembly. )



Composition of MFL311SD Ultra Low Loss Microwave Cable



Class of Cable

LD PTFE Dielectric Ultra Low Loss Cable

Cable Part Name

MFL311SD

Flex Ability

Flexible

Impedance

50 Ohm

Center Conductor

Silver Plated Solid Copper Wire

Dielectric

MicroPorous PTFE

Velocity of Propagation

83 %

Shield Layer

Silver Plated Copper Strip Taping

&

Round Wire Braiding Shield Layer

Outer Jacket Diameter

7.90 mm ( 0.311 inch )

Jacket Material

FEP

Max. Frequency

18.0 GHz

Operating Temperature

- 55℃ ~  165℃



 Composition of SMA Male Connector for MFL311SD



Frequency

DC ~ 18.0 GHz

Impedance

50 Ohm

V.S.W.R

Max.  ≤ 1.20  ~18.0 GHz

Impedance

50 Ohm

Body

Stainless Steel Passivated

Center Contact

Beryllium Copper / Gold Plating

Insulator

PTFE

Coupling Nut

Stainless Steel Passivated















MIL-C-17
