~ 26.5 GHz & ~ 18.0 GHz MFlex-405SS (: SS405 Type ) Flexible Microwave Cable

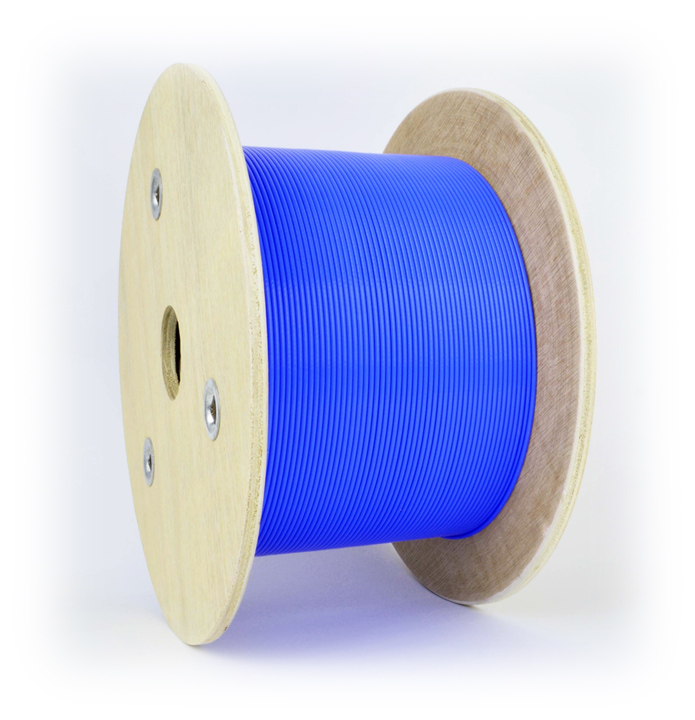

( " 200 Meter " )

based on Excellent VSWR and Insertion Loss Performance ~ 26.5 GHz



" MFlex-405SS " is the cable for replacement of the following cables.

Harbour Industries SS405

Huber+Suhner Multiflex_86

Habia Multibend 405

   Times Microwave Systems Tflex-405

Rosenberger RTK Flex 405

Semflex SM405

Micro-Coax HFE 100D …

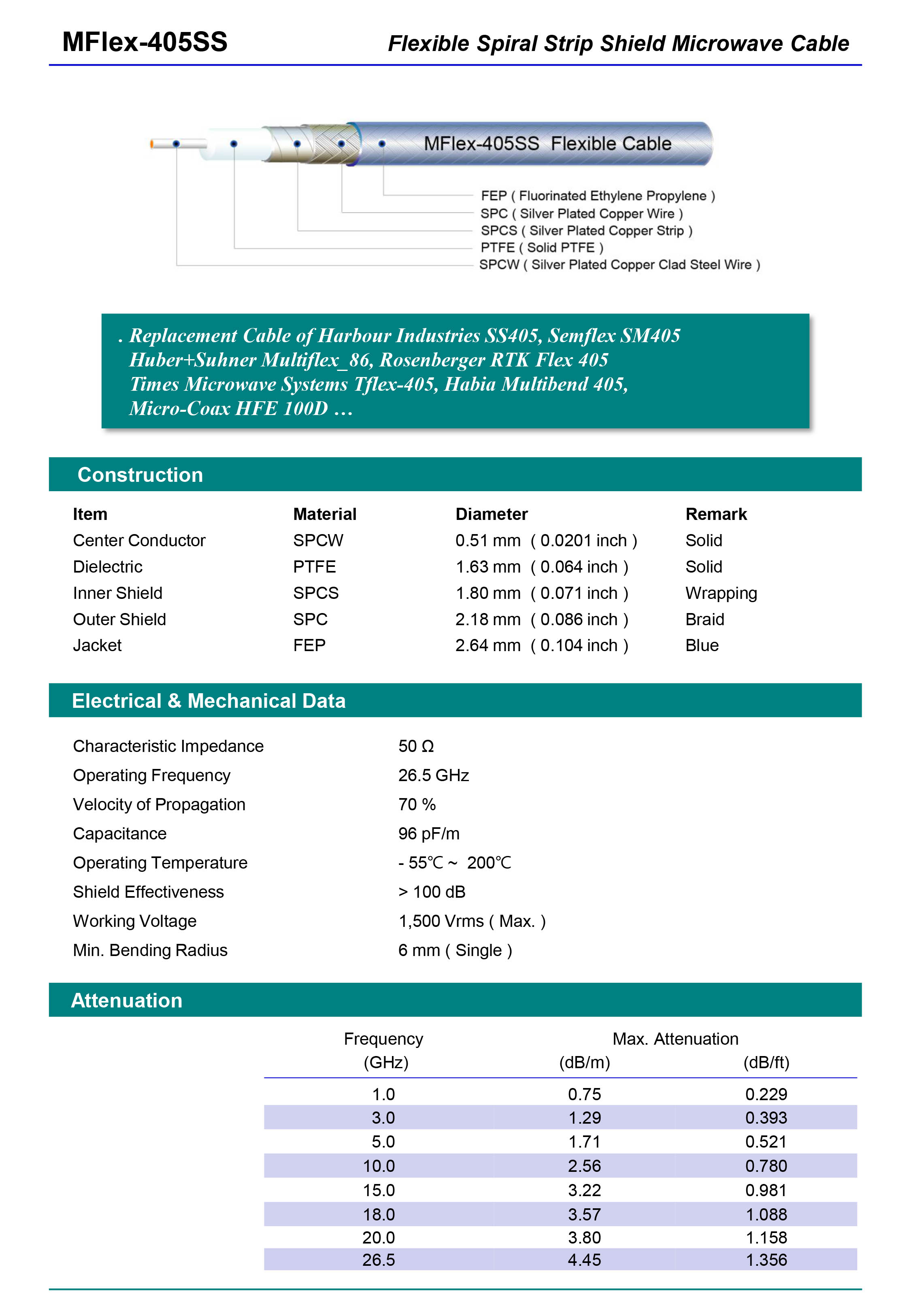

Composition of MFlex-405SS



Class of Cable

Solid PTFE Dielectric Coaxial Cable

Cable Part Name

( Cross Reference )

MFlex-402SS

Equivalent with SS405, Multiflex_86, Semflex SM405 Tflex-405, Multibend 405, HFE 100D .....

Flex Ability

Flexible

Impedance

50 Ohm

Center Conductor Type

Silver Plated Copper Clad Steel Wire

Dielectric Type

Solid PTFE

Velocity of Propagation

70.0 %

Shield Type and No. of Shield Layer

Silver Plated Copper Strip Taping

& Round Wire Braid Double Shield Layer

Jacket Diameter

2.64 mm ( 0.104 inch )

Jacket Material

FEP

Max. Frequency

18 GHz / 26.5 GHz

Operating Temperature

- 55℃ ~  200℃









..................................................................................................................................................................................................

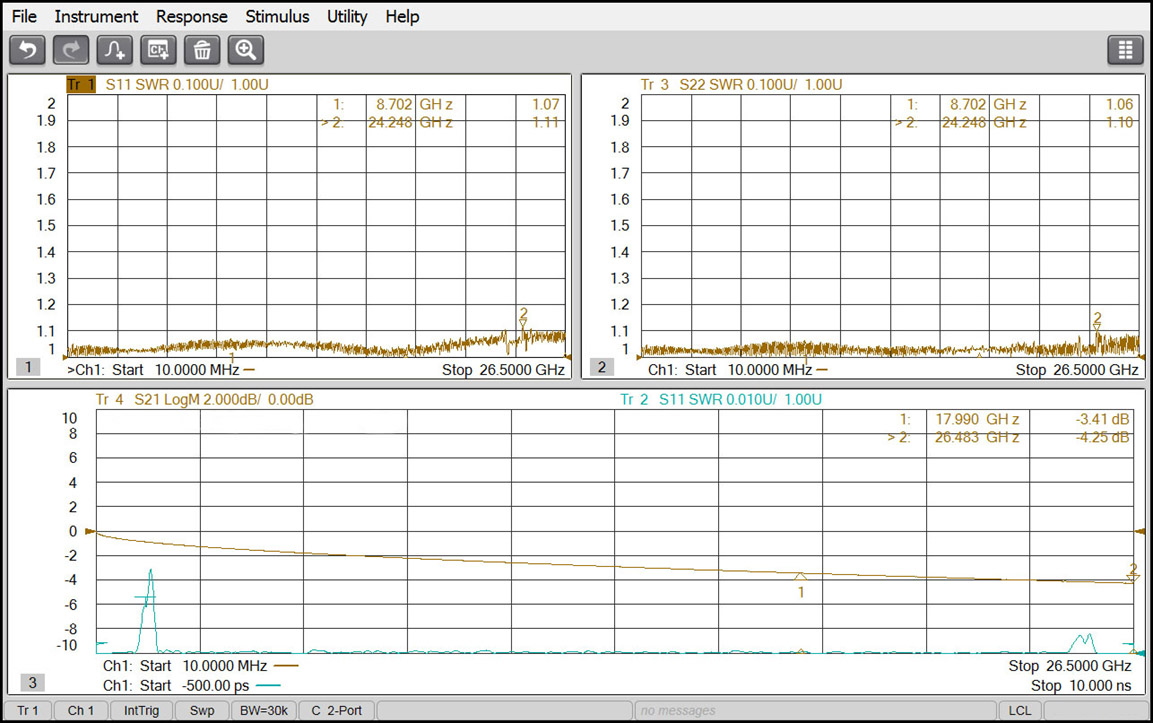

MFlex-405SS SMA Male to SMA Male Assembly ~ 26.5 GHz

( 1.0 Meter )

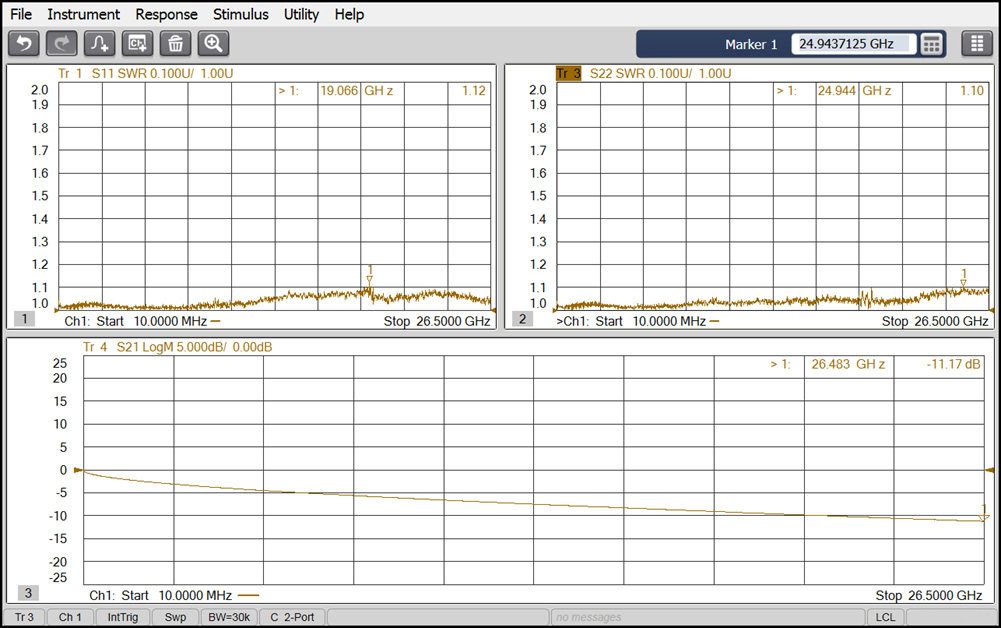

MFlex-405SS SMA Male to SMA Male Assembly ~ 26.5 GHz

( 3.0 Meter )

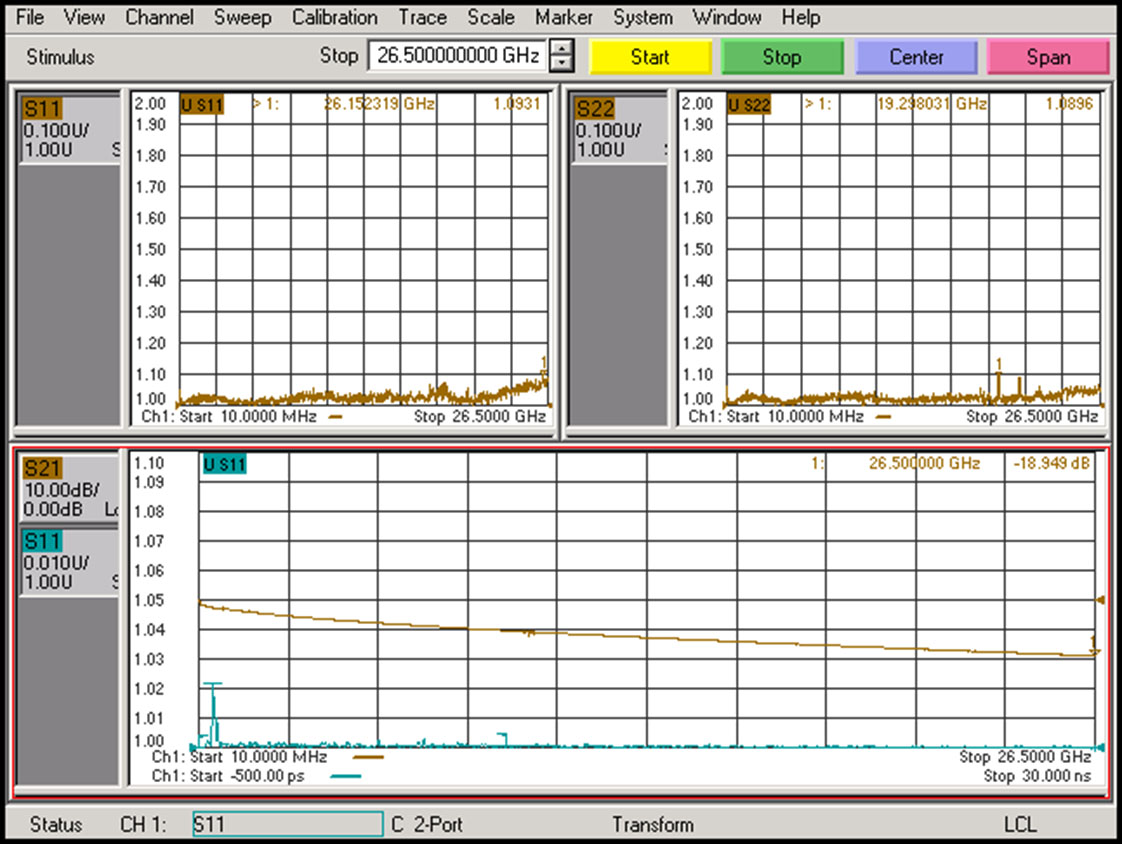

MFlex-405SS SMA Male to SMA Male Assembly ~ 26.5 GHz

( 5.0 Meter )

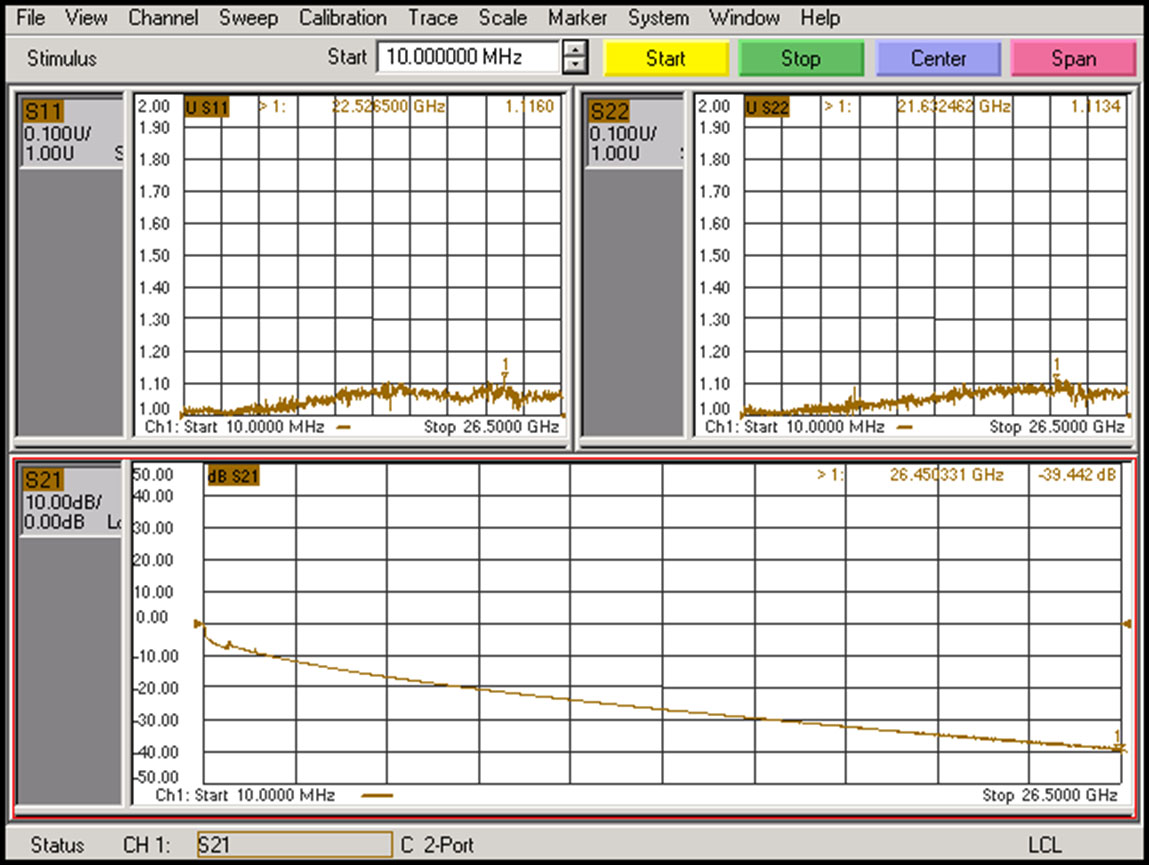

MFlex-405SS SMA Male to SMA Male Assembly ~ 26.5 GHz

( 10.0 Meter )









..................................................................................................................................................................................................
