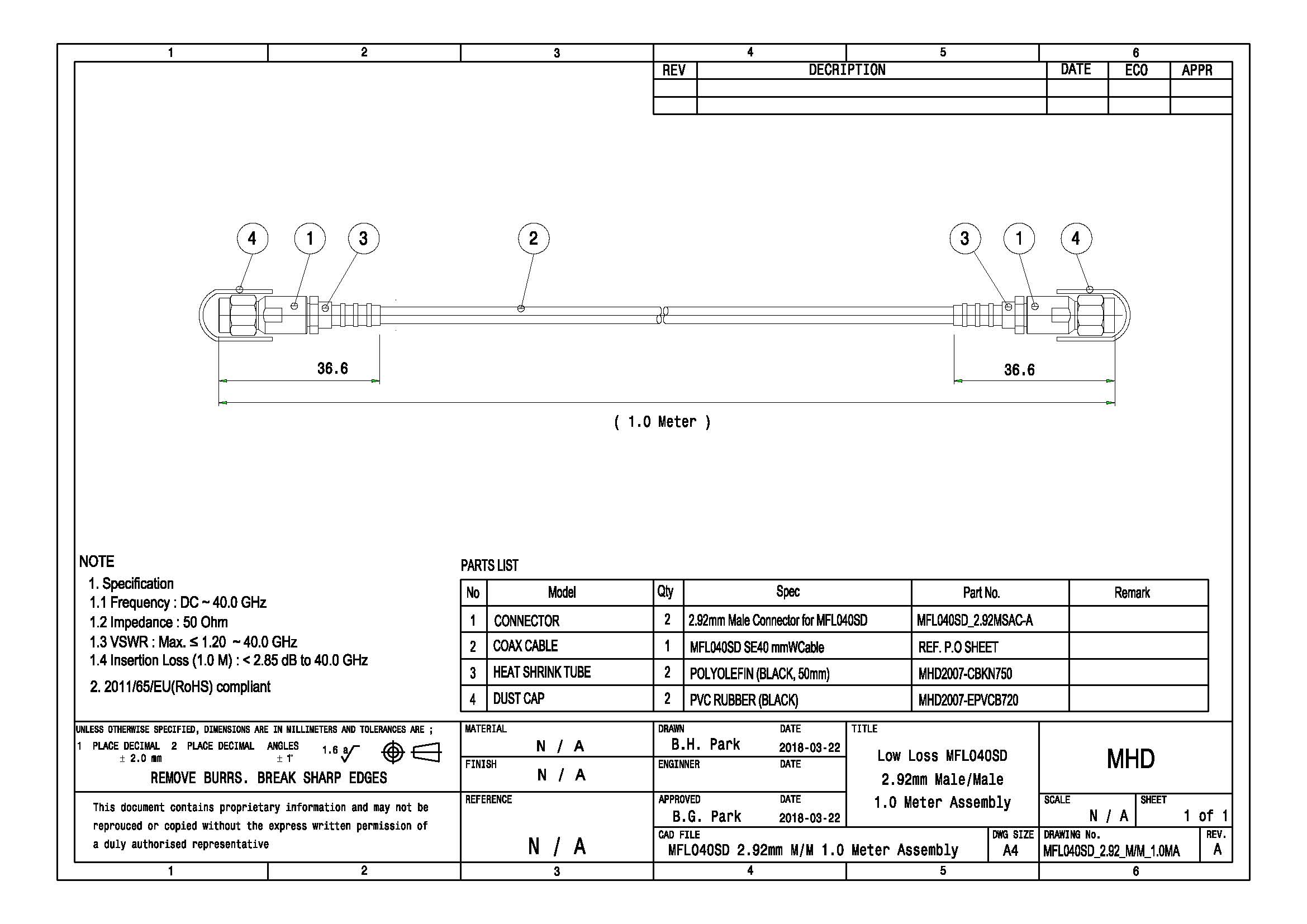

40GHz Low Loss & Phase Stable " MFL040SD " mmWCable

2.92mm Male / 2.92mm Male Straight 1.0 Meter Assembly ~ 40.0 GHz

( VSWR : Max.  ≤ 1.20  ~ 40.0 GHz )



For Replacement of Micro-Coax Utiflex UFA147A, Rosenberger RTK 106

   Huber+Suhner ( Sucoflex 102 ), Gore CXN3507,

   Semflex HP160, Carlisle ( Tensolite ) TLL40-1130A

   Times Microwave Systems ( Silver Line Type VNA Test Cable for 40.0 GHz ) ...



Compatible with 3.5mm, SMA



( Individual Test Report up to 40.0 GHz will be included with assembly. )



Composition of MFL040SD Low Loss Milimeter-Wave Cable



Class of Cable

LD PTFE Dielectric Coaxial Cable

Cable Part Name

MFL040SD

Flex Ability

Flexible

Impedance

50 Ohm

Center Conductor Type

Silver Plated Solid Copper Wire

Dielectric Type

MicroPorous PTFE

Velocity of Propagation

80 %

Shield Type and No. of Shield Layer

Silver Plated Copper Strip Taping

& Round Wire Braid Double Shield Layer

Jacket Diameter

4.20 mm ( 0.165 inch )

Jacket Material

FEP

Max. Frequency

40.0 GHz

Operating Temperature

- 55℃ ~  165℃



 Composition of 2.92mm(K) Connector for MFL040SD



Frequency

DC ~ 40.0 GHz

Impedance

50 Ohm

V.S.W.R

Max. ~ 40.0 GHz  ≤ 1.20

Impedance

50 Ohm

Body

Stainless Steel / Gold Plating

( Nickel Under Plated )

Center Contact

Beryllium Copper / Gold Plating

( Nickel Under Plated )

Insulator

PS

Coupling Nut

Stainless Steel / Gold Plating

( Nickel Under Plated )

Gasket

Silicone Rubber
