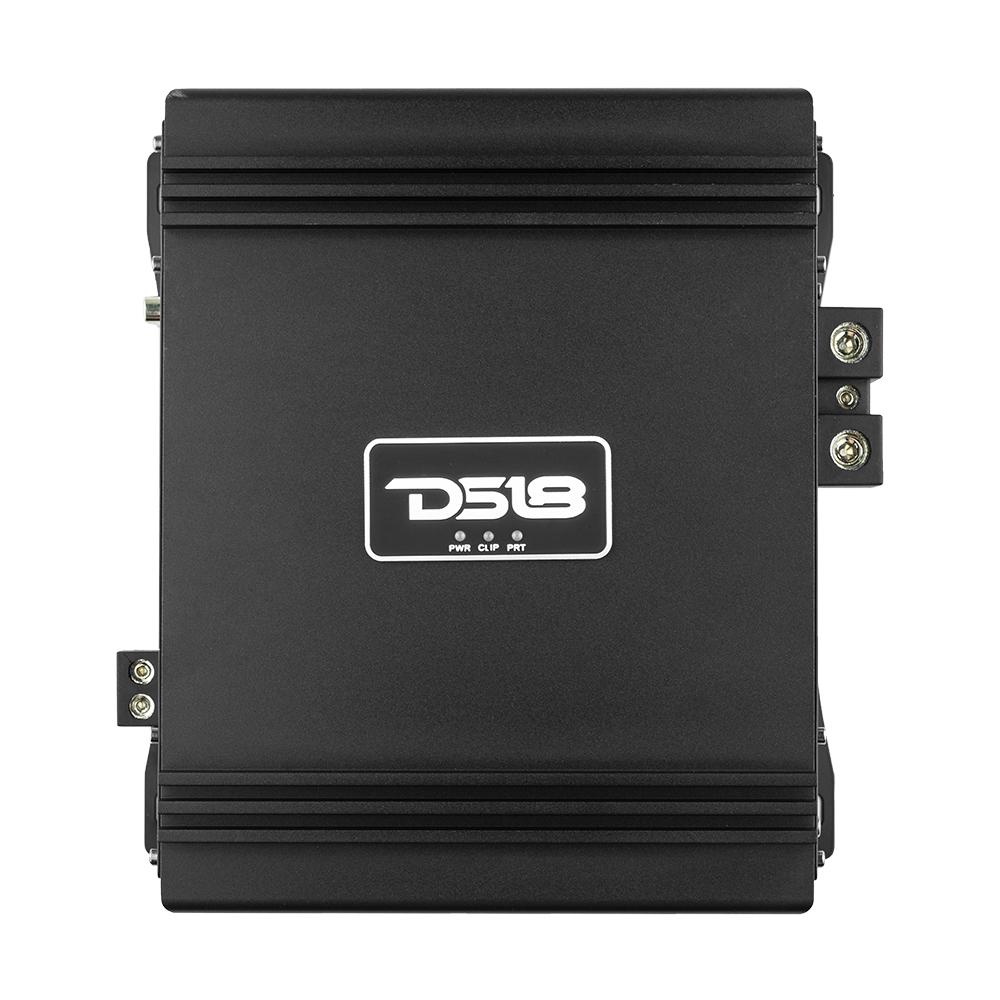

DS18 strives in getting our customers the latest and greatest technology with every product we produce. Now we have developed out latest series of full bridge high wattage amps, the GFX series. These amps are guaranteed to give you an amazing punch for your money. These full range amps are perfect for playing all types of speakers and subs. They have that high wattage rating to get maximum max and decibels from your subs while with just a quick flip of a few switches, and the same amp can be rewired for amazing ear shattering midrange speakers and highs. These amps come on multiple configurations and both have models so you can get maximum output from your sound system.  The DS18 GFX series of amps are for the enthusiast that is serious about squeezing every watt possible out of your sound system for a concert hall type of sound that can be heard for miles away!

Features:

• Full range Capable Class - D Amp
• Compact Size and wide Band Crossover for more applications
• Variable Full Crossover Filter
• Surface Mount Component
• Audio Precision Quality Control Verification
• Stable & Reliable Four Layers PCB Trace Layout
• Heavy Duty Heat-sink Chassis and Forced Cooling System Build In
• Optional wired bass knob (not included)

Full Rms Power Output:

• Rms Power @ 2 ohms (14.4V): 3000 Watts
• Rms Power @ 4 ohms (14.4V): 2000 Watts

Specifications:

• THD: 1%
• Input Sensitivity: 0.5-8V
• Hi Pass Crossover (12dB/Oct): 15Hz-2KHZ
• Lo Pass Crossover (12dB/Oct): 50Hz-20KHZ
• Frequency Response: 15Hz-20KHZ
• Bass Boost: 0-12dB
• Bass Boost Frequency: 35Hz-70Hz
• Working Voltage: 9-15V
• Input Terminal Size: 1/0AWG
• Output Terminal Size: 8 AWG
• Dimensions (mm)     8.3"x 9.29"x 2.83"
