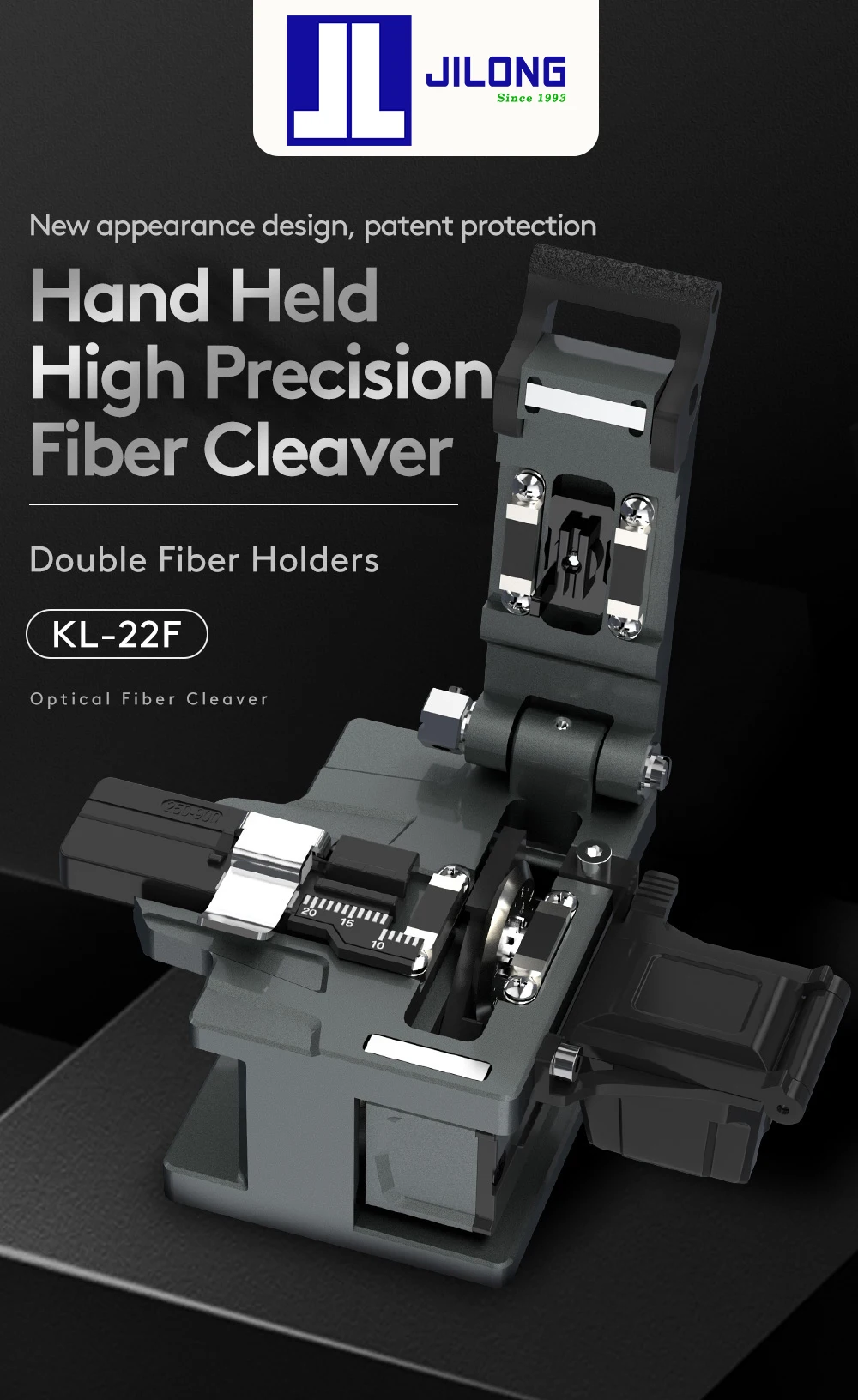

FTTH Fiber Optic Cutter JILONG KL-22F Optic Fiber Cleaver with Two
Fiber Holders, Work with Fiber Optic Fusion Splicer
Specifications:
Fiber Meterial | Silica glass |
Cladding Diameter | 125μm |
Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |

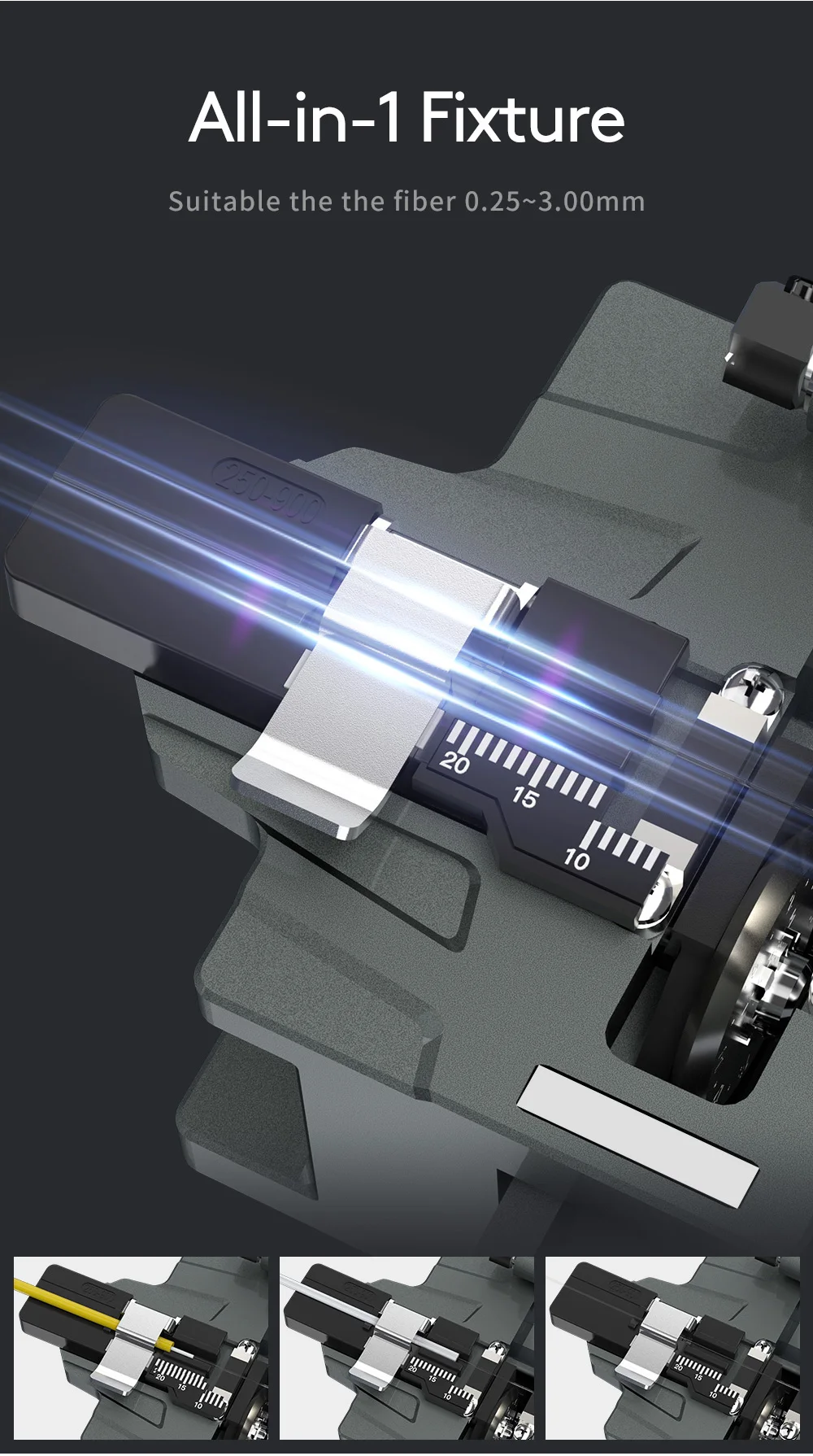

Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable |

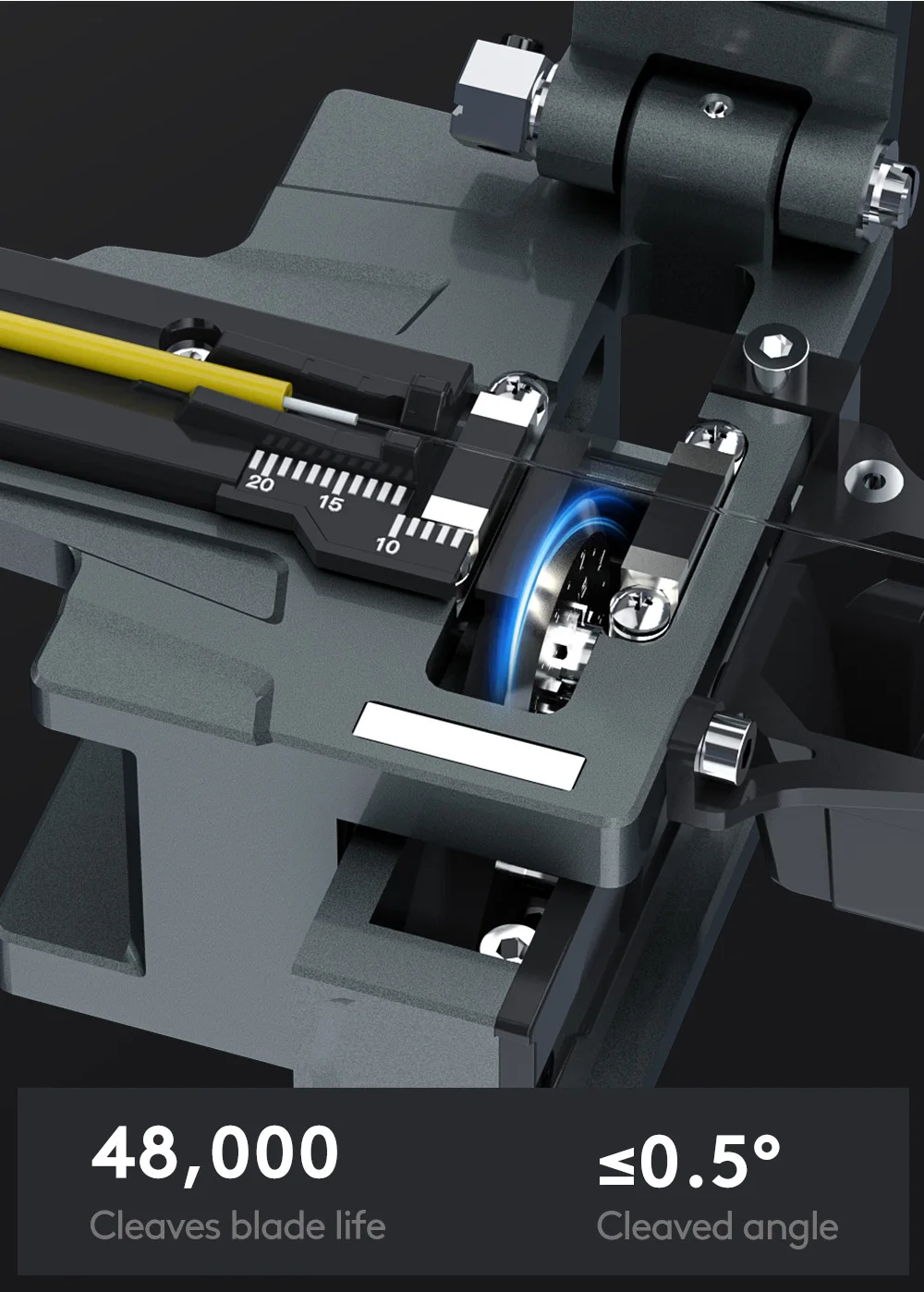

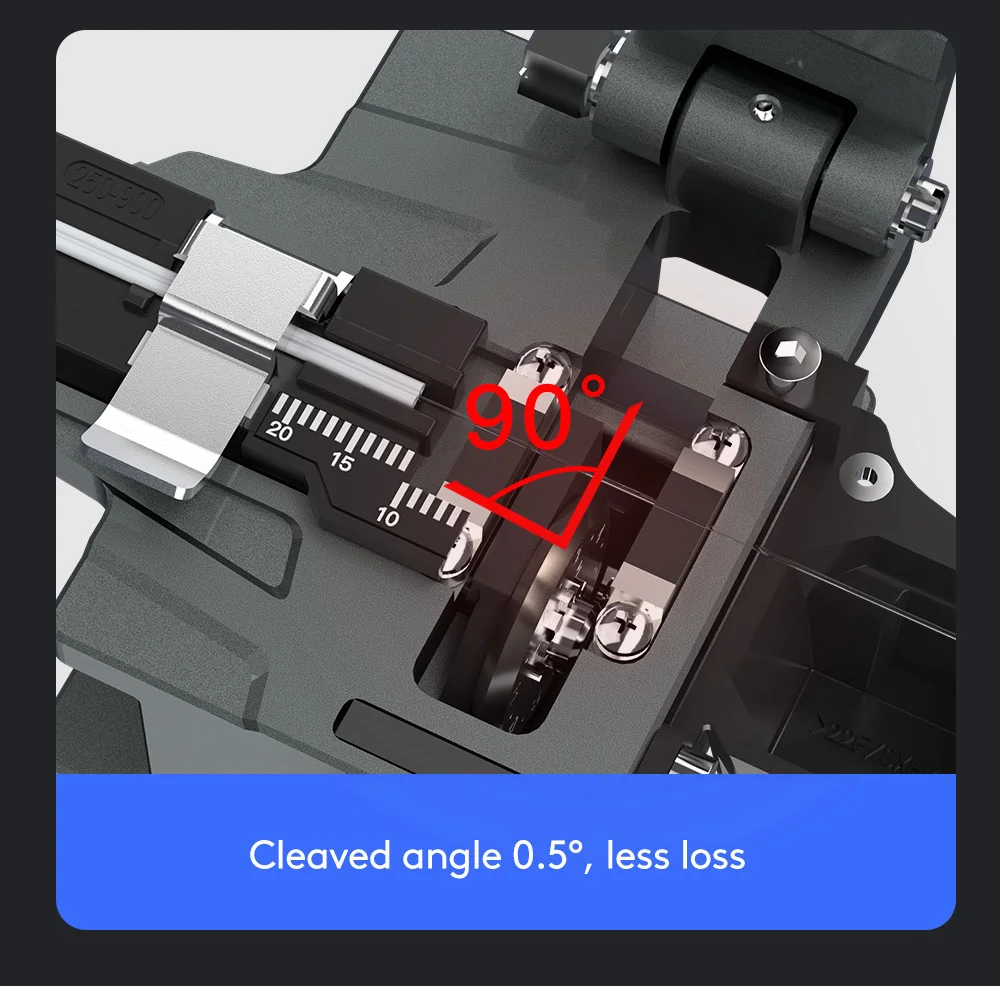

Typical Cleaved Angle | Less than 0.5° |

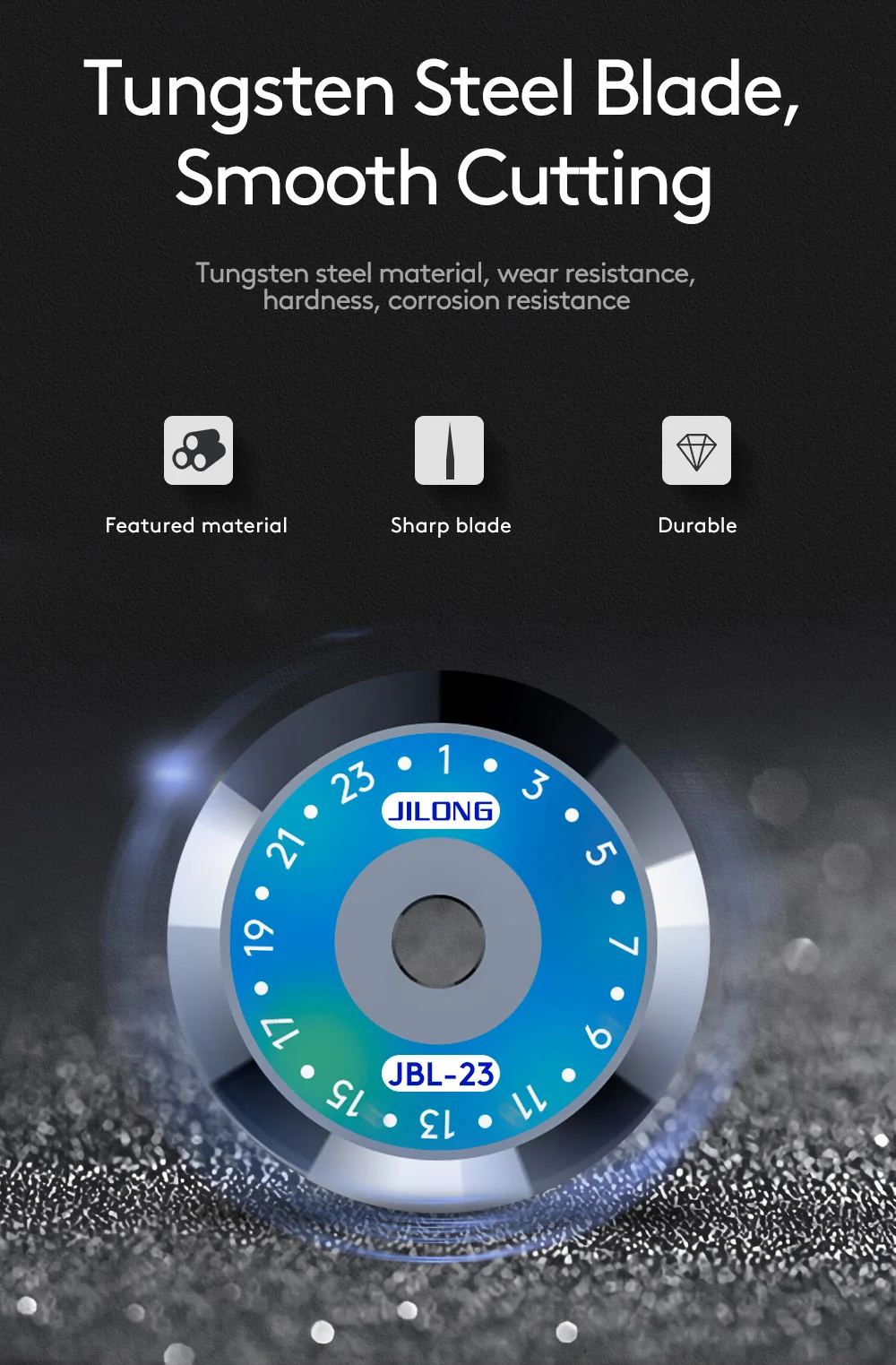

Typical Blade Life | Total 48,000 fiber cleaves (replaceable) |
Off-cut Collector | Pre-fitted |
Type of Offcut Bin | Manual |

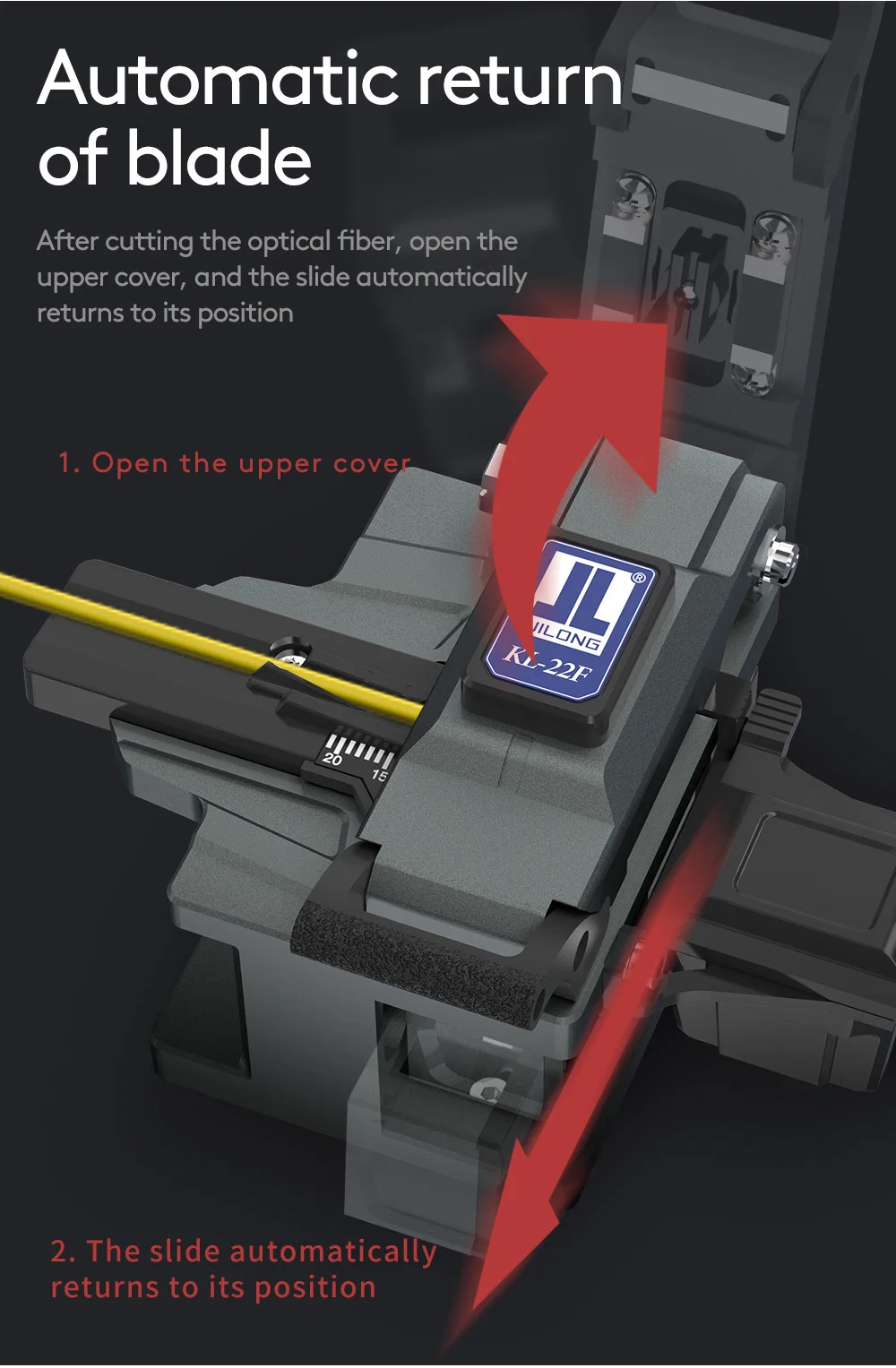

Auto Return | Pre-fitted |
Dimension | 55W *55D*50H(mm) |
Weight | 235g |

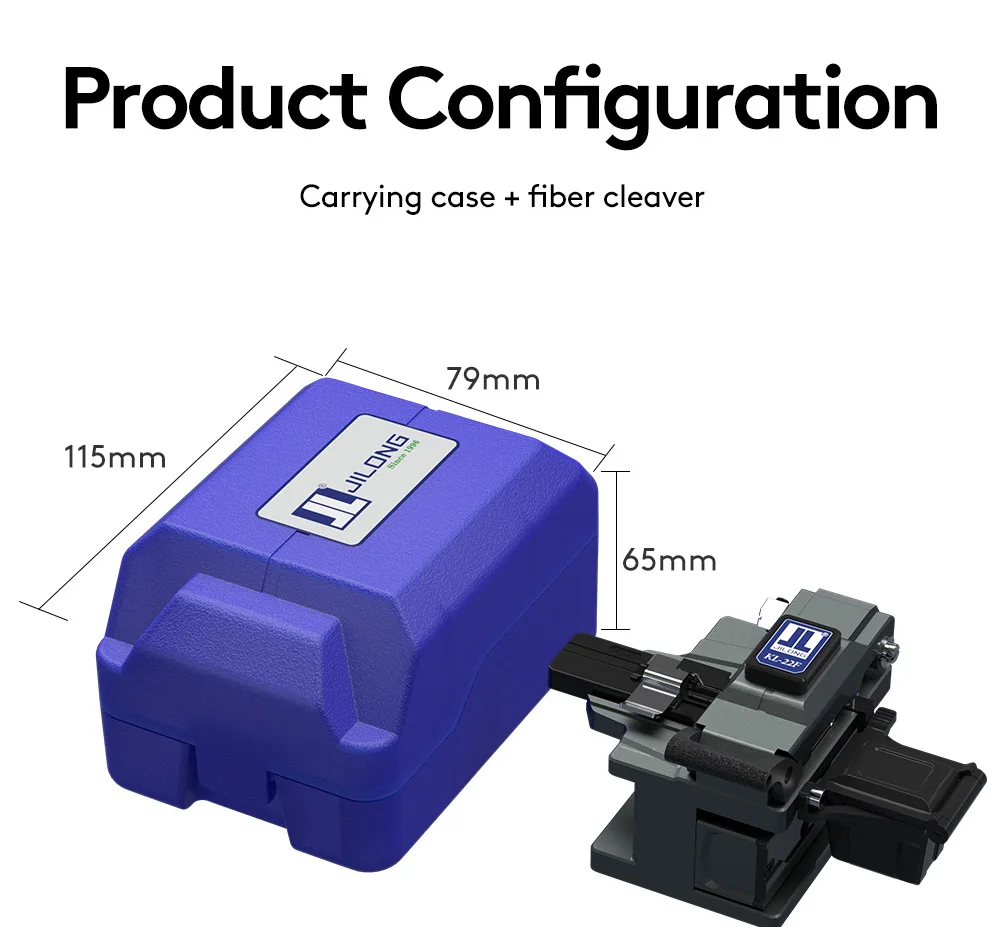

Standard Package:
QTY | CATEGORY |
1 | High Precision Fiber Cleaver KL-22F |

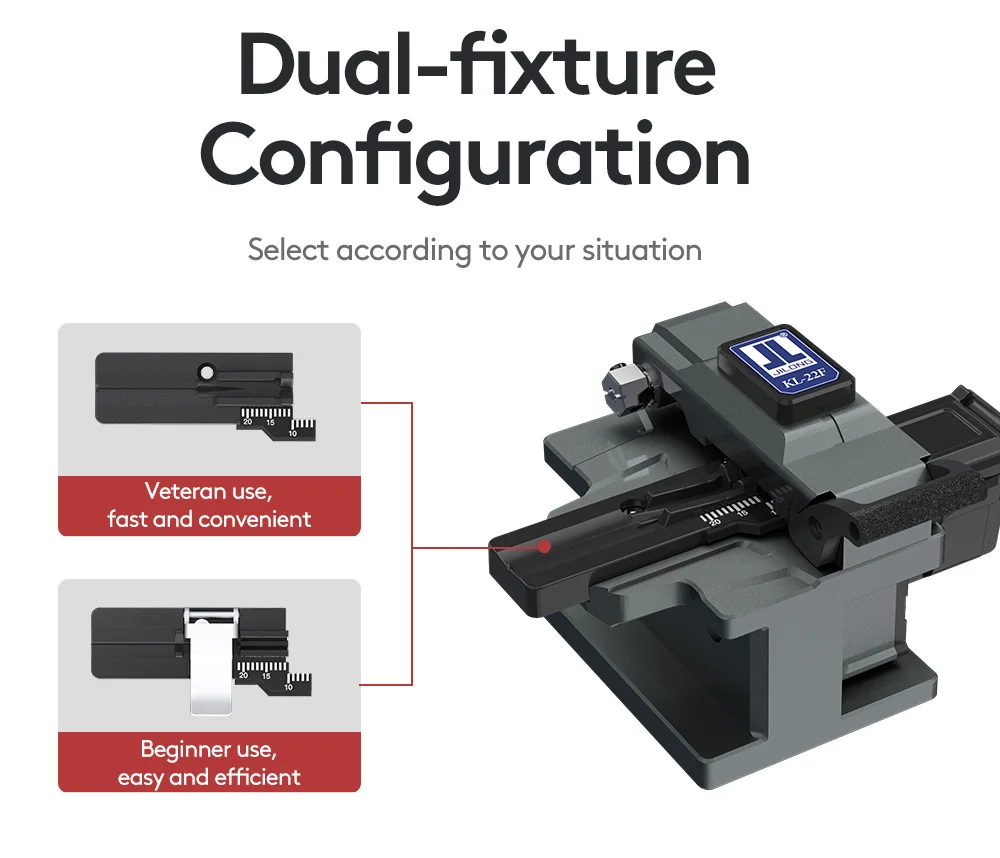

1 | Fiber Holder Type 1 |
1 | Fiber Holder Type 1 |

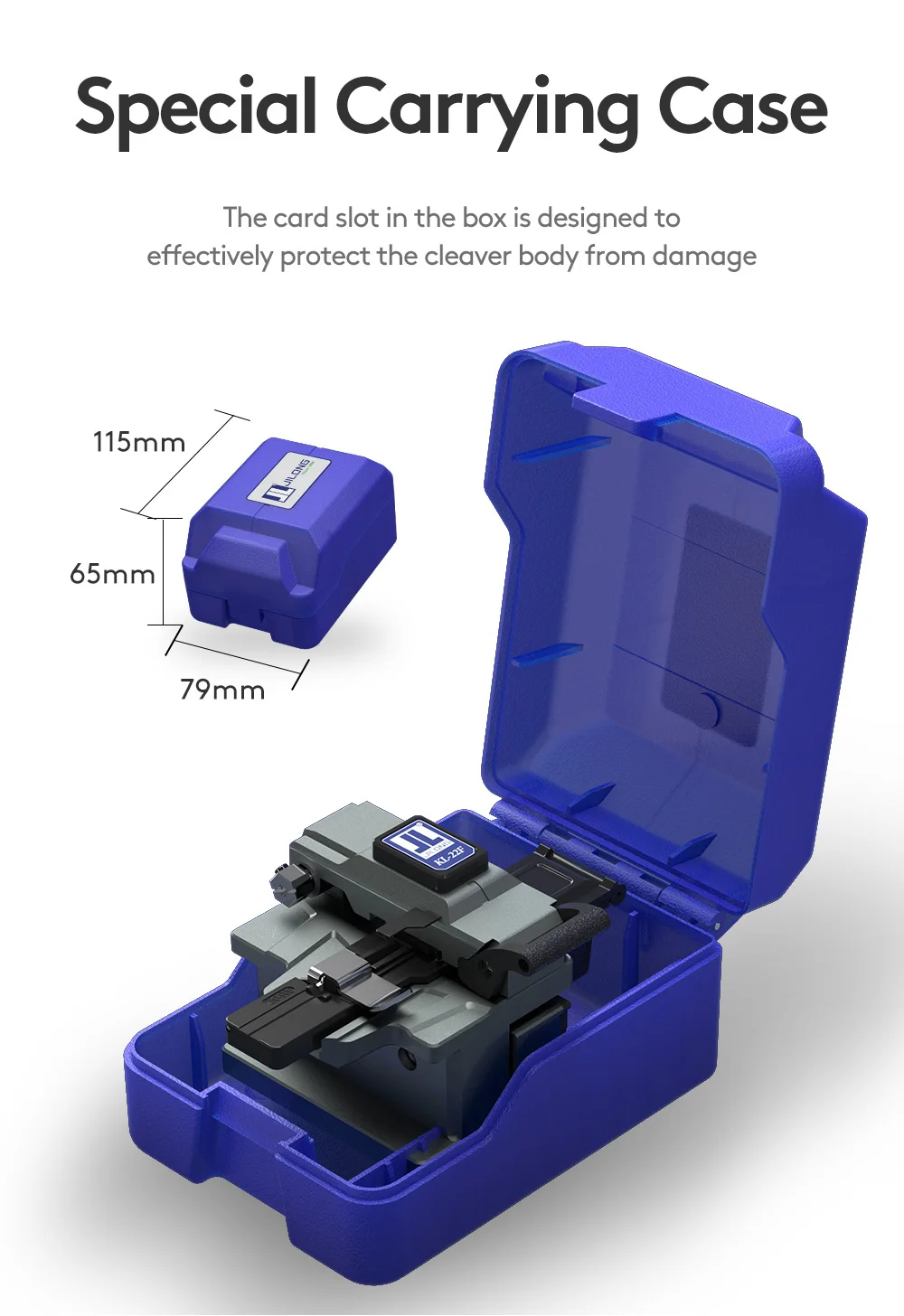

1 | Carry Case |
1 | Quick Reference Guide |
