NEMA34 8.5NM Stepper Motor Closed Loop Driver +Power Supply Hybrid Servo CNC Kit
ITEMS DESCRIPTION
NEMA34 8.5NM Closed-loop Stepper Motor Driver Encoder 6A 2ph Hybrid Servo Kit

1. Package Included :

1 x Nema34 8.5NM Closed-loop stepper
1 x Stepper Driver
1 x Power Supply
1 x 3meter Encoder Cable & Power Cable

Power Supply :
Model S-400-60
DC output voltage 60V
Rated Output current 6.5A
Output max Power 400W
AC input voltage range 90~132VAC/180~264VAC 47~63Hz

2. Driver HSC86H Specifications :

Input voltage 24~70VAC/30~100VDC
Continuous current 7.5A
Maximum pulse frequency 200K
Default communication rate 57.6Kbps
Protection Over current action value 10.8~13.2A
Over voltage action value 13VDC
Boundary dimension(mm) 150*97.5*53
Weight 580g
Service environment Occasion Avoid oil mist, dust and corrosive gases
Working temperature 0~7 Degree Celsius
Storage temperature -20~+80 Degree Celsius
Humidity 40~90%RH
Cooling way Natural cooling or forced cooling

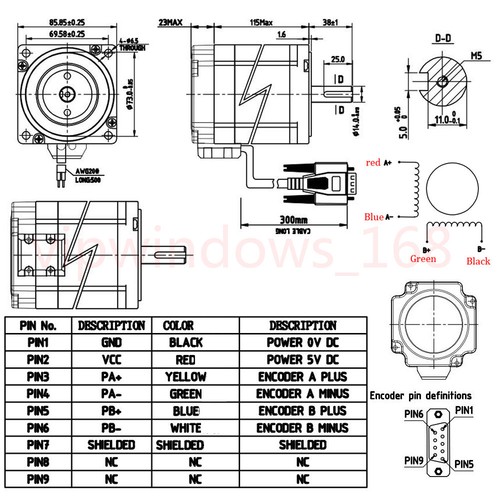

3. Motor Specifications :

Holding torque: 4.5N.m 8.5N.m 12.5N.m
Step angle 1.8* 1.8* 1.8*
Position accuracy 1.71~1.89* 1.71~1.89* 1.71~1.89*
Number of phase 2 2 2
Temp rise(Max) 80 Degree Celsius 80 Degree Celsius 80 Degree Celsius
Dielectric strength 500VDC 500VDC 500VDC
Insulation resistance 100MOhm(500VDC) 100MOhm(500VDC) 100MOhm(500VDC)
Radial play Max 0.025mm(Load 450g) Max 0.025mm(Load 450g) Max 0.025mm(Load 450g)
Axial play Max 0.075mm(Load 920g) Max 0.075mm(Load 920g) Max 0.075mm(Load 920g)
Insulation class B B B
Current/phase:A 6 6 6
DC resistance:Ω 0.27~0.33 0.522~0.638 0.675~0.825
Inductance /phase:mH 3.12~4.68 3.92~5.88 9.6~1.44
Inertia:Kg.cm2 4.5 3.2 12
Weight:Kg 3.6 4.3 5.1

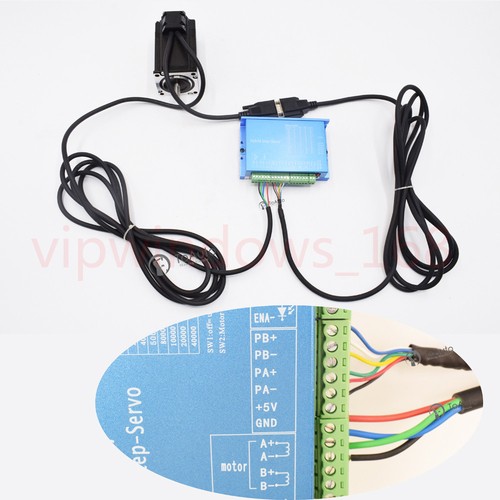

Note:there is some different change on the cable. please check the picture as below.and the connection is the same as before.
4. Advantage
It has the advantages of greater torque, lower heating and better operation stability. This series of closed-loop stepper motors are more stable and reliable, and have better performance parameter batch consistency because of the large scale automatic production line and strict quality management system.
5. Application field
Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.
6. Technical Support
All Products from the factory will be provided for one year warranty after sales and lifetime technical support.
