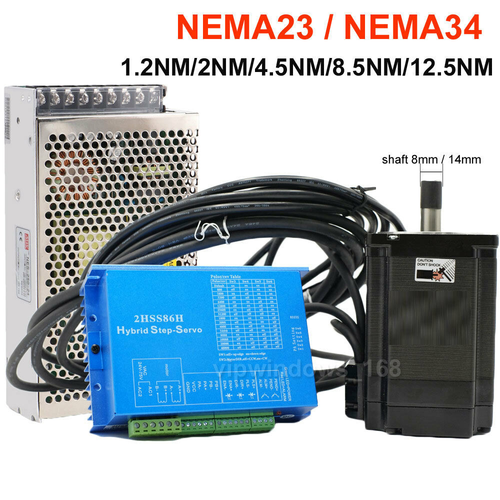

Nema23 Nema34 Closed-loop Stepper Motor 1.2Nm~12.5Nm Hybrid Servo Driver CNC Kit

Package Included :

1 x Closed-loop stepper Motor
1 x Stepper Driver
1 x 3meter Encoder Cable & Power Cable

1 x Power Supply ( power supply will be shipped upon your choice )

Motor Specifications :

Model 57HS56ES 57HS76ES 86HS80ES 86HS118ES 86HS156ES
Holding torque: 1.2Nm 2Nm 4.5N.m 8.5N.m 12.5N.m
Step angle 1.8* 1.8* 1.8* 1.8*
Position accuracy 1.71~1.89* 1.71~1.89* 1.71~1.89* 1.71~1.89*
Number of phase 2 2 2 2
Temp rise(Max) 80 Degree Celsius
Dielectric strength 500VDC
Insulation resistance 100MOhm(500VDC)
Radial play Max 0.025mm(Load 450g)
Axial play Max 0.075mm(Load 920g)
Insulation class B
Current/phase:A 4 5 6 6 6
DC resistance:Ω 0.396~0.484 0.351~0.429 0.27~0.33 0.522~0.638 0.675~0.825
Inductance /phase:mH 1.12~1.68 0.96~1.44 3.12~4.68 3.92~5.88 9.6~1.44
Inertia:Kg.cm2 0.28 0.48 4.5 3.2 12
Weight:Kg 0.72 1 3.6 4.3 5.1


Driver Specifications :

Model HSC57 HSC86H
Input voltage 24~60VAC 24~70VAC/30~100VDC
Continuous current 4.5A 7.5A
Maximum pulse frequency 200K
Default communication rate 57.6Kbps
Occasion Avoid oil mist, dust and corrosive gases
Protection Over current action value 1.18~1.32A Over current action value 10.8~13.2A
Over voltage action value 70VDC Over voltage action value 13VDC
Boundary dimension(mm) 118*75.5*34 150*97.5*53
Weight 300g 580g
Working
temperature		 0~70 Degree Celsius 0~7 Degree Celsius
Storage
temperature		 -20~+80 Degree Celsius -20~+80 Degree Celsius
Humidity 40~90%RH 40~90%RH
Cooling way Natural cooling or forced cooling Natural cooling or forced cooling

4. Advantage
It has the advantages of greater torque, lower heating and better operation stability. This series of closed-loop stepper motors are more stable and reliable, and have better performance parameter batch consistency because of the large scale automatic production line and strict quality management system.
5. Application field
Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.
6. Technical Support
All Products from the factory will be provided for one year warranty after sales and lifetime technical support.
