Gimbal Bearing Installer Puller Alignment Tool Hinge Pin For Boat Alpha Bravo
ITEM DESCRIPTION
- 【WIDE APPLICATION】- Engine Alignment Bar Toolfor Mercruiser Alpha, Alpha 1, MR, bravo's, OMC cobra's and Volvo; Hinge Pin Tool for all marine push plate tail drives: Alpha One, Alpha One Gen II, BRAVO I, II & III along with MC-1, R & MR. Replaces 91-78310, 18-9861 & 90200.
- 【ALIGNMENT CHECK】- This Align Tools can be used to check engine coupler alignment with the gimbal bearing and drive which reduce damage on the bearing, drive and coupler. (Note: Need to drill the hole in the alignment tool for correct lineup. )
- 【EASY TO USE】- Separated design, convenient to carry and store. The seal bellow expander tool will work as the one-piece tools after assembling.
- 【STURDY & DURABLE】- Made of superior material steel which have an unparalleled lifespan with great durability.
- 【SATISFACTION GUARANTEE】- If you are not satisfied with Veemaster products, simply asked money back guarantee with 12 months warranty. No worry about buying!
Function
| | |
|---|
Gimbal Bearing Puller Remover This bearing puller remover can easily remove the gimbal bearings on bell housings by turning the end of the tool with a wrench. | Bearing Installer and Enigne Alignment Tools Used to install the new gimbal bearing back, set the bearing on the installer than insert the installer in engine. Also it can be used to check engine coupler alignment with the gimbal bearing and drive. | Hinge Pin Tool This tool is for removing or installing the hinge pins on the port and starboard sides of Mercruiser Stern Drive bell housings. |
Built to Last
| | |
|---|
Premium Material
- High quality steel used with Multi-process produced.
- Finished with black oxide coated.
- Particularly hardened for extra strength.
- Impact protected
| Great Quality
- These tools are durable, rustproof and anti-corrosion.
- Service for a much longer lifetime.
| Convenient Storage The tool set includes an eyebolt which gives you the option of hanging the tool. |

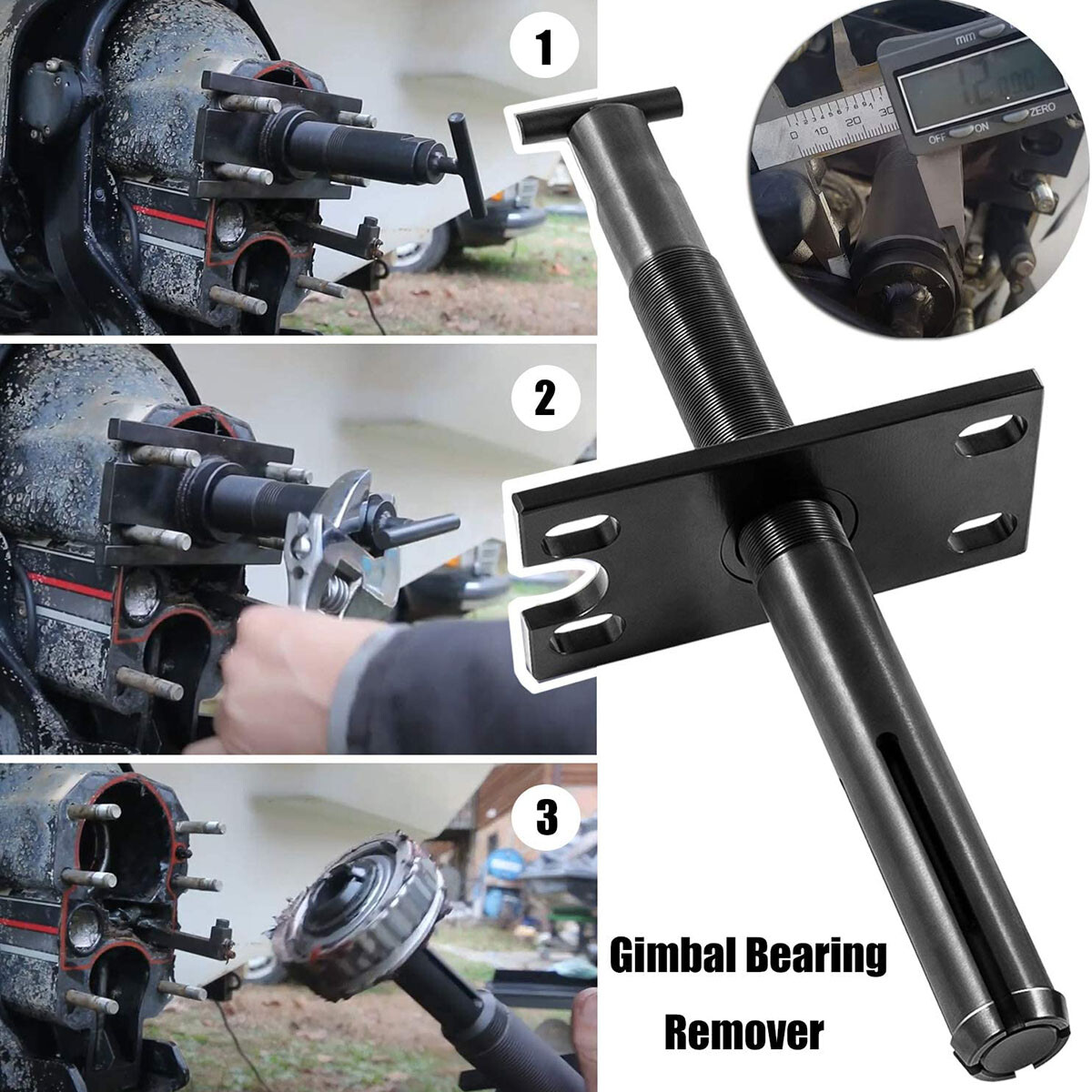

Easy removal guide
| | | |
|---|
Step 1 Plug in the remover to the bell housing. | Step 2 Insert the blind hole puller into the remover, the puller will tightly lock bearing’s inner ring. | Step 3 Turn the end of the tool with a wrench, you could easily pull the bearing out. | Step 4 Pull out the tool, the gimbal bearing is pulled out too. DONE. |

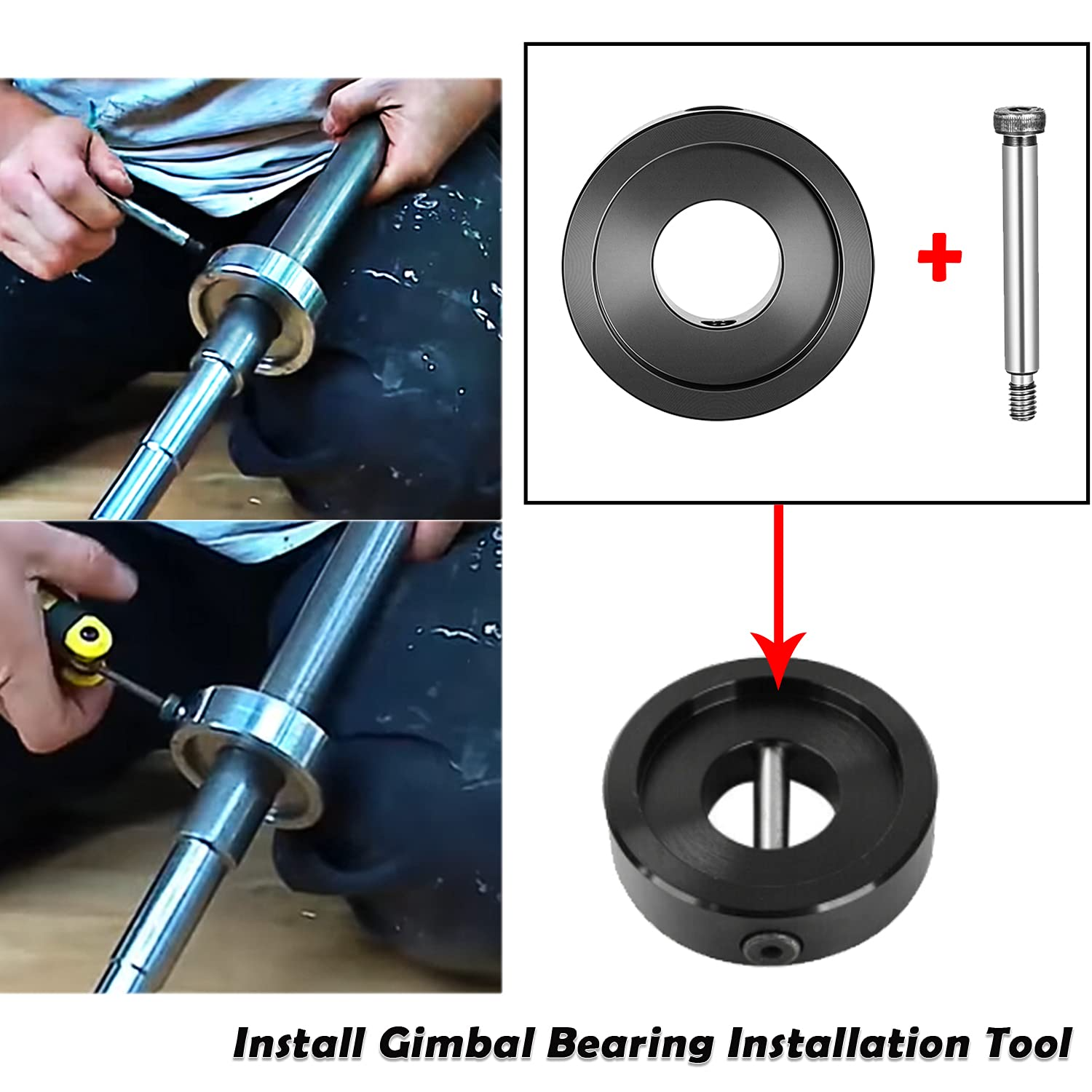

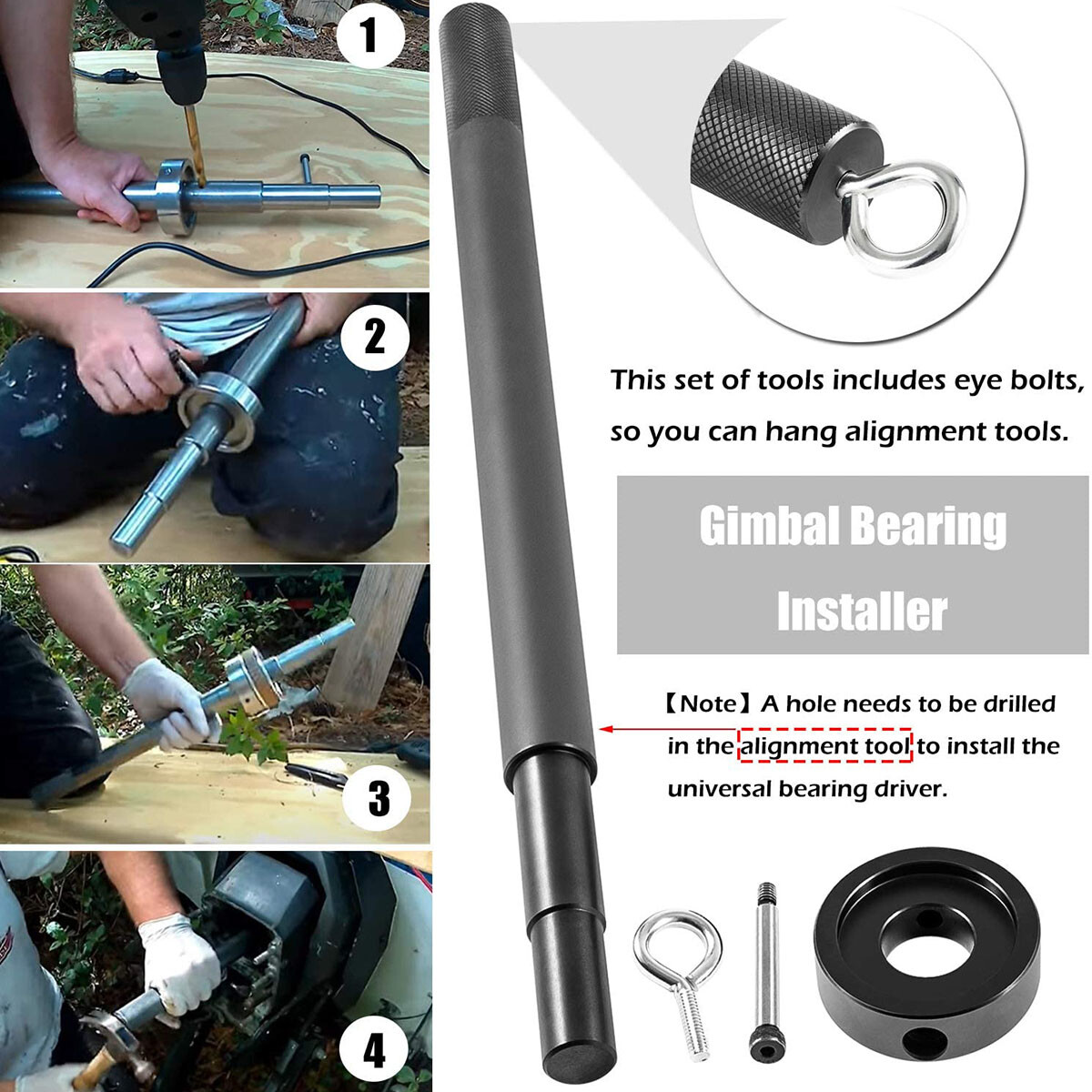

Easy installation guide
| | | |
|---|
Step 1 Drill a hole in the alignment tool to install the universal bearing driver. | Step 2 Install the bearing drive with the screw and place gimbal bearing upon the driver. | Step 3 Push installer in, make sure the bearing is aligned. | Step 4 Use a hammer to pound the installer head, ensure the gimbal bearing attach the bottom. |
