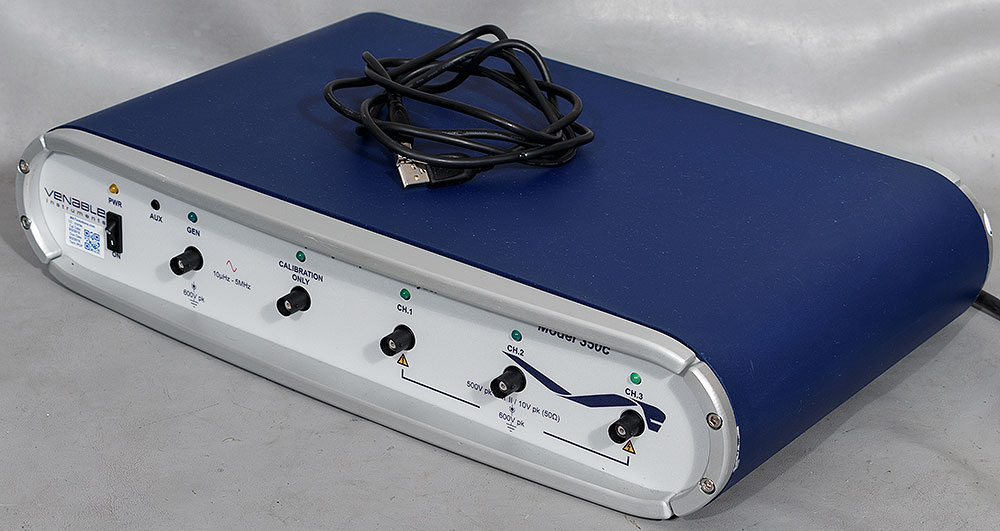

Venable Systems 350c 10 µHz-5 MHz Multi-channel FRA Frequency Response Analyzer
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Venable Instruments and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit ships fully tested and guaranteed to work for 30-days, parts and labor, excluding freight. We do not currently have a software license but will purchase it when the purchase of the unit is made. The choice of Venable System's Version 5 or 6 is given.

The Unit's Serial Number Tag Reads:
Serial Number: 374799

Features:

  • Integrated Isolation - All Venable instruments have a built-in floating oscillator and channel isolation to 600 V pk, elimating the need for additional injection transformers or voltage reduction probes.
  • Modular, Scalable Design - Venable is the only manufacturer with a modular architecture purposely designed for fast and cost-effective upgrades.
  • Stability Analysis Software - The 350c Series includes Venable's Stability Analysis Software, which supports modeling the AC frequency response of circuits and transfer function math capability.

    • Description:
    The Venable Model 350c is the 3 channel successor of the original workhorse Model 350a/b that launched in 1986 and established Venable Instruments as a market leader. The contemporary 350c Series features a third channel, allowing the user to measure more transfer functions simultaneously, such as modulator, feedback and overall loop gain with one sweep. The 350c is the only frequency response analyzer in the industry that can measure absolute phase, utilizing an internal reference channel.

    Specifications:
    System Frequency Range: 10 µHz to 5 MHz (Square wave to 1 MHz)
    Generator Waveforms: Sine, Square
    Generator Amplitude, AC: 1 mV to 10 V pk
    Generator Amplitude, DC: ±10 V, 10 mV step
    Generator Modes: Single frequency, log/lin sweep, sweep with software controlled steps
    Generator Output Config.: Floating to ±600 V pk
    Oscillator "Servo": Software controlled dynamic amplitude monitoring and on-the-fly adjustment
    Analyzer Channels: 3, isolated, floating to ±600 V pk
    Measurement Technique: Narrowband DFT
    Integration Method: 1 - 9999 cycles, 20 msec - 100 Ksec time
    Input Coupling: DC with Automatic Offset Cancellation
    Input Range: 10 mV pk to 500 V pk in 11 ranges
    Max. Input: 500 V pk
    Input Isolation (Chassis): ±600 V pk
    Meas. Power Supply I/O Impedance: Yes with IOZ option, 50 A or 100 A (option not believed to be included but may be purchaseable)
    Display: Windows-based graphics; scalable and easy to read gain/phase/impedance plots
    Stability Analysis and Loop Optimization: Proprietary K-Factor bsaed, application specific software, menu-driven algorithms for flexible analysis, manipulation, and calculation of data (RLC, IOZ optional - not believed to be included)
    OS Support: Windows 7, 8, 10
    Additional Measurement Options (not believed to be included): Component test; I/O Impedance (to 100 A), low-freq PFC, RLC, range of Bode Boxes, Rack Mount Kit
    PC Interface: USB 2.0, IEEE-488 standard
    Power Requirements: 90 to 264 VAC, 48 to 62 Hz, 30 VA
    Dimensions: 17" W x 10" D x 3.5" H
    Weight: 14 lbs.

    For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $75.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination.

    Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.:

    (1) Are you the end-user of this item?

    (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name.

    (3) What is the ultimate country destination?

    10/30/21
