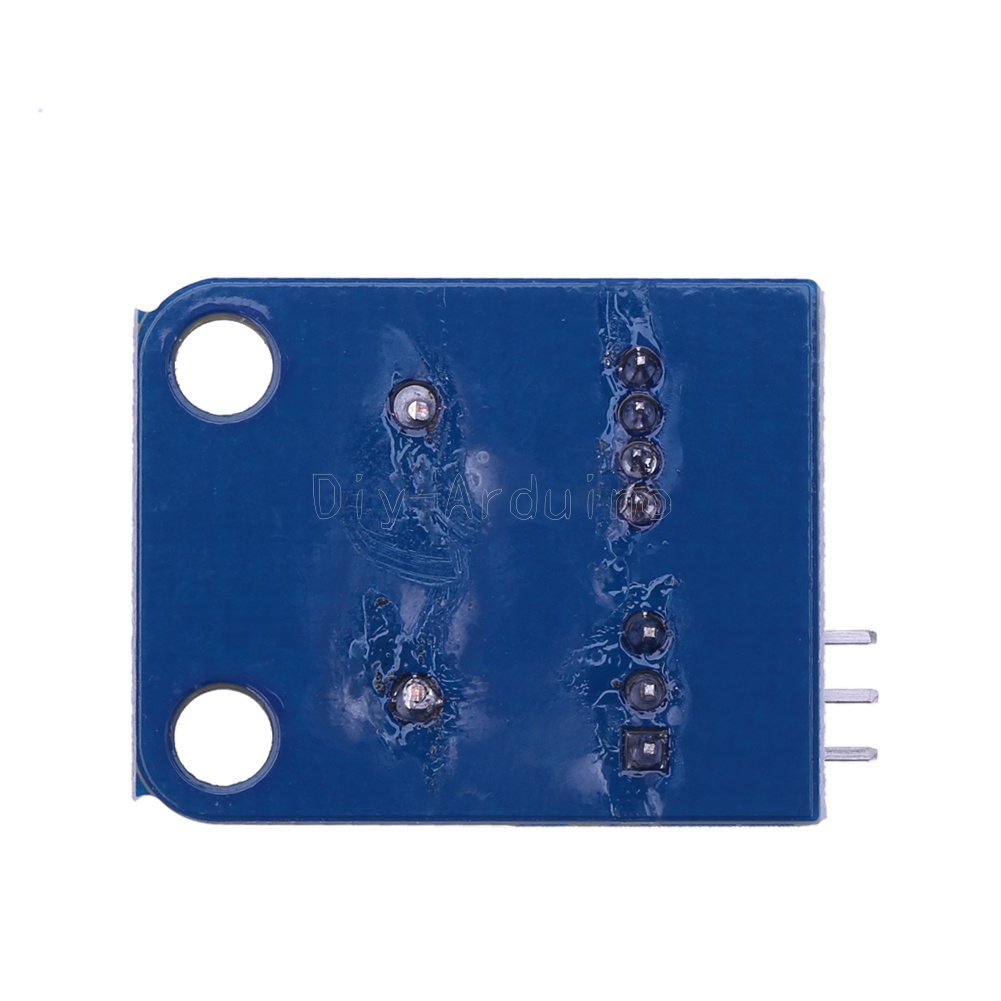

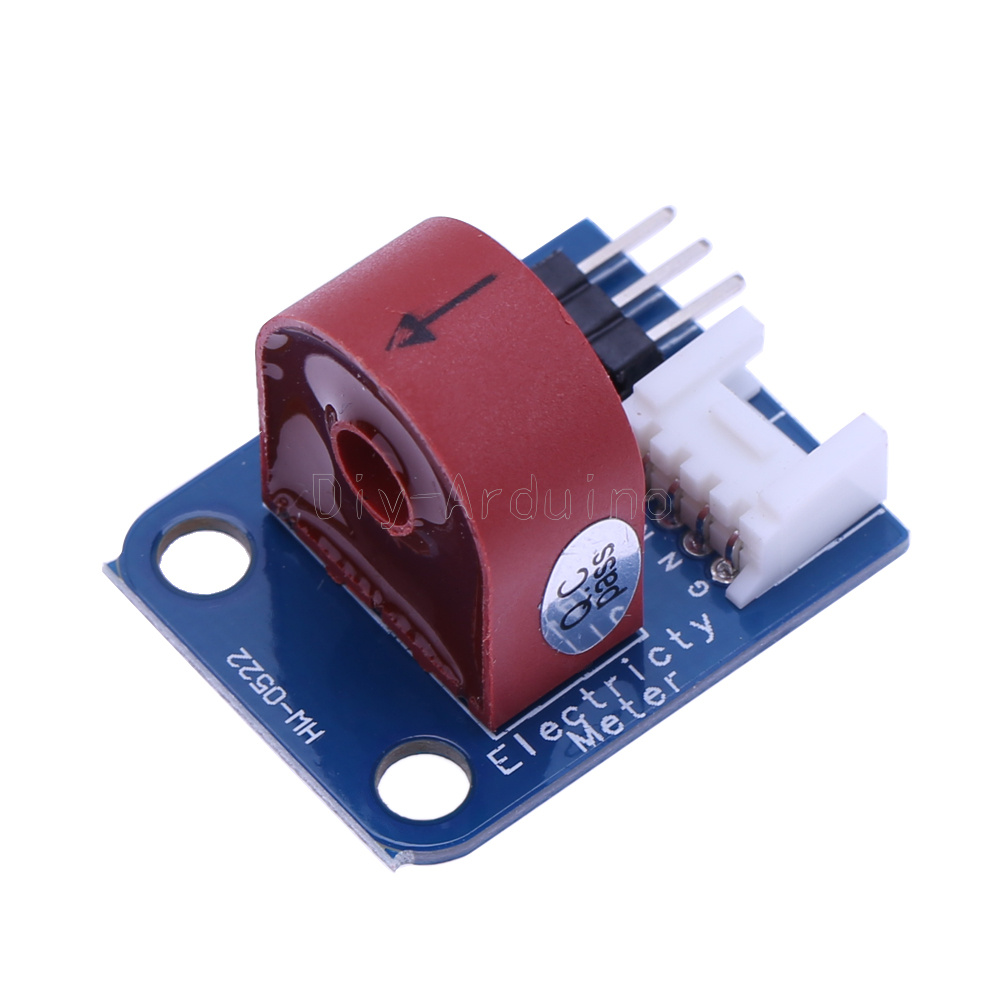

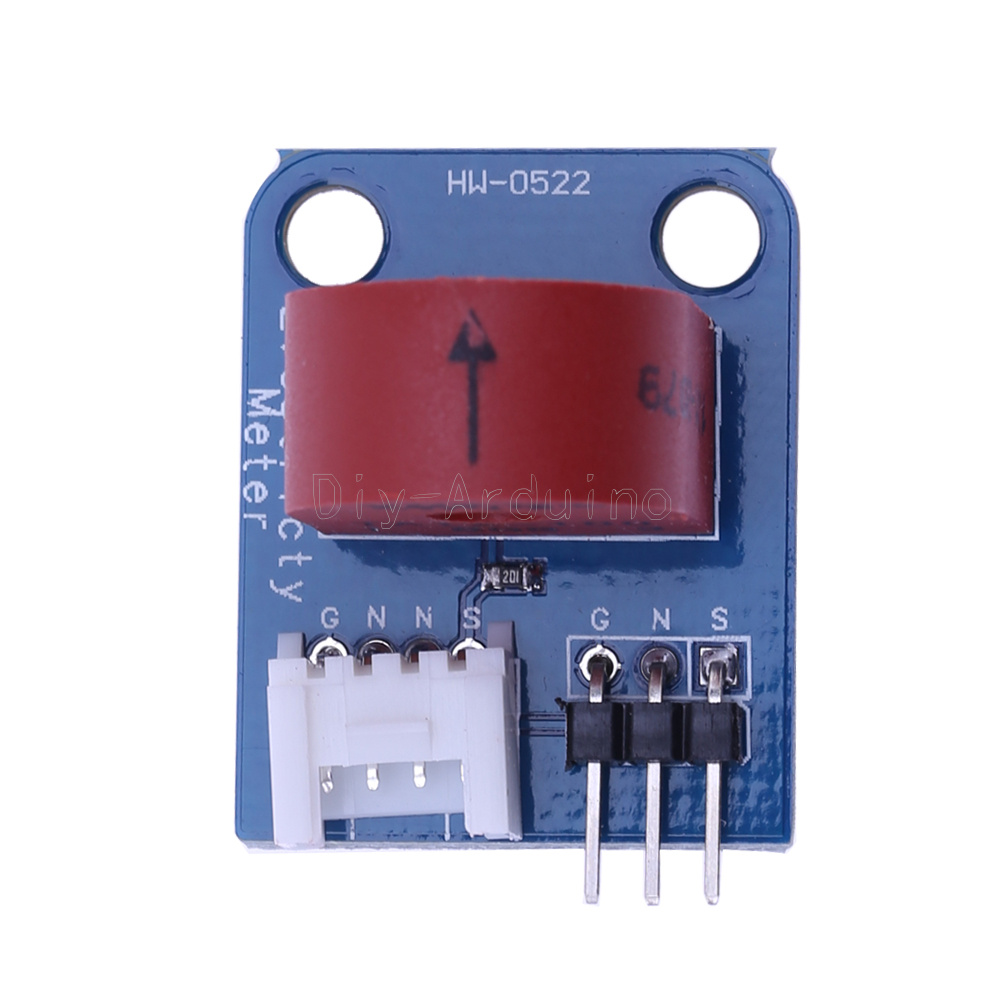

0~5A Analog Current MeterAmmeter Sensor AC Board For Arduino PIC AVR MCU

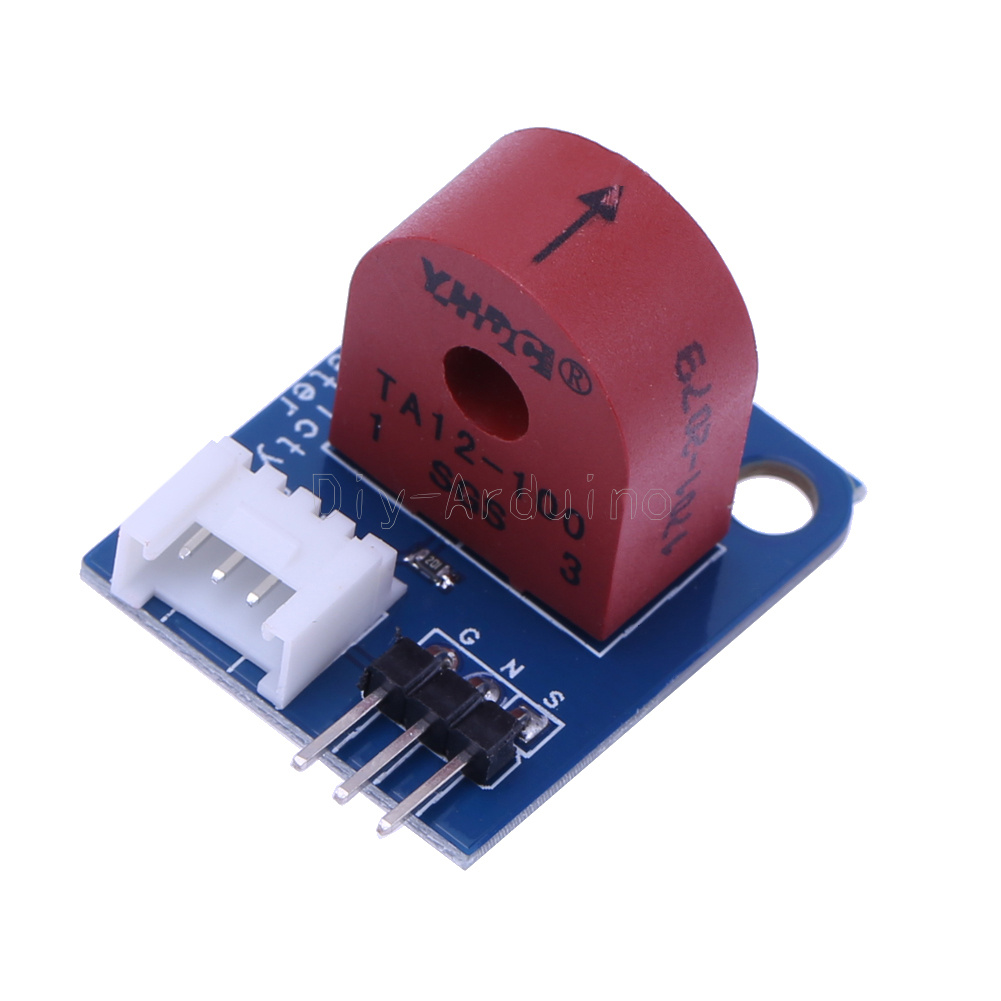

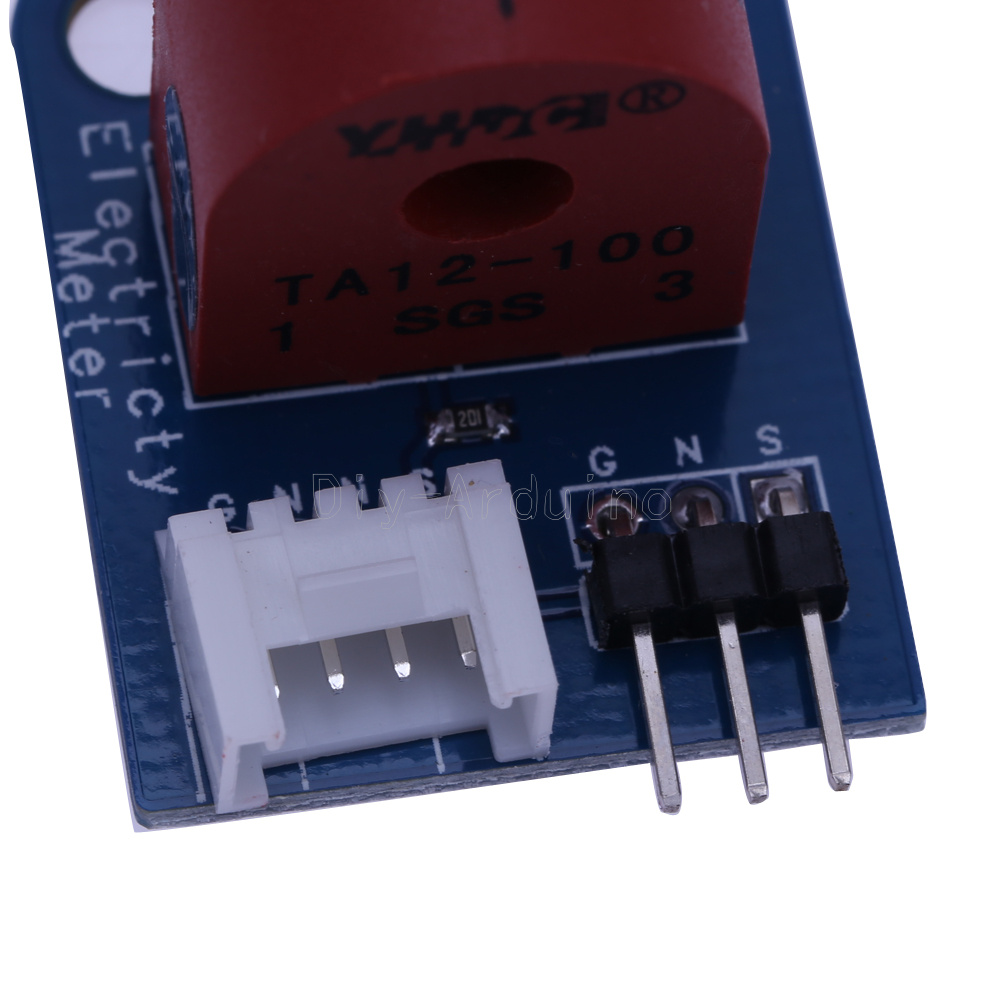

This electricity sensor is based on TA12-100 current transformer, which can transform AC signals of large current into small amplitude signals. The maximum current that can be detected can reach 5A, and the present current signal can be read via analog I / O port.

SPECIFICATION:

Type

Sensor Brick

Interface

3PIN

Power Supply

5V

Board Size

30 × 24 × 1.6mm

Weight

25.00g

Electrical characteristics:

Parameter

Min.

Typical

Max.

Unit

Transformation coefficient

-

1000:1

-

-

Input current

0

-

5

A

Output current

0

-

5

mA

Sampling resistor

-

200

-

?

Sampling voltage

0

-

1

V

Working frequency

20

-

20000

Hz

Working temperature

-55

-

85

?

Dielectric strength

-

6

-

KAC/1min






Package including:

1PCS Analog Current Meter Module AC 0~5A Ammeter Sensor Board for Arduino
