Product Overview
USB Ethernet Mach3 CNC 6 Axis Motion Control System Engraving Machine Control
Detail

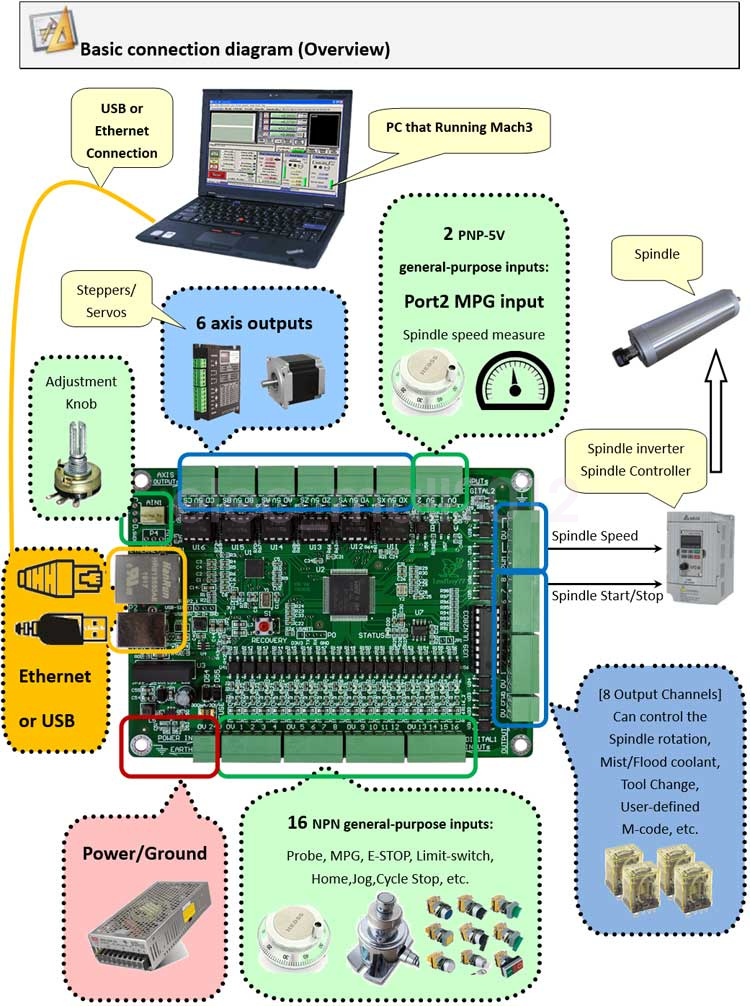

Both USB/ Ethernet (Ethernet) dual interface
Fast Ethernet interface, built-in network transformer isolation, supports long-distance wired connection. With a wireless router, it can realize the wireless connection between the PC and the motion control board. Supports 6-axis linkage, can output 500KHz at the same time, and connect to servo/stepping. Any one axis can be configured as a pulse spindle.
Fast Ethernet interface, built-in network transformer isolation, supports long-distance wired connection. With a wireless router, it can realize the wireless connection between the PC and the motion control board. Supports 6-axis linkage, can output 500KHz at the same time, and connect to servo/stepping. Any one axis can be configured as a pulse spindle.
2 real-time electronic handwheel (MPG) input ports, can connect 2 electronic handwheels at the same time. When the MACH3 electronic handwheel is set in Multi-Step mode, it has the same real-time performance as the CNC machining center and runs smoothly. There is no delay in the control board, and the performance of the mechanical system is fully utilized.
With real-time jog, there is no delay in the control panel, the motor responds quickly and flexibly, and the experience is zero delay.
18 general-purpose digital input points, corresponding to 18 LED indicators, self-defining configuration function in MACH3.
7 general-purpose digital output points, configurable as: spindle start/stop/coolant/custom M code VBasic programming control
1 PWM output point, 1 0-10V analog voltage output, 1 0-5V analog voltage output, used for speed regulation of spindle motor: PWM pulse width speed regulation / 0-5V or 0-10V inverter regulation speed.
Two analog inputs are used to adjust the processing speed/jogging speed/spindle speed.
Two analog inputs are used to adjust the processing speed/jogging speed/spindle speed.
1 status indicator, which can prompt USB/Ethernet (Ethernet) connection, various statuses are clear at a glance while the motor is running.
It adopts 6 dual-channel 10Mhz high-speed optocouplers, 27 general optocouplers, totaling 33 optocouplers, and isolates all inputs/outputs. Onboard an isolated power supply, high-cost design provides complete anti-interference performance and complete safety protection.
168M speed, without PC intervention, the signal is processed independently by the motion control card, ensuring that you have real real-time performance and reliability.
Support all versions of Mach3. It supports all versions (32-bit/64-bit) from Windows XP to Windows 10, and no driver is required. All Windows versions are plug-and-play.

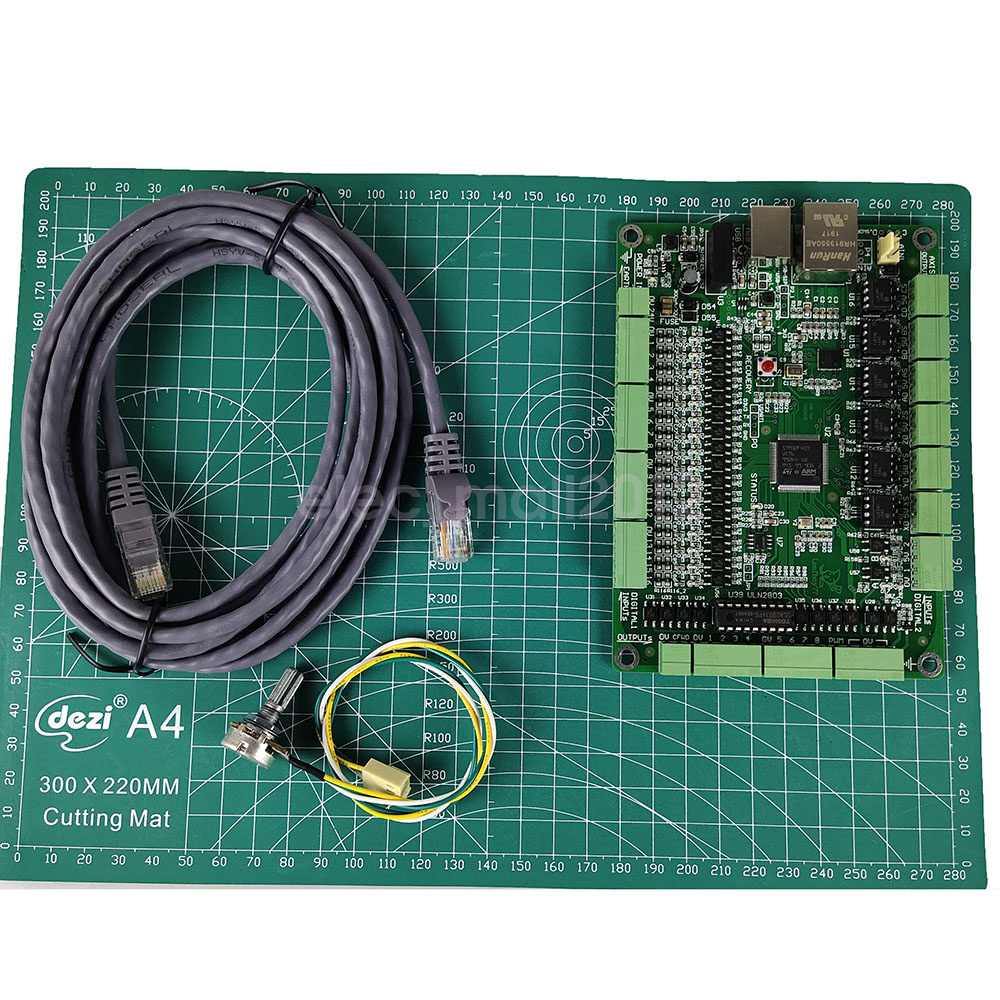

Package include:
Control card* 1
USB cable* 1
Network cable* 1
1 set of terminals and accessories
