Optical Fiber Cleaver TAWAA FC-30 Double Fixture Standard Holder. Single Fiber: 250μm, 900μm, 3.0mm
Product feature：
Handheld optical fiber cleaver FC-30
TAWAA FC-30 is a traditional bench top cleaver.simple and easy to use. It isavailable with a fibre offcut collector. it is applicable to 250um. 900um,
3.0mm fiber cable and flat cable. work efficiency and high precision cleavedangle of typical 0.5 degree. The blade provides over 48,000 fiber cleaves by easy and simple blade position selection.
Product Features：
l Blade life up to 48,000 times
l Typical cutting angle ≤0.5 degree

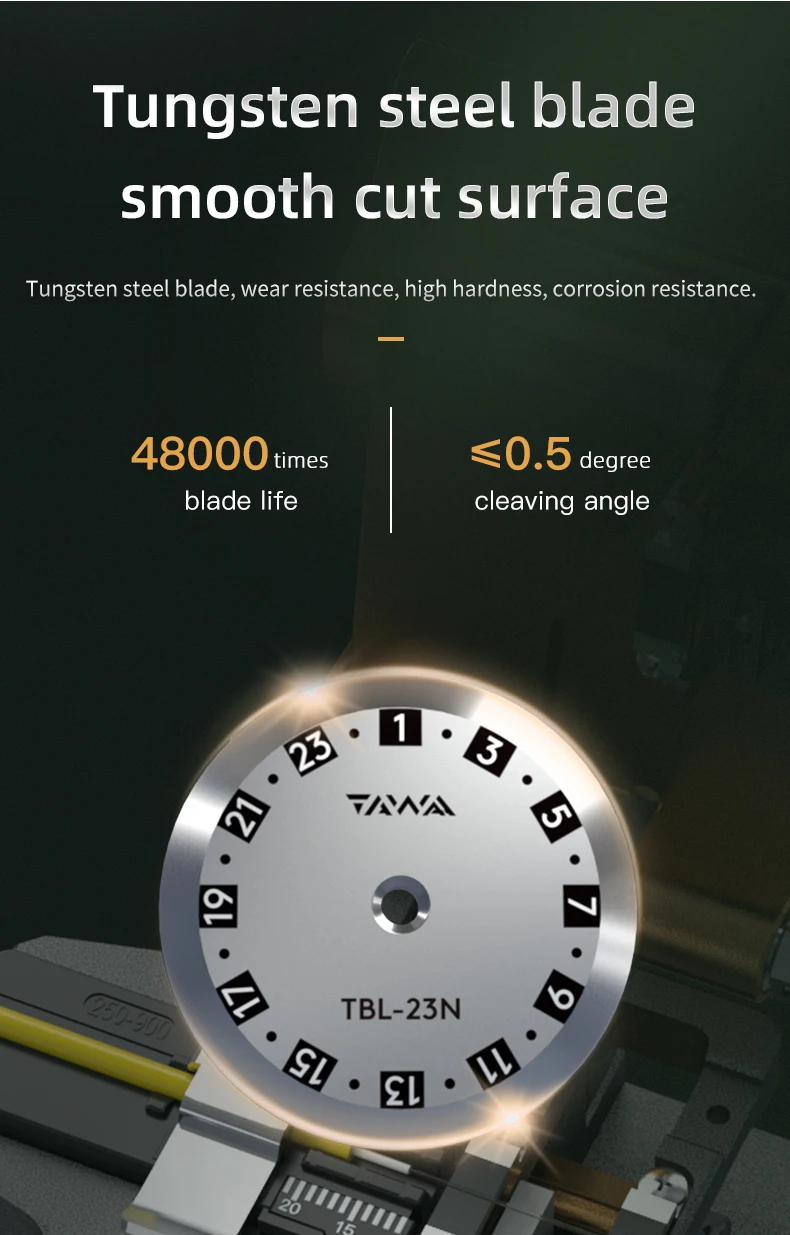

l Tungsten steel blade, wear resistance,high hardness, corrosion resistance
l Traditional bench top design, simple andeasy to use

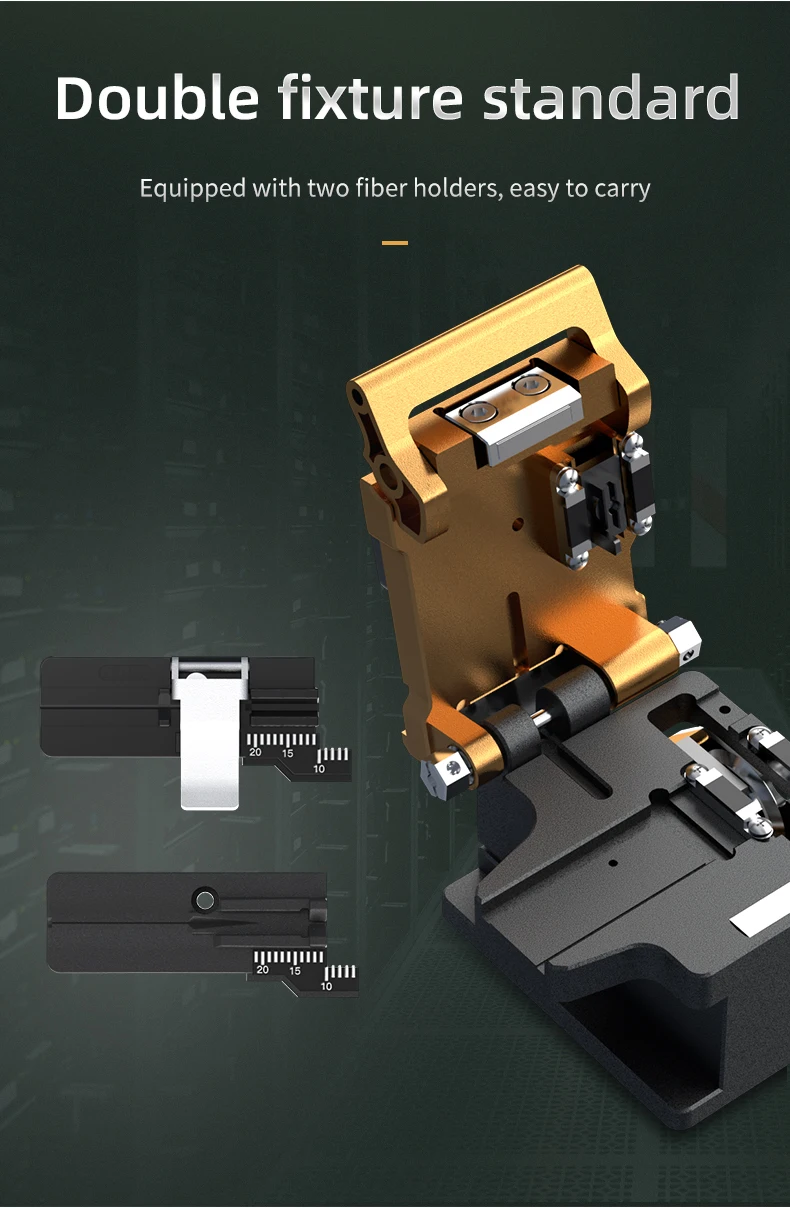

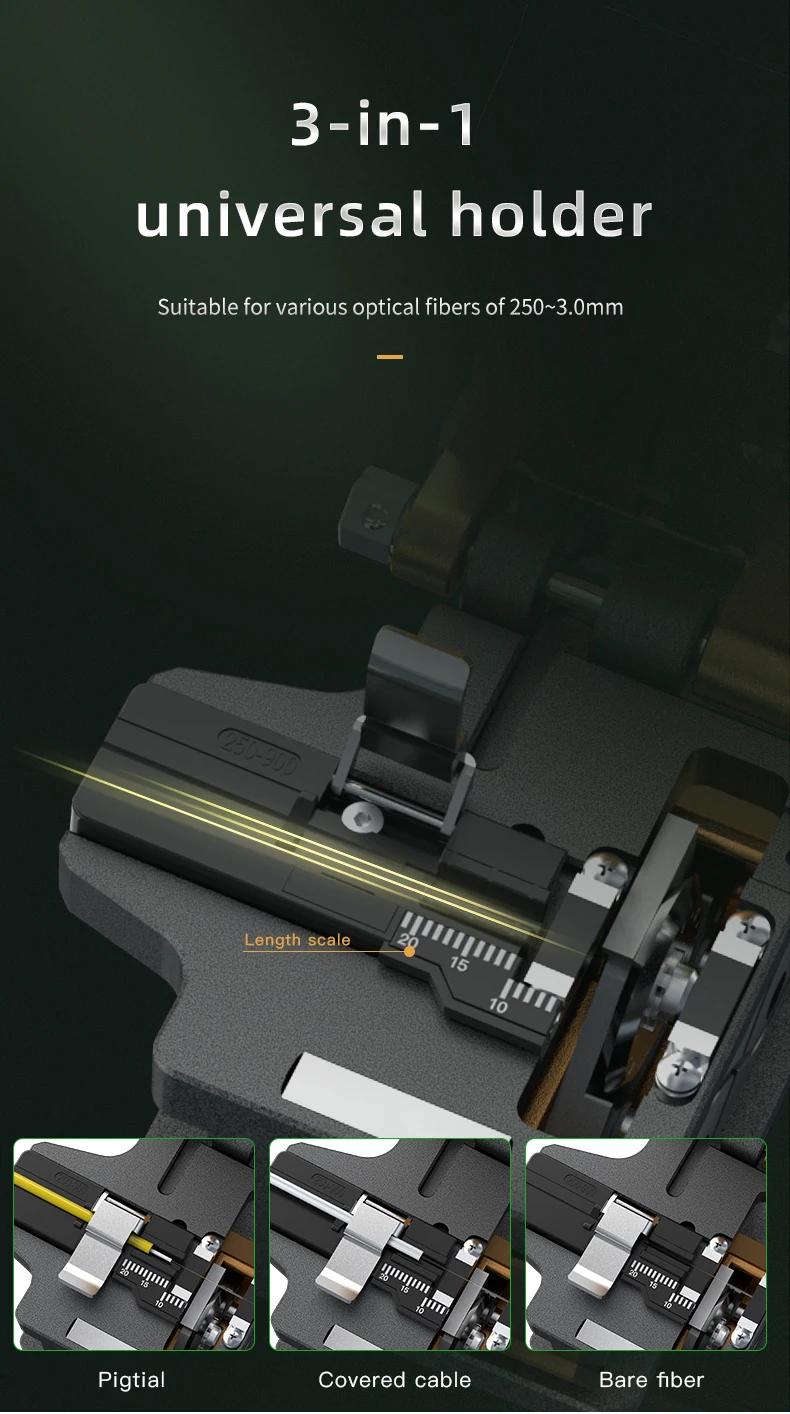

l Double fixture design, suitable for various optical fibers of 250~3.0mm
l High-precision CNC machining and forming, excellent texture

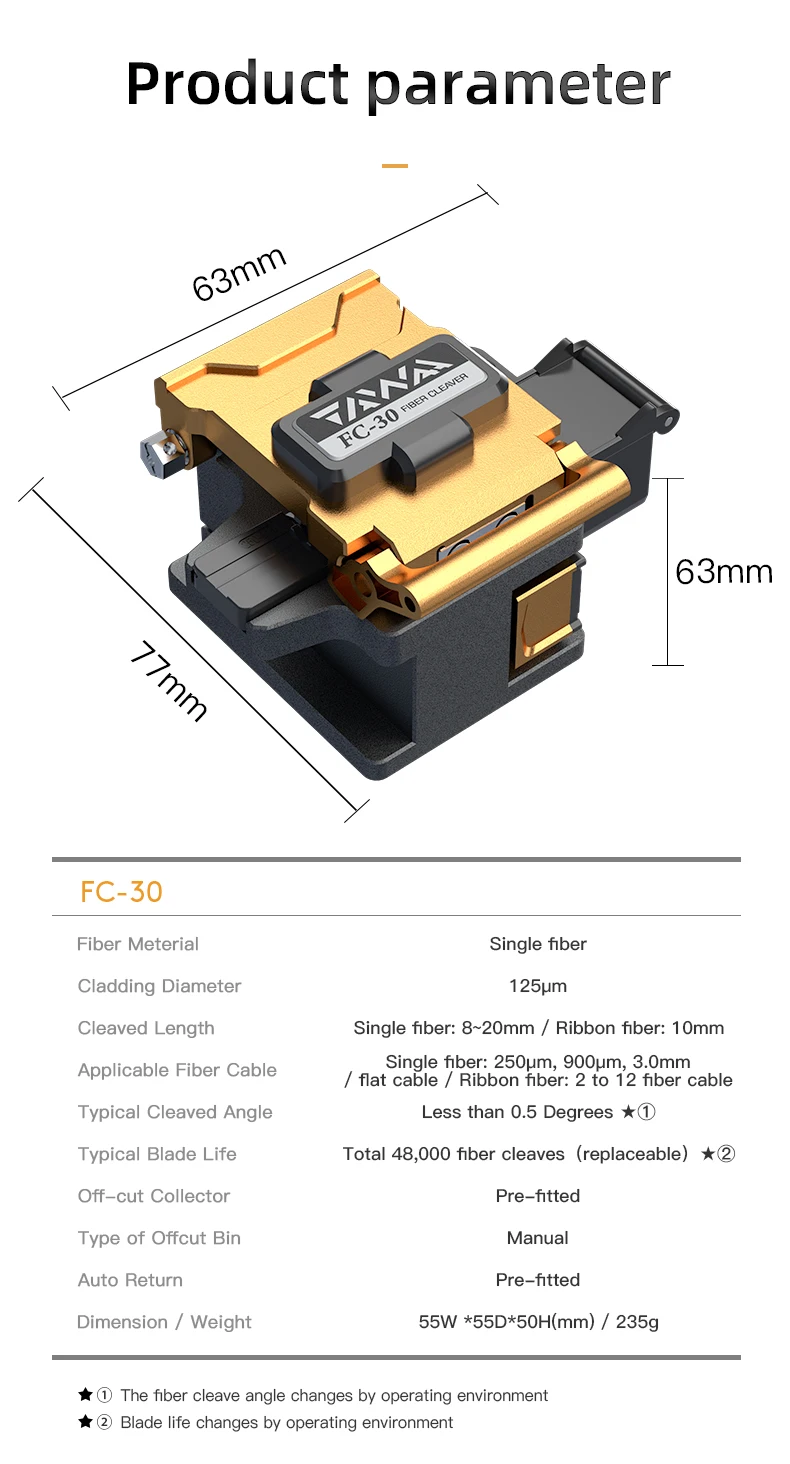

Product parameter：
Fiber Meterial | Single fiber |
Cladding Diameter | 125μm |
Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |
Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm / flat cable / Ribbon fiber: 2 to 12 fiber cable |
Typical Cleaved Angle | Less than 0.5 Degrees★① |
Typical Blade Life | Total 48,000 fiber cleaves （replaceable）★② |
Off-cut Collector | Pre-fitted |
Type of Offcut Bin | Manual |
Auto Return | Pre-fitted |
Dimension / Weight | 63W *77D*63H(mm) / 335g |
★① The fiber cleave angle changes by operating environment
★② Blade life changes by operating environment
Product configuration：
Cleaver FC-30 | 1 |
Carrying case | 1 |
Fiber Clamp Type 2 | 1 |
Quick guide | 1 |
