SC APC-SC APC Connector 9/125μm G652D SM 1310/1550nm OTDR Launch Cable Box 1KM

Product Presentation:

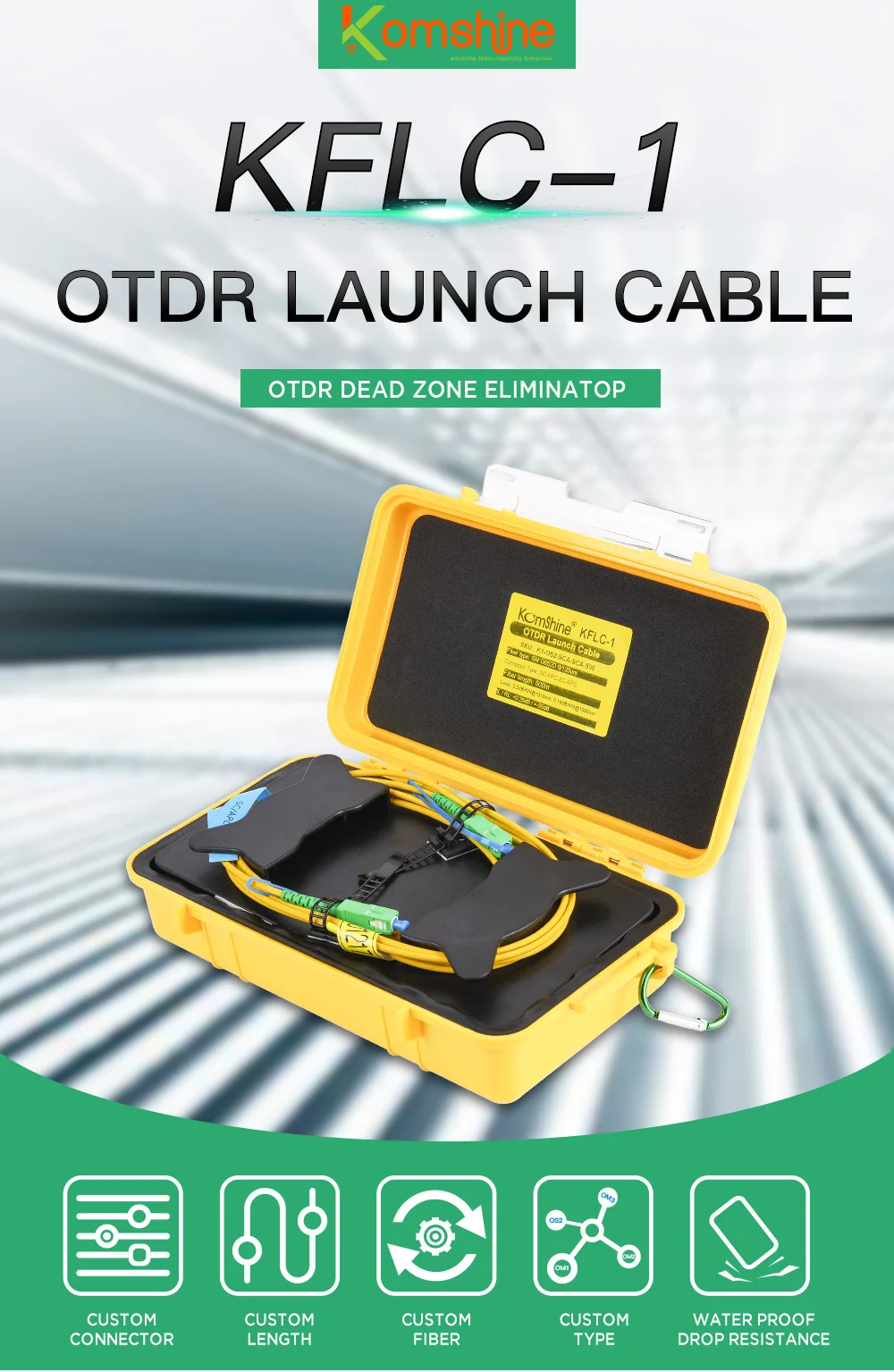

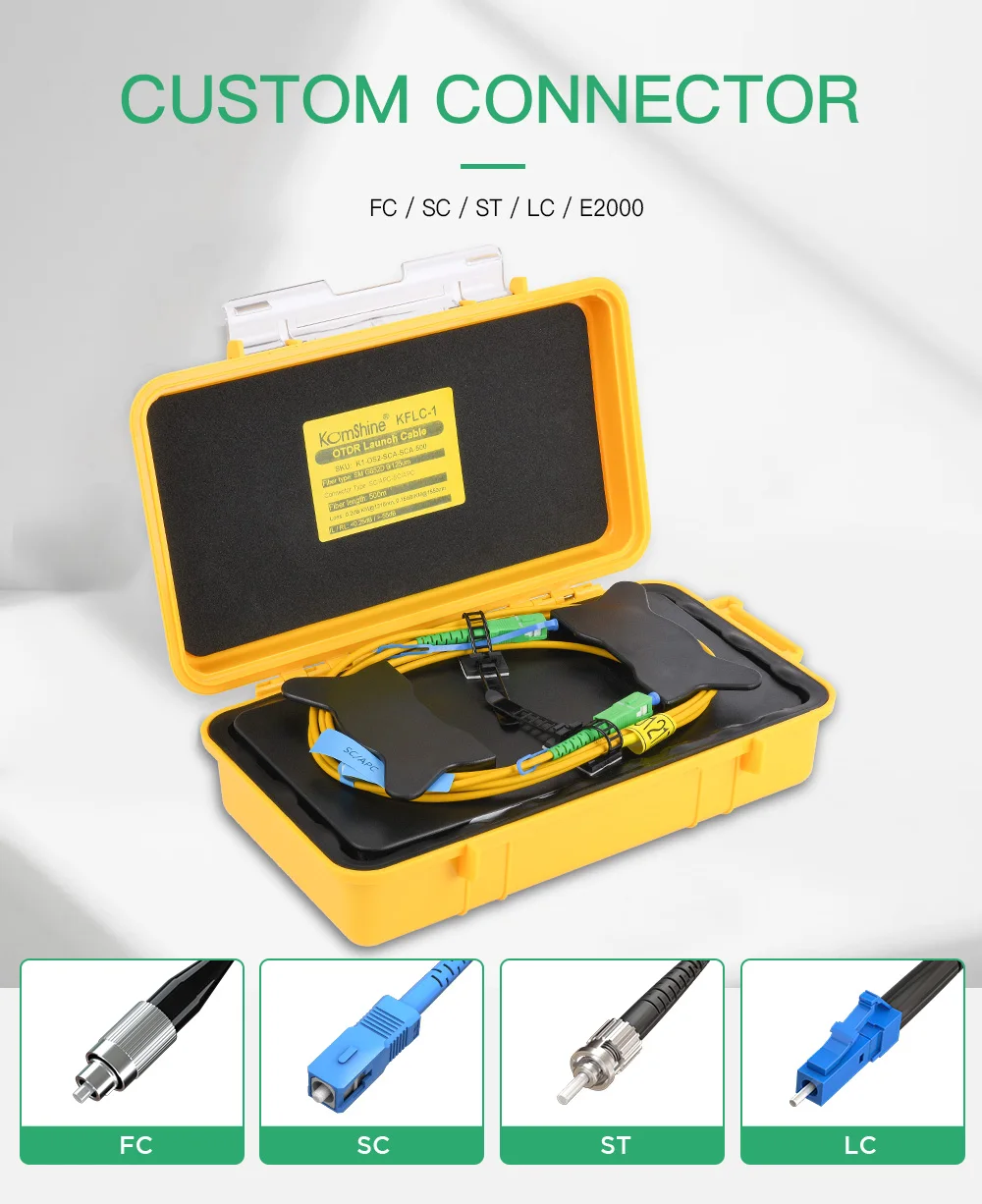

KFLC-1 OTDR test extension cable, also known as fake fiber box, is used to make up for the blind area of OTDR test. The whole optical fiber has no fusion splice points. Both end of connectors at are terminated by glue injection and grinding processes. There are two types of single-mode and multi-mode. A variety of options, small size, light weight, easy to carry, typical loss of 0.35dB/km (SM G652), with excellent sealing performance, waterproof, pollution-proof and explosion-proof characteristics. SC/FC/LC connector and UPC and APC connector modes can be selected.

Product features and functions?

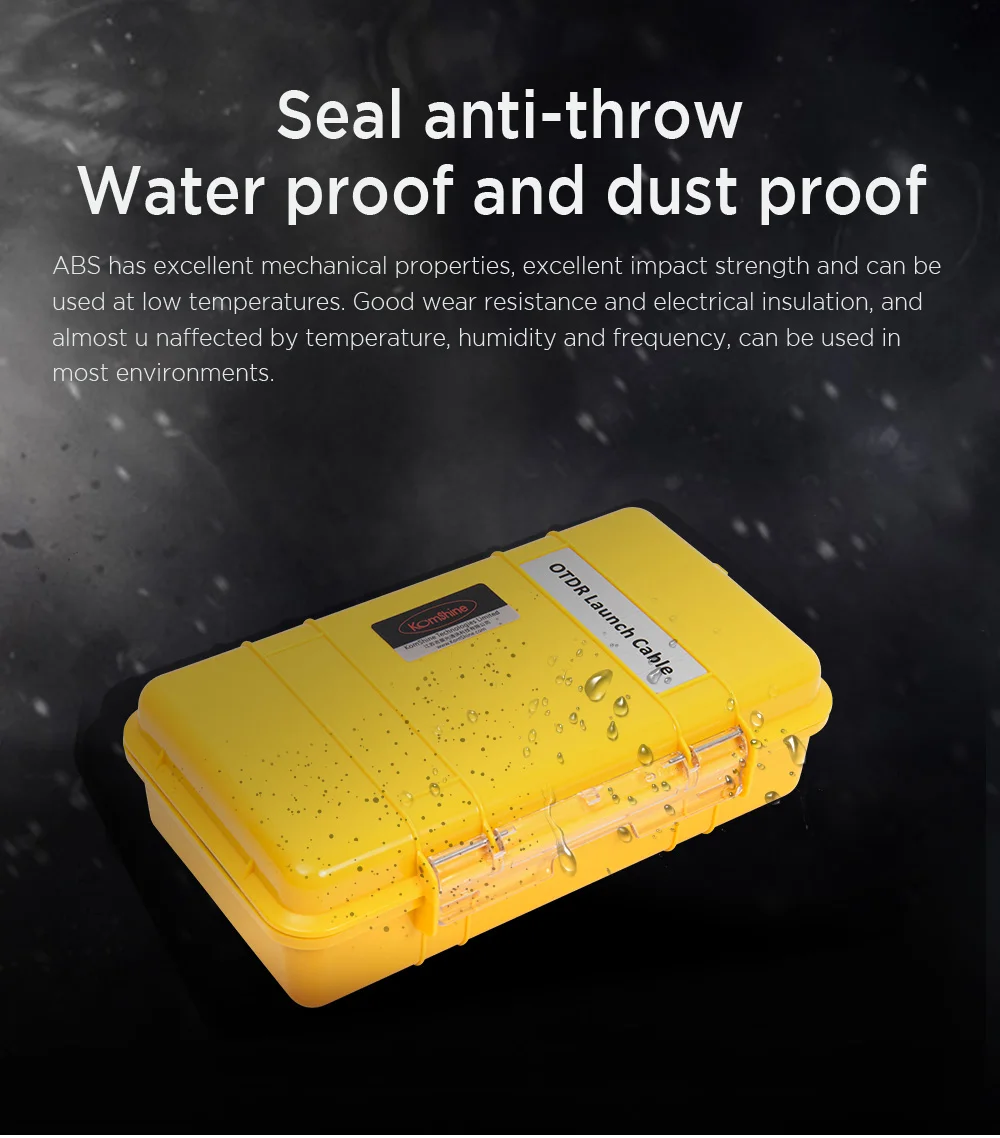

Compact & strong & light

Standard length: 100m; 300m; 500m; 1 km; 2 km

Provide various models connecting head

Applicable to any OTDR test instrument

Cable used for OTDR launch

Used OTDR receiving optical fiber cable

Using OTDR measurement of fiber optic lines connecting the proximal and distal insertion loss and high reflectivity

Used to eliminate the OTDR test blind area

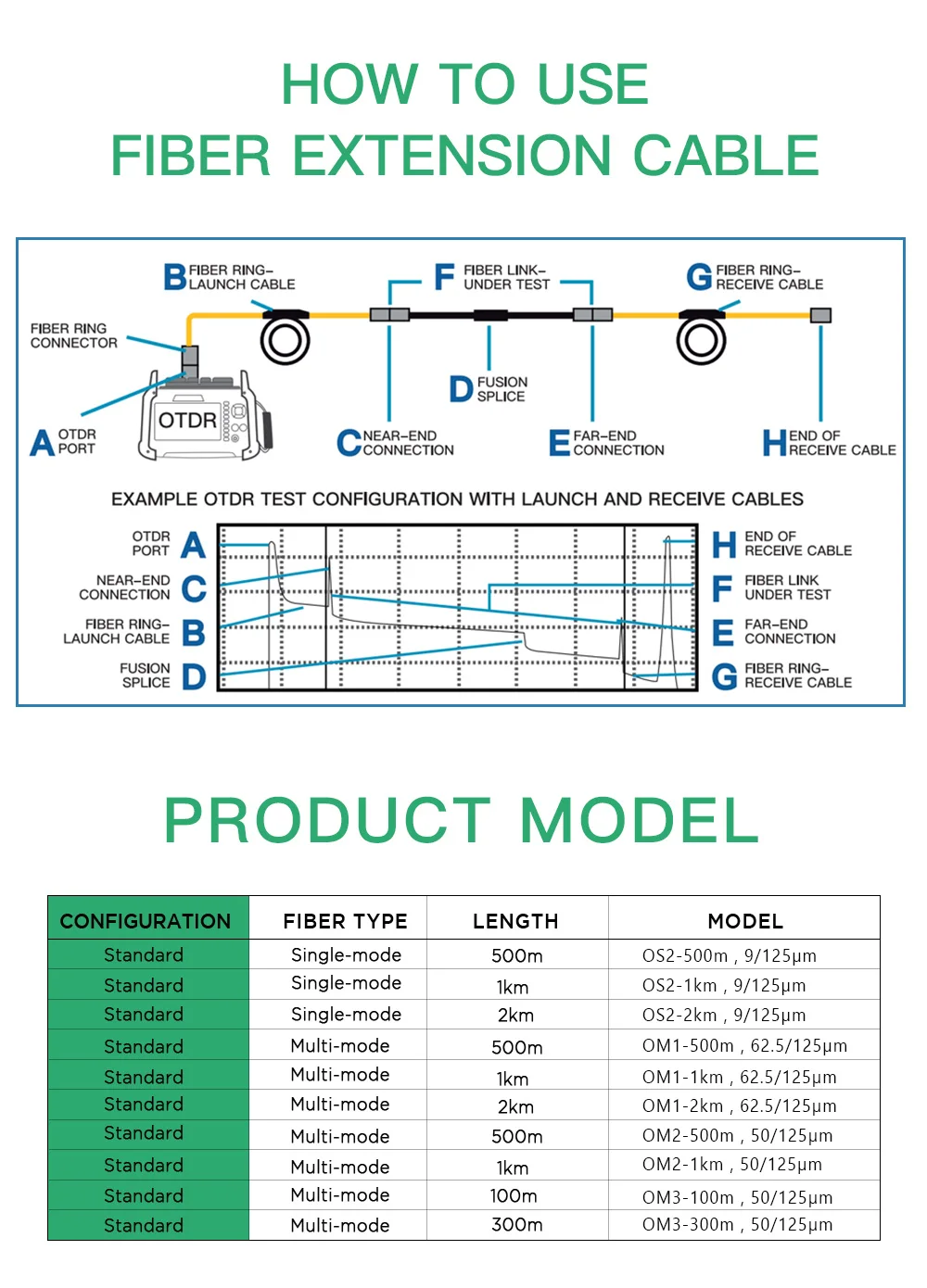

Product Model
