Optic fiber tester light source FTTx hand-held type fiber cable test tools with SC+FC connector 1310/1550nm

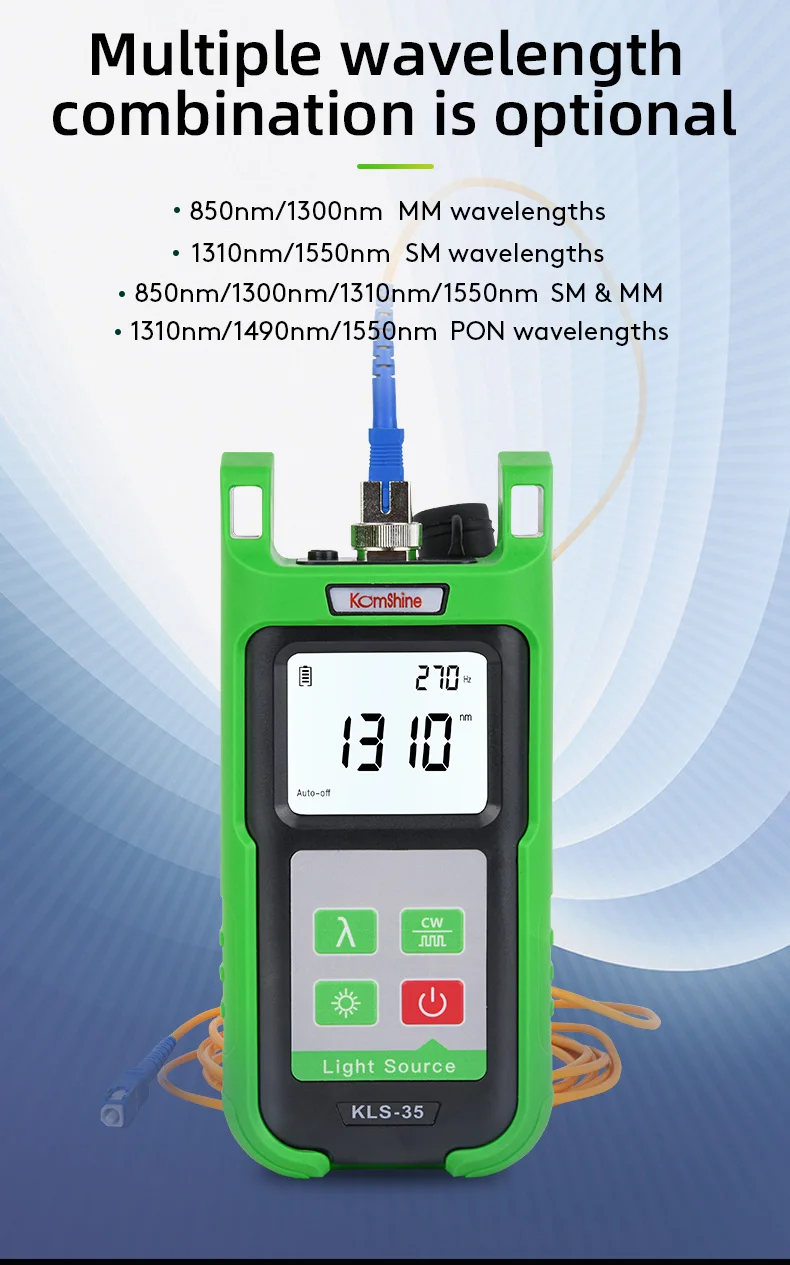

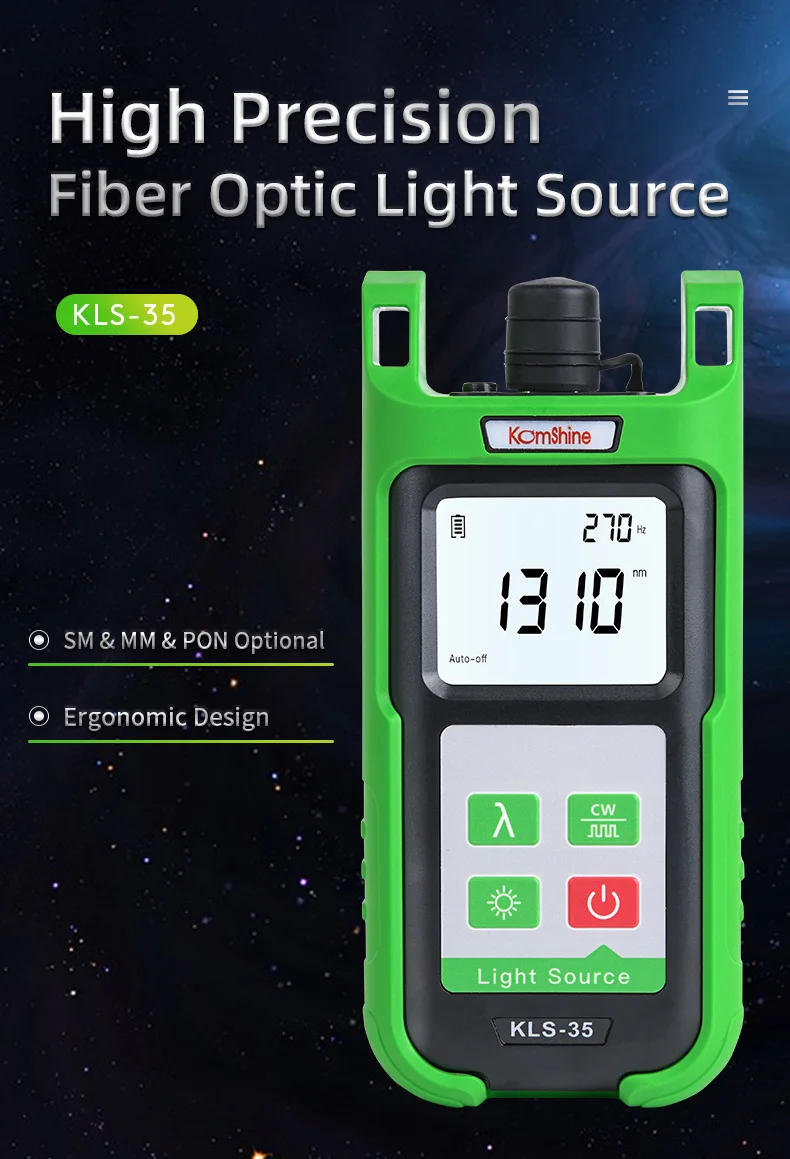

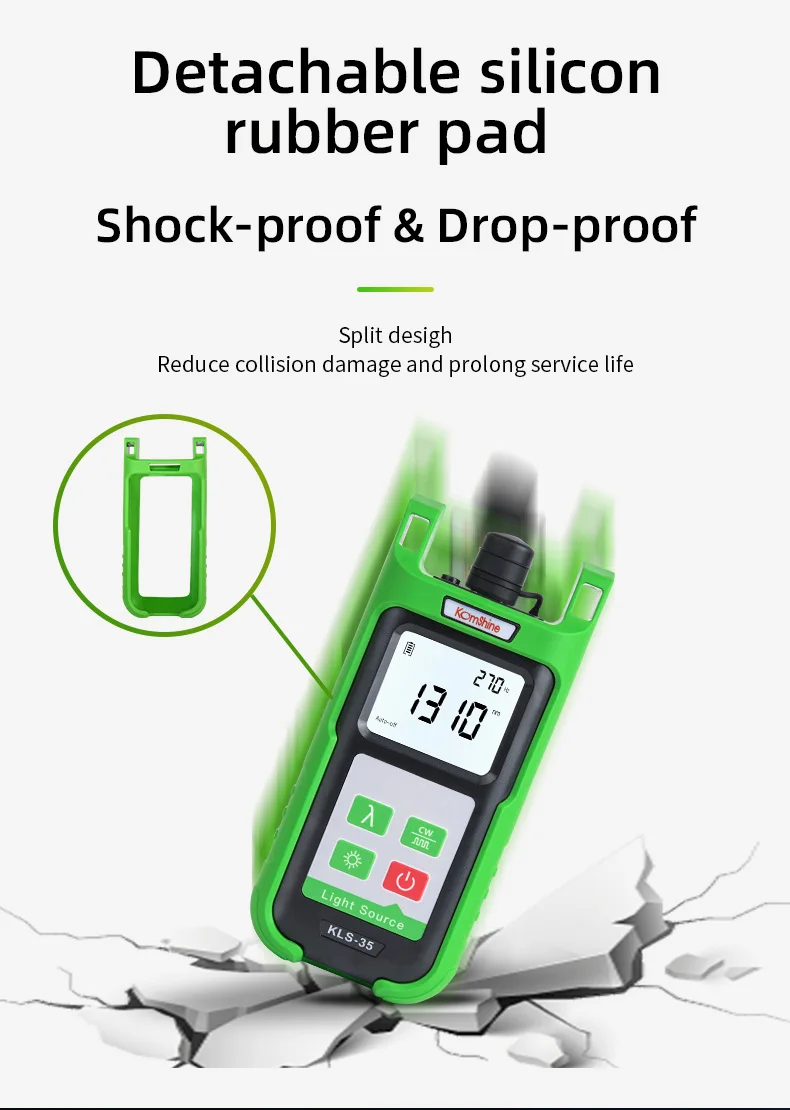

The KomShine KLS-35 Light Source provides excellent stability and high measurement accuracy for up to two single mode wavelengths or two multimode wavelengths. It is the perfect complement to the KPM-35 Power Meter when it comes to measuring attenuation on fiber-optic links




Specifications:

Wavelength(nm):1310+1550nm
Typical Output Power:-5dB
Optical Connector:FC+SC+ 2.5mm universal
Power Supply:Alkaline Battery(3 AA 1.5V batteries)
Output Stability:±0.05dB/15mins; ±0.1dB/ 8hours

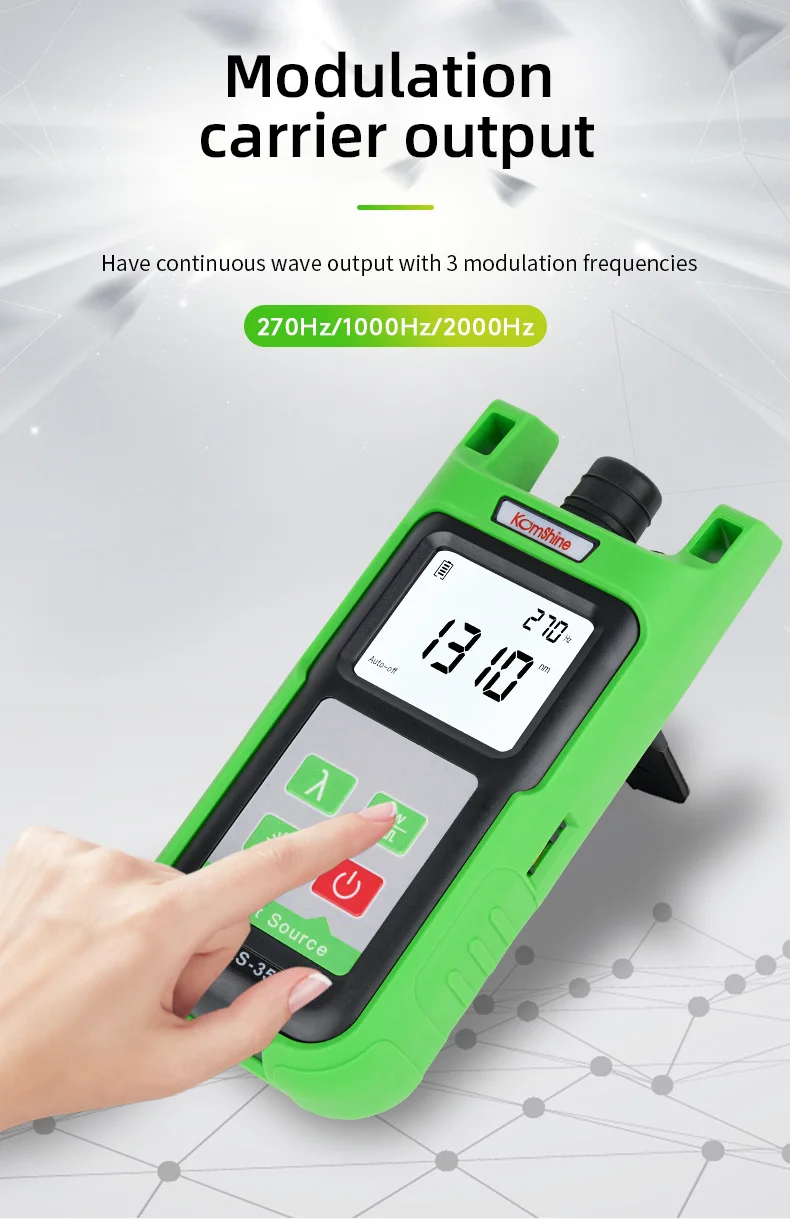

Modulation Frequencies:CW,270Hz,1KHz,2KHz

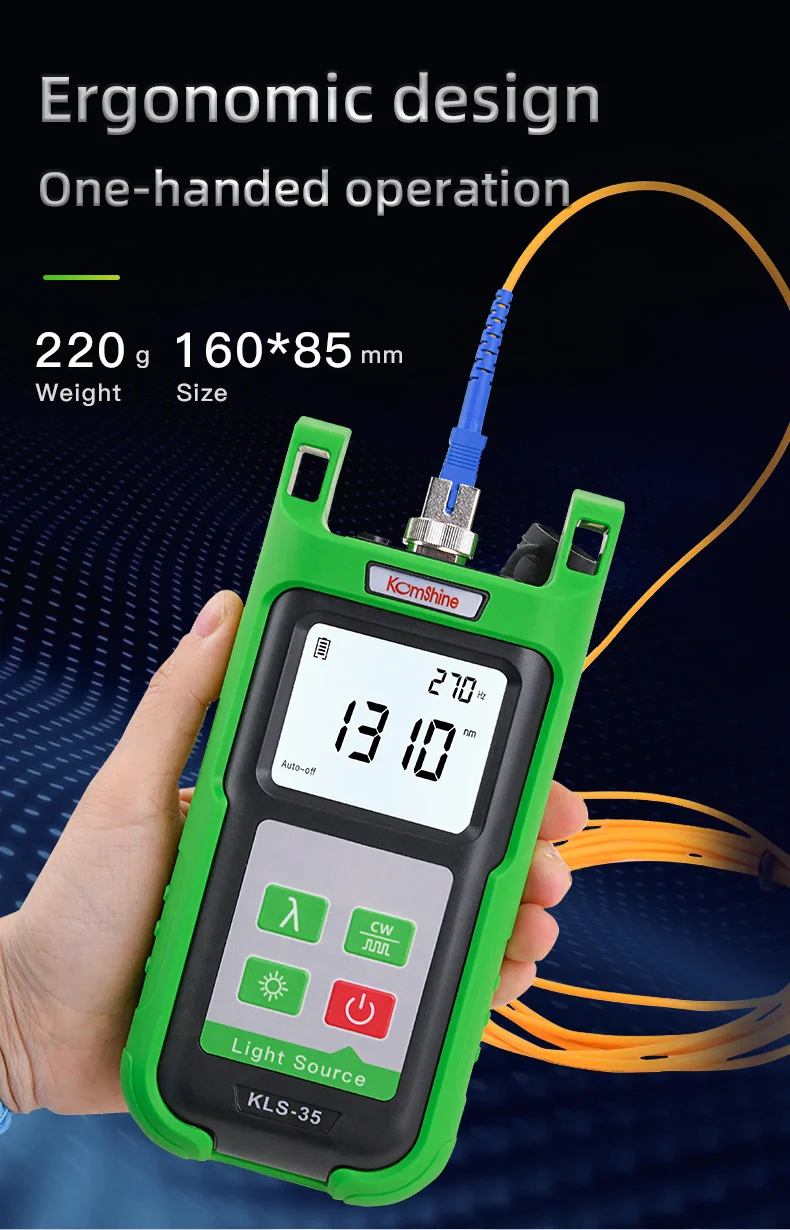

Dimensions / Weight:160x85x45mm / 220g

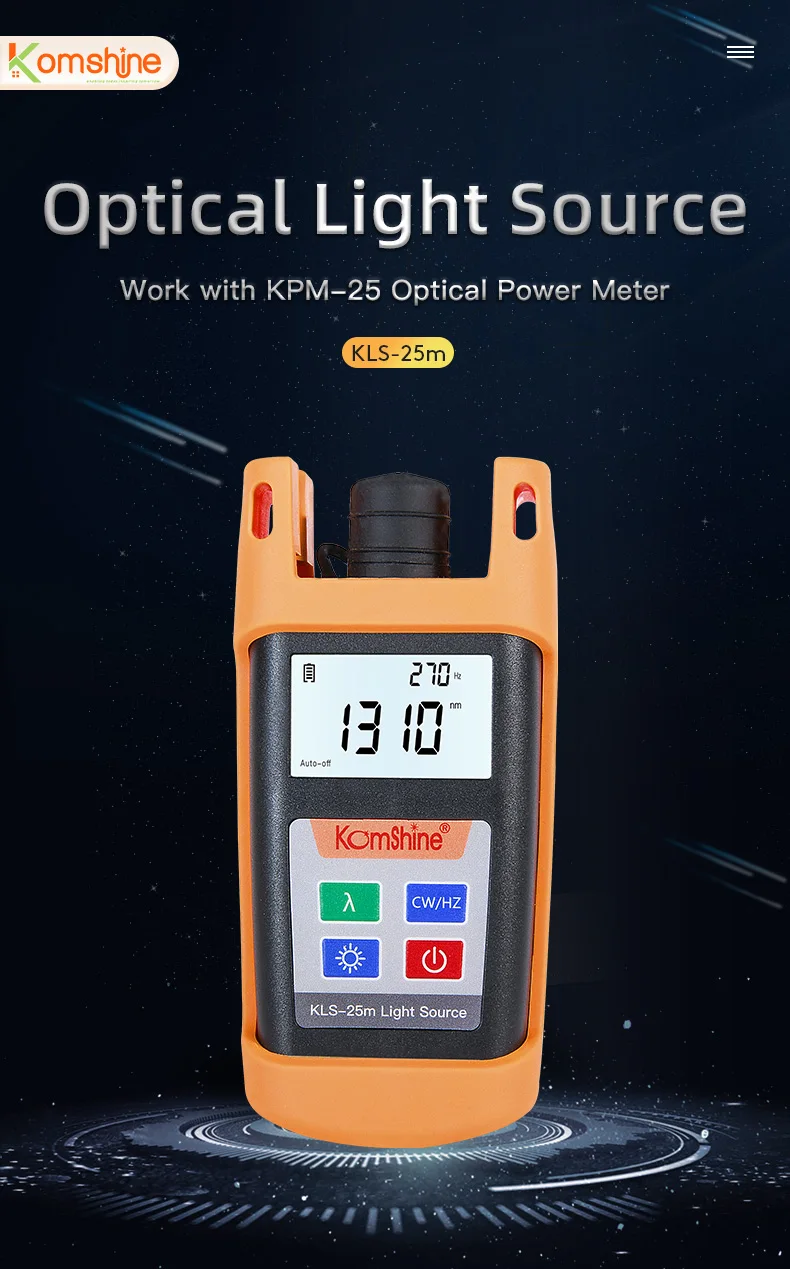

Mini Light Source KLS-25M with 2.5mm universial connector



Product introduction:

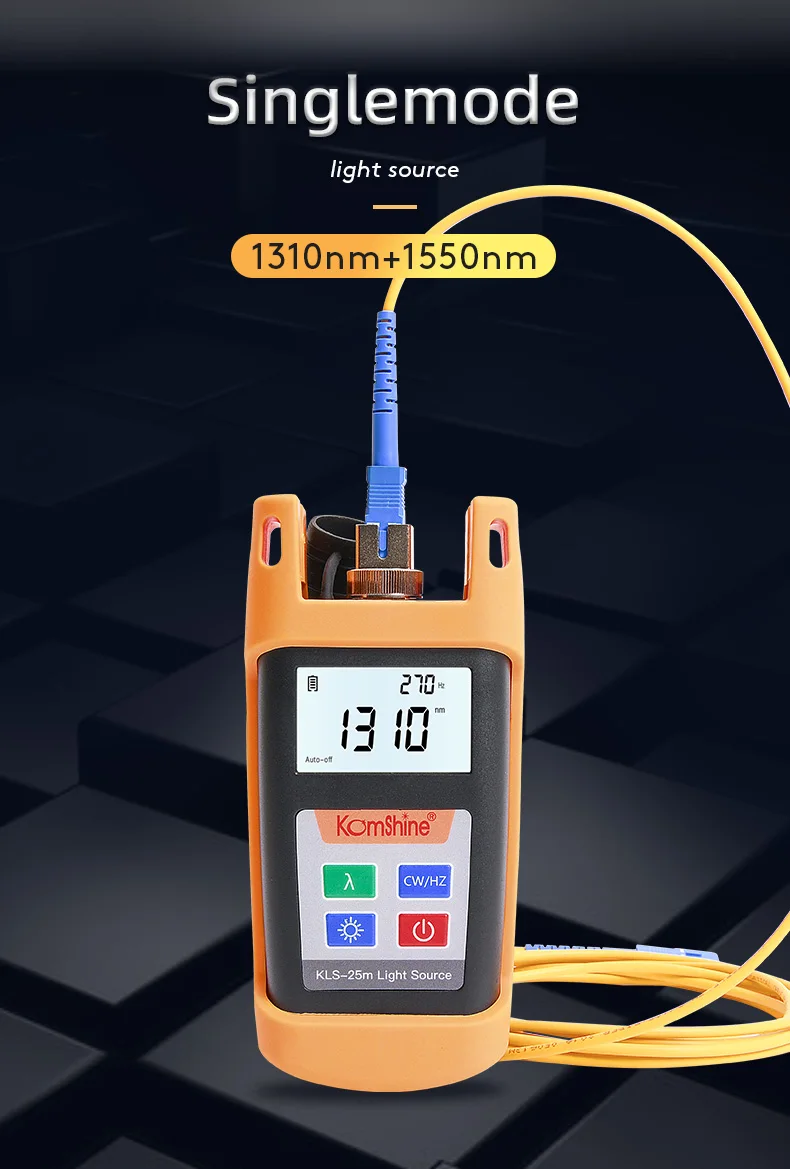

KLS-25m Optical Light Sourceis characterized by stable output optical power, wavelength and spectral width with a small range of stable changes.While the appearance is upgraded, LED lighting is added. 1310nm and 1550nm wavelengths output, mainly used for FTTX network and fiber testing. It works with optical power meter, used to measure optical power and end-to-end optical loss.


Product characteristics?

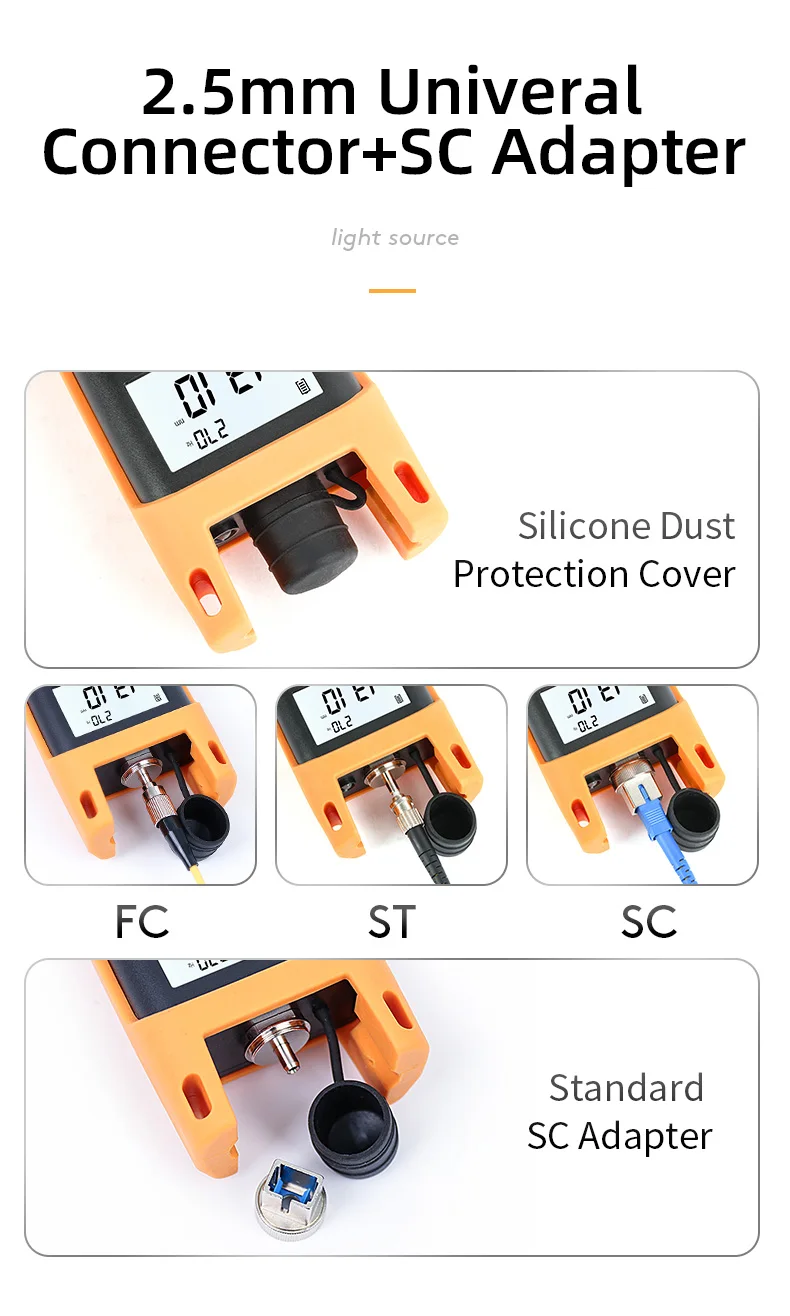

*2.5mm universal adapter

*Output power: -5dB

*Wavelength: 1310/1550nm

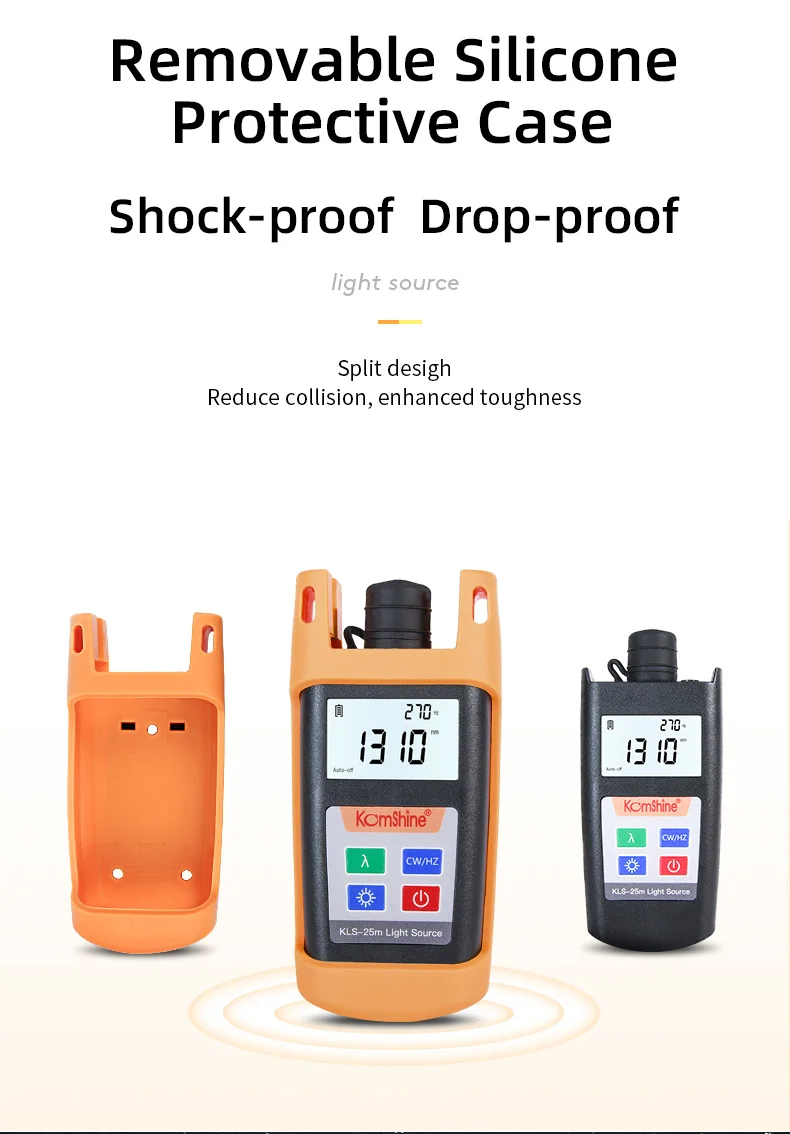

*Drop protection: 2m

*Low power function display

*Water-resistant keys

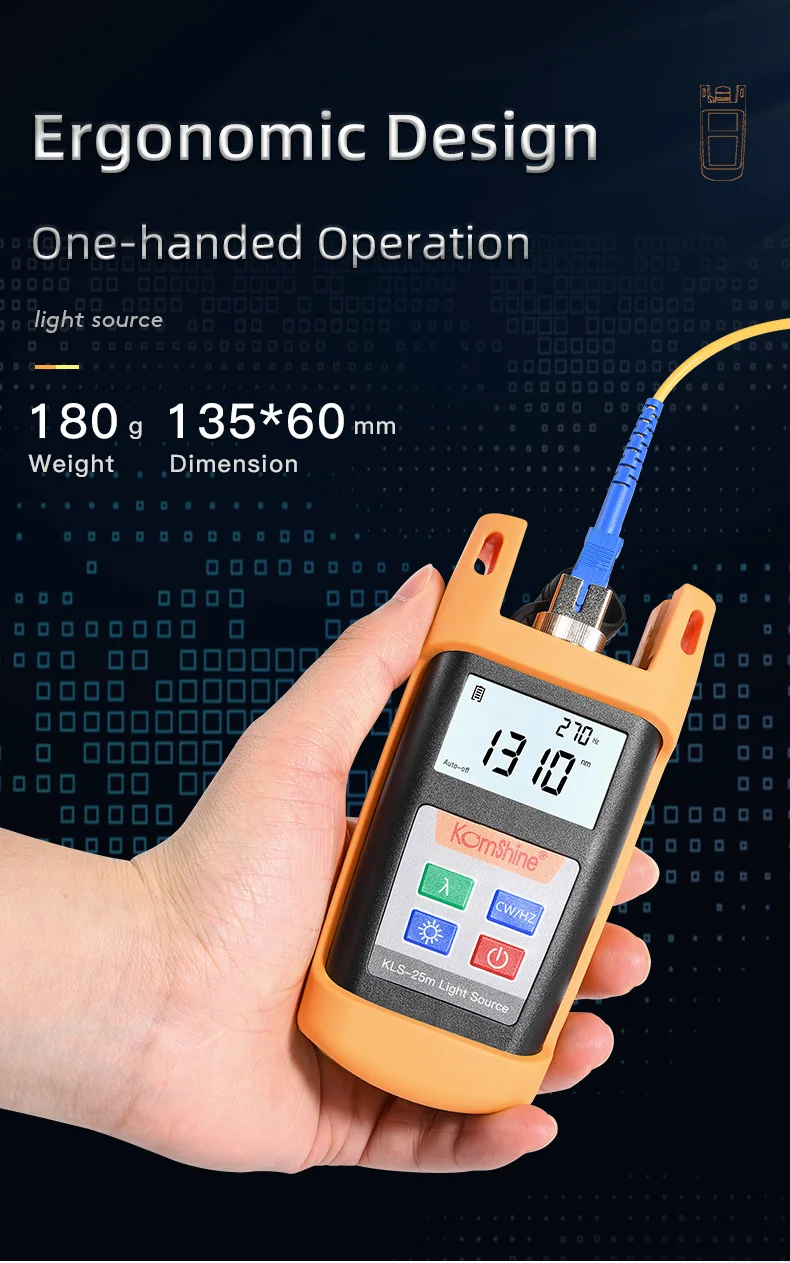

*Pocket size design

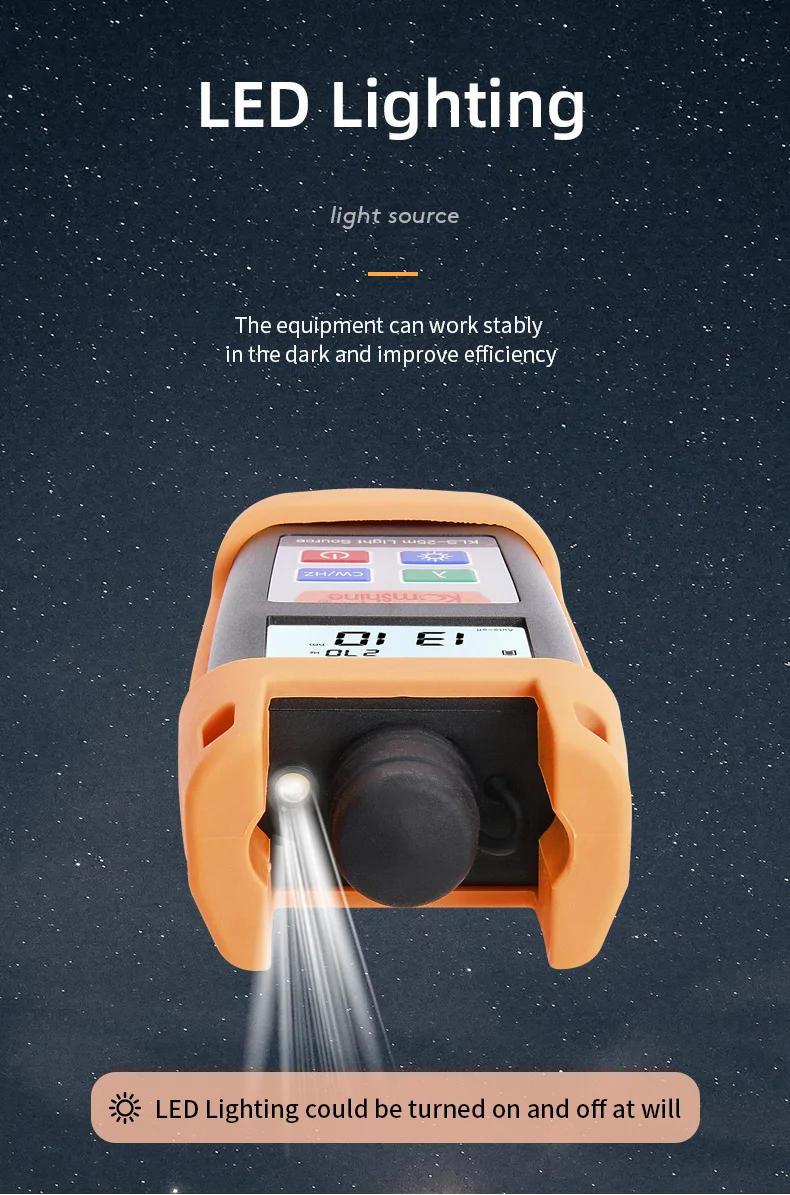

*LED lighting

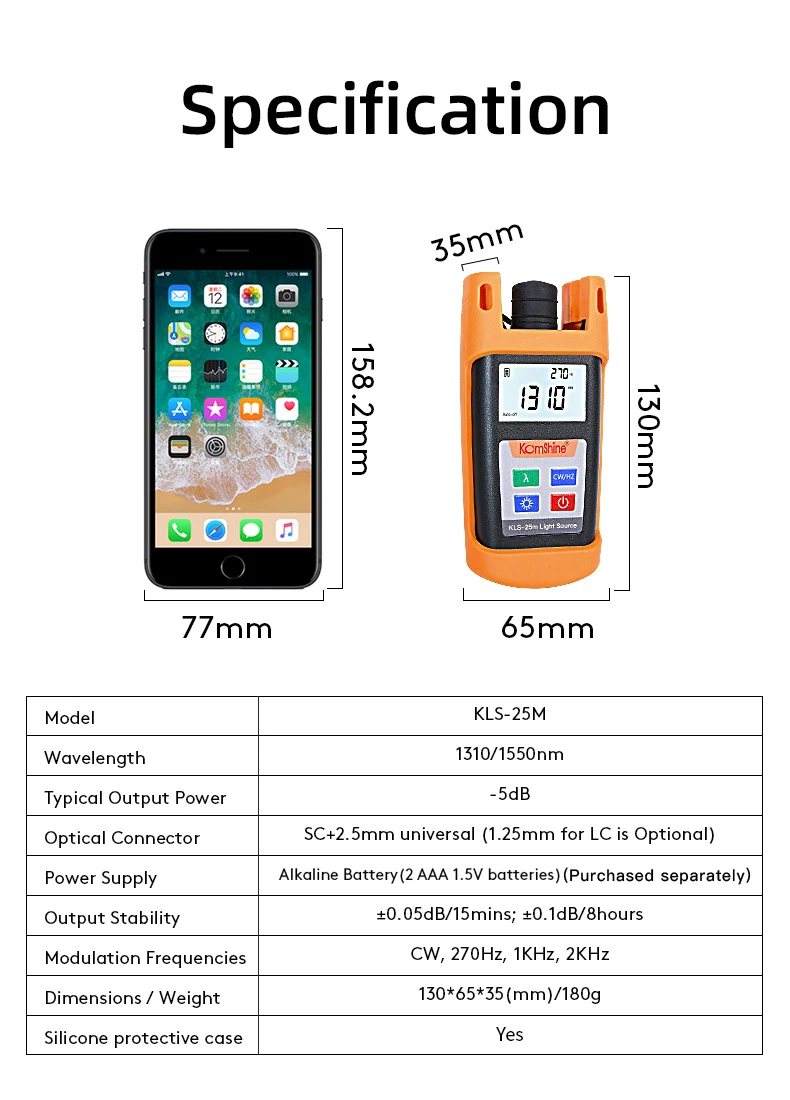

Specification:

Wavelength(nm)

1310/1550nm

Typical OutputPower

-5dB

Optical Connector

                                                               2.5mm universal

Power Supply

AlkalineBattery(2 AAA 1.5V batteries)

Output Stability

±0.05dB/15mins; ±0.1dB/ 8hours

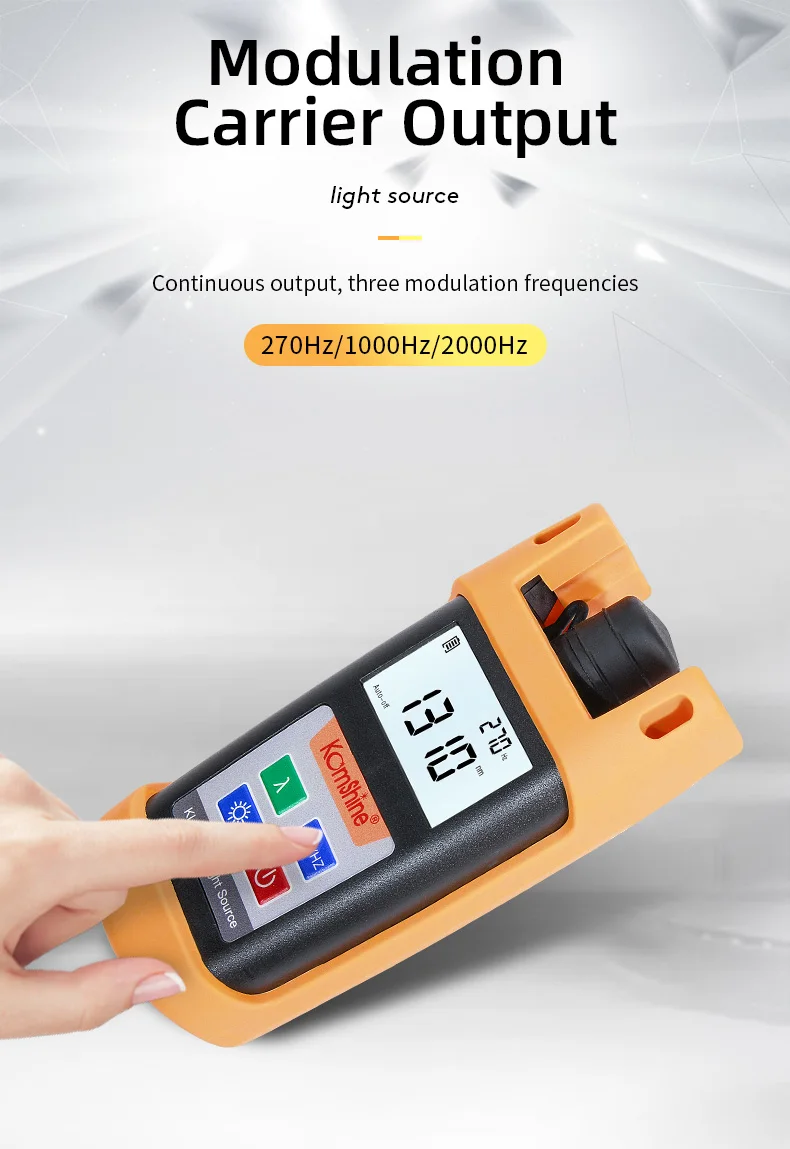

Modulation Frequencies

CW, 270Hz, 1KHz, 2KHz

Dimensions / Weight

130x65x35mm / 180g


Warranty Policy:



Industry’s First 3 Year Warranty

 We, KomShine, stand by our products and pleased to provide you with full 3 year service Warranty for on all of our splicer products.
 The warranty is only valid if purchased through an authorized KomShine distributor




  1. We, KomShine, do hereby warrant our Fusion splicer、OTDR products, be free from defects due to defective materials or workmanship for a period of 3 years from the date of shipment.

  2. We, KomShine, do hereby warrant our accessories such as Battery, Cleaver, Thermal Stripper, AC adapter, Carry Case which are included in the standard package of  Fusion Splicer, OTDR products, be free from defects due to defective materials or workmanship for a period of 1 year from the date of shipment.
