FTTH Fiber Optical Test Tool Fiber Optic Power Meter Tester Seven-Wavelength +10 to -70dBm (-50~+26dBm) For SC CATV Test


Attention:

Now all power meters just comes with SC connectors



Product Description:

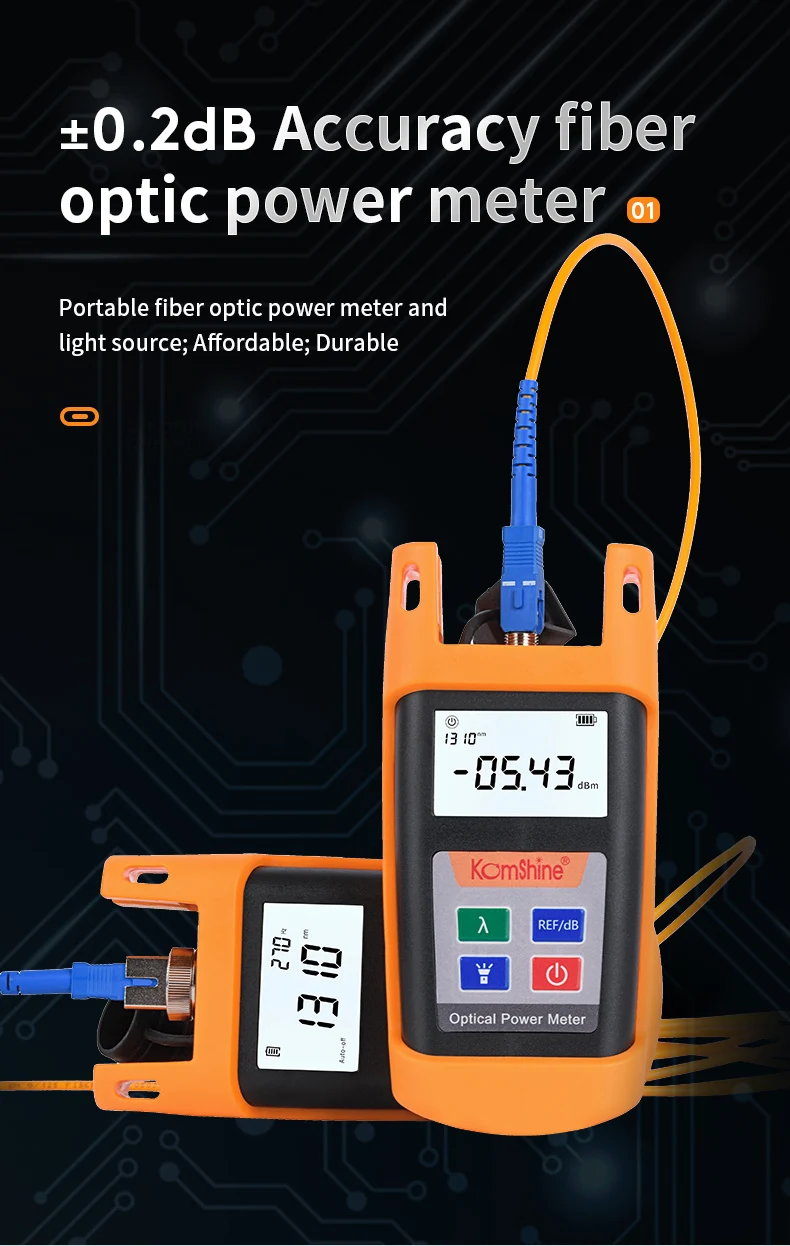

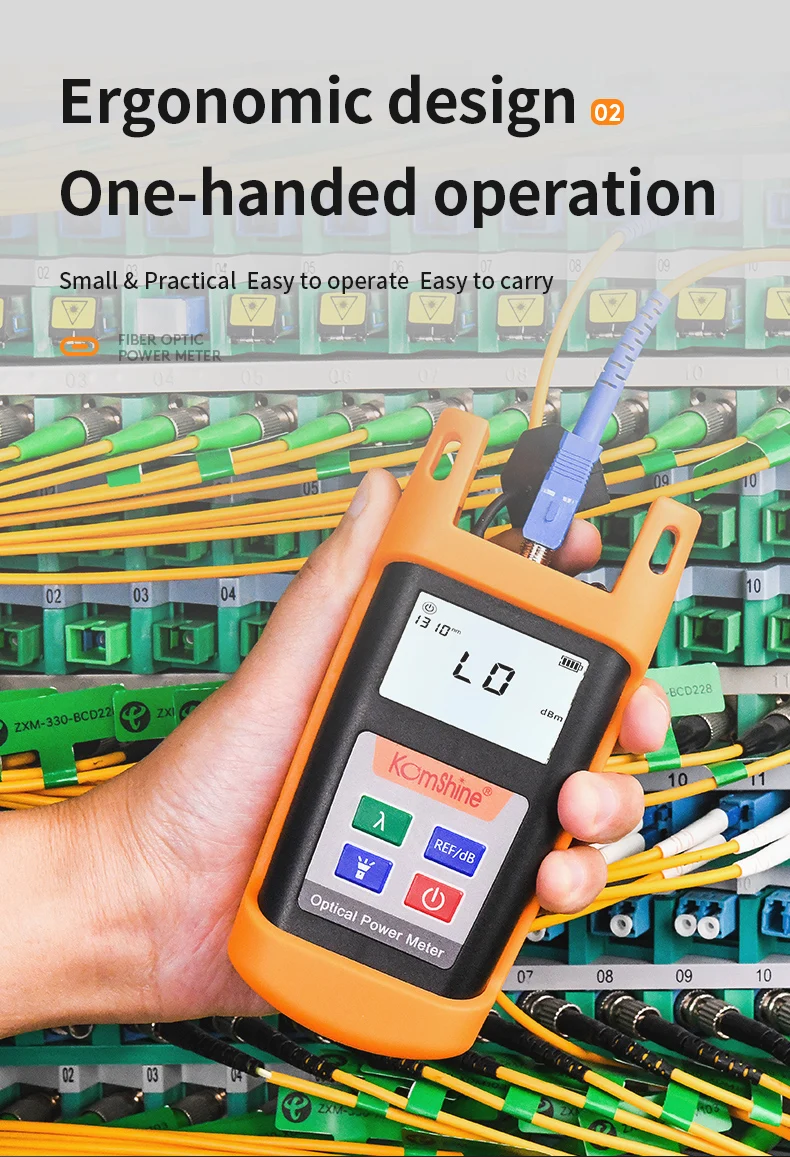

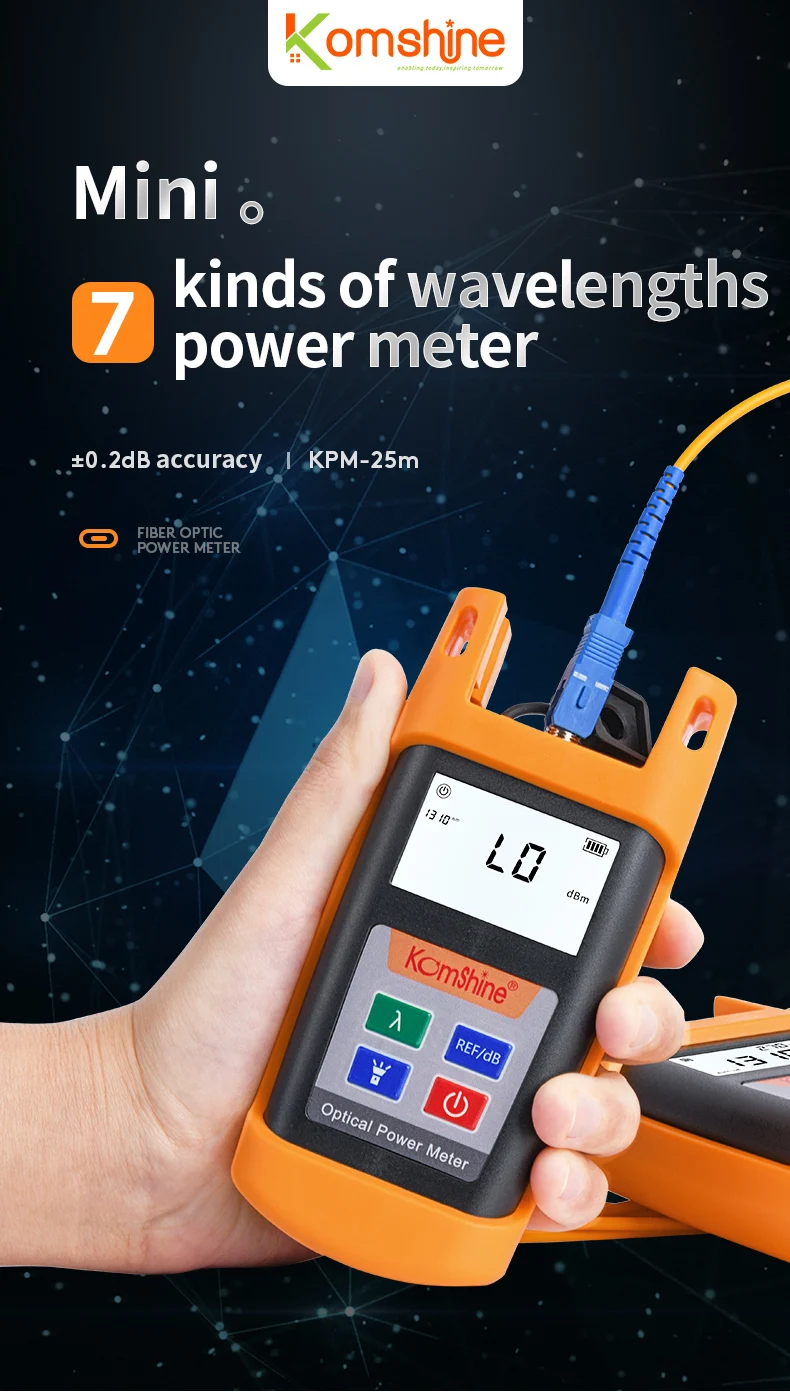

KPM-25 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.



Product Description:

Features:

  • Pocketsize, large easy to read LCD display, easy to use
  • PC software available for testing data collection and report generation (only available for KPM-25)
  • Wave ID (auto identification & switching)(only available for KPM-25)
  • Power measurements in dBm or μW
  • Long battery life with 2 x AAA alkaline
  • 2.5 mm SC connector input

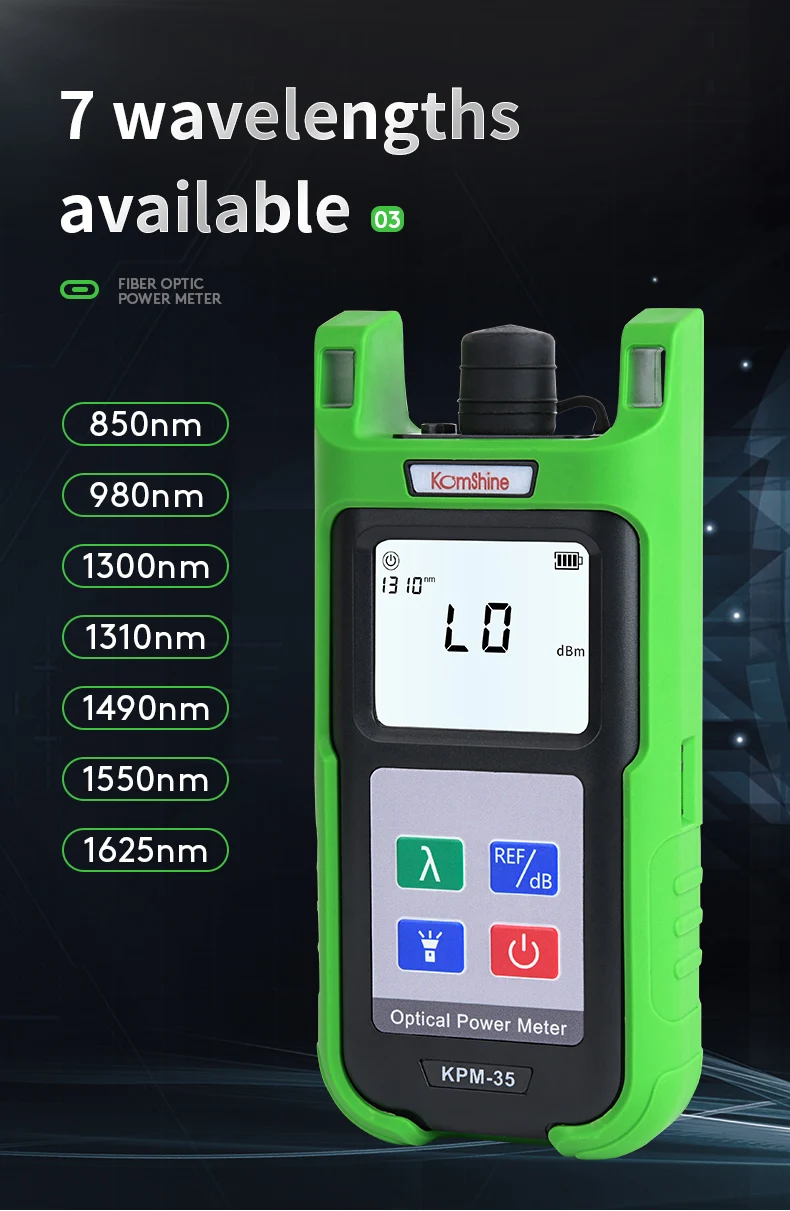

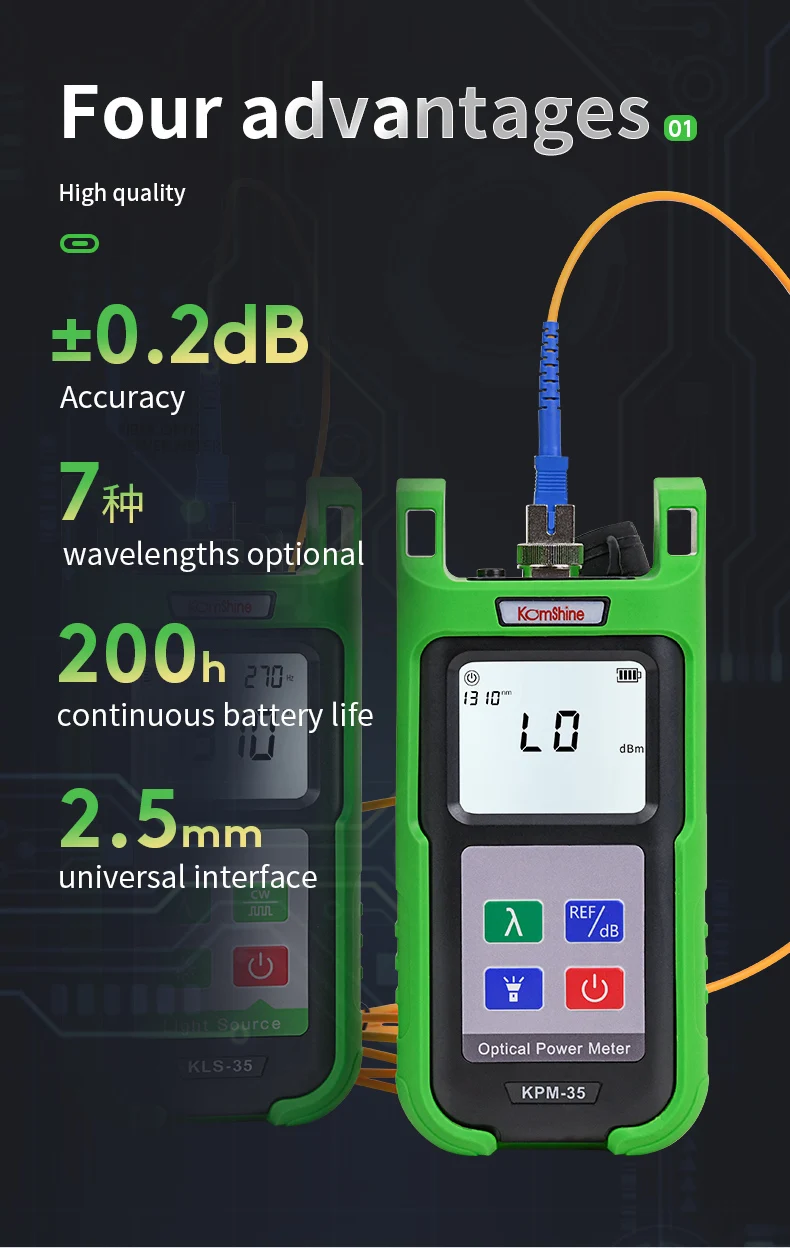

6 calibrated wavelengths optic fiber power meter KomShine KPM-35 High Precision FTTH fiber cable test tool SC Connector

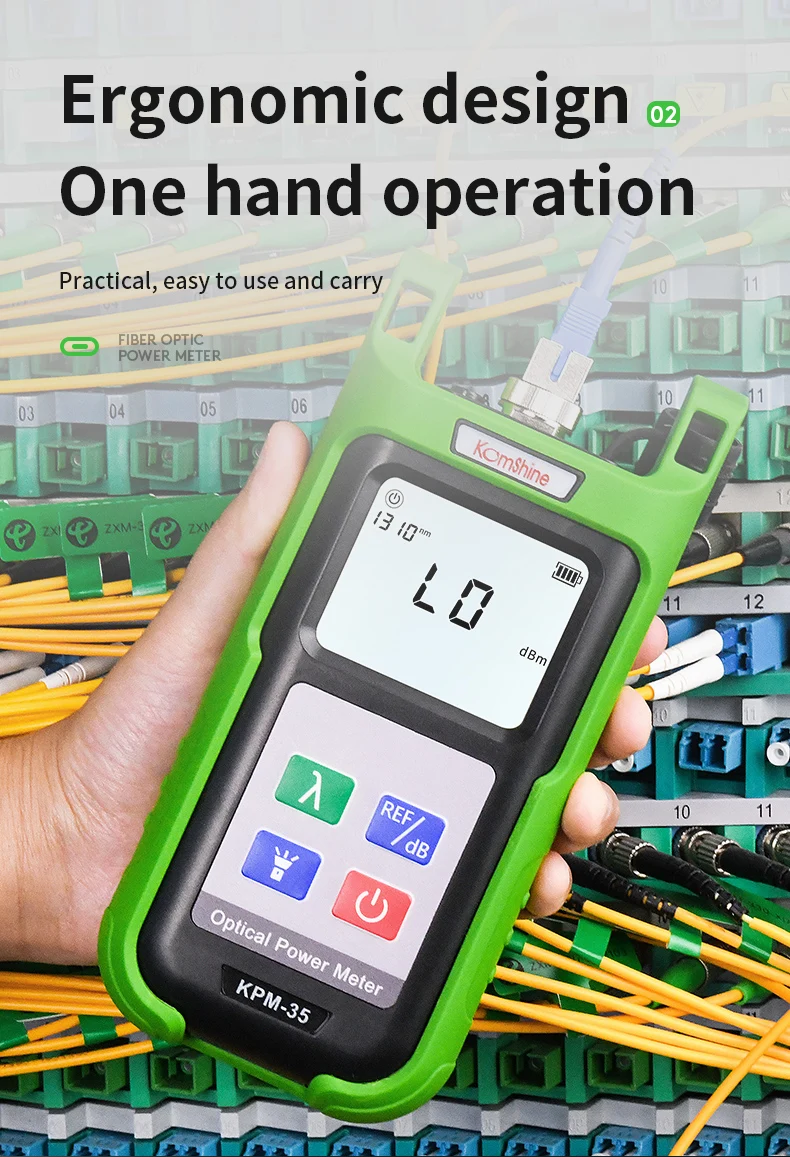

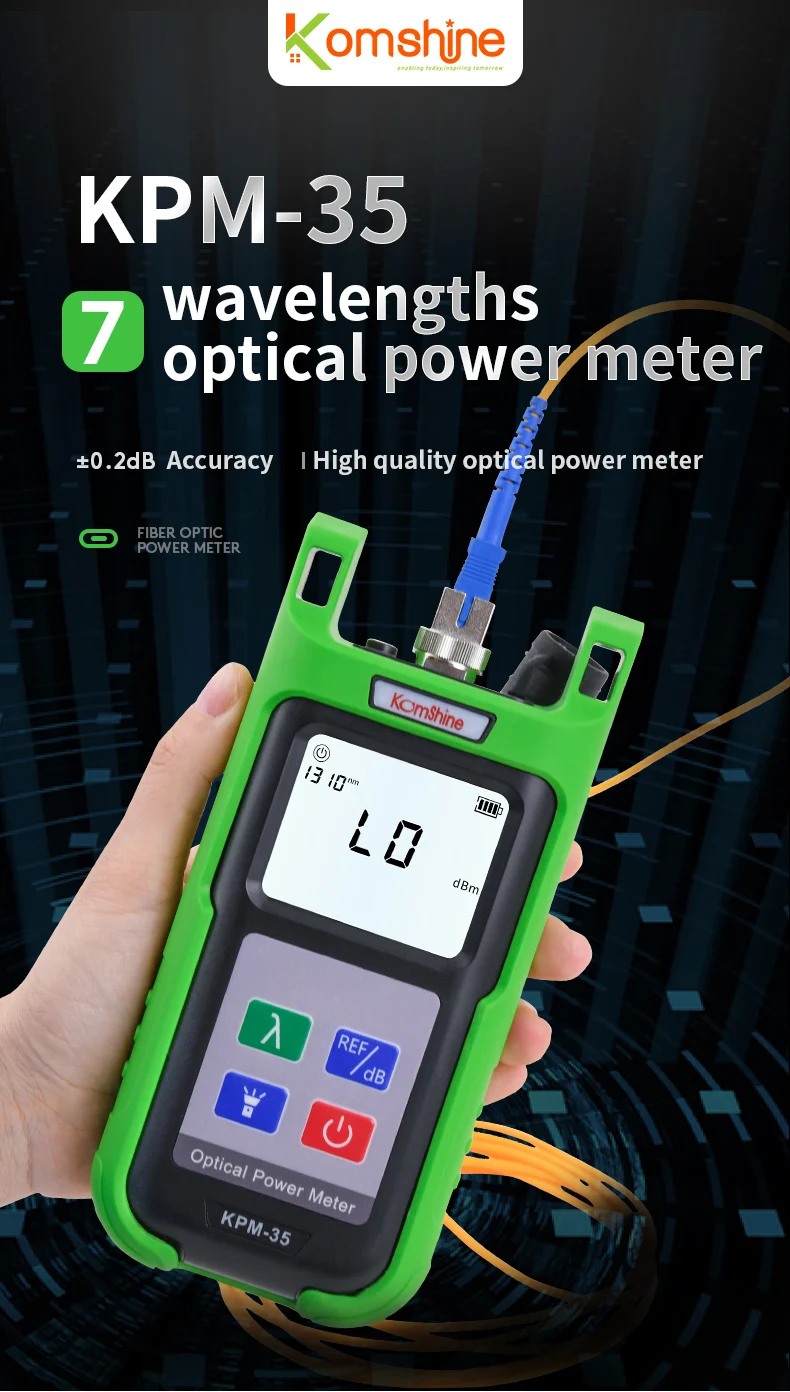

The KPM-35 Power Meter provides highly accurate power measurements, as well as reference value setting capabilities. What’s more, this convenient unit requires no offset nulling, and it offers power autonomy of 55 hours, for reliable, long-lasting performance in the field.

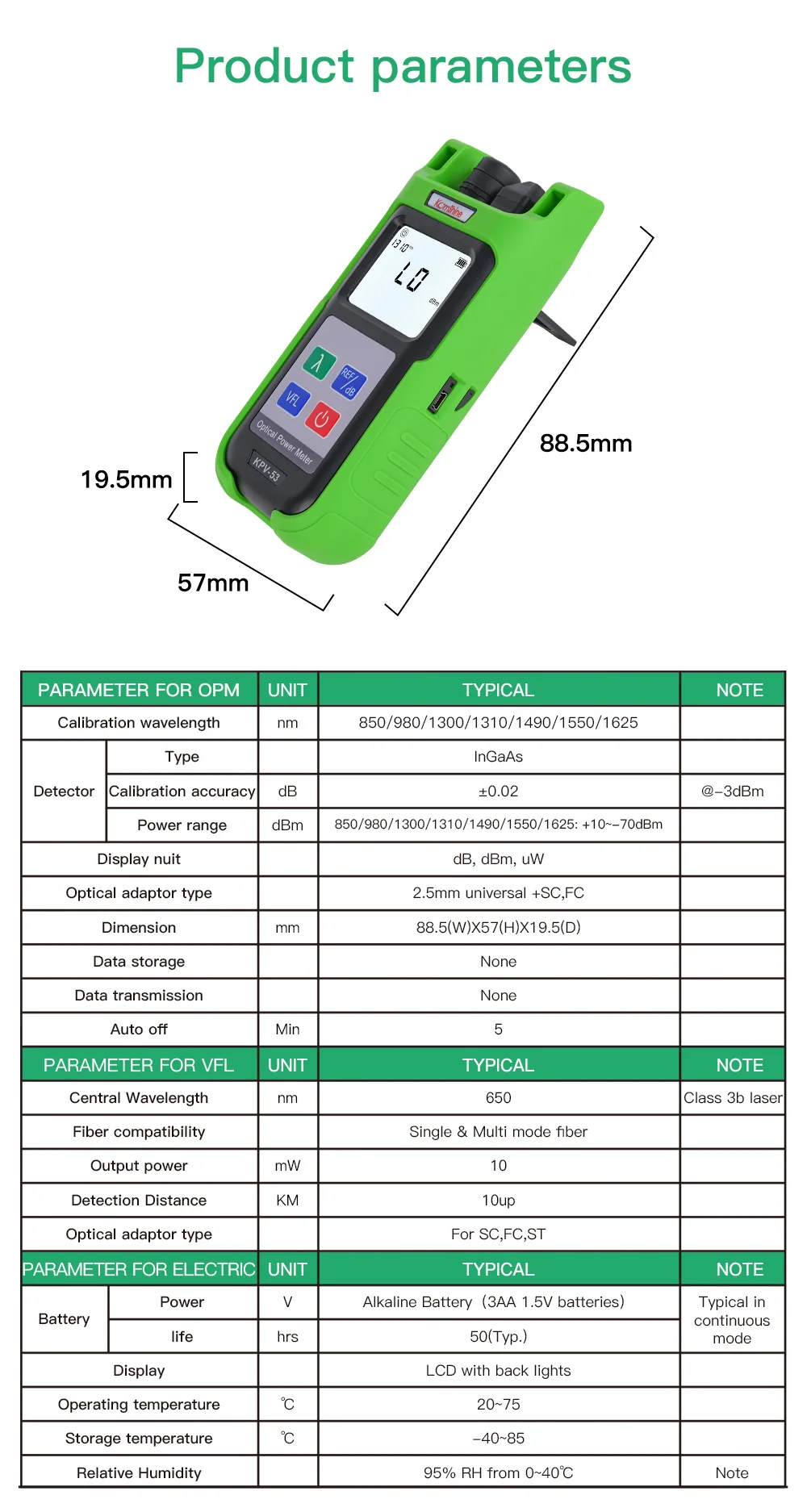

Specifications:



Wavelength(nm):800~1700nm
Measurement Range:-70+3dBm / -50~+26dBm
Optical Connector:SC 2.5mm universal (1.25mm for LC is Optional)
Power Supply:Alkaline Battery(3 AA 1.5V batteries)
Display Units:dB / dBm / w
Resolution (dB):0.01
Dimensions/Weight:160x85x45mm / 220g

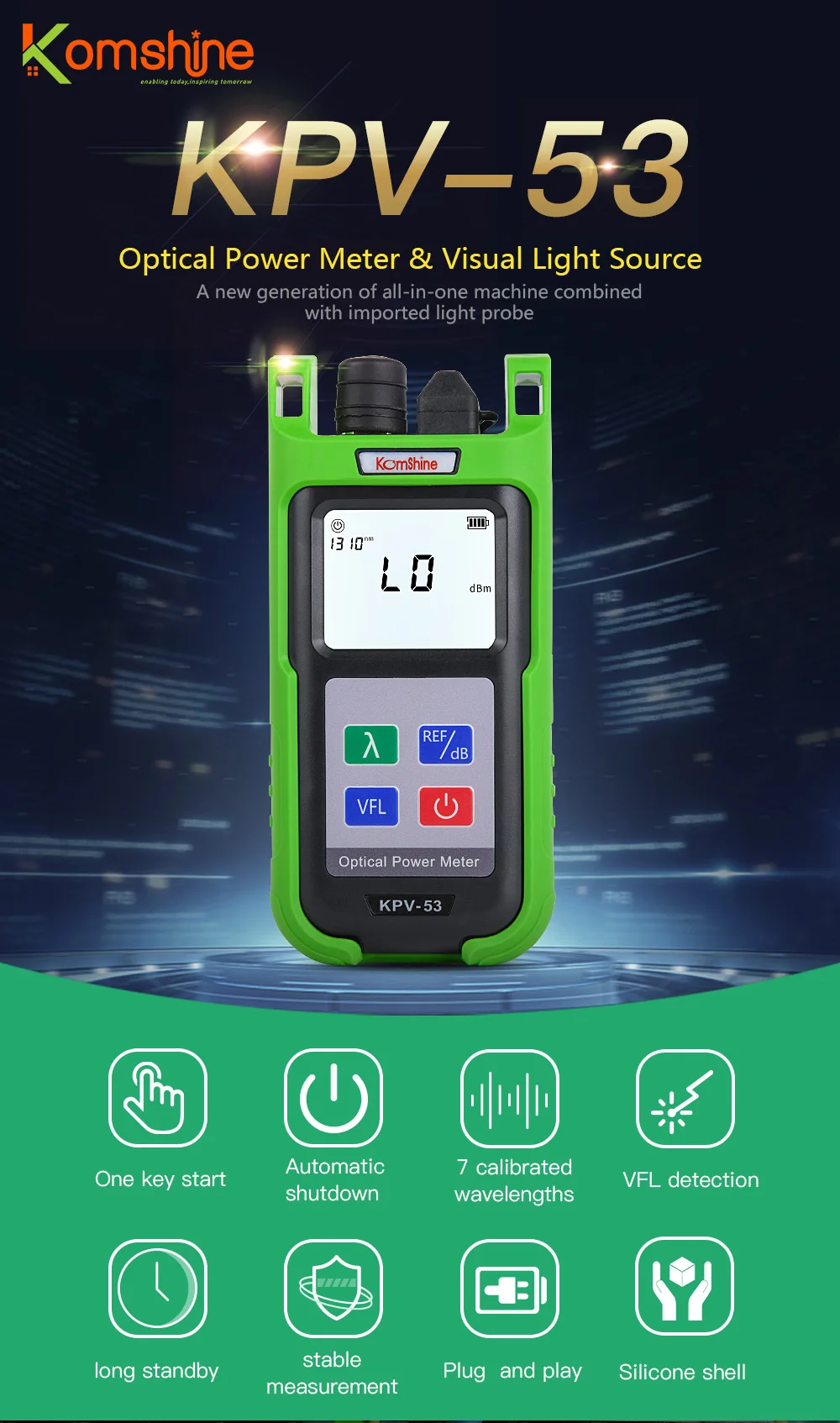

Economic Fiber Optic Power Meter KPV-53 with 10mw VFL Function. Comes with SC UPC Connector

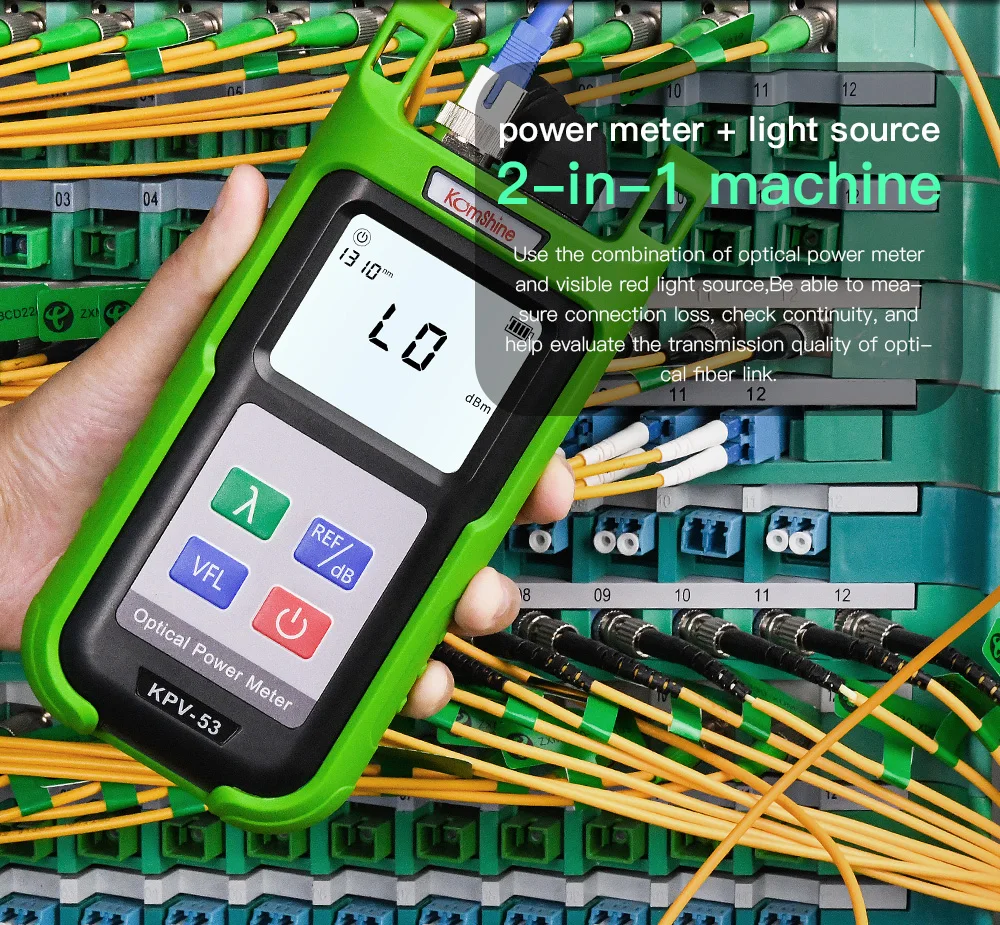

KPV-53 OPM with VFL



The KPV-53 integrates the Optical  Power  Meter and the Visual Fault Locator. The Optical Power Meter can measure dBm, dB and uW in the wavelength band of 850, 1300, 1310, 1490,1550 and 1625nm.

The Visual Fault Locator uses CW mode and Modulation mode and helps to detect the optical cable of up to 10km.

Battery performance 50 hours operation,Dust and shock proof design,Auto shut off function.



High Precision Power Meter Komshine KPV-53 2-in-1 Visual Fault Locator


Advantages:


1. Anti fall;  One Key start;  Automatic shutdown; 6 Calibrated Wavelength;  VFL Detection

2. Small and Practical without covering all zero shackles

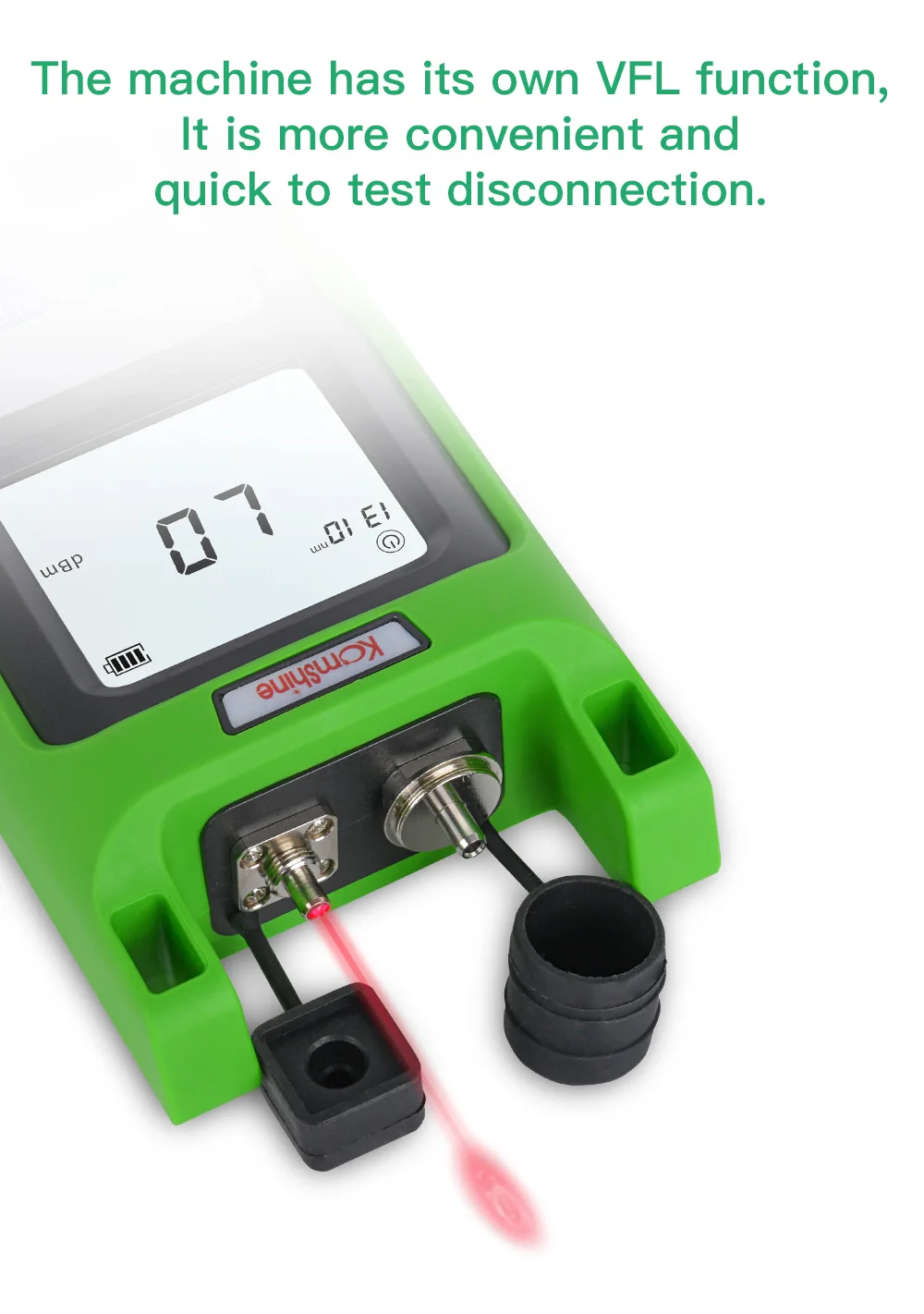

3. The machine has its own VFL 10mw Function, which is more convenient and fast to use

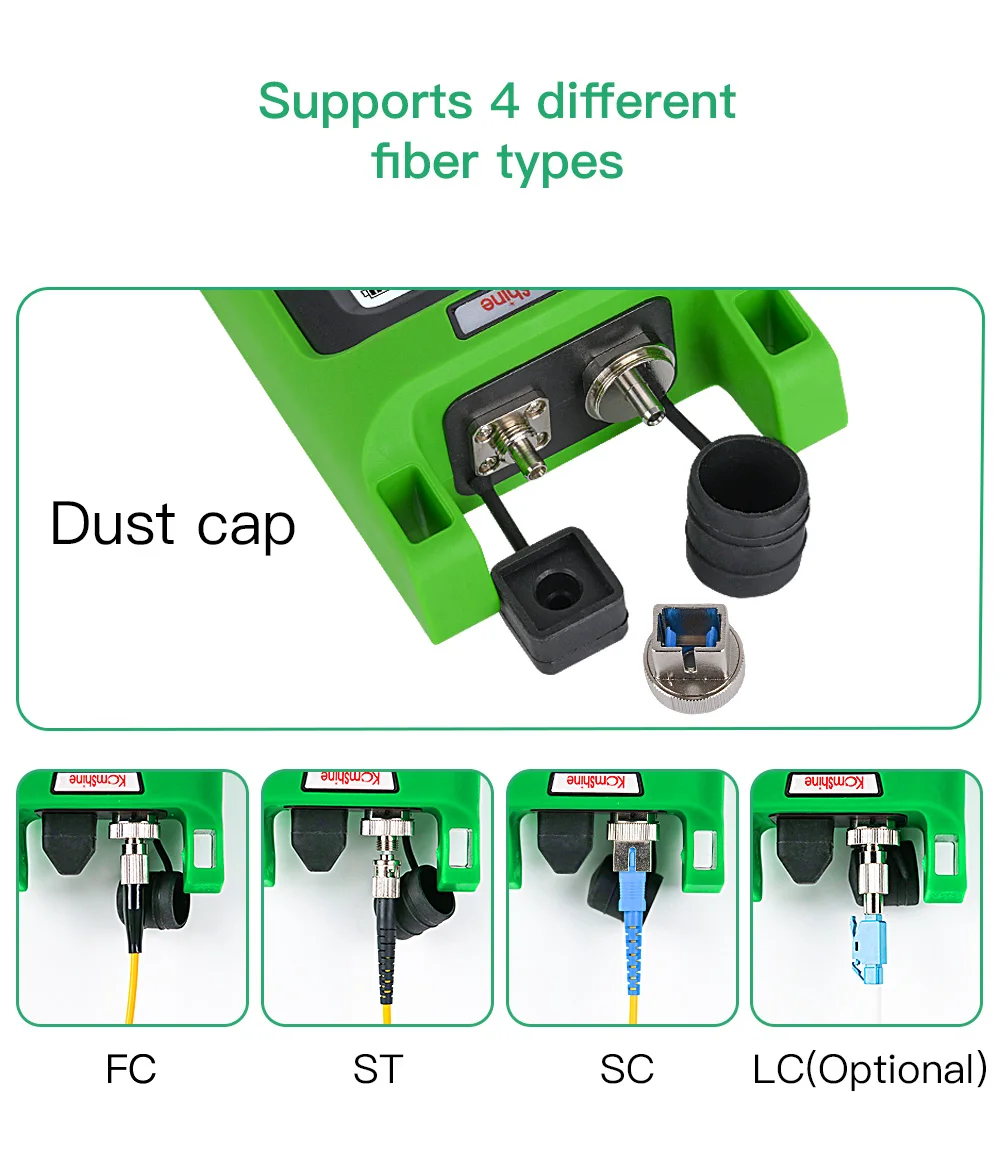

4. Support four interface fiber types: SC; FC; ST; LC

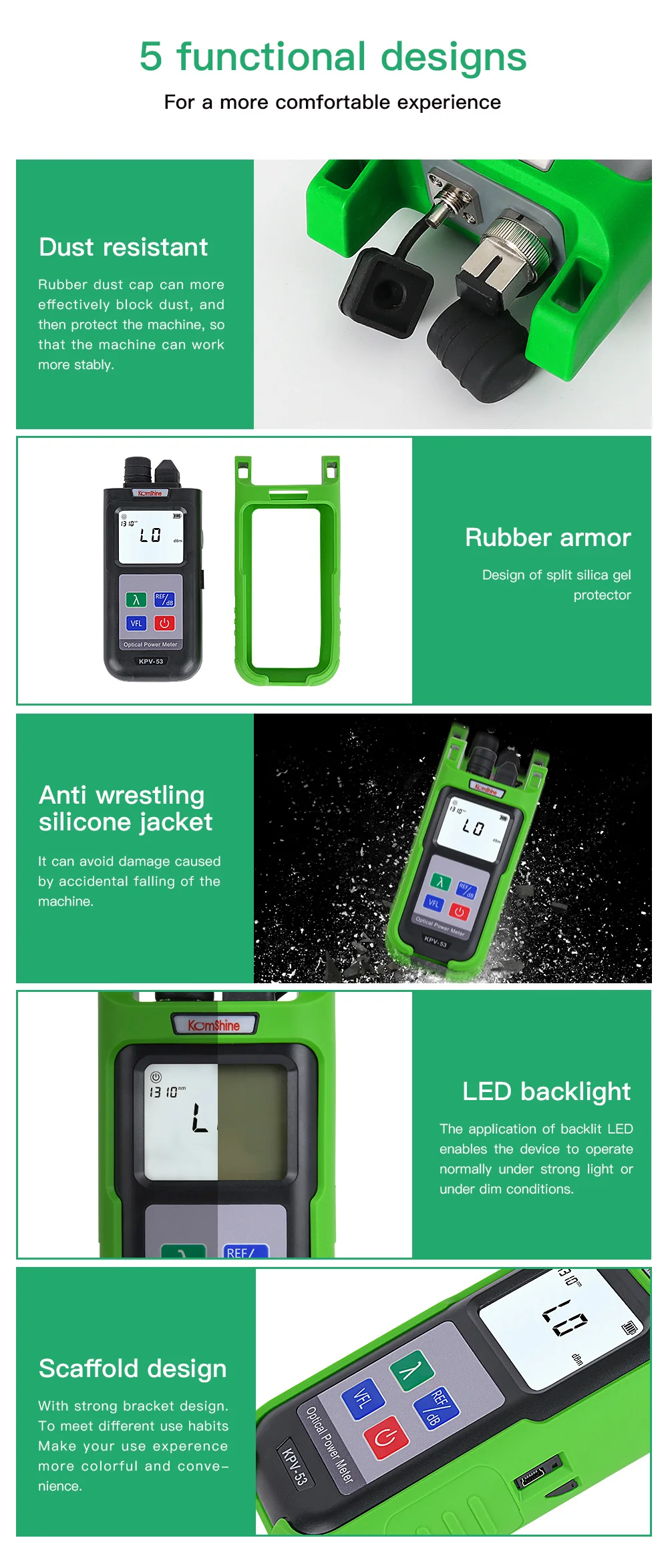

5. Rubber dust cap can more effectively block dust, then work more stably

6. Rubber Armor Pretection : design of split silica gel protector

7. Anti wresting silicone jacket

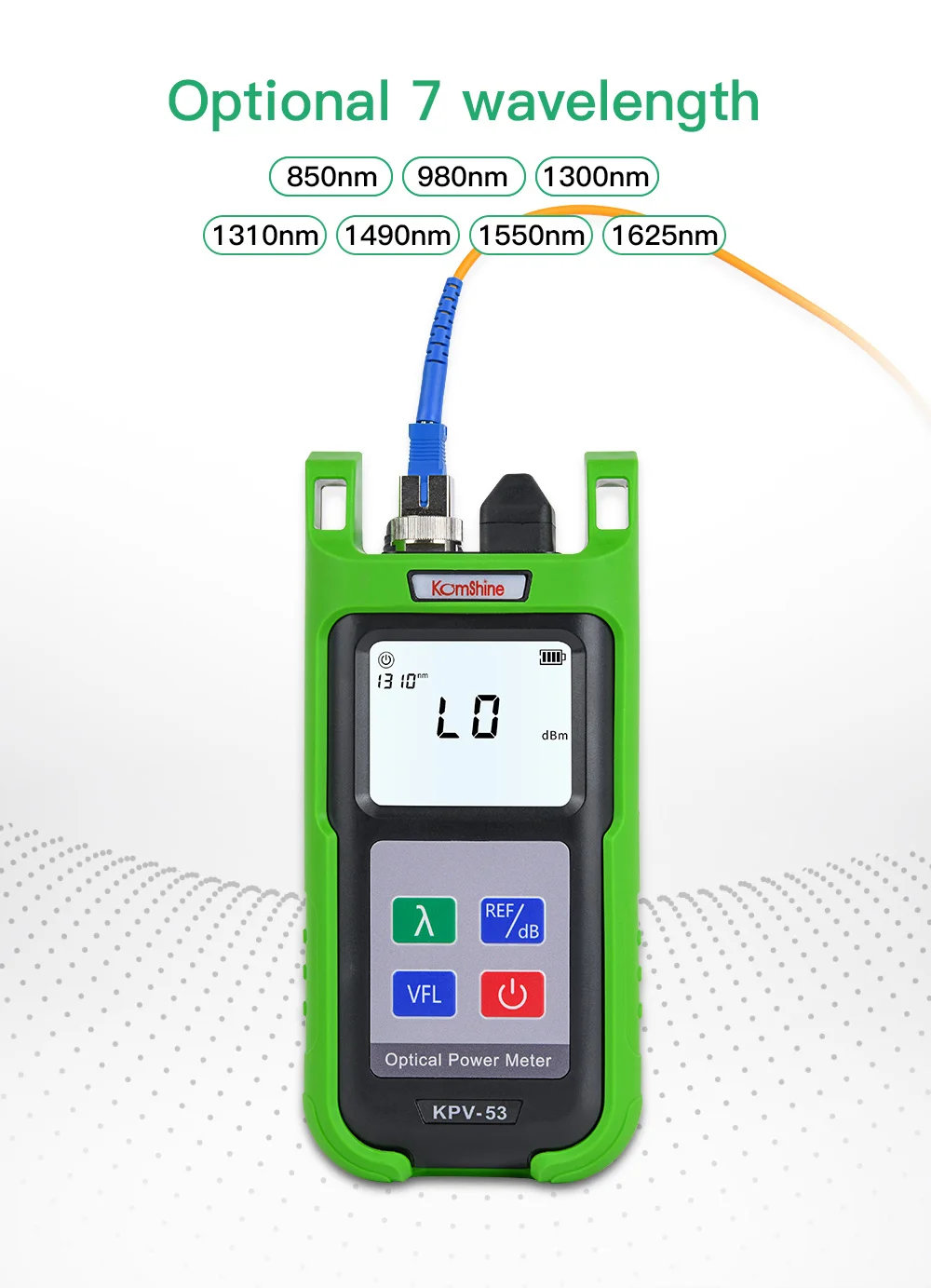

8. Calibrated Wavelength: 850/1300/1310/1490/1550/1625nm

9. Battery lfe: 50 hours; LED Backlight

10. With strong bracket design, make your use experience more colorful and convenience



Warranty Policy:



Industry’s First 3 Year Warranty

 We, KomShine, stand by our products and pleased to provide you with full 3 year service Warranty for on all of our splicer products.
 The warranty is only valid if purchased through an authorized KomShine distributor




We, KomShine, do hereby warrant our Fusion splicer、OTDR products, be free from defects due to defective materials or workmanship for a period of 3 years from the date of shipment.


We, KomShine, do hereby warrant our accessories such as Battery, Cleaver, Thermal Stripper, AC adapter, Carry Case which are included in the standard package of  Fusion Splicer, OTDR products, be free from defects due to defective materials or workmanship for a period of 1 year from the date of shipment.
