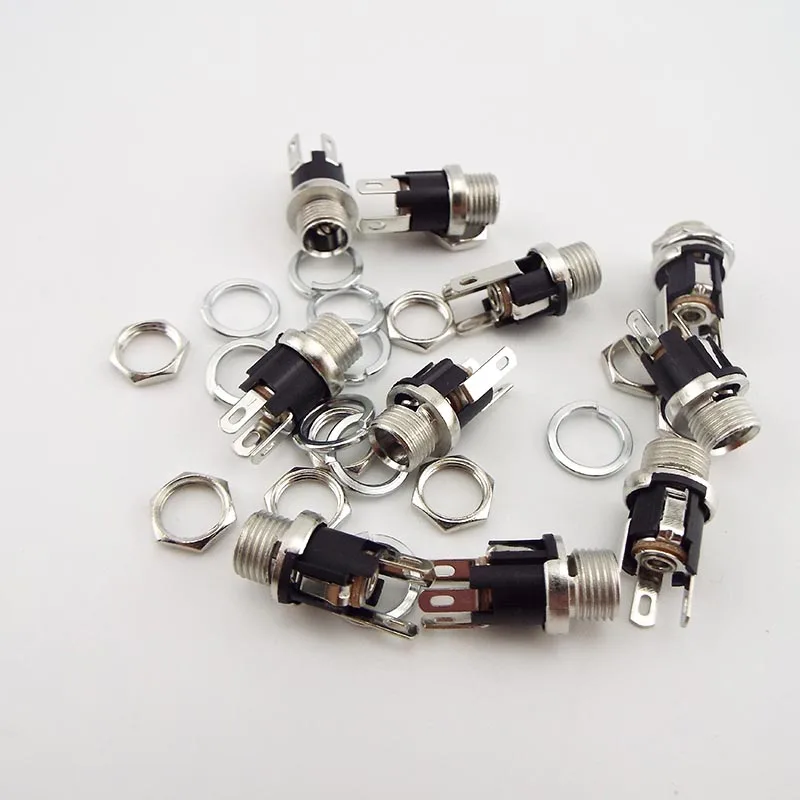

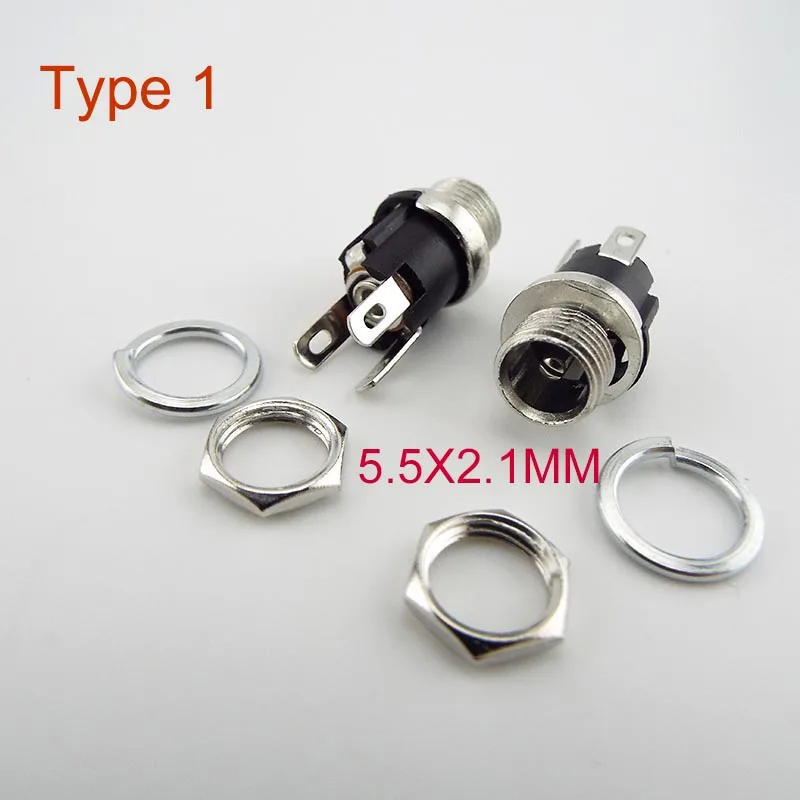

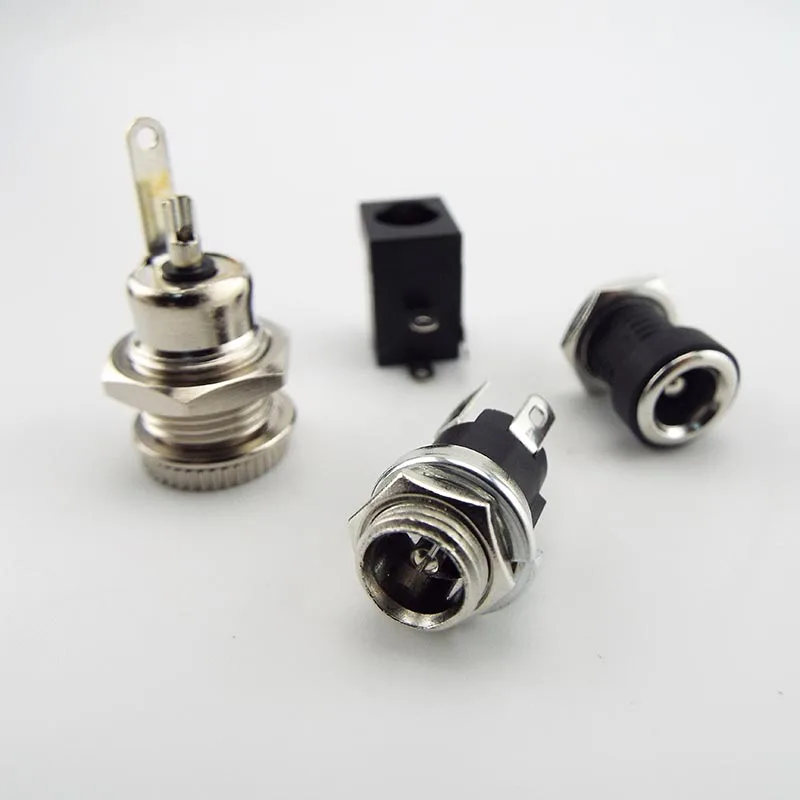

Type 1:

Features:

Contact rating: 30V/0.5A DC

Connector size: 5.5mm x 2.1mm

Product size: 12mm x 12mm x 20mm

Termination method: Solder Lug

1. 5.5x2.1mm DC Power Plug Jack

2. Panel mounting

3. Works with the male plug with inner diameter: 2.1mm, outer diameter: 5.5mm

4. Supplied with washer and hexagonal fixing nut.

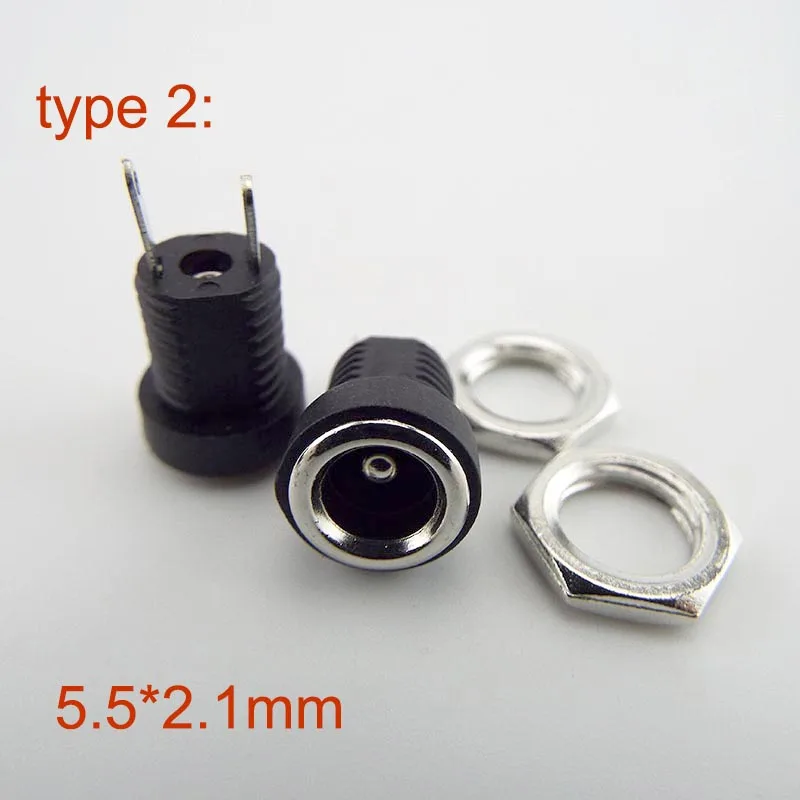

Type 2:

Features:

DC in-line power outlet series

Contact resistance ≤ 0.05Ω

Insulation resistance ≥ 100MΩ

Rated load DC 12V 3A

Plug force 3N ~ 20N

long foot negative - ，short foot positive +

Electrical life 5000 times

Temperature range -30 ~ +70 ℃

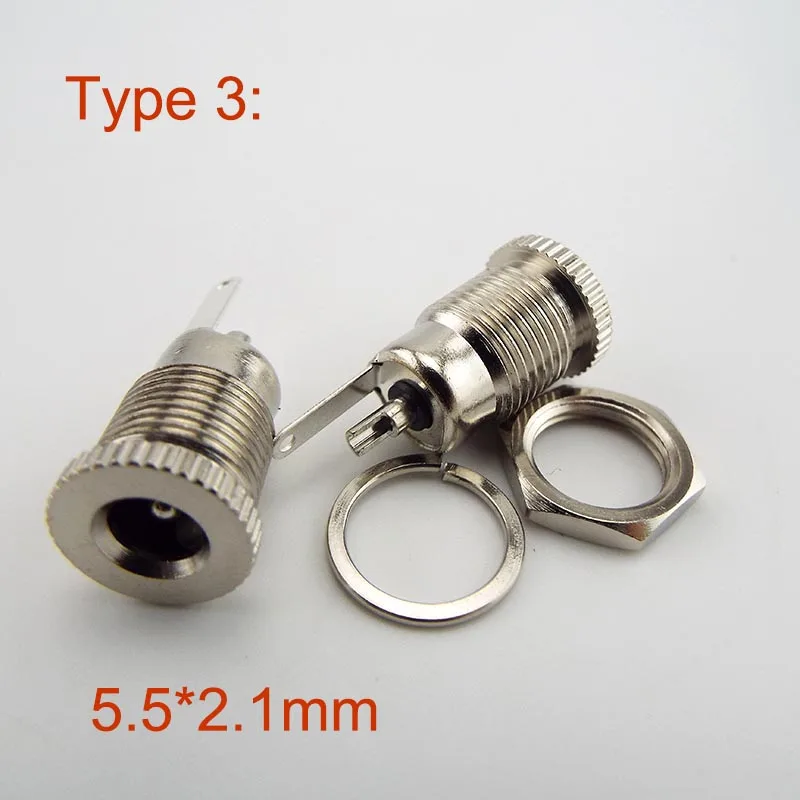

type 3 :

Model:DC-099

DC Type:5.5 x 2.1mm

Rated Load :DC 30V 5A

Model:DC-099

DC Type:5.5 x 2.1mm

Rated Load :DC 30V 5A

Mounting Diameter:11mm

Main Material:Brass

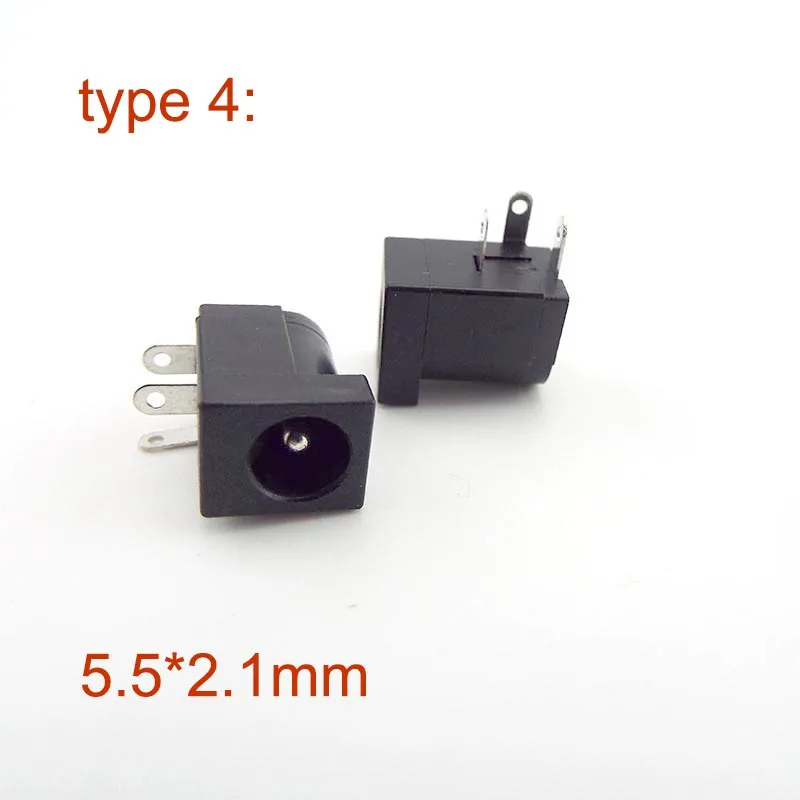

type 4 :

Features:

1. 5.5x2.1mm DC Power Plug Jack

2. Panel mounting

3. Works with the male plug with inner diameter: 2.1mm, outer diameter: 5.5mm

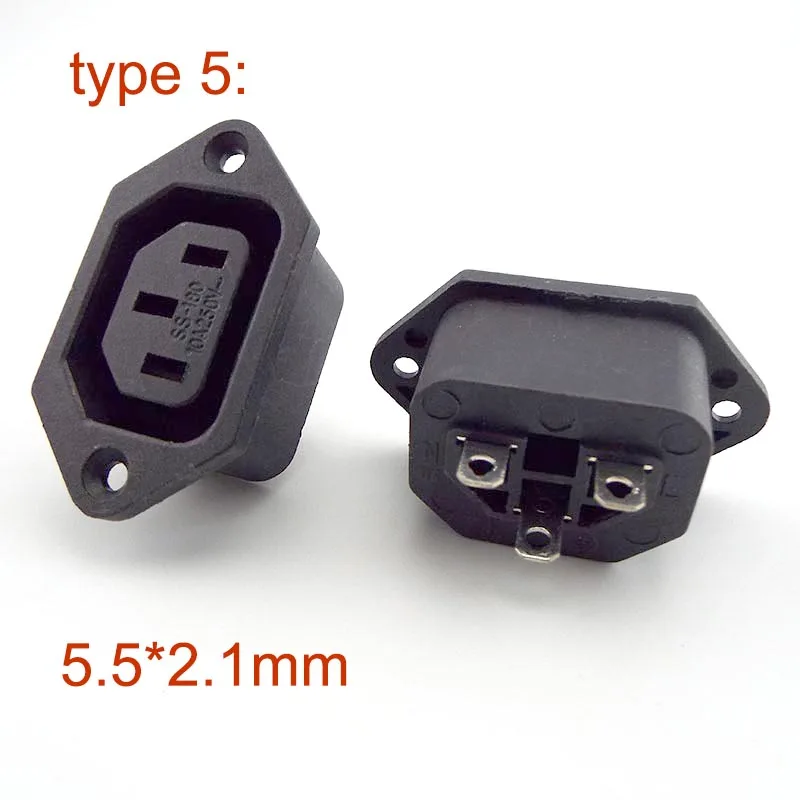

type 5 :

3 pin power

Product Name: Power Inlet Socket;
Power Supply: AC 250V 5A;
Plug Type: IEC 320 C14
Pins Number: 3;
Mounting Type: Screw Type;
Mounting Size: 2.7 x 2 x 2.1cm / 1.1" x 0.8" x 0.83" (L*W*T)
Mounting Screw Pitch: 4cm / 1.6";
Overall Size: 5 x 2.2 x 2.7cm / 2" x 0.9" x 1.1" (L*W*T)
Material: Plastic, Metal;
Color : Black, Silver Tone

IEC 320 C14 male plug, 3-pin terminals, durable material construction, long using life.
Used widely in lab equipments, fitness equipments, industrial automation equipments, etc.
Note: Screws are not included here.

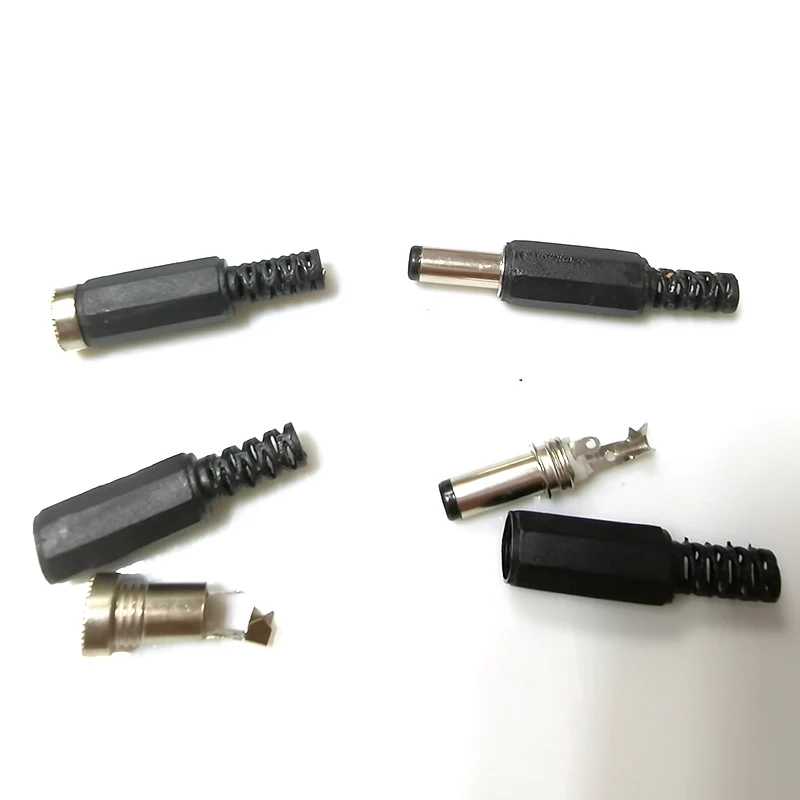

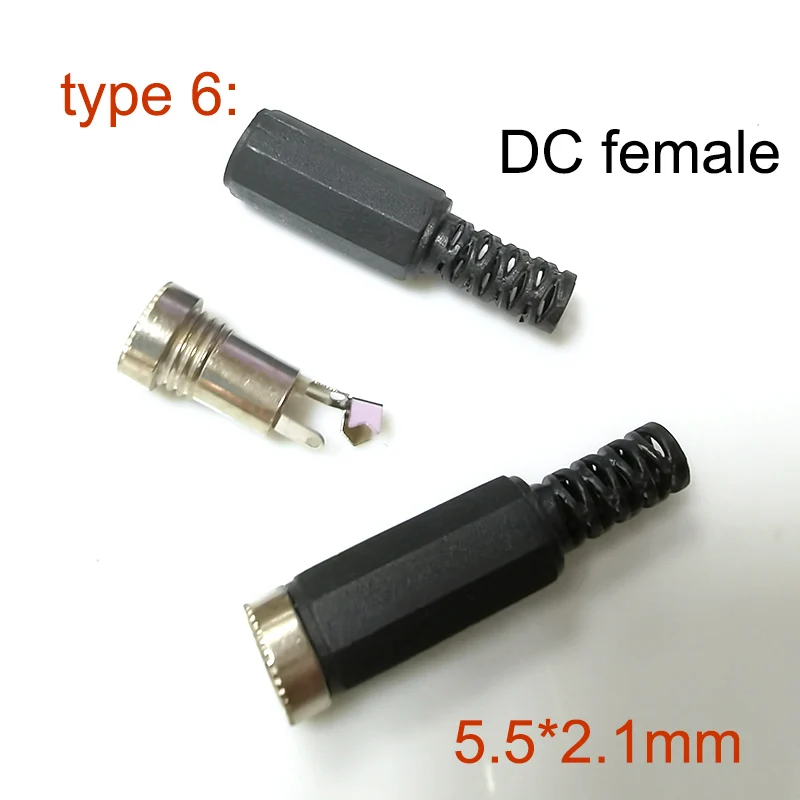

type 6 /type 7 :
