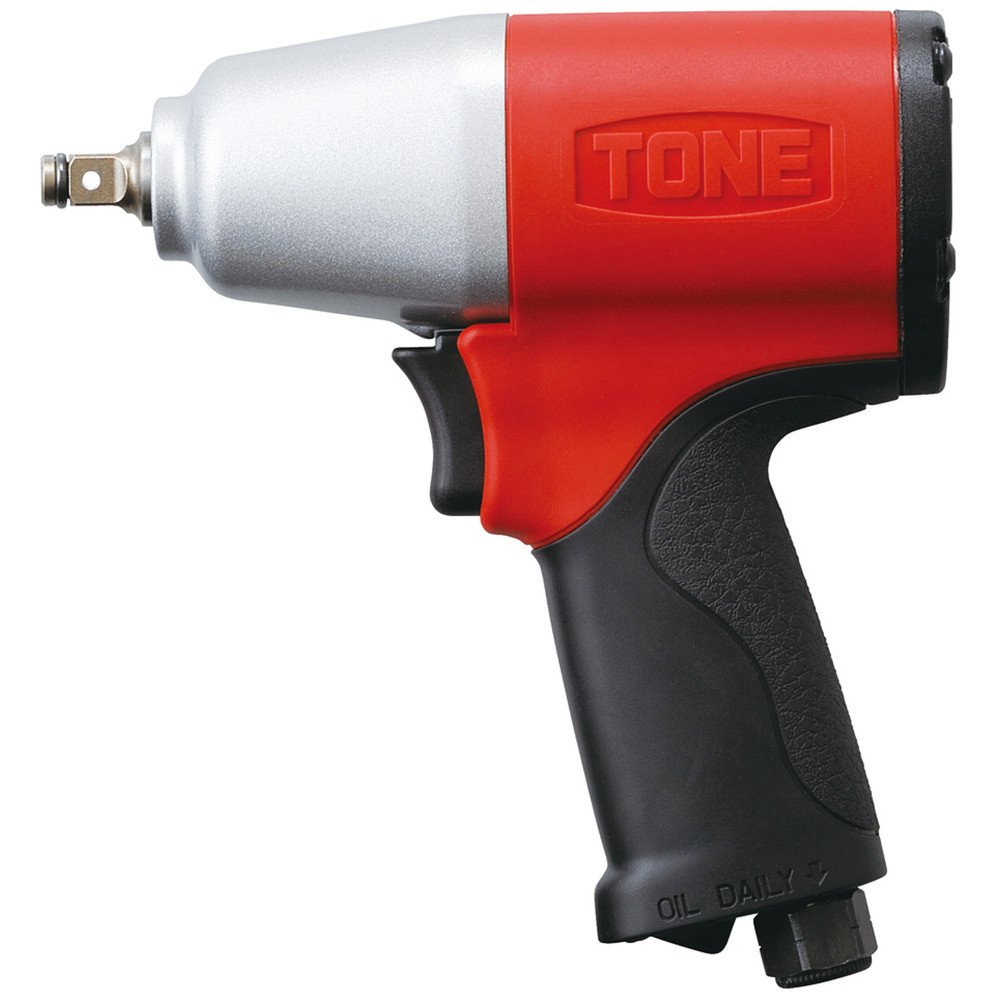

AI3120 From Japan
Description

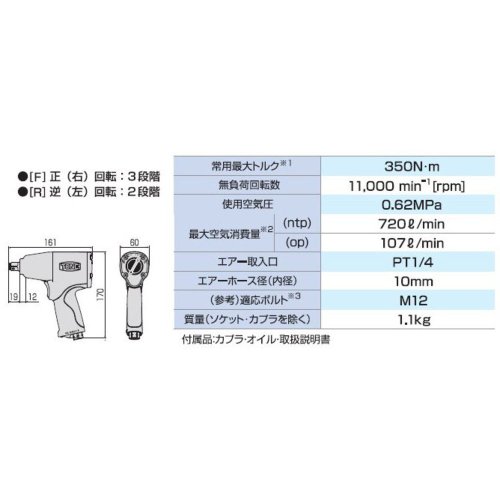

Output angle: 9.5mm (3/8)
Regular maximum torque: 350N · m (Note: regular maximum torque, use the air pressure, time tightening, bolt size and strength classification, tightening object, varies depending on such as an air hose diameter.)
Free speed: 11000min-1 (rpm)
Using air pressure: 0.62 MPa Maximum Air consumption: (ntp) 720L / min · (op) 107L / min
Air inlet: PT1 / 4 (Rc1 / 4) air hose inside diameter: 10mm
Two rotating: positive (right) rotates three steps, reverse (left) rotation two stages
(Reference) adaptation bolt: M12 (adaptation bolt is supposed to automobile wheel nut.)
Regular maximum torque: 350N · m (Note: regular maximum torque, use the air pressure, time tightening, bolt size and strength classification, tightening object, varies depending on such as an air hose diameter.)
Free speed: 11000min-1 (rpm)
Using air pressure: 0.62 MPa Maximum Air consumption: (ntp) 720L / min · (op) 107L / min
Air inlet: PT1 / 4 (Rc1 / 4) air hose inside diameter: 10mm
Two rotating: positive (right) rotates three steps, reverse (left) rotation two stages
(Reference) adaptation bolt: M12 (adaptation bolt is supposed to automobile wheel nut.)
