This Listing For 1 x  AC240V to DC5/12/24V 15-720W LED Driver Switch Power supply Transformer / PSU

AC 240V to DC 5/12/24V 15-720W IP20 LED Driver Switch Power supply Transformer PSU
led driver led transformer
led power supply 12v power supply
24v power supply

Description:
- 100% brand new and high quality

Features:

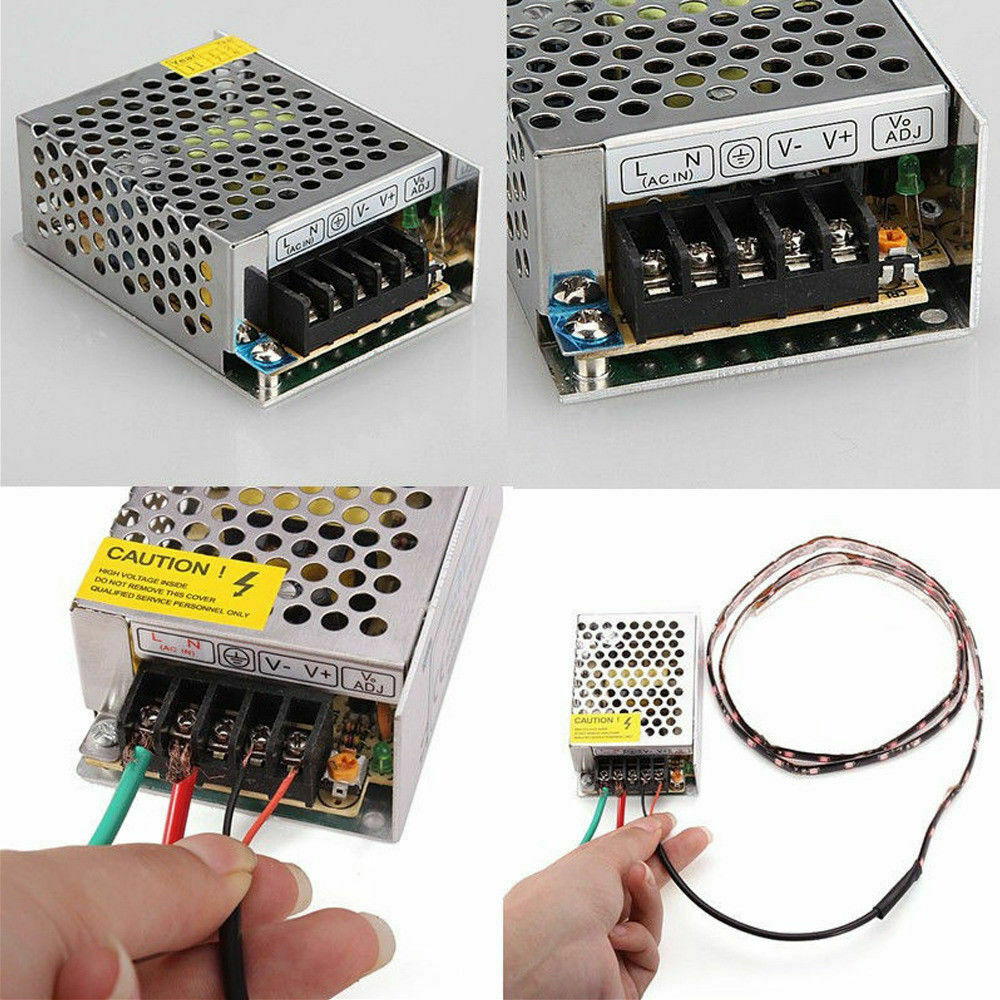

  • DC 5V IP20 non dimmable Switching power supply, Convert AC 110V-240V to DC 5V.
  • This IP20 DC 5V switching power supply is widely used for low voltage LED strip light, RGB LED strip.
  • Safety Compliance CE and RoHS, high efficiency and stable performance.
  • This power supply is hard wire type, can use extra electric wire to run to line electricity.
  • Indoor use only, these are non-waterproof transformers.

Item Specifications / Technical Details:

  • Item type: LED Transformer
  • Input Voltage: 110/220V AC
  • Input Frequency Range: 50/60Hz
  • Output Voltage: DC 5V
  • Output Current: 60Amp
  • Output Power: Optional
  • Dimension: 215mm L x 115mm W x 50mm H

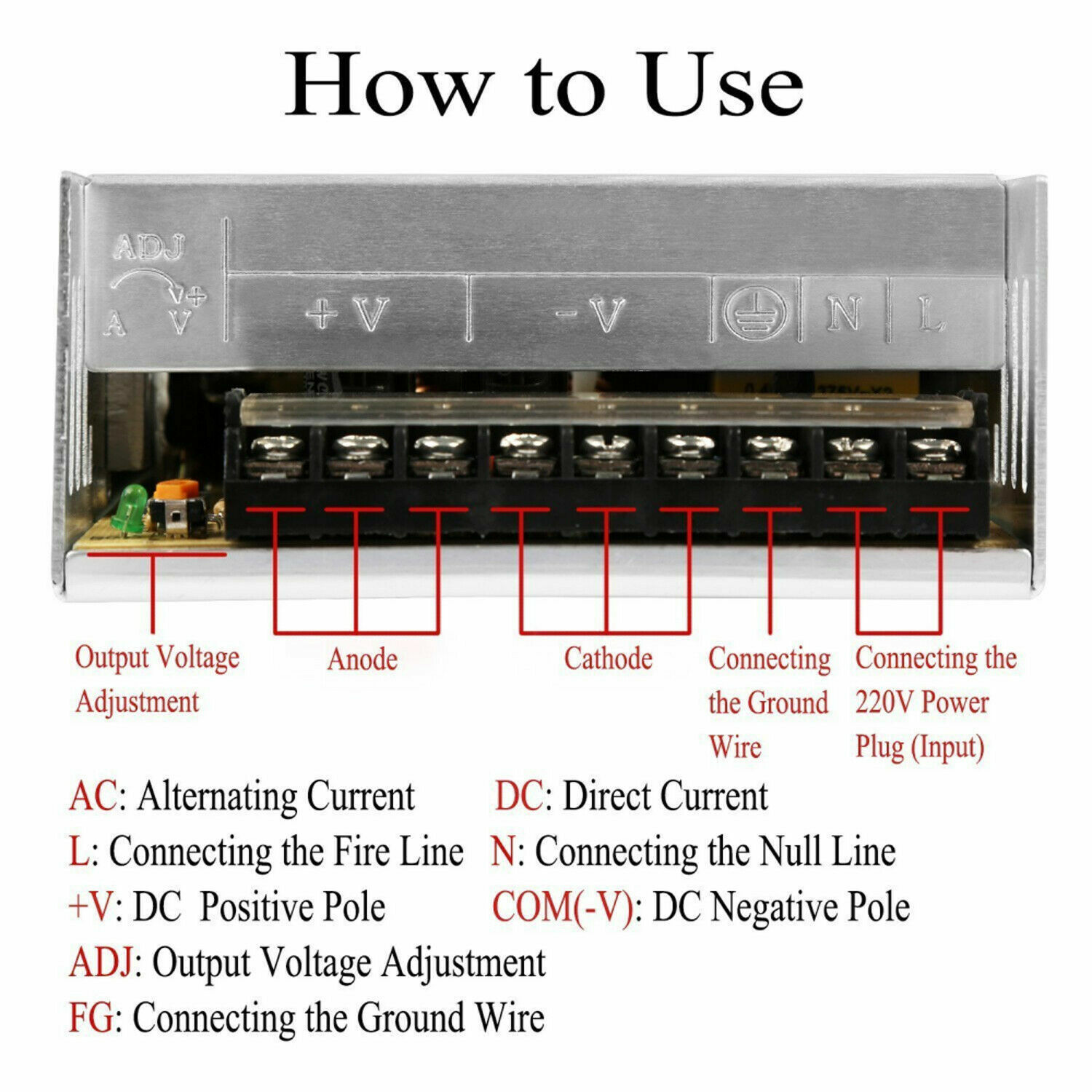

  • Connection Type: Screw Terminals
  • Protections: overload / over voltage / short circuit
  • Shell Material: Aluminium

DC5V IP20 DriverLengthWidthHeightWeight
DC5V 10W IP20 Driver70mm40mm32mm100g
DC5V 20W IP20 Driver85mm58mm34mm140g
DC5V 28W IP20 Driver110mm78mm36mm150g
DC5V 50W IP20 Driver160mm100mm43mm350g
DC5V 100W IP20 Driver200mm98mm40mm500g
DC5V 150W IP2O Driver200mm98mm40mm570g
DC 5V 200W IP20 Driver200mm110mm50mm675g
DC 5V 300W IP20 Driver215mm115mm50mm775g

DC12V IP20 DriversLengthWidthHeightWeight
DC12V IP20 24W Driver85mm59mm33mm110g
DC12V IP20 30W Driver90mm65mm40mm120g
DC12V IP20 40W Driver110mm65mm40mm160g
DC12V IP20 60W Driver110mm80mm35mm200g
DC12V IP20 80W Driver160mm100mm42mm250g
DC12V IP20 100W Driver160mm100mm42mm360g
DC12V IP20 120W Driver199mm97mm42mm400g
DC12V IP20 150W Driver200mm100mm45mm480g
DC12V IP20 180W Driver200mm100mm45mm515g
DC12V IP20 200W Driver200mm100mm45mm600g
DC12V IP20 240W Driver199mm110mm50mm665g
DC12V IP20 300W Driver200mm110mm50mm750g
DC12V IP20 360W Driver216mm114mm50mm760g
DC12V IP20 400W Driver216mm114mm50mm1000g
DC12V IP20 480W Driver216mm114mm50mm1100g

DC24V IP20 DriversLengthWidthHeightWeight
DC24V  IP20 24W Driver110mm78mm37mm100g
DC24V  IP20 48W Driver108mm77mm36mm192g
DC24V IP20 72W Driver160mm97mm43mm325g
DC24V IP20 120W Driver200mm98mm43mm465g
DC24V IP20 200W Driver200mm110mm50mm600g
DC24V IP20 240W Driver200mm110mm50mm675g
DC24V IP20  300W Driver215mm114mm50mm700g
DC24V IP20 360W Driver215mm115mm50mm775g
DC24V IP20 400W Driver200mm100mm50mm950g
DC24V IP20 480W Driver215mm115mm50mm1240g

Package included:
  • 1 x LED Switching Power Supply

Notes:
1. High Voltage inside ,do not remove the cover. Qualified service personnel only.
2. 110V/220V is selected by switch before power on, please check the input voltage avoiding damage.


Note:

  • Due to the light and screen difference, the colour of the item may be slightly different from the pictures.
  • Please allow 0.2-0.5cm differences due to manual measurement.
  • Delivery times can vary depending on the destination location.
  • We would advise against booking an Electrician or fitter until you have received all items in satisfactory condition.
