DRO 2 Axis digital readout for milling lathe machine with precision linear scale linear encoder include accessories
NOTE:
It is compete dro kits with parts to fit mounting.The linear scale has to be chosen from 50-1000mm travel length.If you need other travel, please leave a message to us.
Scale Length available
physical length is differnt from the travel length
50,100,150,200,250,300,350,400,450,500 ,550,
600,650,700,750,800,850,900,950,1000mm 5um.
physical length = 140mm + travel length,the length above is travel length.
If need 0.001mm resolution, it cost extra $18per piece.
DRO description
The functions:
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering
20:R function
21:Radius/Diameter function (lathe machine )
22.Z+Y sum (lathe machine)
This is a mutlifunctional 2 axis DRO may be used on lathe machine, mill machine and other machines.
parameters:
a).Voltage Range: AC 85V~260V/50HZ~60HZ
b).Power Consumption: 25VA
c).Coordinates: 1/2/3/4
d).Display: 8 digits display
e).Input Signal: TTL square wave EIA-442
f).Input Signal frequency: 100KHZ
g).Length resolution: 5um
h).Operation Keyboard: pressure sensitive key pad

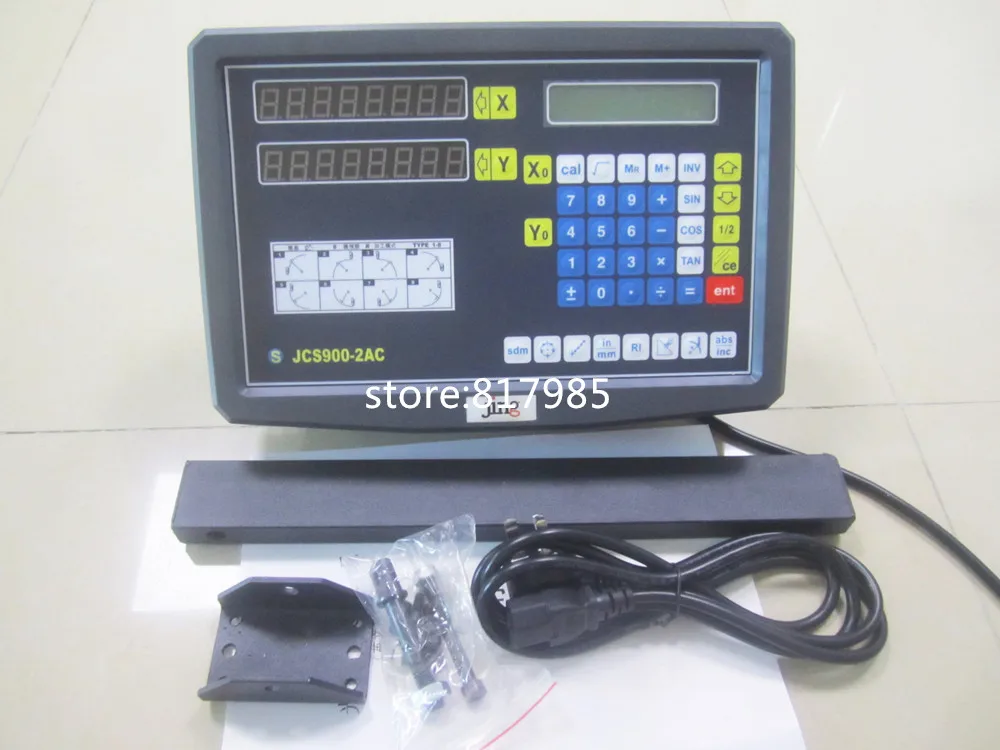

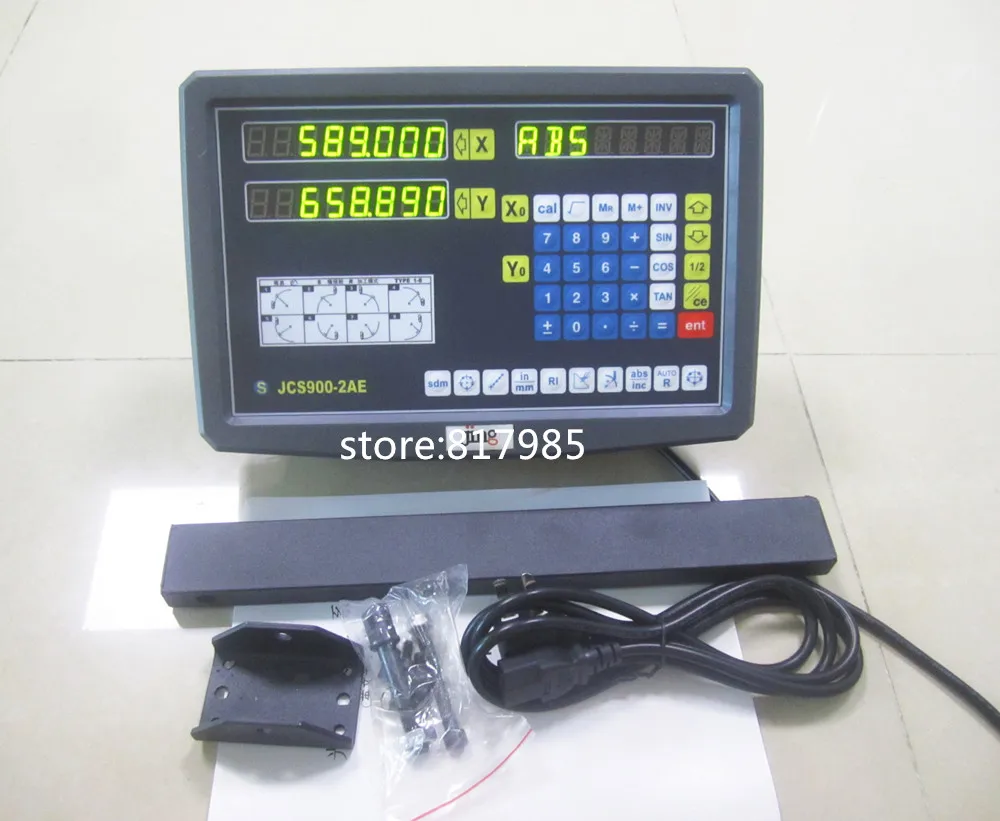

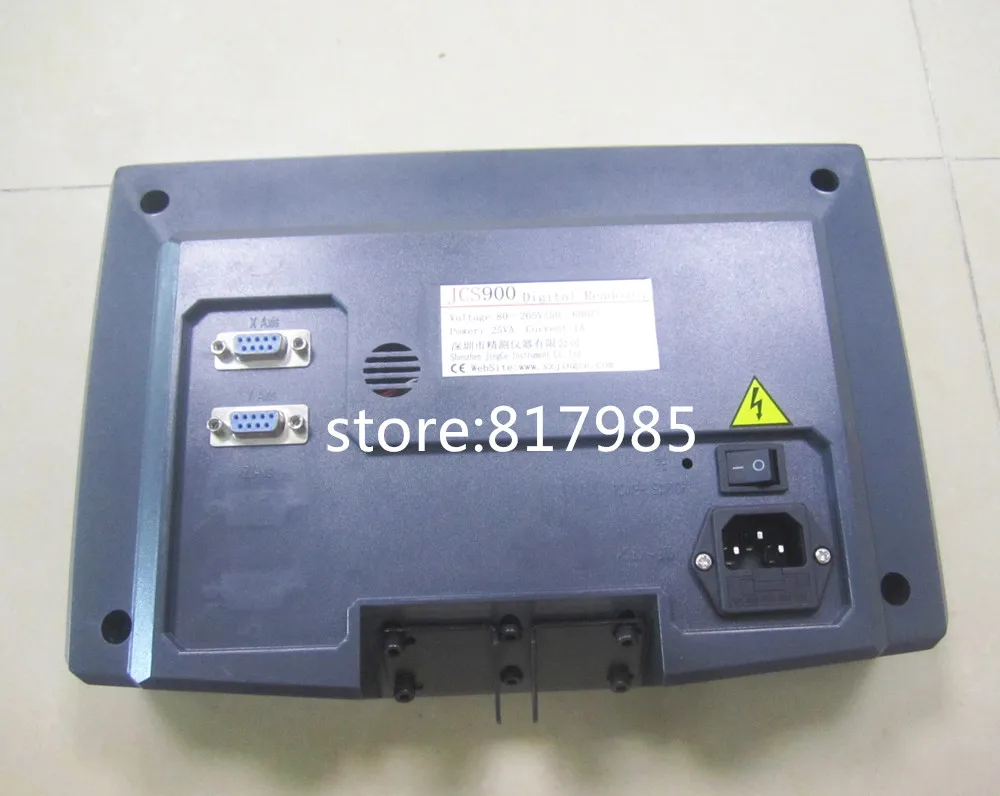

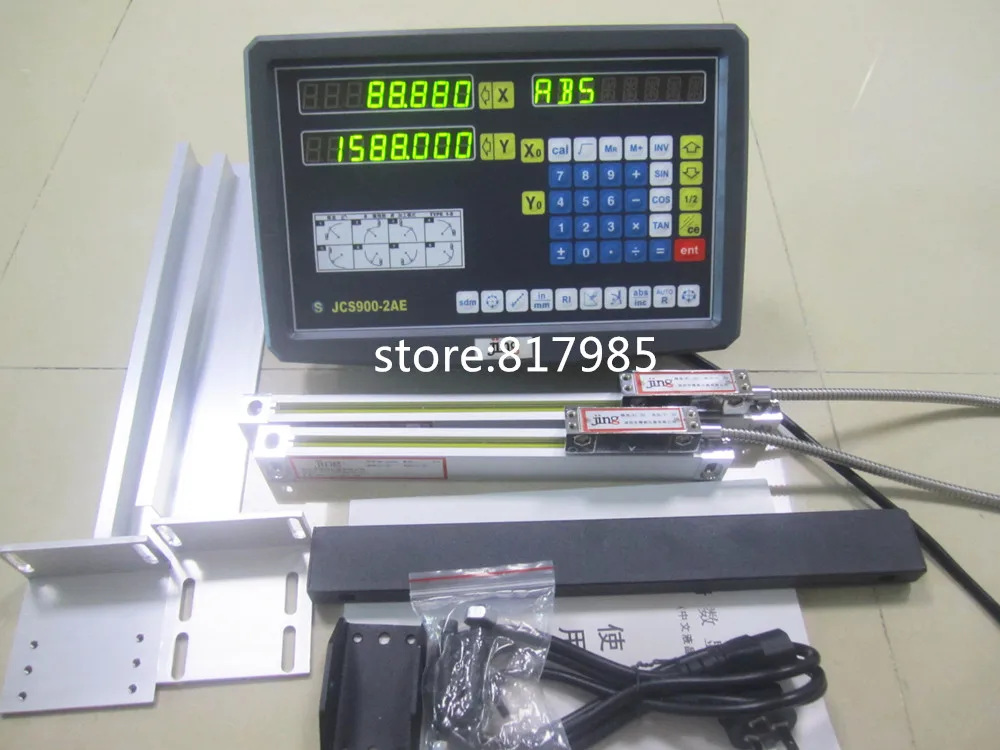

Digital readout photos:
parameters of Linear Glass Scales
A).High Precision linear scale
B).Resolution : 5um (0.005mm) 0.0002”
C).Signal : TTL square /wave EIA-442(option)
D).Grating pitch: 0.02mm (50LP/min)
E).Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
F).Response Speed: 60m/min or 40ins/sec
G)Cable length: 3.5 meter
