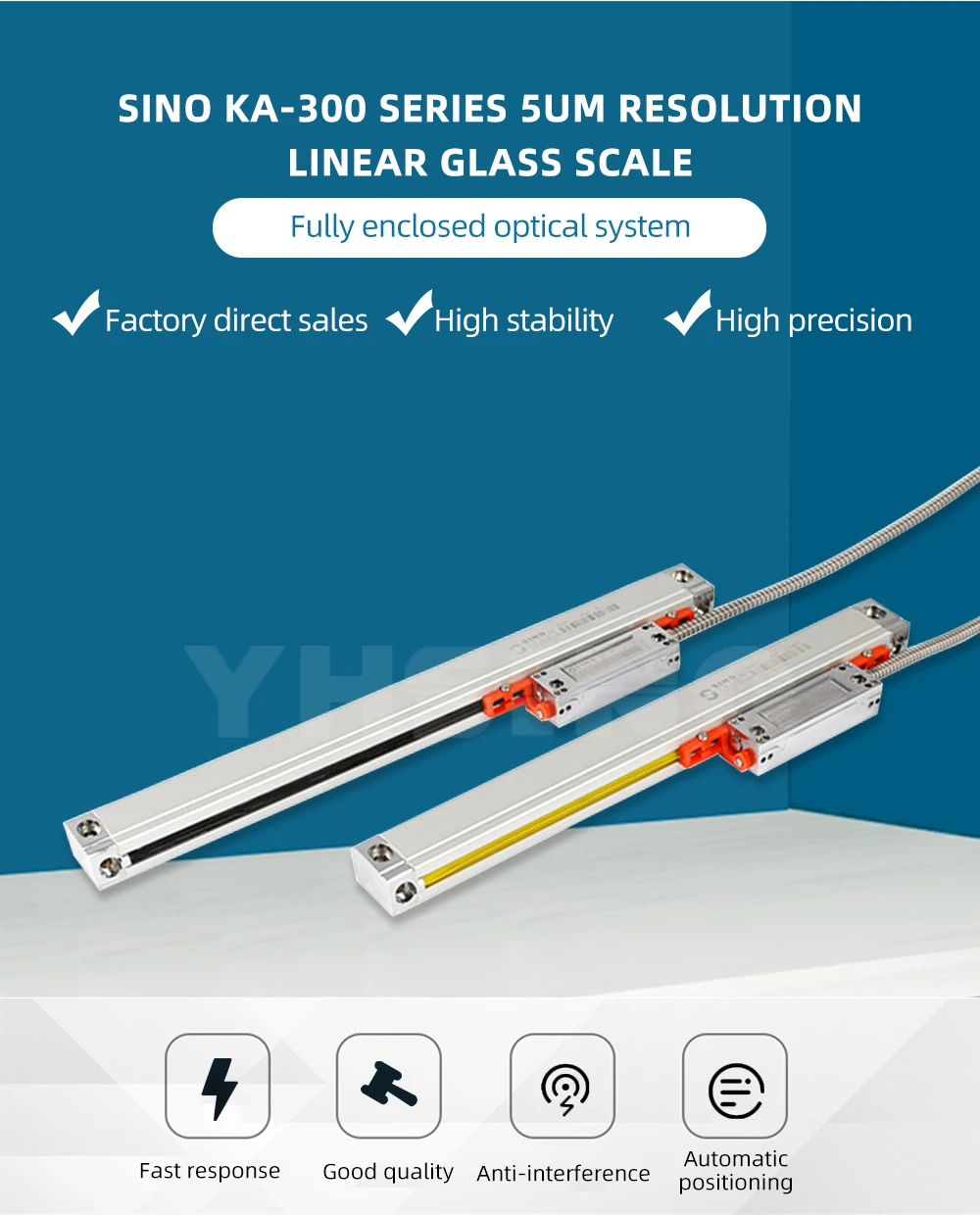

SINO KA300 Linear scale Travel (measuring) Working stroke SINO KA300 470 520 570 620 670 720 770mm（0.005mm/5μm）





Dear buyer, please note:

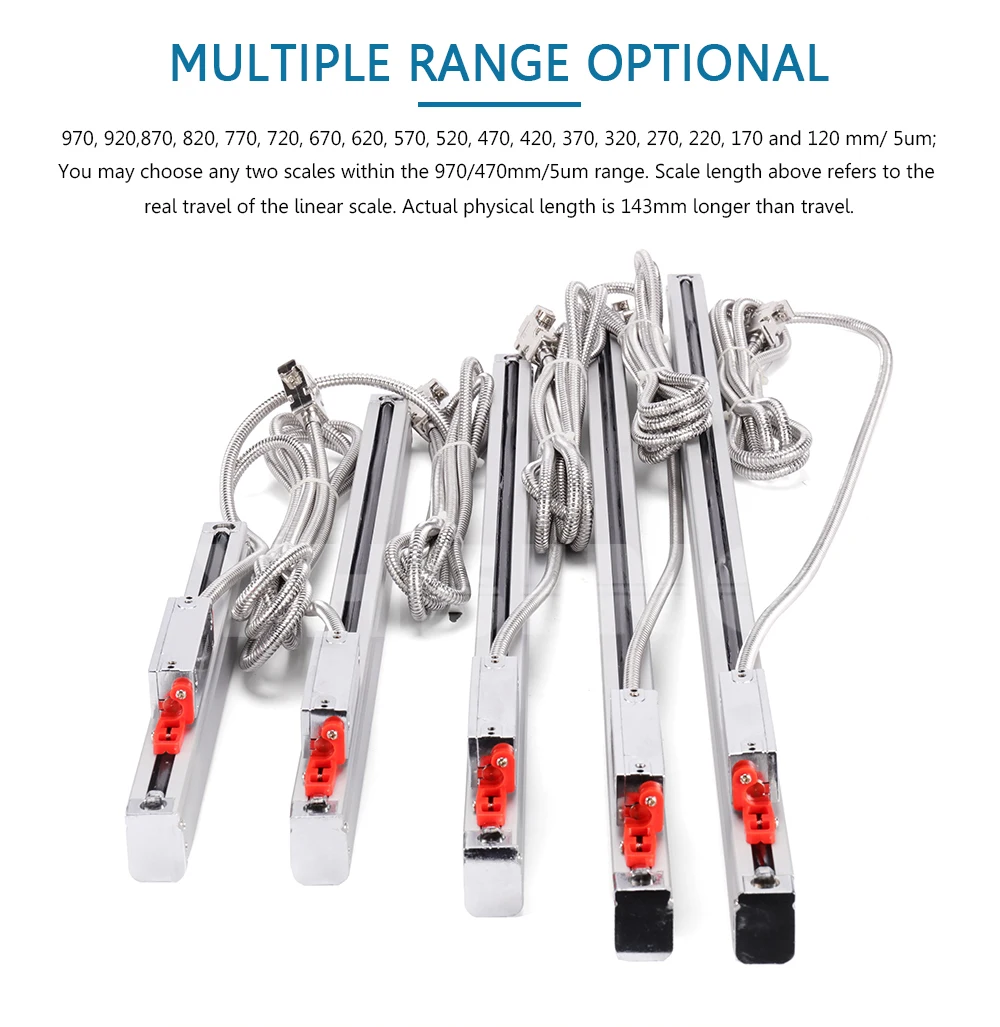

1. The order is one piece SINO KA300 5u(0.005mm) linear glass scales/linear encoder/linear sensor, travel length are  KA300-470mm, KA300-520mm, KA300-570mm, KA300-620mm, KA300-670mm, KA300-720mm, KA300-770mm, you can choose one piece among them.



2. We are the original factory, so the quality is guaranteed and the price would be the best. Also there's no need to worry about after sales.

3. About the working length and the overall length of the linear scale. There's example for you: If the travel length is KA300-220mm, the total length are 326mm, hoping you can know that, thanks. Or if you are not sure about the travel length, pls contact us for help, we would give you suggestions.

4. The price is not included tax fee/ tariff , hoping you can know that.

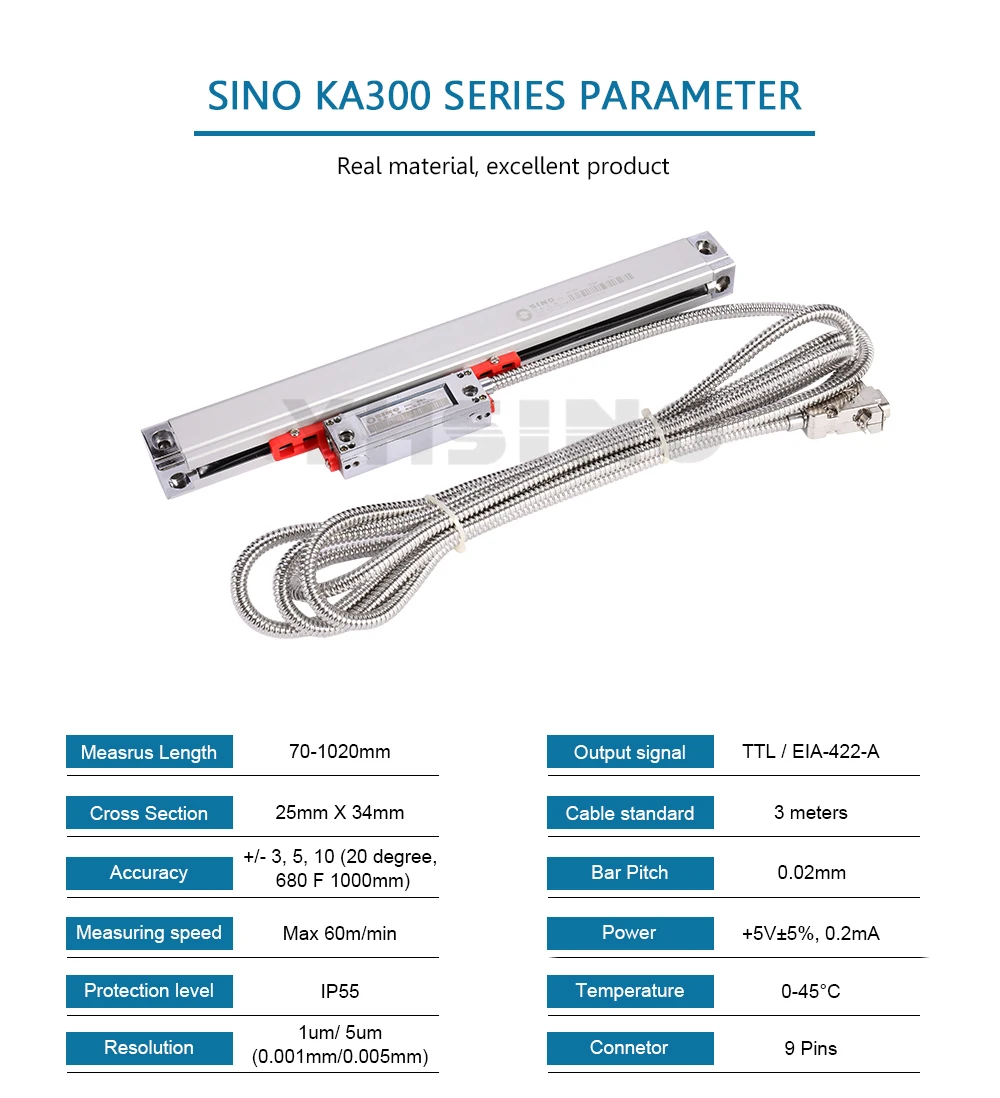

SINO KA300 Linear Scale/SINO KA300 Linear Encoder Parameter

1. Travel (measuring) length: 70-970mm

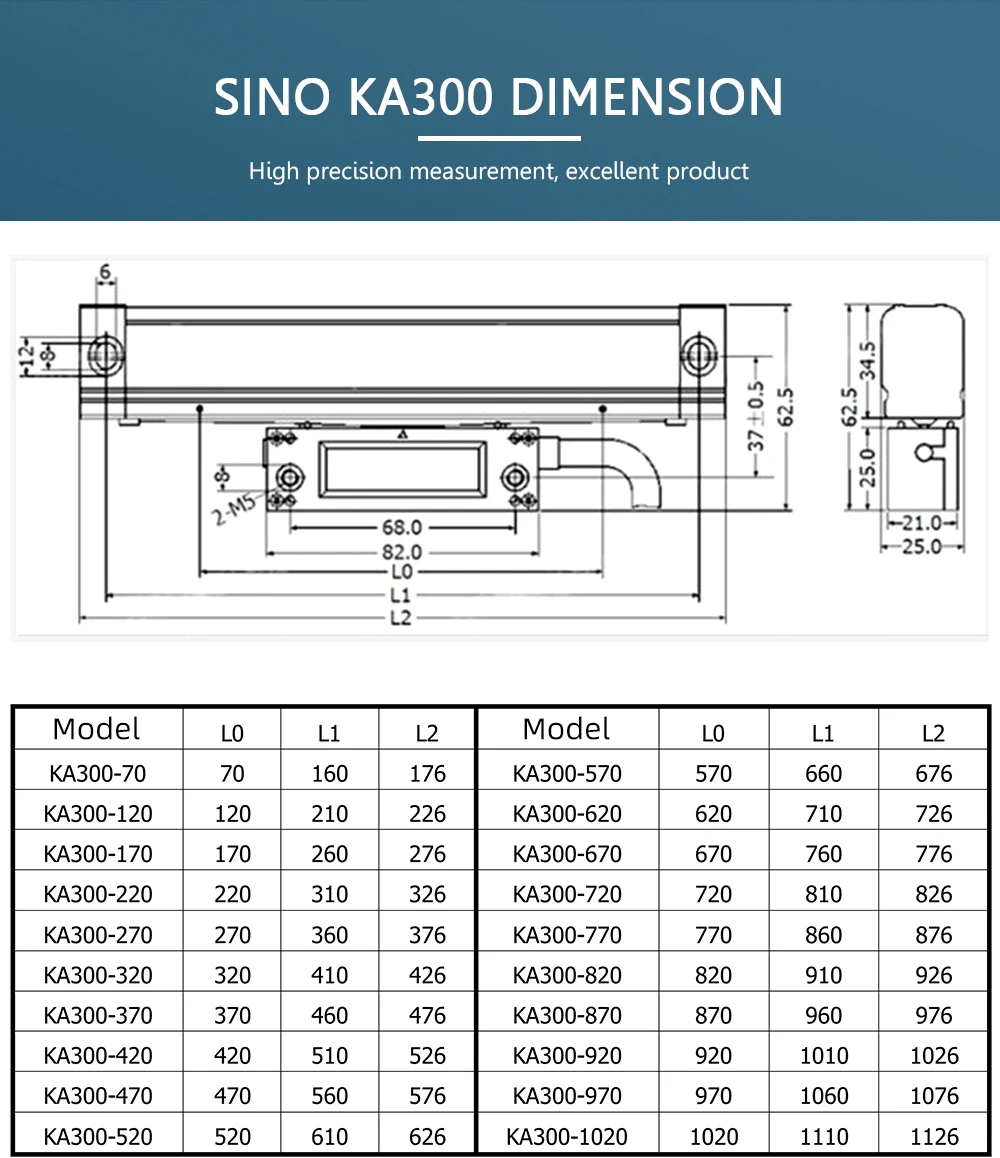

2. Total (overall) length: Travel length + 106mm

3. Plug: DB9

4. Resolution: 0.005mm (5U)

5. Input voltage: 5V

6. Grating pitch: 0.02mm (50LP/min)

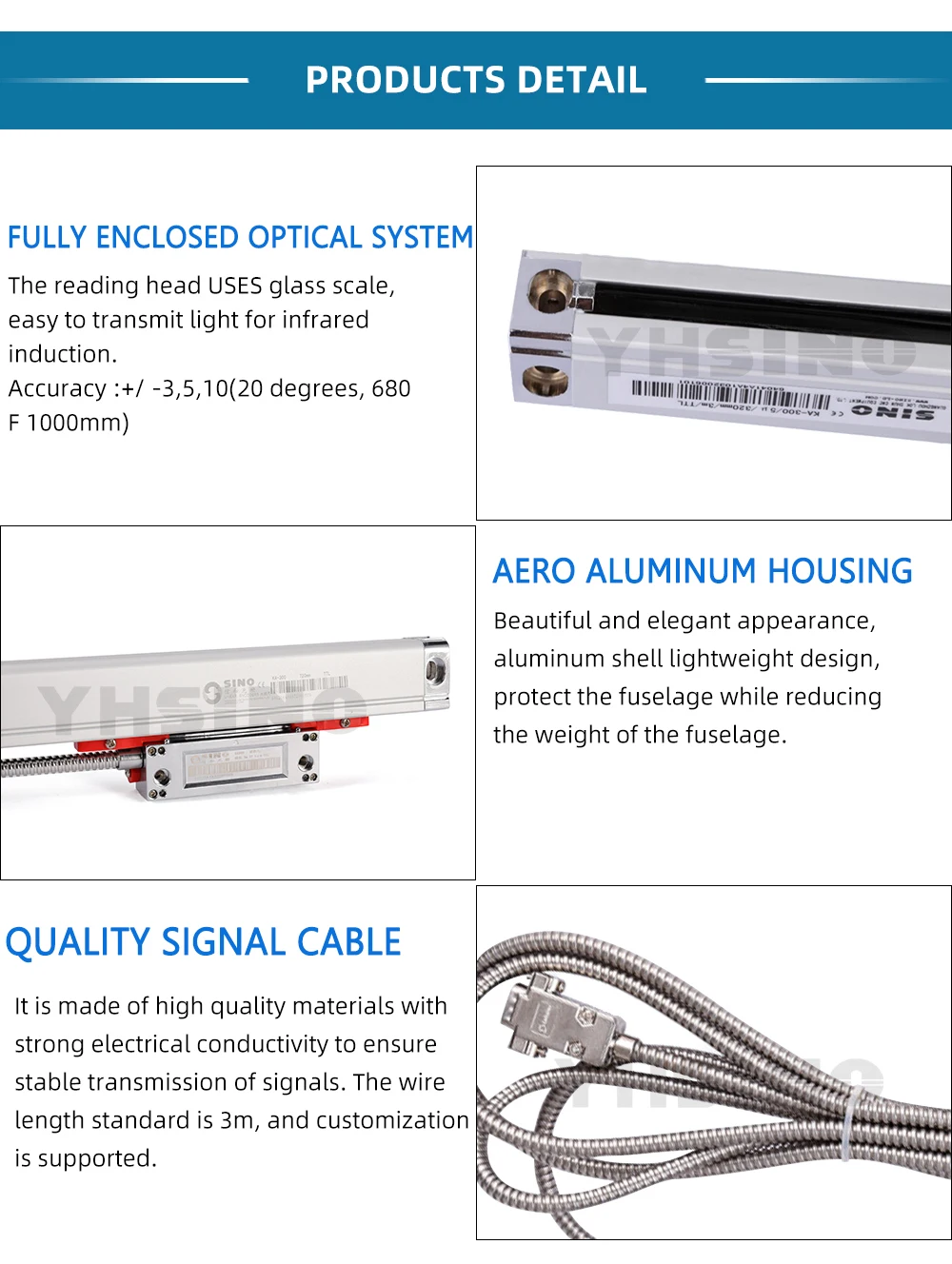

7. Cable length: 3 Meter (about 9 feet)

8. Normal size: About 34.5*25

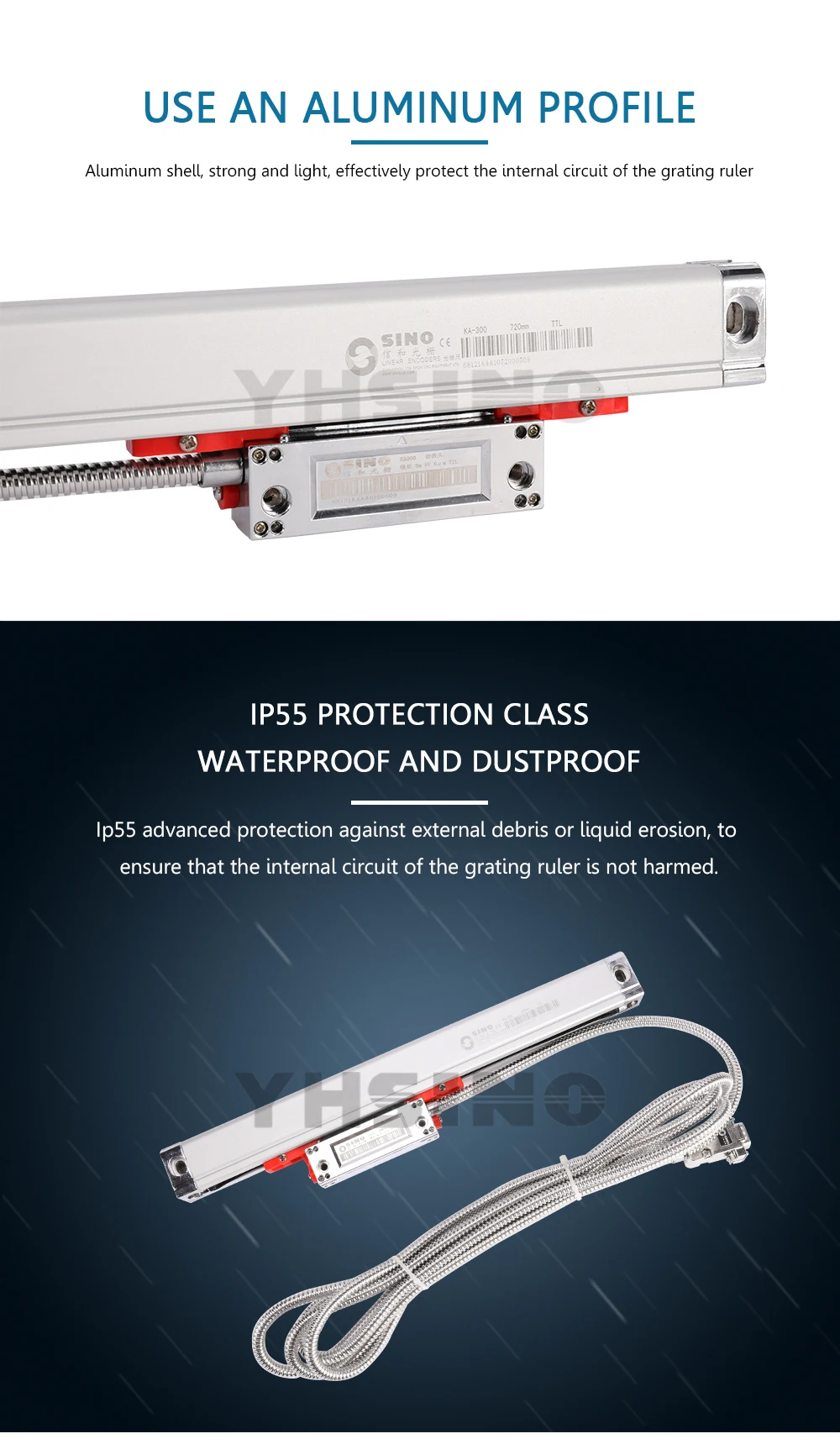

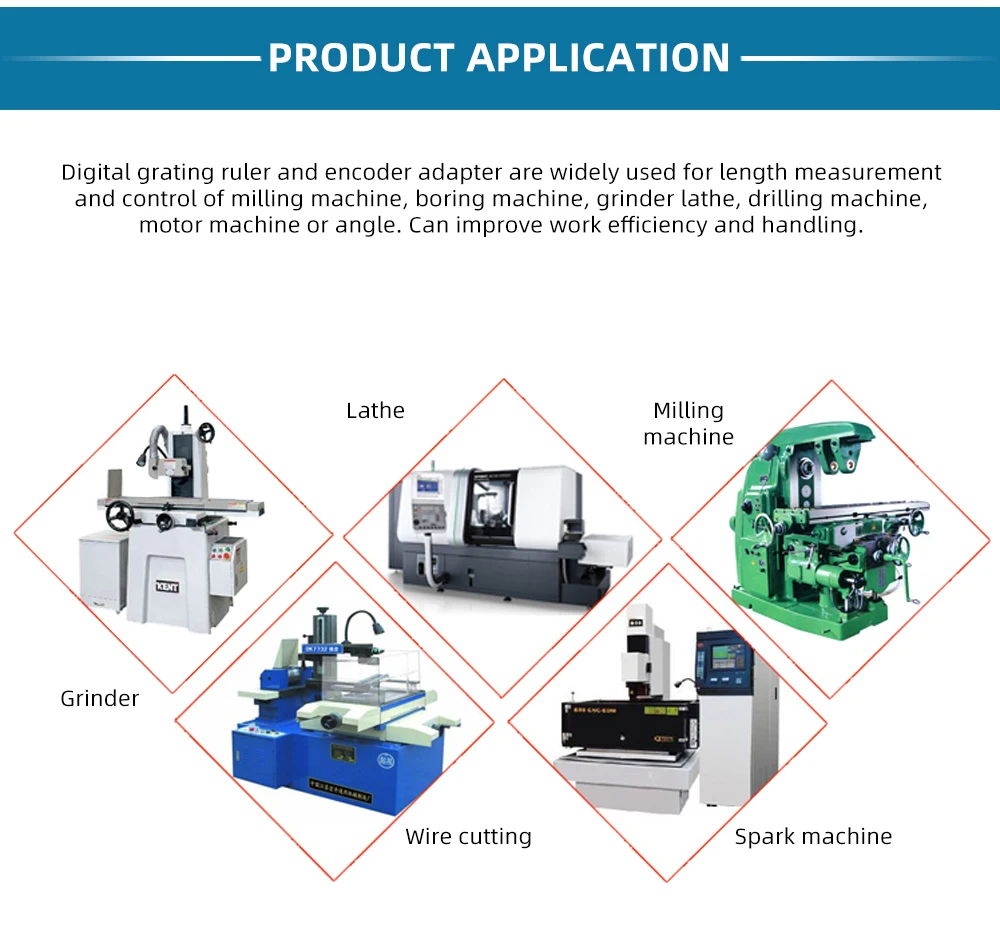

9. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure,the shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, the range of the working length is from 70mm to 1020mm.

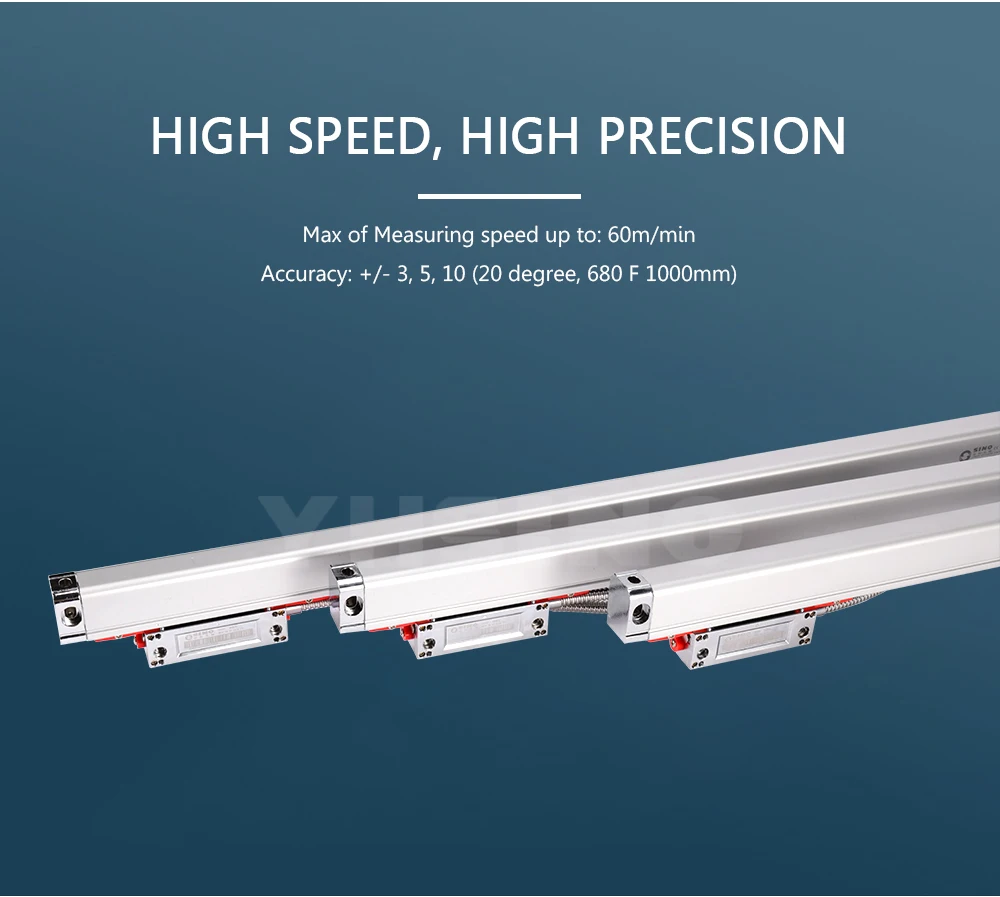

10. Moving speed: high speed ruler 120 m/min, Ordinary ruler 60m/min

11. Power supply: +5V + 5%, 0.2mA

12. Working temperature: -25°c~45°c







SINO KA300 Signal of Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor, it is TTL signal

If you order them, please confirm your dro can work with our linear scales or tell me your dro brand, so that I can change the signal for you, thanks.
