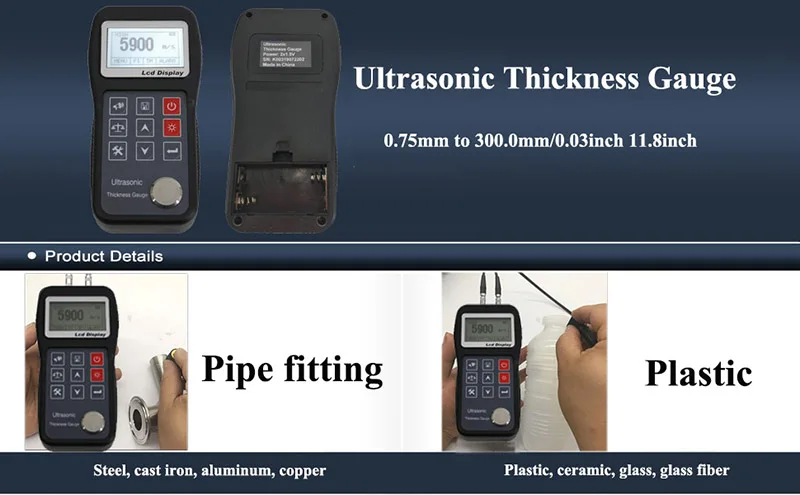

Digital Ultrasonic Thickness Meter Tester Gauge with 0.03-11.8 inch for Metals

Shipping Policy : Battery/ Liquid not included during the shipping



Features:

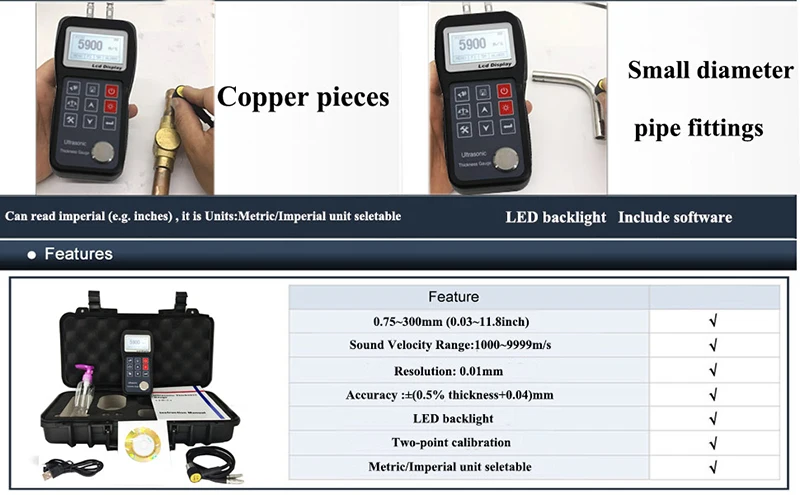

• Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasound;
• Can be equipped with a variety of different frequency, chip size, double crystal probe use;
• Have probe zero calibration, a two-point calibration function, can be automatically on system error correction;
• Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement;
• With functions of coupling status alerts;
• With LED backlight, convenient to use in dark environment ;
• Battery indicator function, real-time display remaining power;
• With automatic power saving function dormancy, automatic shutdown, etc;
• Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.

Specification:

• Measuring Range:0.75~300mm (0.03~11.8inch) depends on probe Standard probe: 1.2~230mm
• Sound Velocity Range :1000~9999m/s (0.039~0.394in/μs)
• Display Resolution: 0.01mm(lower than 100.0mm) 0.1mm(more than 99.99mm)
• Accuracy :±(0.5% thickness+0.04)mm, depends on materials and conditions
• Data Memory :5 files x 100 values, 5 value of sound velocity
• Power: AA battery 2pcs (No battery included during shipping)
• Working Time :250 hours if backlight off
• Working Temperature: -10°C~60°C
• Size :150x74x32mm Weight :238g
