IN-12 Shield for Arduino Nixie Tubes Clock
NCS312 Shield with Sockets on Acrylic Stand
UPS Express delivery is highly recommended
Economy Shipping very slow and unreliable



Shield for Arduino Nixie Clock on a Clear Acrylic Stand
Designed for 6 IN-12 (A\B) xUSSR Nixie Tubes with Sockets
IN-12 Tubes are one of the most popular mass-produced Nixie Tubes
Nixie Clocks are one of the most beautiful and popular Vintage Clocks
Clock features Startup Tune, RGB backlight, USB port for updates
Shield features Sockets and options include Tubes, Power Supply
Accessories include Temp. sensor, GPS Receiver and Remote
Shield Clock is designed for Arduino UNO and MEGA 2560 Boards
It allows you to write your own uniqe programs for the Arduino platform
All the latest Source codes are always available on our GitHub channel
PCB, Design, Schematics, Case and Software made by GRA & AFCH







Listing includes:

  • Shield Tubes Clock with Sockets on Acrylic Stand (NCS312 Shield)
  • IN-12 Nixie Tubes – 6 pcs Set (optional, choose in selector)
  • Arduino Control Board – (UNO or MEGA 2560) (optional, choose in selector)
  • GPS Receiver (GA-6) (optional, choose in selector)
  • IR Remote () (optional, choose in selector)
  • Power Supply (12V, 1A) (US, EU, UK, AU) (optional AC plug, choose in selector)
  • Operating Instruction



Shield Board features Sockets for Nixie Tubes
Arduino Control Board is optional for the Clock
Power Supply is optional for the Clock
Clear Acrylic Stand included with the Clock





Listing contains Assembled Shield NCS312
with IN-12 Nixie Tubes and NE2H Neon Bulbs



Use references below for Firmware uploading to your Arduino Control Board:

  • Software: github/afch/NixeTubesShieldNCS314
  • Video Tutorials: youtube/@geryhold/videos&afch


Our Benefits:

  • A special Socket for each pin of IN-12 – easy to change Tubes
  • Easy to customize firmware under Your own needs, thanks to an open platform – Arduino
  • Fast uploading via USB
  • The latest version of the firmware always available on GitHub
  • No need to download drivers – we are use only Genuine USB to serial converters (FTDI FT230)
  • Drivers for them pre-installed in all popular OS: Windows, MacOS, Linux
  • Human friendly menu
  • Very high qualty of Printed Circuit Boards
  • Japan alluminium capacitors
  • Power-On Self-Test
  • Competent Technical support



Dear customers!
If you have ANY questions, (PLEASE ASK us)


Software Features:


Hardware Features:

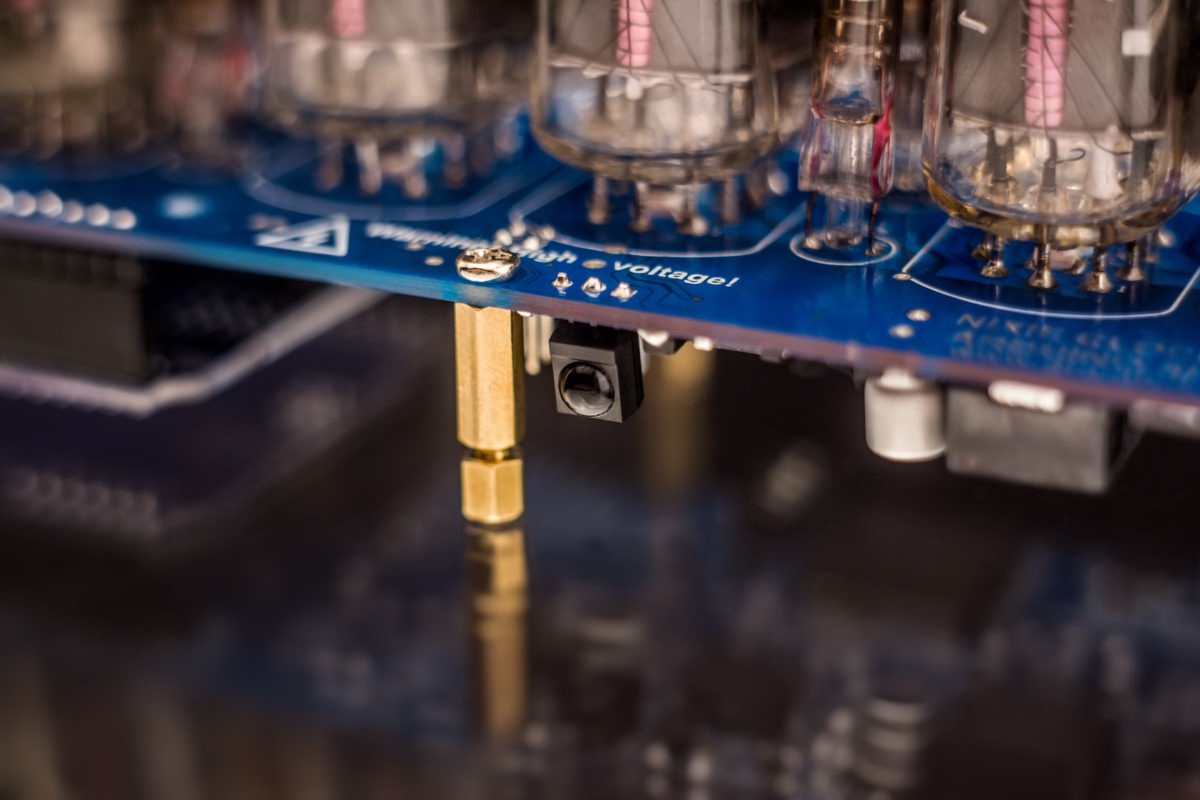

IN-12 Shield Nixie Tubes Clock on Acrylic Stand:

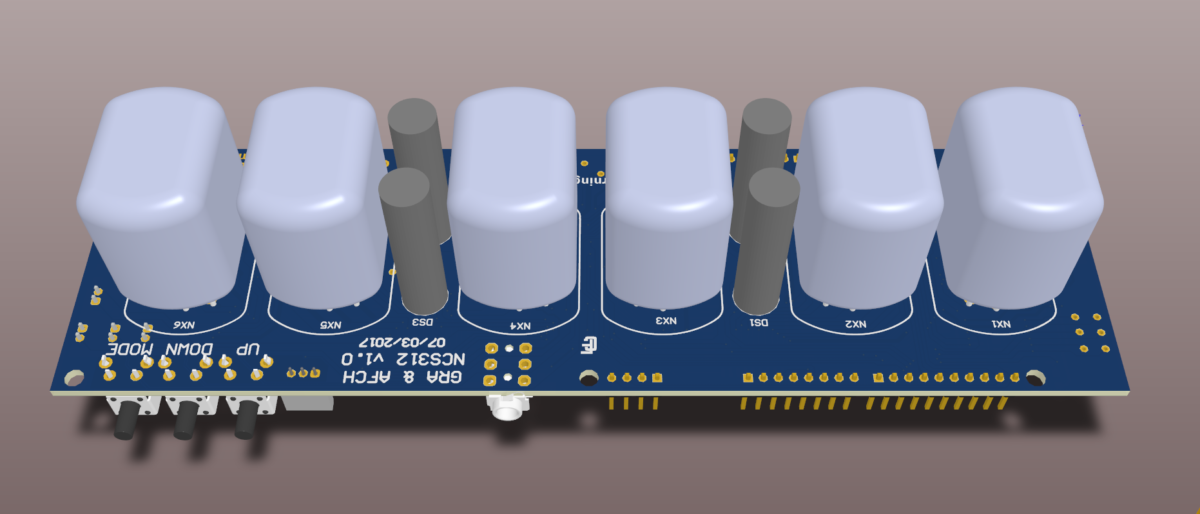

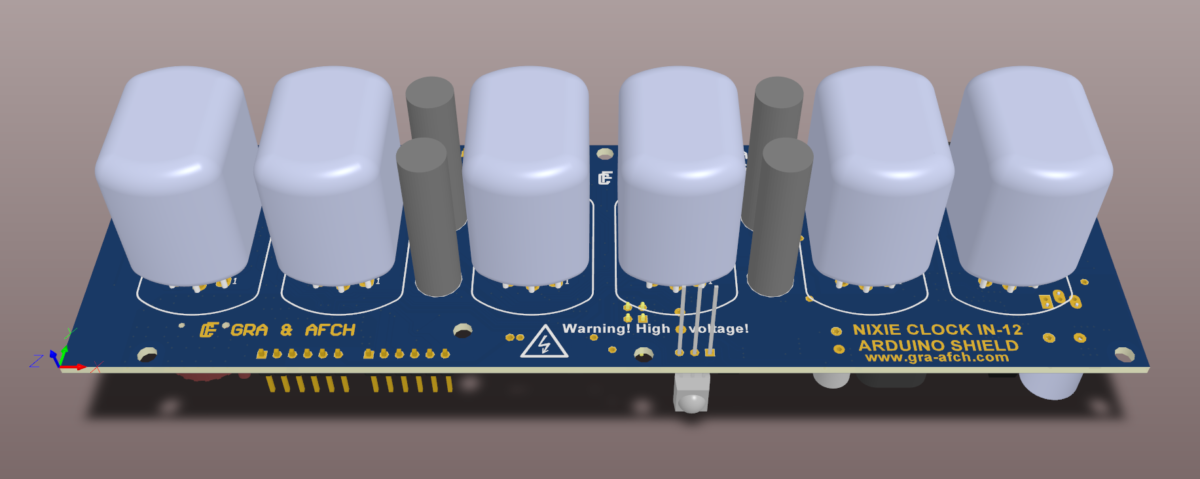

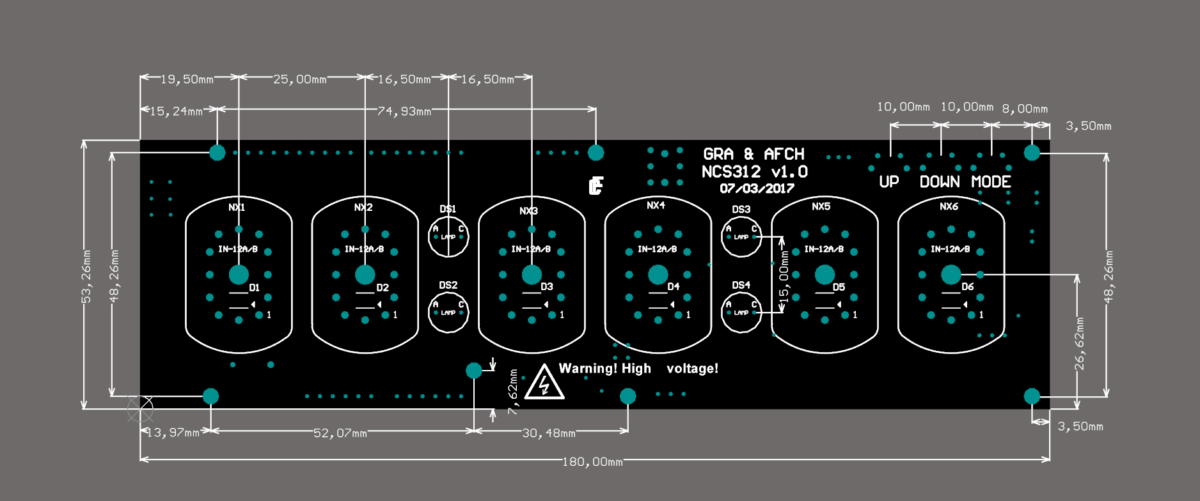

Boards dimensions in 2D and 3D:


Operating Instruction:PCB Nixie tubes clock IN-18PCB Nixie tubes clock IN-18





Dear customers!
If you have ANY questions, PLEASE ASK us
