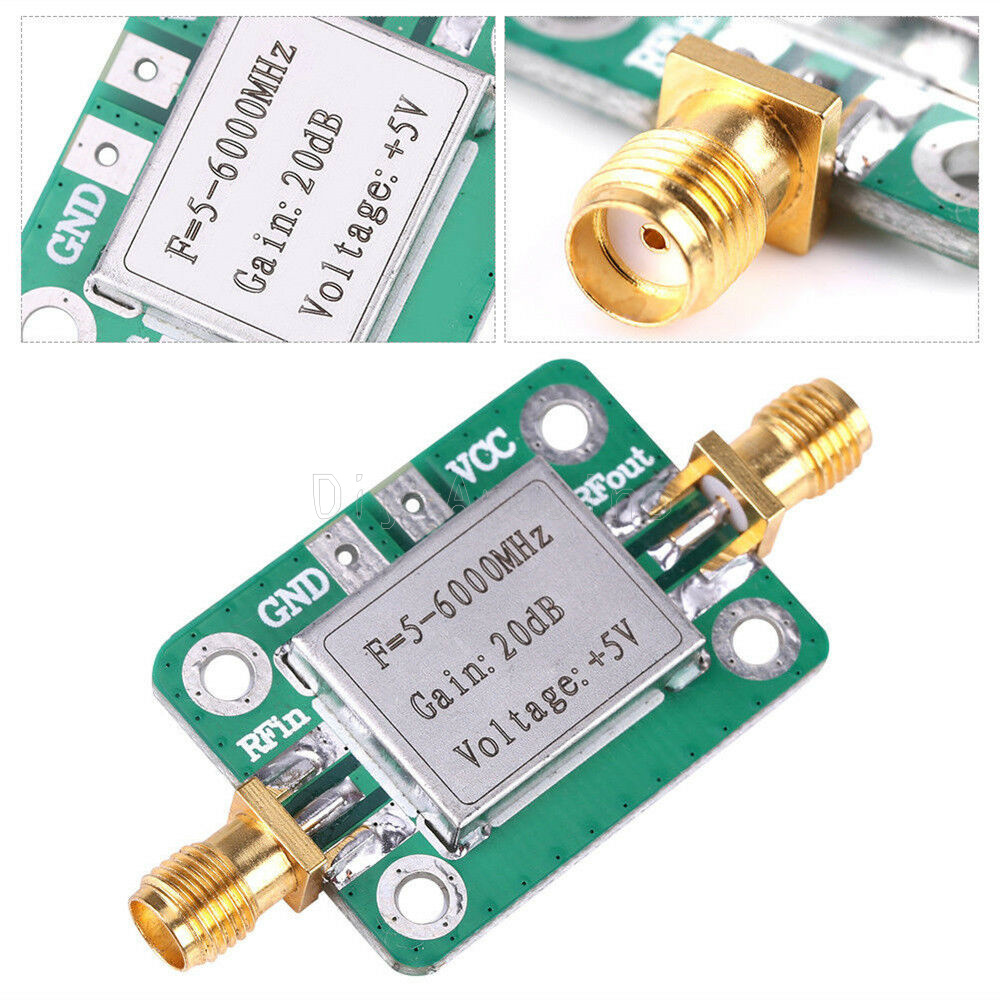

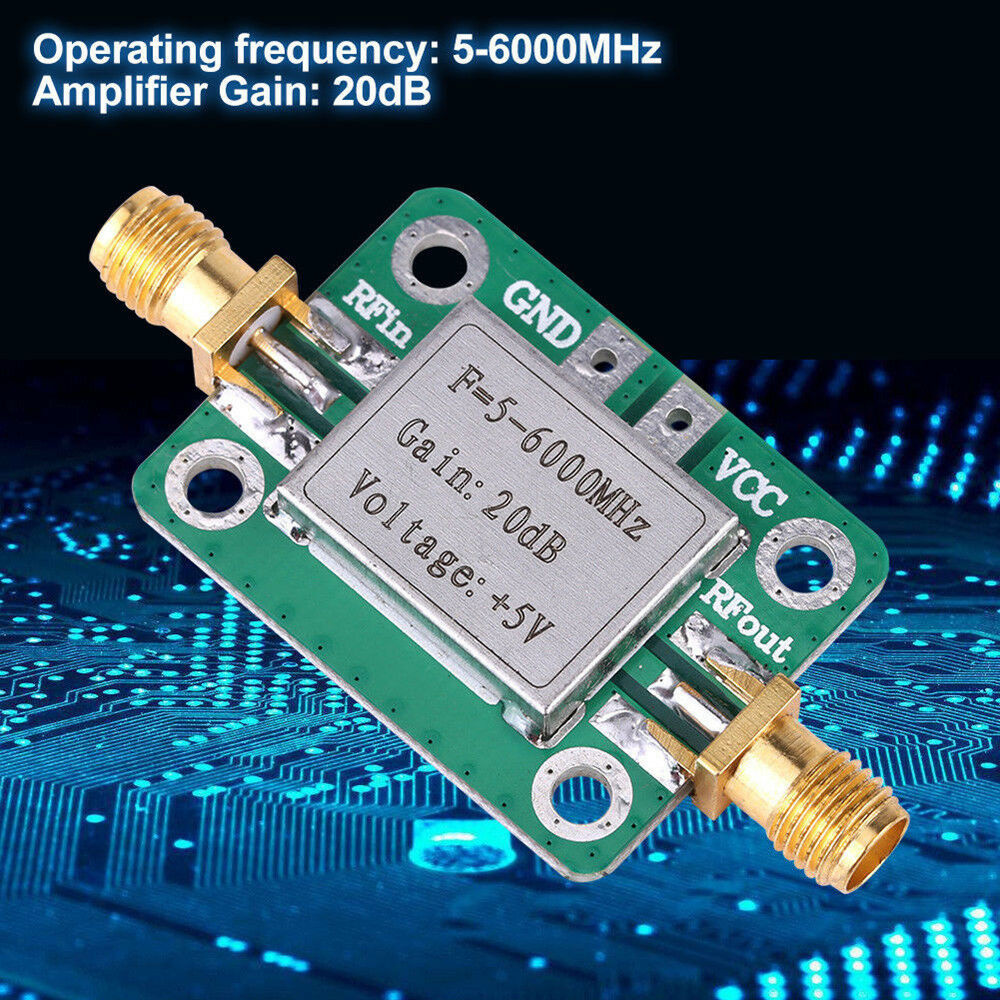

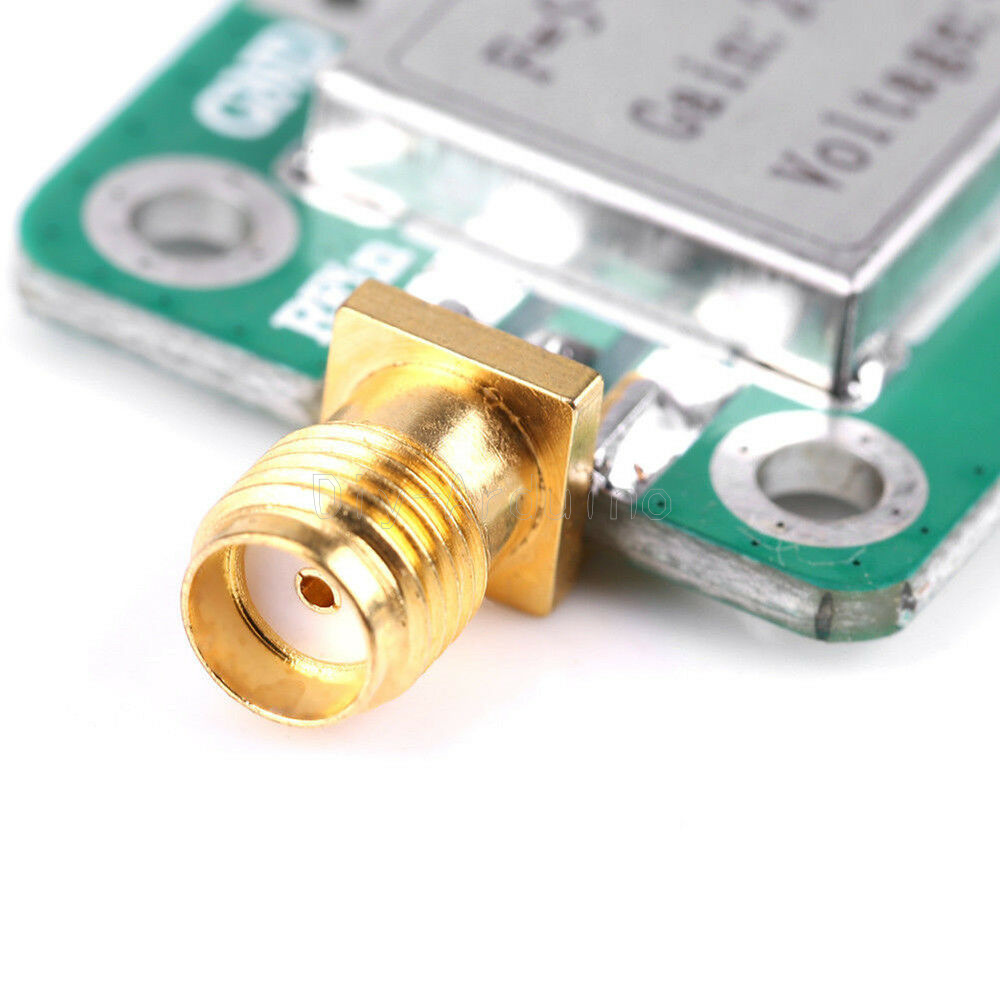

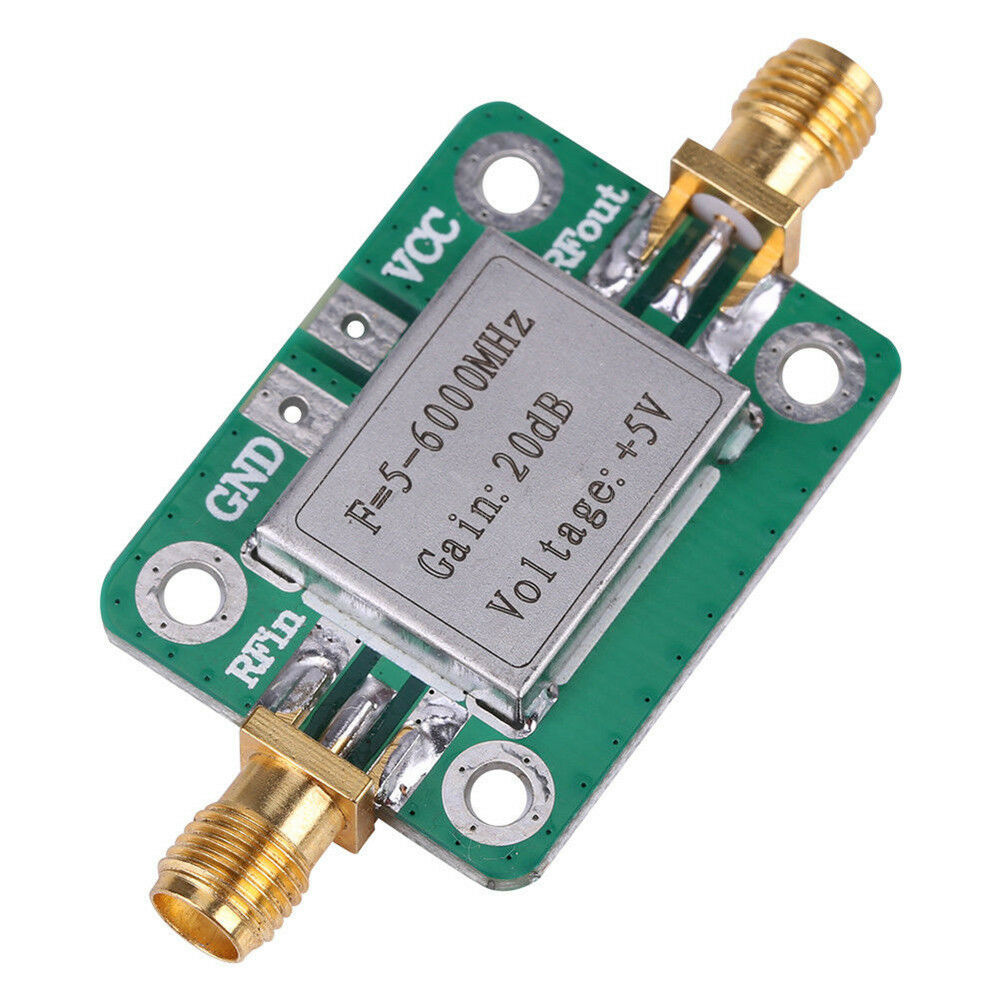

5-6000MHZ RF Broadband Signal Amplifier Power Amplifier 20dB Gain VFH UHF SHF W
Features:

This is a 5--6000MHz RF signal power amplifier with 20dB gain.
It has big dynamic range and wide operating frequency range.
The power supply voltage is 5VDC, and working current is 85mA.
Maximum output power is +21dBm(100mW)@1dB compression point.
It is suitable for all types of fixed gain amplification of RF signal.
Specifications:
Operating Frequency: 5--6000MHz
Amplifier Gain: 20dB
Max. Output Power: +21dBm(100mW)@1dB compression point
Working Current: 85mA (5V)
Power Supply Voltage: 5VDC
System Impedance: 50ohm

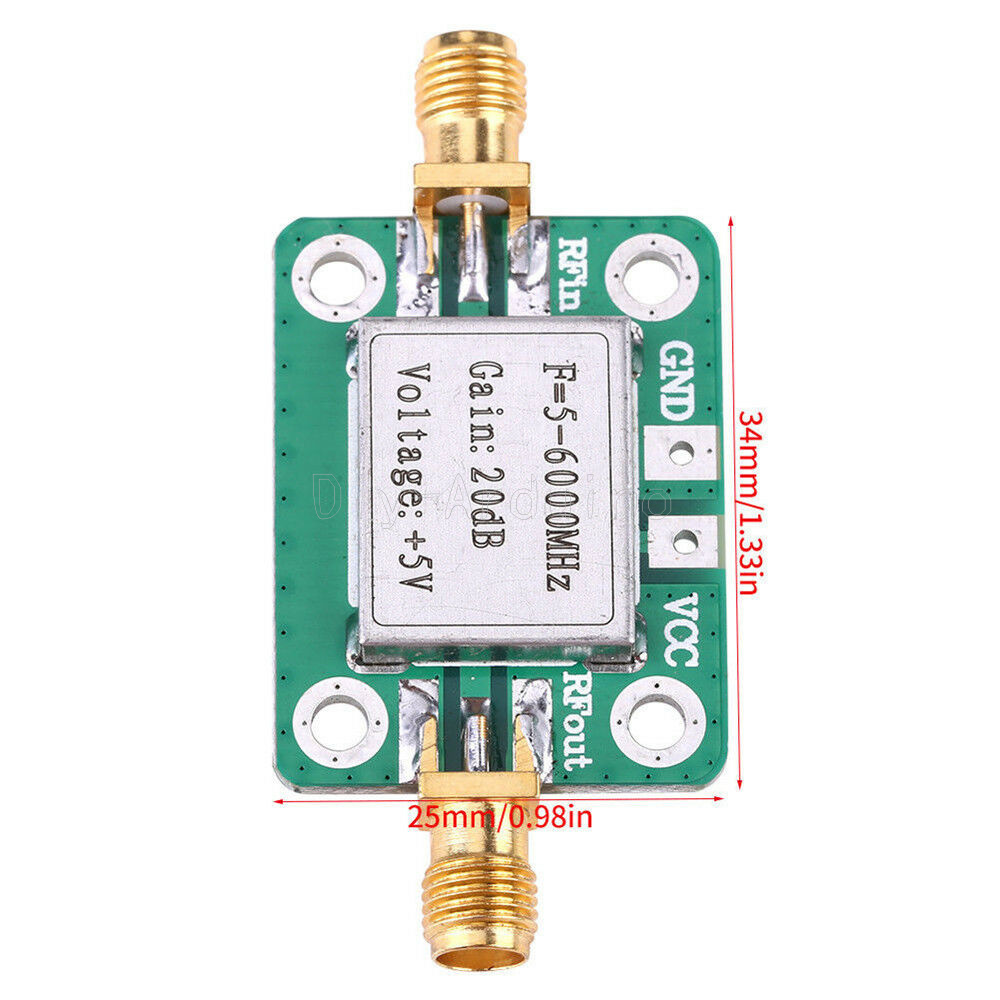

Size: 34*25mm/1.33*0.98in
Note: In use should follow the relevant principles of RF and microwave circuit layout.

Package Included:

1 x RF Power Amplifier
