IN-12 Nixie Tubes Clock in Painted Plywood Case |
IN-12 Nixie Tubes are one of the most beautiful, cheap and popular Nixie Tubes.
PCB design, chematic, casing and software made by GRA & AFCH.
Clock based on MCU (microcontroller unit) flashed with Arduino Uno Bootloader and sketch (Firmware).
Clock compatible with Arduino Uno, so it allows you to write youre own unique programs on the Arduino platform.
The latest sources are always available on github at the "NixeClock" repository.
IN-12 Nixie Tubes Clock in a Painted Plywood Case
Listing includes:
Power Supply is included with the Clock!
If you have ANY questions, PLEASE ASK us
Software Features:
- Clock support IN-12 Nixie Tubes (6 tubes [hh:mm:ss]).
- 12/24 hour format.
- Date format: DD:MM:YY
- Slot Machine (Antipoisoning Nixie Tubes)
- Unique RGB LEDs backlight with 16,7 million colors.
- Very easy to switch LEDS off/on.
- As alarm sound clock uses standard RTTTL (Nokia format) melodies, so You can easy change it. (included songs: mission impossible, we wish you).
- Easy updating firmware via USB using Arduino IDE.
- Software based on Arduino sketch, so MCU has Arduino bootloader within.
- Power On Self-Test (POST): LEDs test, tubes test, input voltage test, sound test.
Hardware Features:
- Integrated High Voltage Power supply 180V.
- 3 PWM channels for RGB LEDs 8 bit per channel = 24bit = 16,7 million colors. It can be disabled in the menu (see manual).
- External USB.
- 4 Dots with separate controls upper and lower dots.
- Power consumption: 12V, 360mA (Recommended power source: voltage 12V, current 1A).

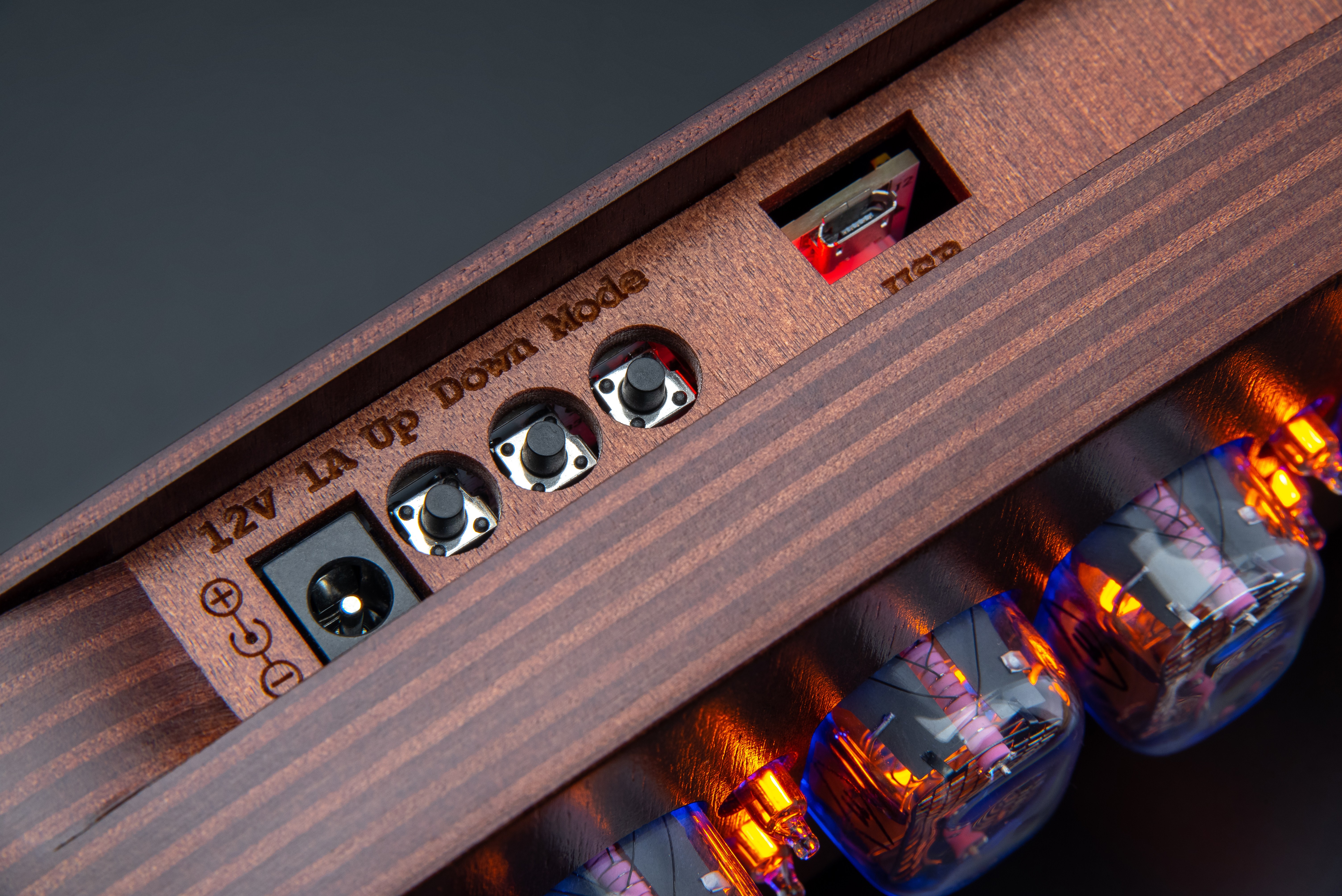

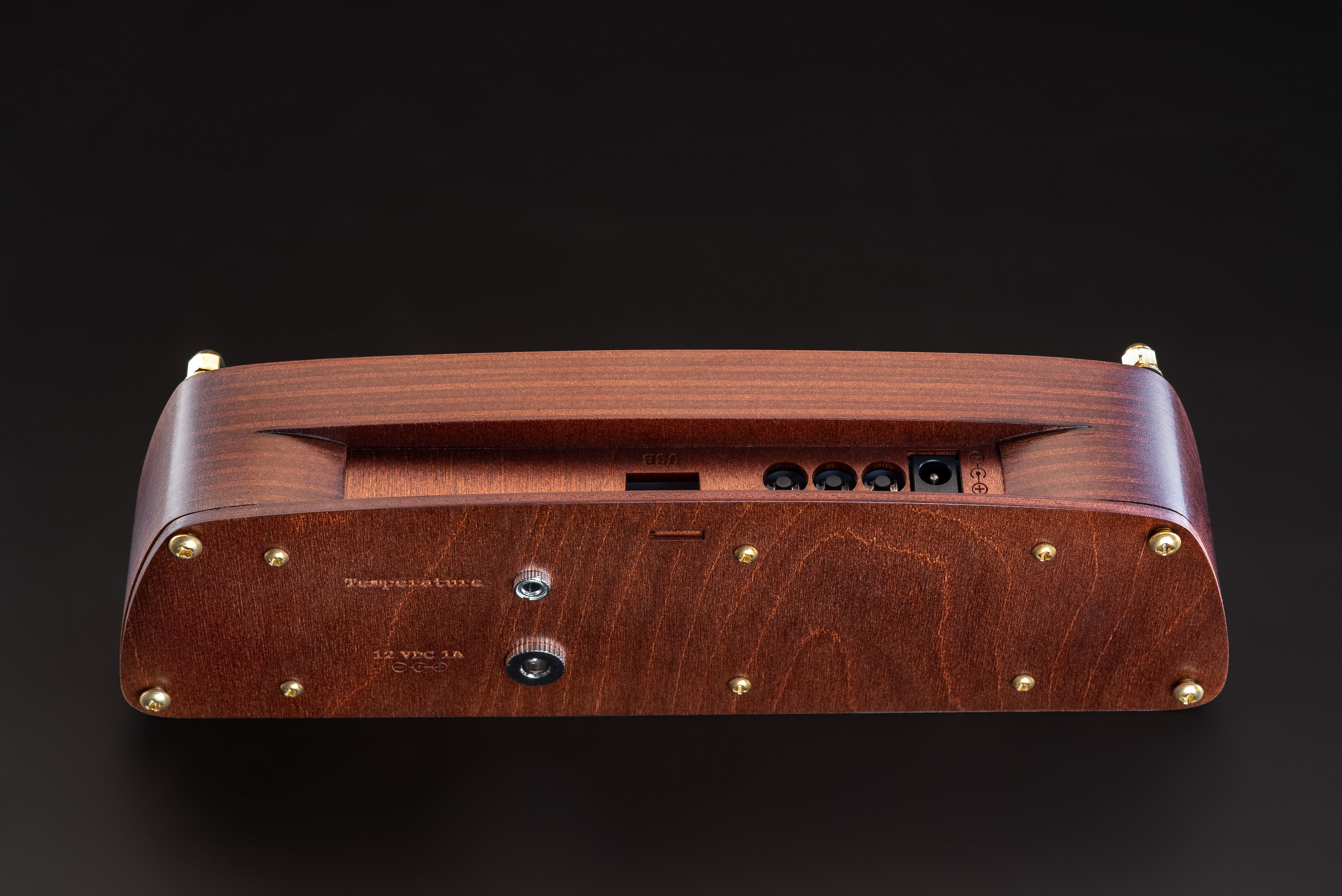

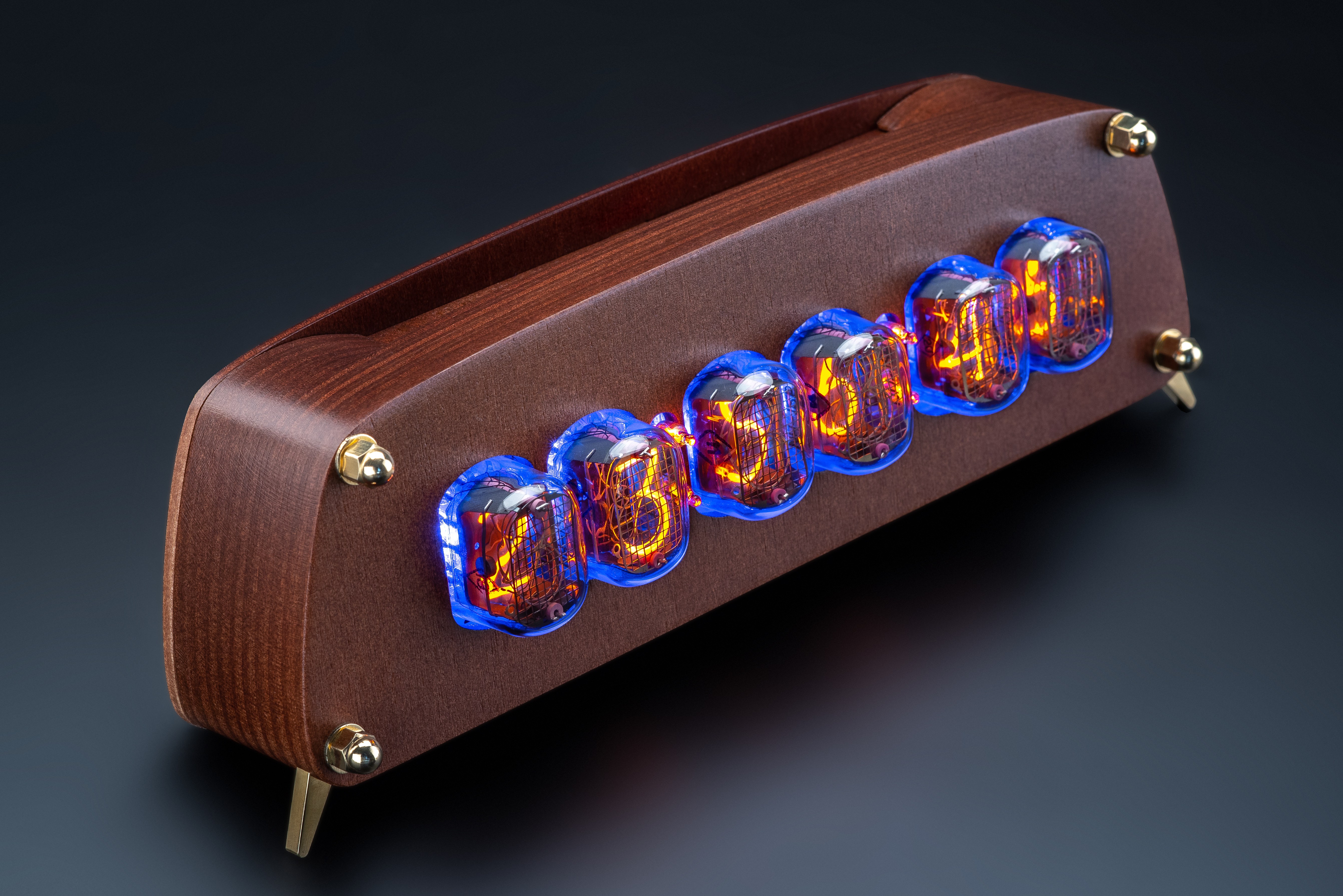

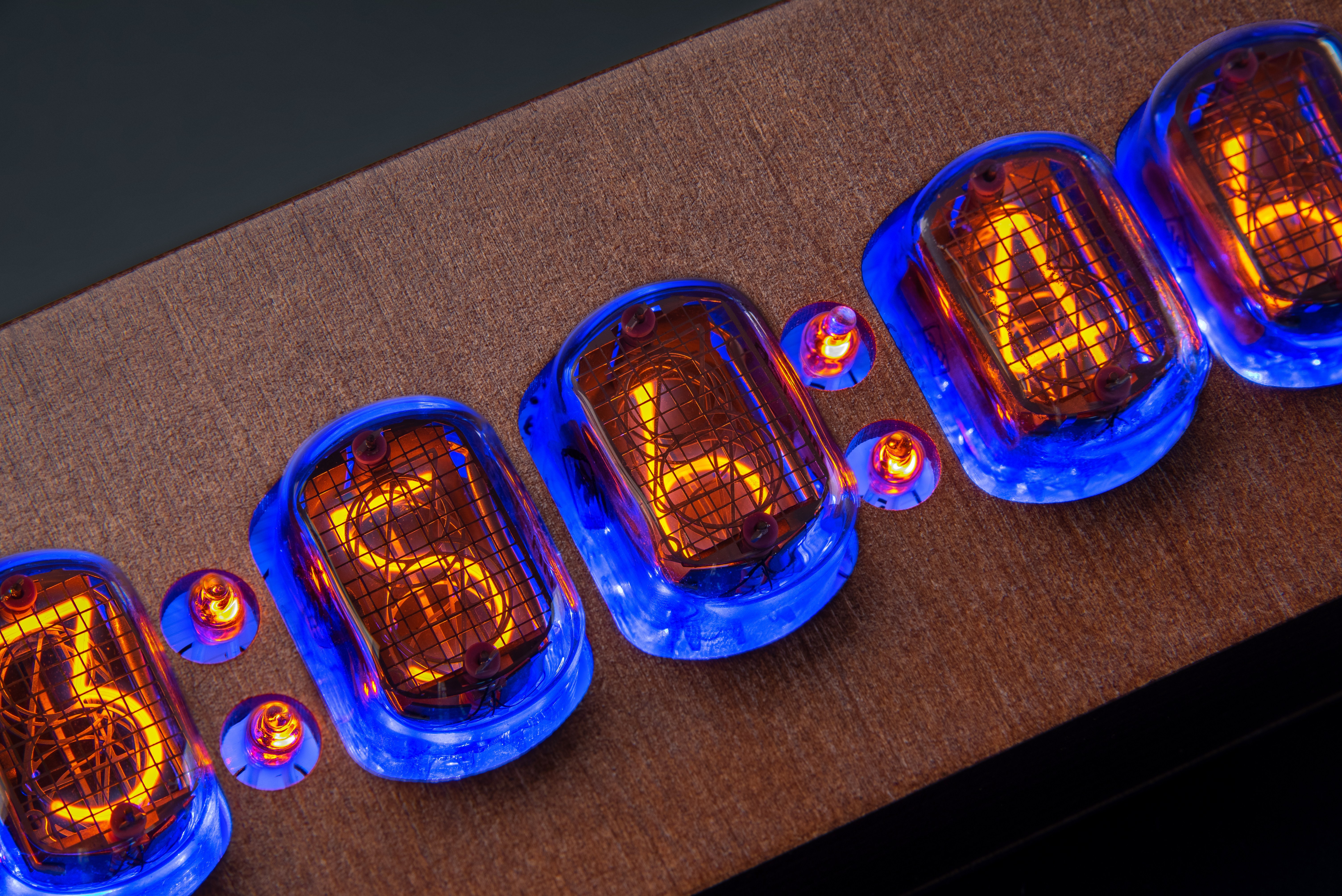

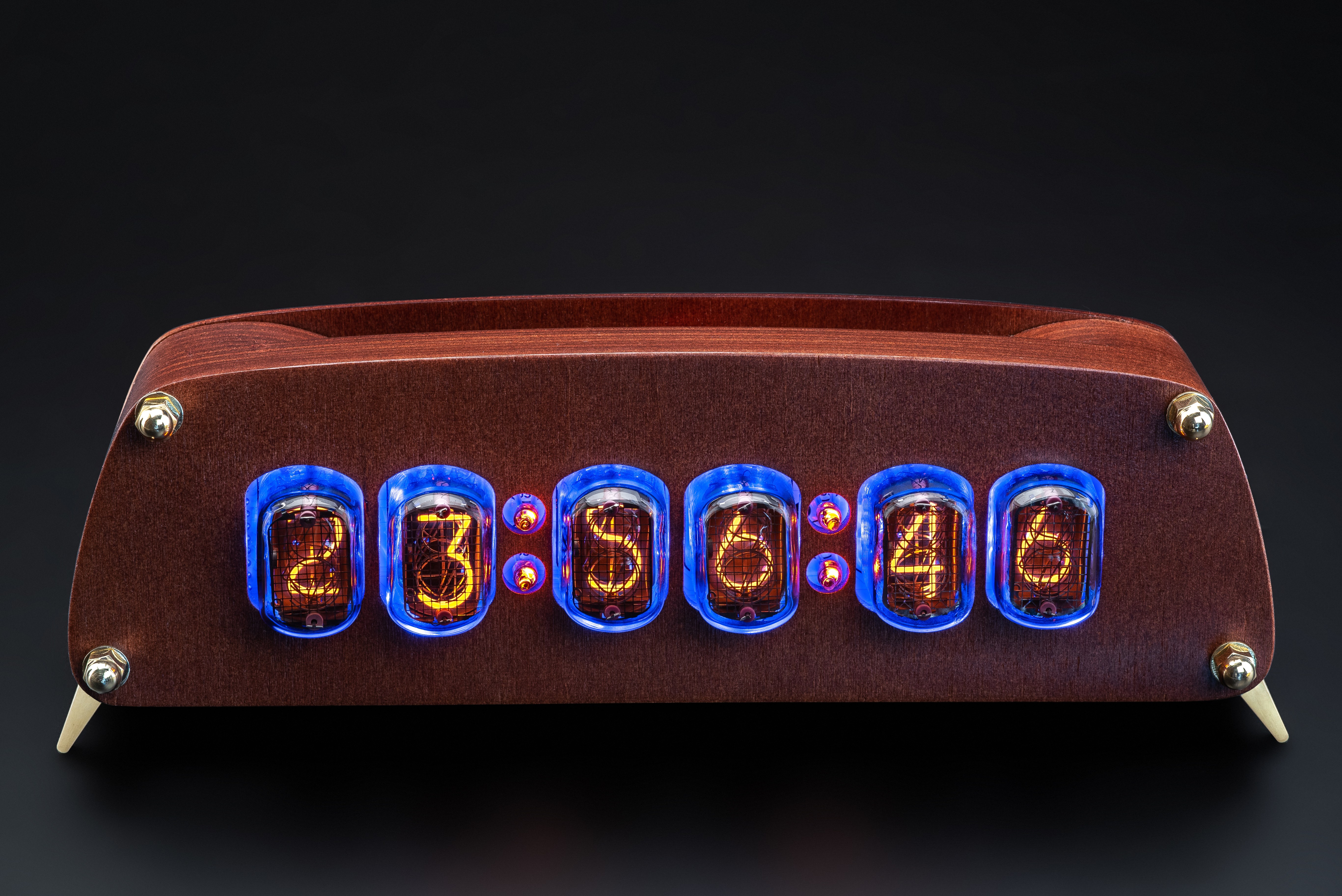

IN-12 Nixie Clock photos:
User Manual
If you have ANY questions, PLEASE ASK us
