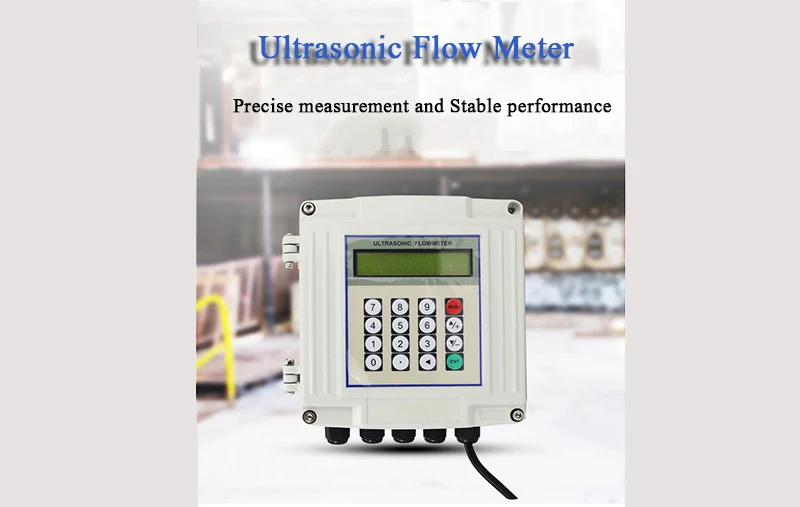

Wall-mounted Ultrasonic Flow Meter TUF-2000SW with DN50-700mm TM-1 Transducer

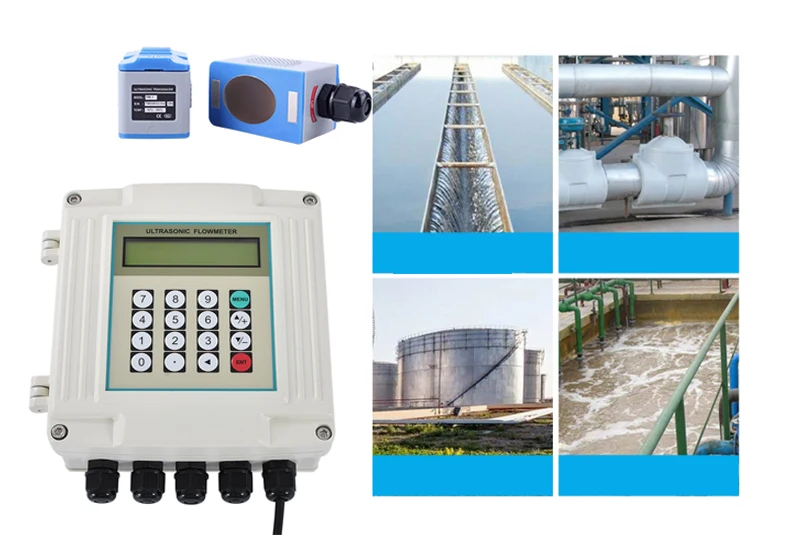

This type TUF-2000SW comes with Clamp-on Transducer TM-1 Medium Clip(size: 64*39*44mm)

for Pipe Diameter DN50 to 700mm, Temperature : -30~90°C

Technical Specifications

Main Unit(The main unit is suitable for wall mounting)

* Accuracy: ≤1%

* Repeatability: Better than 0.2%

* Principle: Transit-time measuring principle

* Velocity range: 0~±10m/s, Bi-directional measurement

* Type of liquid:

Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.

* Pipe material:

Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

* Signal output:

1 way 4-20mA output

1 way OCT pulse output

1 way Relay output

* Signal input: 3 way 4-20mA input, achieve to measurement by connecting PT100 platinum resistor.

* Interface: RS485, support MODBUS

* Power supply: DC8~36V or AC85~264V

* Working Environment : Main Unit: Protection Level, IP65; Humidity, ≤85%RH; Temperature, -20~60℃
