PRODUCT DESCRIPTION

ARK Trailer non-brake Galvanised Lazy Hub Series - GH150G


Designed for Gemini Stud Pattern Wheel and 39-40mm Axle

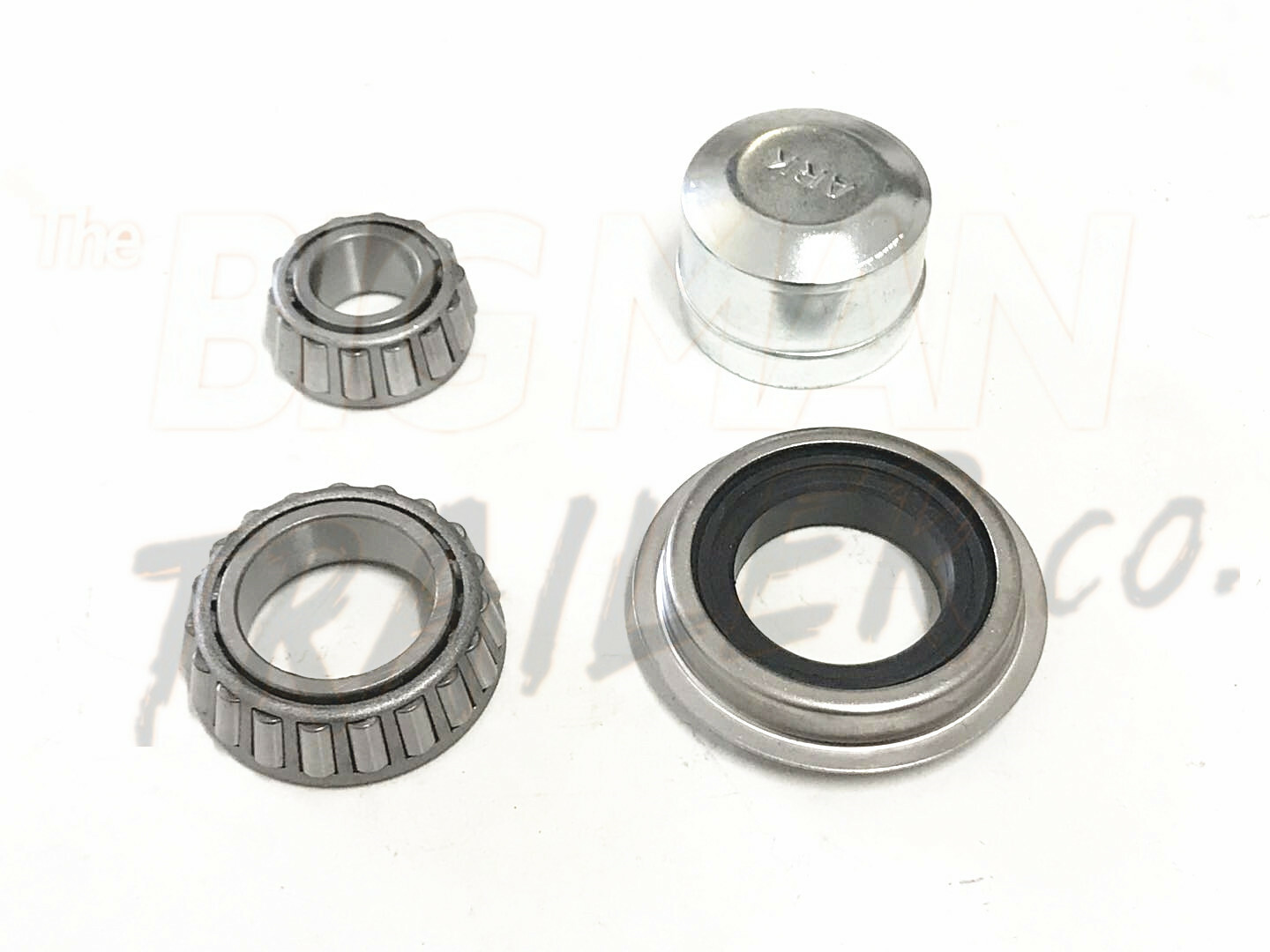

Stud PatternGeminiBearingHolden LM
Stud Number4Inner/DiaLM67048/19.05mm
PCD100mmOuter/DiaLM11949/31.75mm
Stud Dis70.71mmOil Seal Dia38mm
FinishGalvanisedDust Cap Dia44mm
Hub Size150mmSuits Axle39-40mm

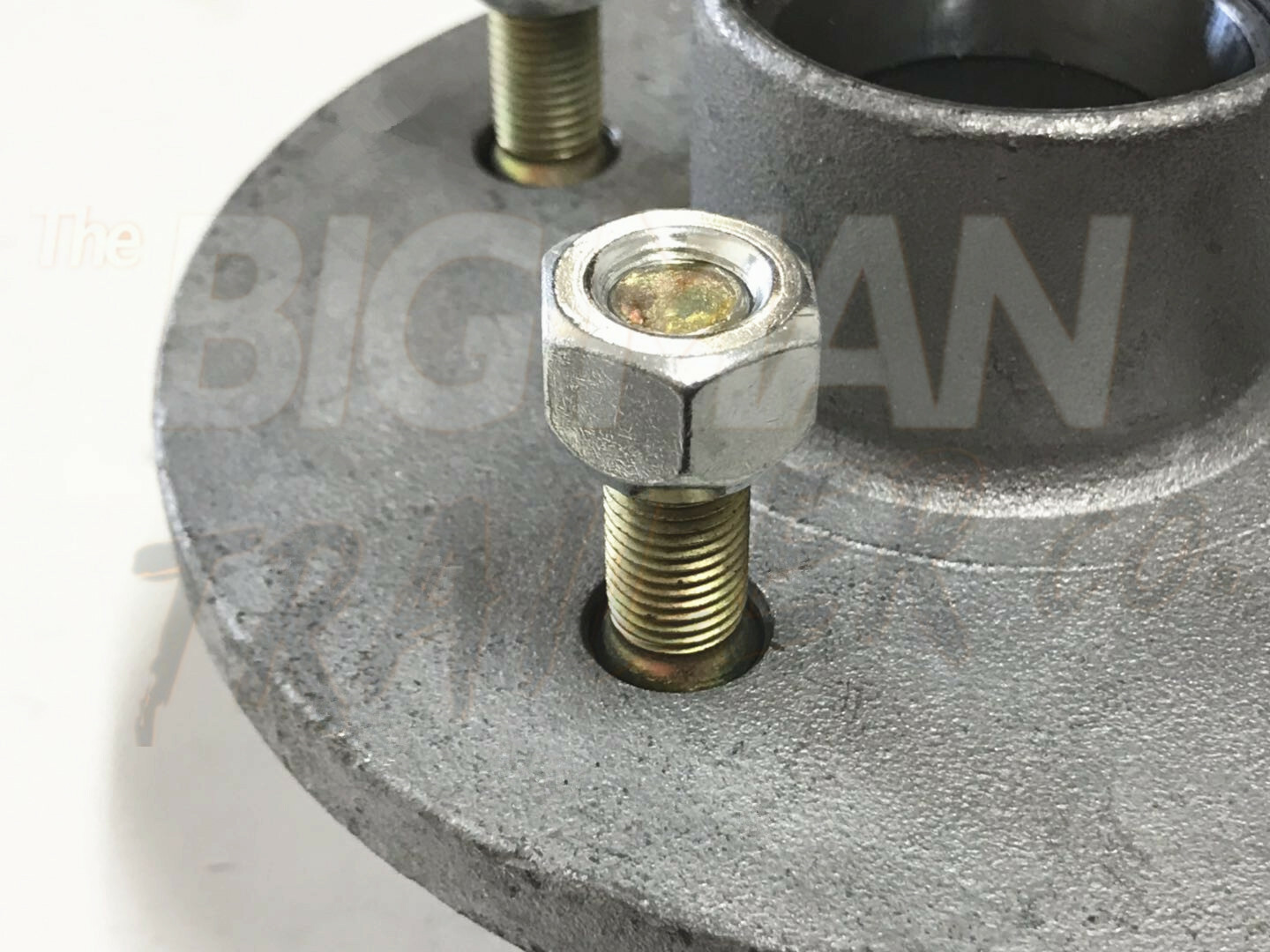

Stud Size7/16"

Find out the right hub you need:

MPNStud PatternStud NumberPCDStud Dis.Stud SizeHub SizeBearingOuter BearingInner BearingSuis Axle
CD150GCommodore5120mm70.53mm7/16"150mmHolden LMLM67048LM1194939-40mm
CDF150GCommodore5120mm70.53mm7/16"150mmFord SLL68149LM1274945mm
FD150GFord5114.3mm67.18mm1/2"150mmFord SLL68149LM1274945mm
FH150GFord5114.3mm67.18mm1/2"150mmHolden LMLM67048LM1194939-40mm
GH150GGemini4100mm70.71mm7/16"150mmHolden LMLM67048LM1194939-40mm
HQ150GHQ Holden5120.65mm70.91mm7/16"150mmHolden LMLM67048LM1194939-40mm
HT140GHT Holden5107.95mm63.95mm7/16"140mmHolden LMLM67048LM1194939-40mm
HT150GHT Holden5107.95mm63.95mm7/16"150mmHolden LMLM67048LM1194939-40mm
HTF150GHT Holden5107.95mm63.95mm7/16"150mmFord SLL68149LM1274945mm
LF190GLandCruiser/Nissan 66139.7mm69.85mm1/2"190mmFord SLL68149LM1274945mm
MH140GMINI4101.6mm71.8mm7/16"140mmHolden LMLM67048LM1194939-40mm
TH150GToyota/Datsun4114.3mm80.8mm7/16"150mmHolden LMLM67048LM1194939-40mm
ARK Trailer non-brake Galvanised Lazy Hub Series - GH150GDesigned for Gemini Stud Pattern Wheel and 39-40mm AxleStud PatternGeminiBearingHolden LMStud Number4Inner/DiaLM67048/19.05mmPCD100mmOuter/DiaLM11949/31.75mmStud Dis70.71mmOil Seal Dia38mmFinishGalvanisedDust Cap Dia44mmHub Size150mmSuits Axle39-40mmStud Size7/16" Find out the right hub you need:MPNStud PatternStud NumberPCDStud Dis.Stud SizeHub SizeBearingOuter BearingInner BearingSuis AxleCD150GCommodore5120mm70.53mm7/16"150mmHolden LMLM67048LM1194939-40mmCDF150GCommodore5120mm70.53mm7/16"150mmFord SLL68149LM1274945mmFD150GFord5114.3mm67.18mm1/2"150mmFord SLL68149LM1274945mmFH150GFord5114.3mm67.18mm1/2"150mmHolden LMLM67048LM1194939-40mmGH150GGemini4100mm70.71mm7/16"150mmHolden LMLM67048LM1194939-40mmHQ150GHQ Holden5120.65mm70.91mm7/16"150mmHolden LMLM67048LM1194939-40mmHT140GHT Holden5107.95mm63.95mm7/16"140mmHolden LMLM67048LM1194939-40mmHT150GHT Holden5107.95mm63.95mm7/16"150mmHolden LMLM67048LM1194939-40mmHTF150GHT Holden5107.95mm63.95mm7/16"150mmFord SLL68149LM1274945mmLF190GLandCruiser/Nissan 66139.7mm69.85mm1/2"190mmFord SLL68149LM1274945mmMH140GMINI4101.6mm71.8mm7/16"140mmHolden LMLM67048LM1194939-40mmTH150GToyota/Datsun4114.3mm80.8mm7/16"150mmHolden LMLM67048LM1194939-40mm

Specifications

  • Featured Refinements Trailer Hub
  • Manufacturer Part Number GH150G
  • Brand Ark
  • Product Type Hubs
