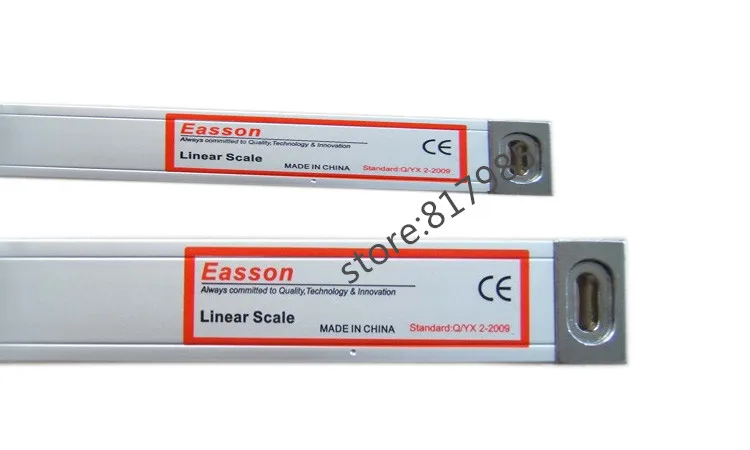

Best price orginal Easson GS10 optical linear scale with mounting pasrts
Items includes:
GC10 linear scale 1 pc
scale cover 1pc
screws and parts 1lot
Customers can choose 50-1000mm travel length of the linear scale.
After you place order, pls leave a massage with the travelling length that you need, thanks .
TIPS:
it is measure length and its total length will add 140mm.

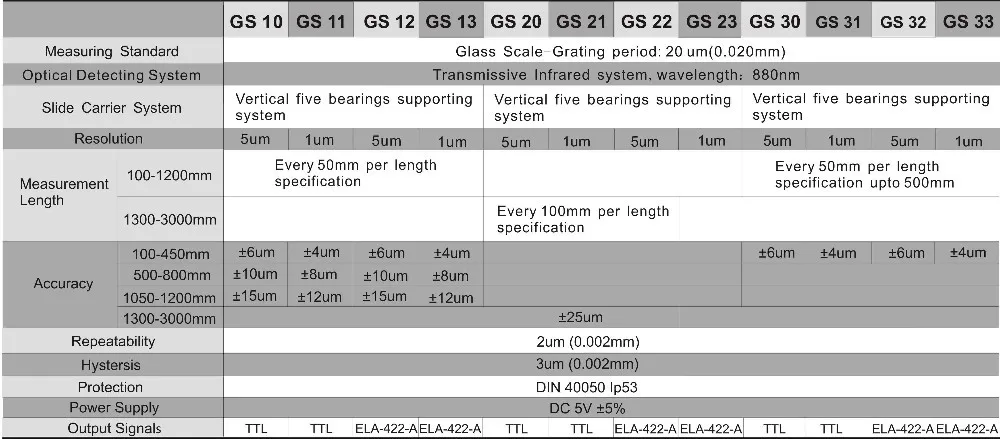

Scale Specifications
Linear Scale pitch 0.02 mm;
Supply Power +5V;
Output two TTL waves (with zero signal);
Current 50 mA;
Plug type D-sub9
Response Speed: 60m/min or 40ins/sec
Cable length: Armoured 3 Meter (about 9 feet)
Resolution 5um, 0.0002" (please contact me for scales with 1 um resolution).
All our glass linear scales are double- lip sealed to protect from coolant and enhance the longevity
|
We are looking for distributors, any interest please kindly contact us for more details !
More quantity more discount !
|
Please note that scale length refers to the actual travel of the linear scales; 1inch =25.4mm.
100/150/200/250/300/350/400/450/500/550/600/650/700/750/800/850/900/950/1000mm
You may choose any length listed above. We have stocks for all these lengths above. Packing and shipping can be arranged immediately after cleared payment.
A protective cover will supplied for free. Please tell us, 1) what type of machine (mill or lathe) and 2) on which axis, this scale will be installed on.
