| Size | 0402 / 1005 Pre-Wired SMD LED |
|---|---|
| Color | Warm / Soft White |
| Luminosity/Brightness | 300-400 mcd |
| Forward Voltage | 9v-18v (volts) |
| Current | 20mA |
| Wavelength | N/A Warm White |
| Viewing Angle | 105-120 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
| Brand | Lighthouse LEDs |
| Resistors Built In | Yes |
| Additional Resistors Required | No |
| Wire Length | Approximately 15cm (6 inches) |
| Shrink Wrapped Connections | Yes |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!

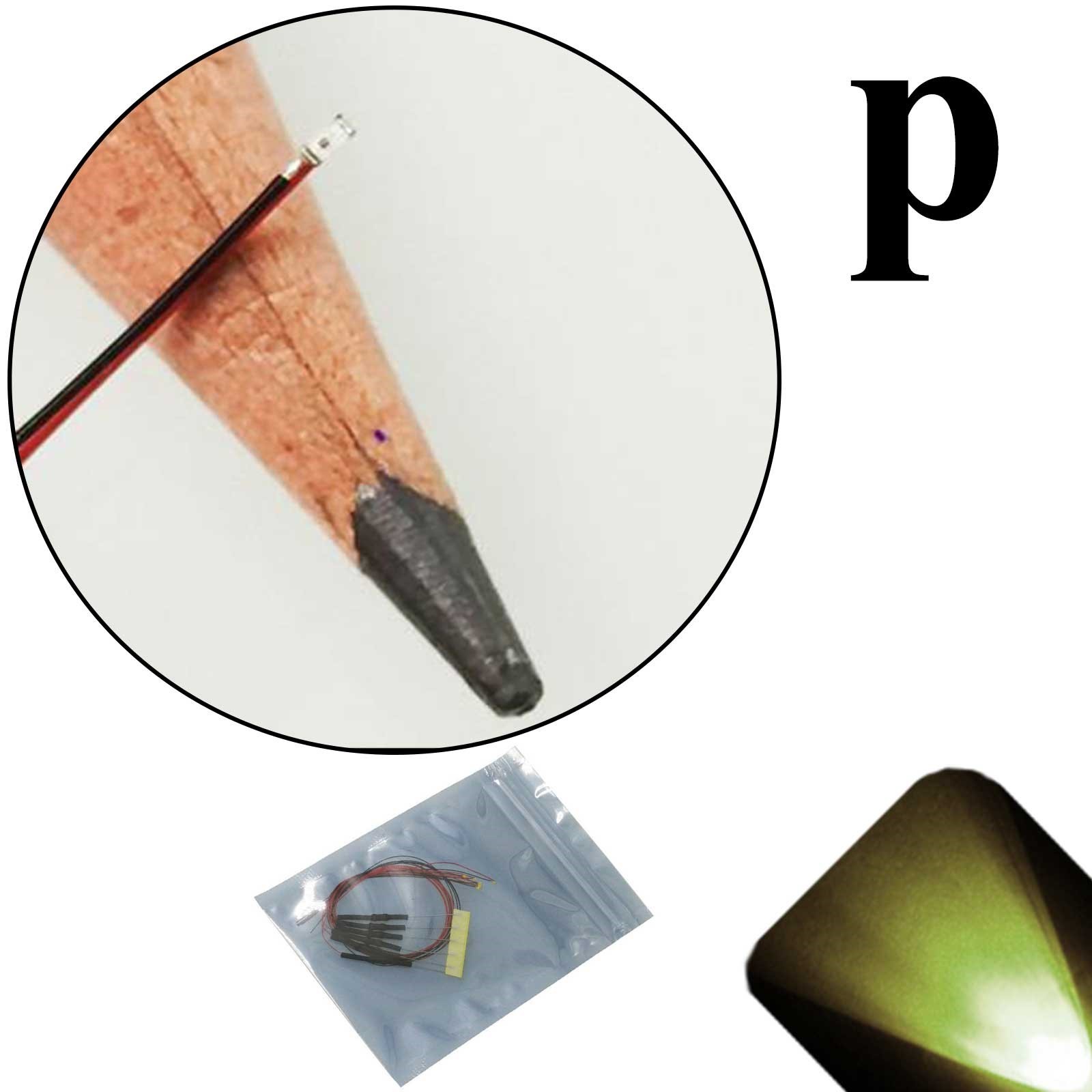

These pre-wired 0402 warm white SMD LEDs are purpose-built for Z scale and N scale model railroad structure lighting, where the 1mm × 0.5mm chip size and 12V resistor-equipped leads let you drop them directly into buildings, street lamps, and interiors without additional components.
Each LED operates at 12V with a 20mA forward current and outputs a warm, soft white light with no specific wavelength — just a natural incandescent-style glow at 300–400 mcd through a clear diffuse lens with a 110° viewing angle. The 0402 (1005 metric) chip size is the smallest practical hand-installable LED format, and each unit ships with approximately 15cm (6 inches) of pre-soldered wire leads and a built-in current-limiting resistor, so no external resistor is needed on a 12V supply.
Common applications
- N scale (1:160) and Z scale (1:220) structure lighting — interior room lighting, storefront windows, station platforms; warm white replicates incandescent bulb color accurately at these scales
- DCC decoder function outputs — compatible with 12V DCC track power; the built-in resistor handles the drop, making these plug-and-play for structure lighting off a decoder auxiliary output
- Military diorama interiors — 1/35 scale tank fighting compartments, half-track crew areas, bunker interiors where a warm ambient glow reads as lantern or utility light
- Scale model cockpit and instrument panel backlighting — 1/48 and 1/72 aircraft builds where 0603 is too large to hide behind a panel
- Architectural and display models — museum-quality scale building models, competition dioramas, and hobbyist layouts where realistic interior warmth matters
Wiring & power notes
DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
Quality LEDs made in the USA since 2005.
Related products from our store
- 30 AWG Kynar Wire — Red (matches SMD lead spec)
- 30 AWG Kynar Wire — Black
- 1/16" Heat Shrink — Black
- 1/16" Heat Shrink — Red
