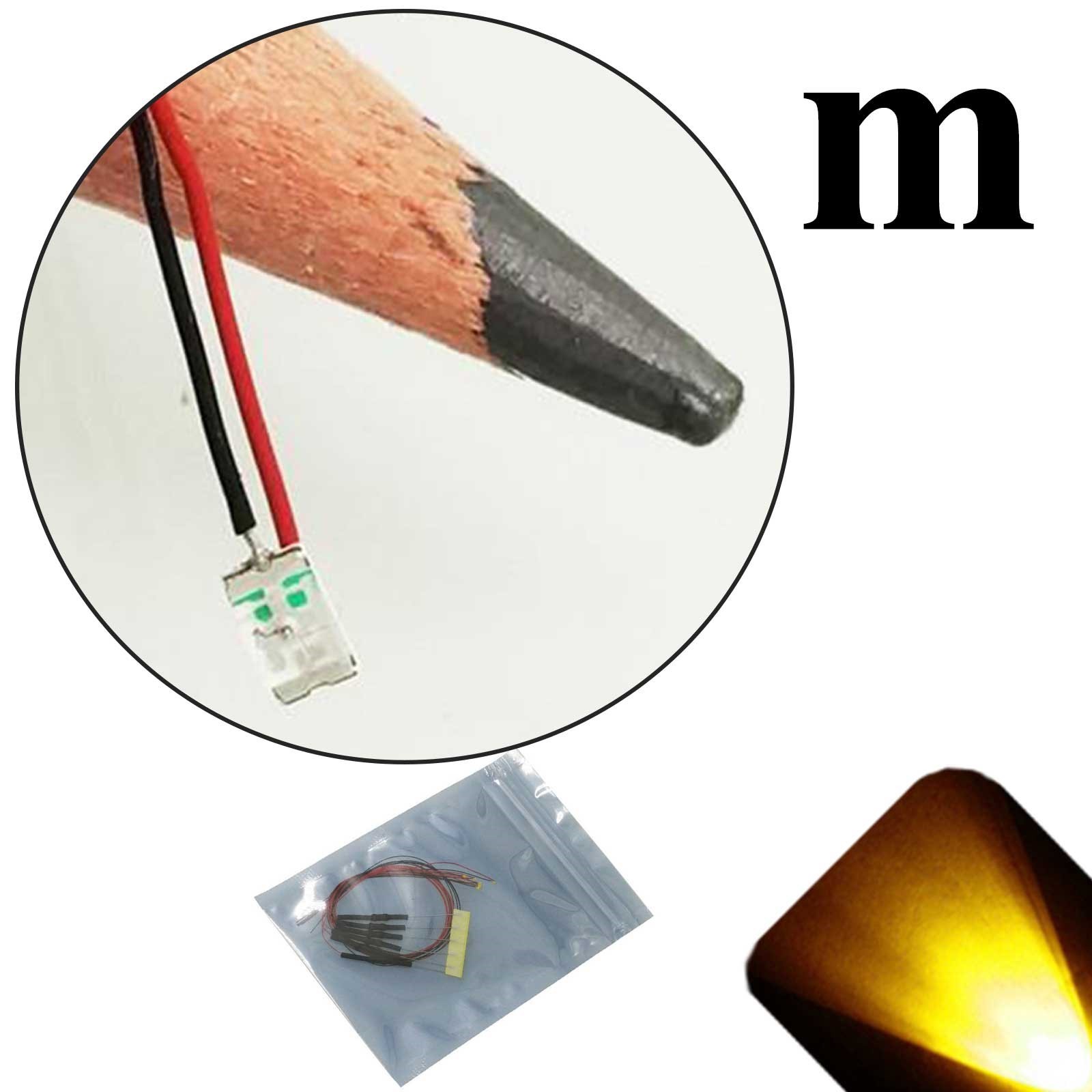

5 x 12v 1206 3216 Yellow Gold SMD LED Pre-Wired Light Soldered Leads 9v 18v 6v

Additional Information

Size	1206 / 3216 Pre-Wired SMD LED
Color	Yellow/Gold
Luminosity/Brightness	150-250 mcd
Forward Voltage	9v-18v (volts)
Current	20mA
Wavelength	590-595nm
Viewing Angle	105-120 Degrees
Mount Style	Custom
Lens Color	Clear
LED Brightness Class	Super/Ultra/Extreme
Brand	Lighthouse LEDs
Resistors Built In	Yes
Additional Resistors Required	No
Wire Length	Approximately 15cm (6 inches)
Shrink Wrapped Connections	Yes

Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!

5 x 12v 1206 3216 Yellow Gold SMD LED Pre-Wired Light Soldered Leads 9v 18v 6v

These pre-wired yellow/gold 1206 SMD LEDs are built for 12V DC systems right out of the package — no resistor math, no soldering required, just connect and light up.

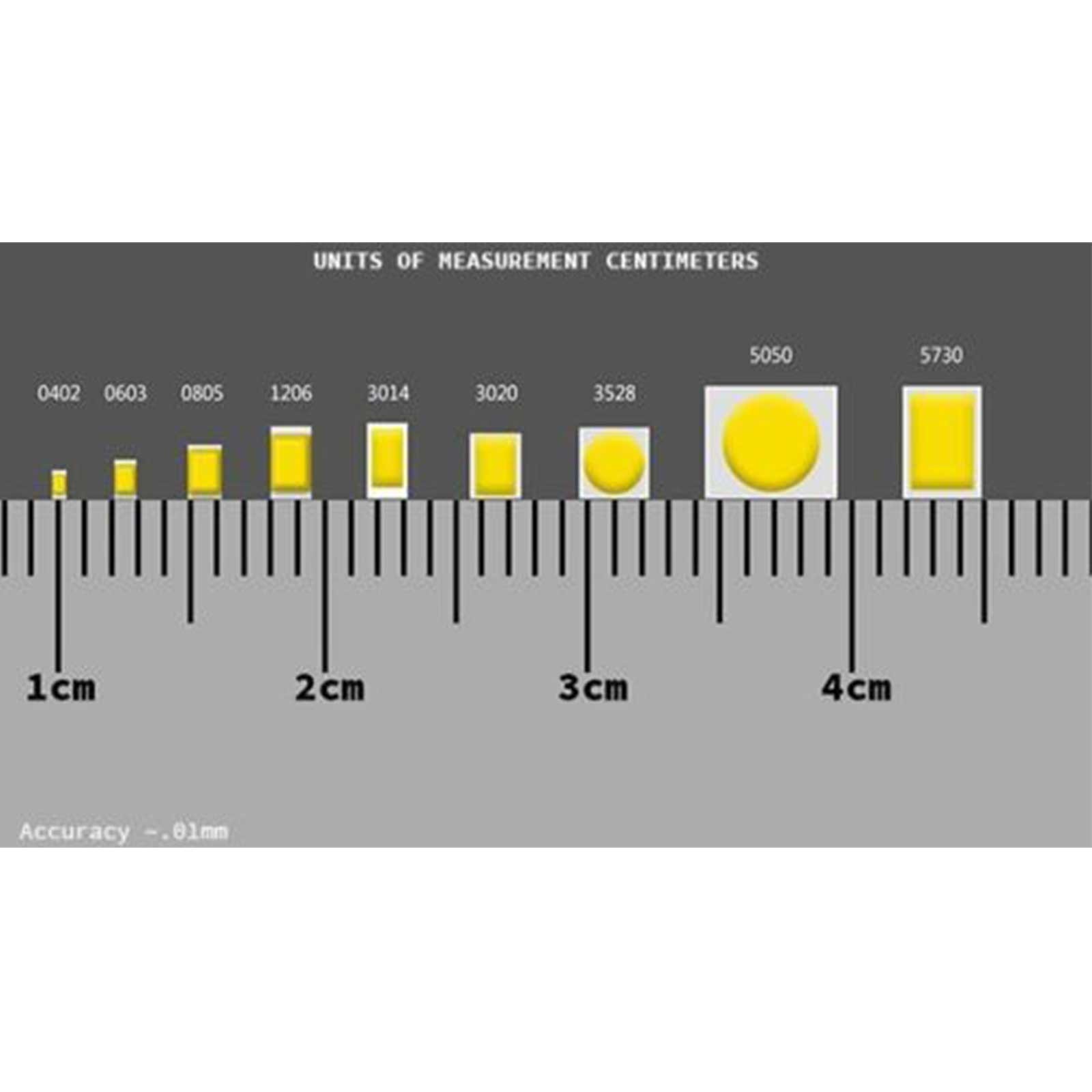

Each LED runs at 12V forward voltage, draws 20mA, and emits warm yellow/amber light at a 592.5nm wavelength with a wide 110° viewing angle. The 1206 (3.2mm × 1.5mm) package uses a clear diffuse lens for even, soft illumination, and comes with approximately 15cm (6 inches) of pre-soldered lead wire — the built-in resistor handles 6V, 9V, 12V, and 18V sources without modification.

Common applications

Automotive instrument cluster repair: Yellow/amber is the OEM color in many GM, Chevrolet, and Buick clusters (2007–2014 Silverado, Tahoe, Suburban, Yukon, Escalade, Enclave) — 1206 is the confirmed replacement size for stock cluster lighting. Also fits Nissan Frontier, Chevy Colorado, and GMC Canyon (2004–2012) gauge panels.
Warning and fault indicator LEDs: Yellow/amber is the standard color for warning states on HVAC furnace control boards (Bryant, Nordyne), industrial control panels, and home appliance PCBs from the 1990s–2000s where original indicator LEDs have failed.
Model railroad layout lighting: Signal warning lights, grade crossing flashers, and caution indicators in HO and N scale layouts — the 1206 footprint is hand-solderable and nearly invisible once installed. Compatible with DCC decoder auxiliary outputs.
Eurorack synthesizer and hobbyist PCB builds: The 1206 size is the most beginner-accessible SMD package for custom PCB art, status indicators, and DIY electronics — no reflow oven needed, solder by hand with a fine tip.
RC vehicle lighting: Turn signal indicators, running lights, and amber accents on 1:10 and 1:8 scale RC trucks and crawlers — the pre-wired leads make wiring into a receiver channel or dedicated LED driver straightforward.
Console and controller modding: Amber/gold accent lighting in Xbox and PlayStation controller mods, PC case lighting touches, and DIY button illumination projects.

Wiring & power notes

DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
