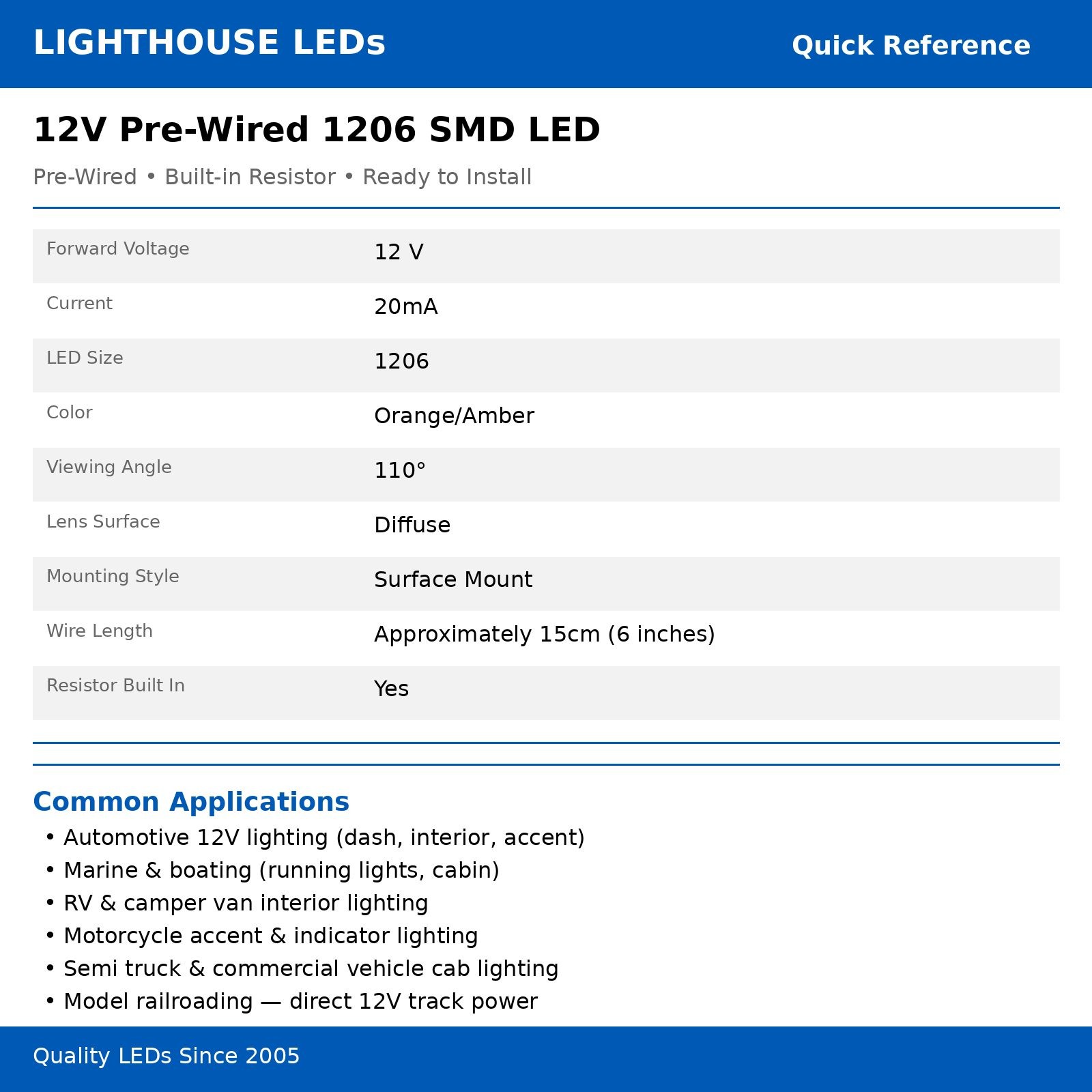

| Size | 1206 / 3216 Pre-Wired SMD LED |
|---|---|
| Color | Orange/Amber |
| Luminosity/Brightness | 150-250 mcd |
| Forward Voltage | 9v-18v (volts) |
| Current | 20mA |
| Wavelength | 600-610nm |
| Viewing Angle | 105-120 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
| Brand | Lighthouse LEDs |
| Resistors Built In | Yes |
| Additional Resistors Required | No |
| Wire Length | Approximately 15cm (6 inches) |
| Shrink Wrapped Connections | Yes |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!
These 12V orange/amber 1206 SMD LEDs come pre-wired with soldered leads and a built-in resistor, so you can connect directly to any 9–18V DC source without calculating resistor values or soldering to a bare pad.
Each LED measures 3.2mm × 1.5mm (1206/3216 footprint) and operates at 12V forward voltage with a 20mA draw, emitting orange/amber light at 605nm with a wide 110° viewing angle. Brightness runs 150–250mcd through a clear, diffuse lens, giving a soft, even glow rather than a harsh hotspot. Approximately 15cm (6 inches) of flexible wire lead makes routing into tight spaces straightforward.
Common applications
- Automotive instrument cluster restoration — orange/amber is the factory color in many GM, Chevy, and Nissan clusters (Silverado, Tahoe, Yukon, Xterra, Frontier). Drop-in replacement when an OEM-color gauge backlight fails, no resistor math needed.
- Chevy Colorado / GMC Canyon (2004–2012) — active DIY community on 355nation.net and coloradofans.com; amber maintains the stock look while upgrading from incandescent.
- Toyota Tacoma, 4Runner, Tundra (2004–2011) — commonly used to replace burned indicator bulbs in the cluster while keeping OEM amber coloring.
- Model railroad signals and grade crossing flashers — 605nm amber reads correctly for slow/caution aspects in HO and N scale signal heads; size is nearly invisible once seated.
- HVAC and appliance control board indicators — amber/yellow LEDs on older Bryant, Nordyne, and Carrier furnace boards signal fault or warning states; 1206 footprint matches many 1990s–2000s PCB pads.
- Eurorack synthesizer and hobbyist PCB builds — 1206 is the most hand-solderable SMD size; orange pairs well with modular synth panel aesthetics and is commonly used for clip or activity indicators.
Wiring & power notes
DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
