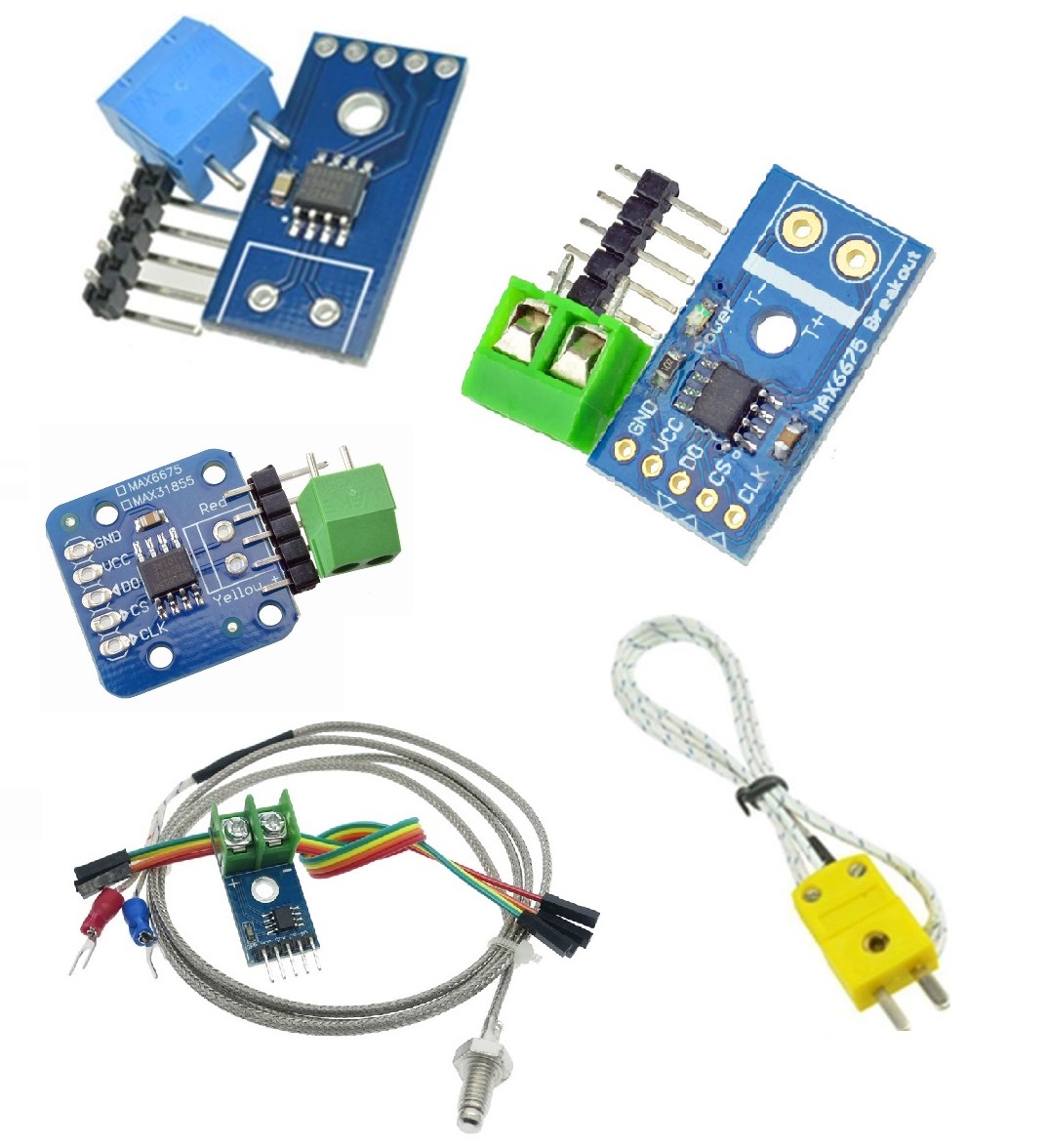

1X Competitive MAX6675 MAX31855 Module + K Type Thermocouple Sensor for Arduino
MAX31855 Module 1

1. measurement temperature range: minus 200 degrees Celsius to 1350 degrees Celsius above zero
2. SPI interfaces, high-speed transmission
3. the input voltage is 3-5v DC
4. direct digital output temperature value, no amplifiers, no ADC
5. 14-bit resolution, 0.25 degree temperature accurac

Note
1.Works with any K type thermocouple
2 K thermocouples have about ±2°C to ±6°C accuracy
4.Internal temperature reading
5.3 to 5v power supply and logic level compliant!
6.SPI data output requires any 3 digital I/O pins.

MAX31855 Module 2

100% brand new and high quality
With cold port compensation
Convert K, J, N, T or E-type thermocouple signal into digital data
Output 14Bit data
Resolution: 0.25°C
Highest Temperature: +1800°C
Lowest Temperature: -270°C
For K-type thermocouple, temperature range -200°C~+700°C, +/-2°C precision

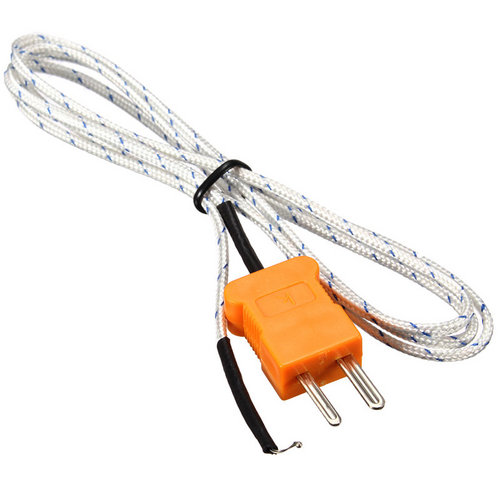

K Type Thermocouple Probe Sensor

100% Brand New Item
This item has been tested in good working condition
Temperature rang: -50~ ~300℃
Material: Fiberglass
Cable Length : 1M
Type : K
Net Weight: 5 g
Line 2 * 0.4 (Diameter of the wire is 0.4mm )

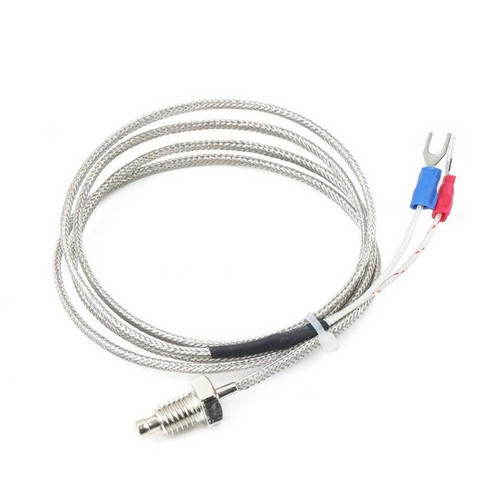

1M K Type Thermocouple

Brand new and high quality.
Type K Type.
Temperature Range:0-800°C.
Thread Diameter:6mm / 0.23".
Internal Insulation:Fibreglass.
External Shielding:Metal Shield.
Total Length:1M / 39".
Fork Terminal Spacing: 3.5mm / 0.13".
Color: As Picture Shown.
Designed with two fork terminal, 6mm thread sensor for accurate measurement.
Works well with temperature controller(not included here), wide measurement range of 0-800 degree celsius.
Size:100cm x 1cm x 1cm - 39.37inch x 0.39inch x 0.39inch.

MAX6675 Module

Interface: SPI
Test Temperature Range: 0 ℃ ~ 1024 ℃, the converter temperature resolution is 0.25 ℃
Operating Voltage Range: 3.0 ~ 5.5V
Operating Current: 50mA
Operating Temperature Range: -20 ℃ ~ 85 ℃
Module Size: 15mm * 28mm, with a 3mm diameter screw holes
K type thermocouple junction location, use 301 ordinary terminals
Application: Industrial, Appliances, HVAC

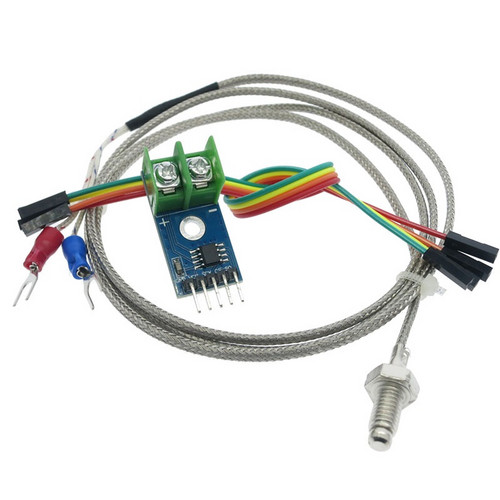

MAX6675 Module+1m Thermocouple Sensor
1.Working voltage: DC5V
2, Operating Current: 50mA
3, the temperature measuring range: -200°C - 1300 °C [Test procedure for 0-1023 °C]
4, the temperature measurement accuracy: ± 1.5 °C
5, the temperature resolution: 0.25 °C
6, the output mode: SPI digital signal
7, with a fixed mounting holes for easy fixed installation.
8, storage temperature: -50 ~ 150 °C
9, the module weight: 4g
10, module size: 25mm * 15mm * 13mm
This module is only for reference routines and instructions, please note left after shoot-mail or contact sales technical hair item.
