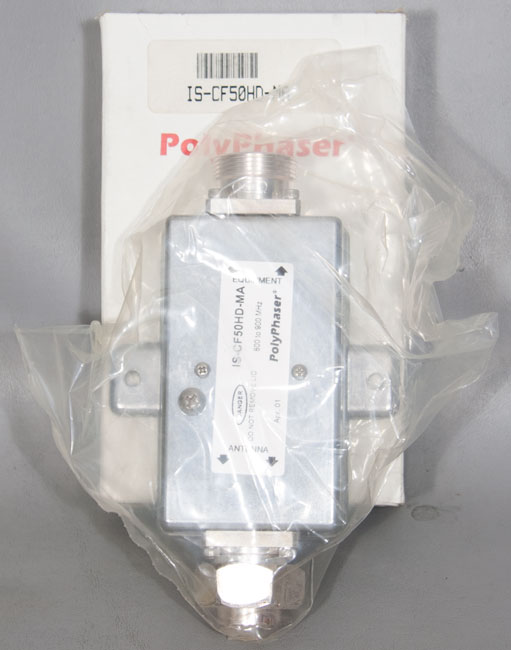

PolyPhaser IS-CF50HD-MA Cellular/Paging Combiner Coaxial EMP/Surge Protector
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from a 3rd party and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
These units are new, old stock.

Brief Description:
IS-CF50HD-MA Frequency Range: 800 to 900 MHz, DIN 7/16" male/female connectors, bulkhead mount

Applications:
For the 800 to 980MHz bands where multi-transmitters are combined, excellent receive only protector, Broadcast STL links.

  Key Features:

  • Employs UL 497B listed gas tube
  • Multi-strike capability
  • Unique dc blocked air strip line design
  • Very low throughput energy
  • High number and power of combined channels handled (See Appendix B for formula) 750W single channel
  • Bulkhead mounting/grounding to 1/4" panels for type DIN 7/16" connectors
  • Not weather resistant
  • Weatherize using WK-1
  • N silver shell and gold center pin

    • Specifications:
    Surge: 20kA IEC 1000-4-5 8/20 µs waveform 138 Joules
    Turn-on: 1200 Vdc Vt = 1800 V
    Turn-on Time: 7.0 ns for 2 kV/ns
    VSWR: < or = to 1.1 to 1 over frequency range
    Insertion Loss: < or = to 0.1 dB over frequency range
    Throughput Energy: 15 nJ typical for 3 kA @ 8/20 µs waveform
    Max. Power: 750 W single channel
    Temperature: -20°C to +50°C Storage/Operating
    Vibration: 1G to 100Hz
