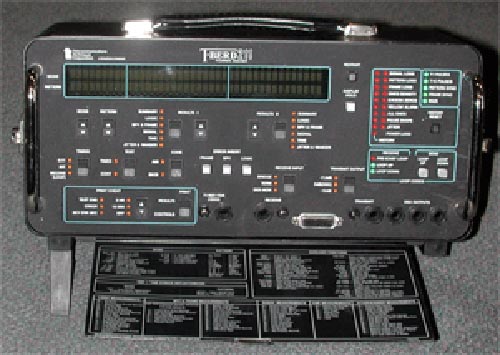

Acterna / TTC T-Berd 211/1/2 T-Carrier T1 Analyzer
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from TTC and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit is guaranteed to work for 30-days, parts and labor, excluding freight.

Option Information:
Options 1: G.821 Analysis Option
Options 2: Spectral Analysis Option - Isolateds network jitter problems.
    T-Berd T-Carrier Analyzer Features:

  • Automatic configuration and results summary
  • Automated sequences of test patterns for one-step circuit qualification and stress tests
  • Pulse shape analysis, signal level and frequency, simplex current, and wander measurements
  • Out-of-band ESF loop codes standard
  • Wideband and high band jitter measurement

    •   Specifications:
    Operating Modes: Self Test, Automatic Configuration, T1 Unframed, T1 D4 Framed, T1 ESF Framed, T1 SLC Framed. T1C Test Loopback, Auxiliary
    Patterns: All Ones, 1:1, 1:7, 2 in 8, 3 in 23, QRSS (T1 and T1C), 2^15 -1, 2^20 -1, 2^23 -1, User Pattern 1 (3-24 bits), User Pattern 2 (3-24 bits), BRIDGTAP(tm) Pattern Sequence, MULTIPAT(tm) Pattern Sequence, All Zeros
    Input and Output Connectors: Bantam, WECO 310, 15-pin D, BNC
      Input Impedance:
         Bridge: > 1000 ohms with ALBO
         Term: 100 ohms with ALBO
         DSX-MON: 100 ohms with AGC
       Receive Level:
         Bridge or term: +6 dBdsx to -35 dBdsx (T1), +3 dBdsx to -6 dBdsx (T1C)
         DSX-MON: +6 dBdsx to -24 dBdsx (T1), +3 dBdsx to -24 dBdsx (T1C)
       Level Measurement: +6 dBdsx to -40 dBdsx; +6 to -6, 0.1 dB resolution; -6 to -40, 0.5 dB resolution
       Frequency Measurement: 1 Hz resolutions; 5 ppm accuracy
       Transmit Timing Sources: Internal Clock, External Clock, Reference Clock, Recovered Clock
       Line Codes: AMI, B8ZS
       Loopback Codes: CSU, CSU Line (ESF), CSU Payload (ESF), NIU (FAC1, FAC2, FAC3), NIU Network (ESF), Programmable (3 to 8 bits)
       Jitter Measurement:
       Wideband: >/= 32 UI, 10 Hz to 40 kHz
       Highband: >/= 32 UI, 8 kHz to 40 kHz
       Spectral Analysis: >/= 32 UI, 10 Hz to 40 kHz
    Jitter Masks: CCITT O.171, PUB 41451, PUB 62411-1983, PUB 62411-1985, PUB 43801
    Pulse Masks: CB 119 (ANSI T1.102), ANSI T1.403-1989
       Wander Measurement: +99999 UI, 1 UI resolution
       Power Requirements: 115 VAC ±10%, 50 to 60 Hz

    Key Features and Benefits:

  • Jitter Alarm and Trigger: Front panel indicator provides fast indentification of jitter problems. Isolate multiplexer and channel bank clock recovery problems with jitter measurements across the full 10 Hz to 40 kHz range.
  • In-Band/Out-of-Band ESF Loopback Codes: Emulate and loopback network devices which accept either in-band or ESF out-of-band (datalink) loopback codes with ESF framing.

  • B8ZS Detection ALL ZEROS Stress Pattern: Front panel indicator provides fast identifications of B8ZS encoded data. The ALL ZERO stress pattern identifies circuits not configured for or incompatible with B8ZS encoded data.

  • Automated Pattern Testing: Detect elusive bridge taps with the BRIDGTAP(tm) automated stress pattern sequence. Perform qualification tests with the user-configurable MULTIPLAT(tm) stress pattern sequence.

  • Pulse Shape Analysis: Evaluate customer premise and network equipment adherence to transmit signal pulse shape specifications.

  • CSU / NIU Emulation: Isolate customer premise and network equipment from the circuit during installation and maintenance.

  • Ease of Use: Auto configuration and results summary provide immediate indentification of framing, pattern, and error status without any required set-up. The vacuum fluorescent display is ideally suited for dimly lit testing environments.
