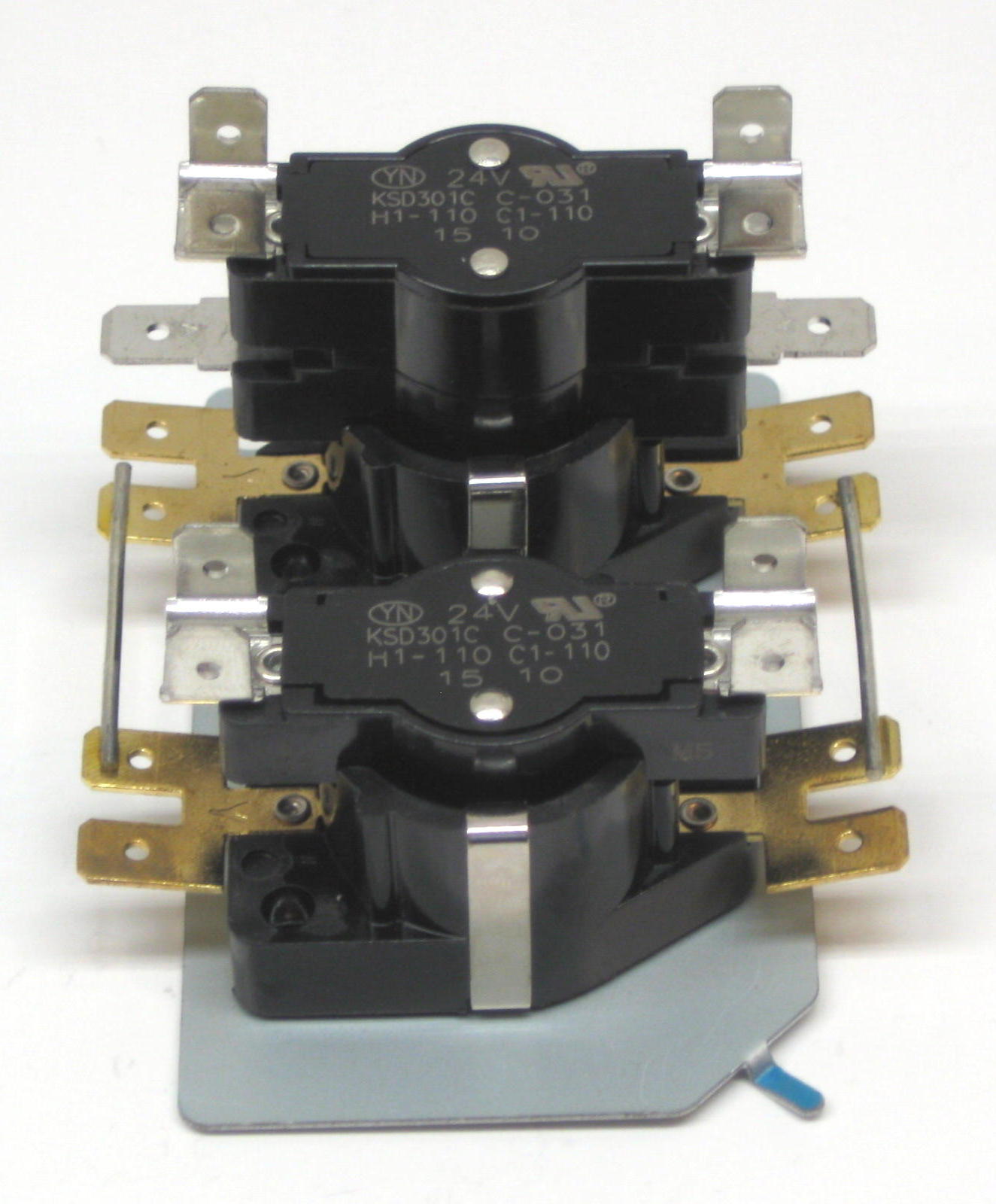

Electric Heat Sequencer Control DPST-SPST 24 Volt for Q105 24A34-5 525-37327-000

Parts Connect Sequencer part number PCQ105.


24 Volts

DPST-SPST

2 Timing / 3 Switch

Off 1-110 Seconds

On 1-110 Seconds


PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions.


Terminal Markings are Equivalent to Competitive Types.


Replacement for Numbers:

Diversitech DGS105, Klixon 51172-32, Mars 33232, 33832, Napco NS105, Supco Q105, White Rodgers 24A34-5, Watsco TDR30, York 525-37327-000.


COMBINED LOAD RATING TABLE

(ALL MODELS)

30A @ 240 VAC  TOTAL,

23A Non-Inductive + 7 FLA

/ 42 LRA

Inductive,

ON Time: Elapsed time to make contacts after

heater is energized (min. to max.)

OFF Time: Elapsed time to break contacts after

heater is de-energized (min. to max.)


M1-M2 and M3-M4 are always first switches

to turn ON and last to turn OFF. All other

switches are random ON and random OFF


NOTE

: Underwriters Laboratories requires a

fan interlock circuit to insure the blower

remains operating whenever more than one

sequencer is used.

The fan interlock should

be the M1/ M2

contacts of the second or third sequencer.

All M1/ M2

contacts are wired to the blower

motor so that any sequencer that is energized

will keep the blower ON.
