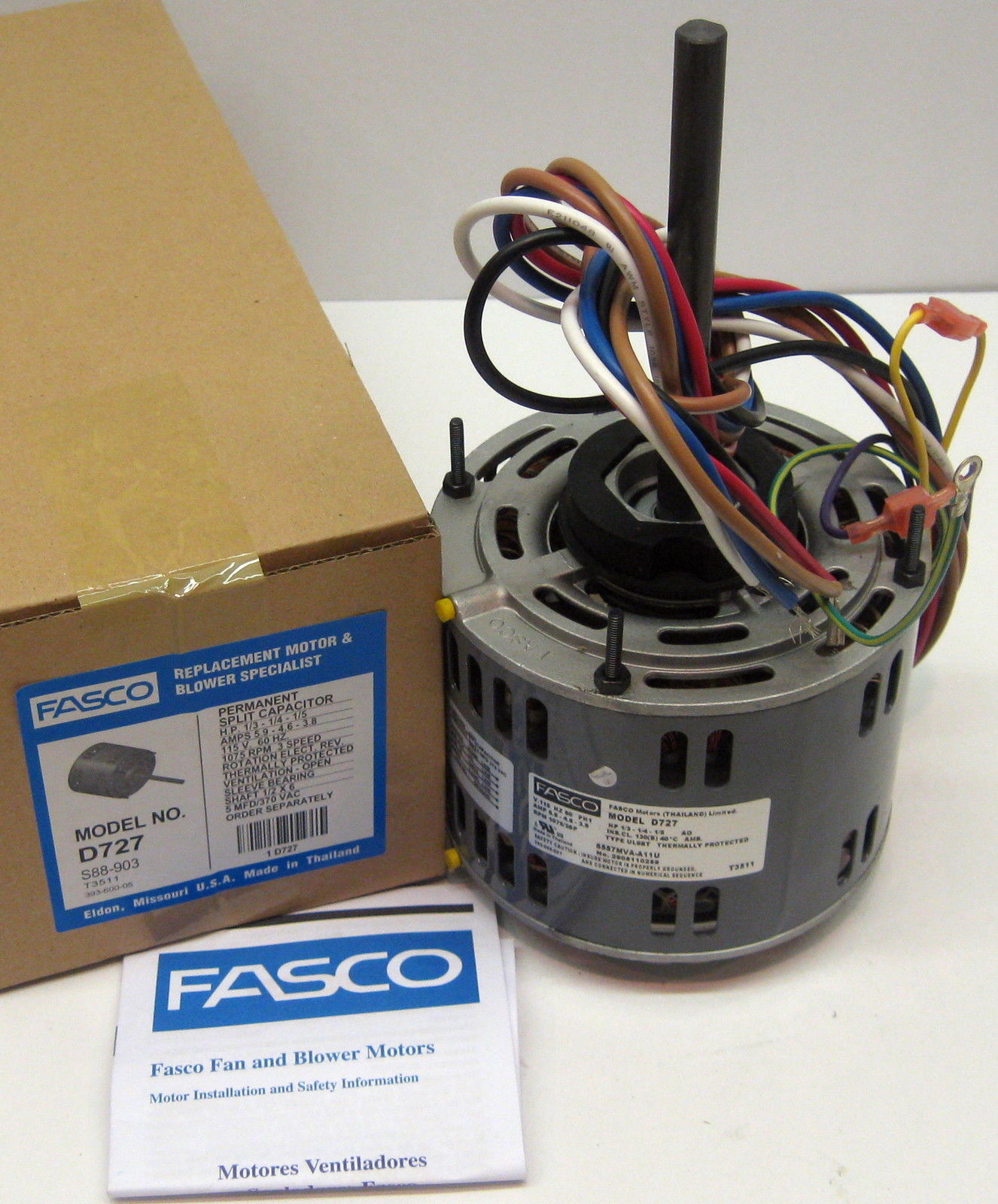

D727 Fasco 1/3 HP 1075 rpm 115 v 3 Speed Furnace Blower Fan Motor
Fasco Motor: Part Number D727
Motor Specifications:
- 1/3, 1/4, 1/5 HorsePower
- Three Speed
- 115 Volts
- 5.9 Amps on High Speed
- 1075 RPM
- All Angle Mounting
- 5-5/8" Diameter
- 4-1/4" Body Length
- 5-1/4" Length from center of hub to center of hub (for cradle mount)
- 1/2" x 6" Shaft (can be cut down with a hacksaw if needed)
- Mounts with belly band strap or with 4 studs, studs measure 3-3/4" apart center to center or cradle mount
- Sleeve Bearing
- Three Speed
- Electrically Reversible (by flipping 2 wires)
- Thermally Protected
- No Capacitor included (5mfd x 370vac)
Features:
- All Angle Mounting
- Mounts with belly band strap or with 4 studs
- Studs measure 3-3/4" apart center to center or cradle mount
- Sleeve Bearing
- Three Speed
- Electrically Reversible (by flipping 2 wires)
- Thermally Protected
- POC5 oval Capacitor not included (5mfd x 370vac)
- Wiring Diagram Printed on Motor
- Universal fit for Air Conditioners, Air Handlers, Furnaces, or anything that moves air!
Product Details
| Brand | Fasco |
|---|---|
| Manufacturer | Fasco |
| Mpn | D727 |
- Fasco Motor D727
- Furnace Air Handler Blower Motor
- 1/3, 1/4, 1/5 HorsePower, Three Speed 1075 RPM
- 5.9 Amps on High Speed 115 Volts
- 5-5/8" Diameter, 4-1/4" Body Length, 5-1/4" Length from center of hub to center of hub (for cradle mount), 1/2" x 6" Shaft (can be cut down with a hacksaw if needed)
