| Size | 12v 5mm Flickering LED |
|---|---|
| Color | Orange/Amber |
| Luminosity/Brightness | 10,000-12,000 mcd |
| Forward Voltage | 12-15v (Not recommended 15v Continuous) |
| Wire Length | Approximately 15cm (6 inches) |
| Resistor Built In | Yes |
| Additional Resistors Required | No |
| Shrink Wrapped Connections | Yes |
| Current | 20mA |
| Wavelength | 600-610nm |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
| Animation | Flickering / Candle |
| Operating Voltage | 12-15v (Not recommended 15v Continuous) |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!

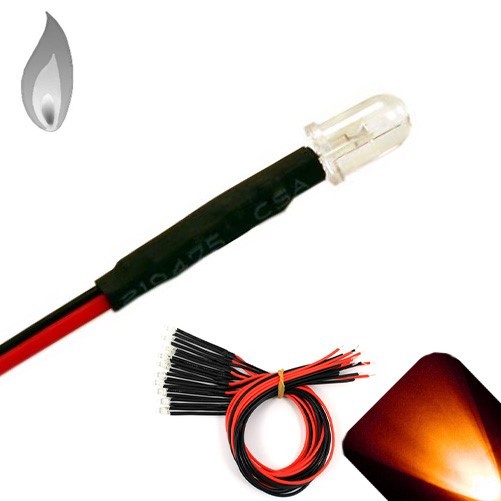

These 12V pre-wired flickering amber/orange LEDs are purpose-built for candle and fire effects — the flicker animation is built into the LED itself, so no external driver, Arduino, or PWM controller is needed.
Each 5mm LED operates at 12V DC with the resistor already integrated into the wire leads, making them genuinely plug-and-play on any 12V supply. The amber/orange output sits at 605nm wavelength with a tight 25° viewing angle and a clear lens, producing a focused, realistic flame glow rated at 10,000–12,000 mcd. Wire leads are approximately 15cm (6 inches) — long enough to route through most prop builds without splicing.
Common applications
The amber/orange color and candle flicker pattern make these a natural fit for projects where realistic flame appearance matters more than brightness alone.
- Halloween props: haunted fireplace builds, jack-o-lantern conversions to 12V DC, cauldron fire effects with cotton batting (standard HauntForum technique), and fog machine interaction scenes
- Escape room design: dungeon torch wall sconces and altar candle scenes wired to a central 12V prop bus — far more reliable than battery-op candles for multi-hour operation
- Department 56 and Lemax village buildings: collectors swap static LEDs for flicker versions to add life to window glow; the pre-wired resistor eliminates the per-LED math
- Theater and stage: NFPA 160 prohibits open flames on stage — amber flicker LEDs in wax shells are the standard solution for candelabras, period torches, and dungeon sconces
- Scale model fire effects: HO and O scale burning building scenes, locomotive firebox glow visible through cab windows, and military diorama burning AFV builds using resin flame castings
- Flameless candle repair: Luminara, Homemory, and Sterno Candle Lamp units that have failed motors can often be converted to a direct flicker LED array using these
Wiring & power notes
Animated LEDs (flashing, flickering, fading) require DC — they will not operate correctly on AC power. If you are working from a low-voltage AC source such as a model railroad transformer or DCC output, convert to DC first with a MB1S bridge rectifier paired with a 100µF 50V electrolytic capacitor for smoothing. Without the capacitor, the animation pattern may glitch on the pulsed DC output of a bare rectifier.
Do animated LEDs work on AC power?
| Power Source | Bridge Rectifier | 100µF Capacitor |
|---|---|---|
| DC power supply | No | No |
| 12V AC landscape transformer | Required | Required |
| DCC track power | Required | Required |
Animated LEDs require DC. Convert AC sources to DC using a bridge rectifier plus a 100µF smoothing capacitor for clean, ripple-free animation.
Quality LEDs made in the USA since 2005.
Building with this item
Need supporting components? These pair directly with this listing:
- Battery power (12V): 8× AA Battery Holder — portable 12V output for props, costumes, and mobile builds
- Wall power (12V): 12V 1A Wall Power Supply — plug-and-play AC-to-DC adapter for fixed installations
- Panel mount holder: 5mm LED Holder/Bezel (Black) — bezel kit for clean through-panel LED installs
- Chrome bezel option: 5mm LED Holder/Bezel (Chrome) — silver/chrome finish for automotive and premium builds
