10 x LED PLCC2 1210 3528 Blue SMD LEDs Light Super Ultra Bright Gauge PLCC-2

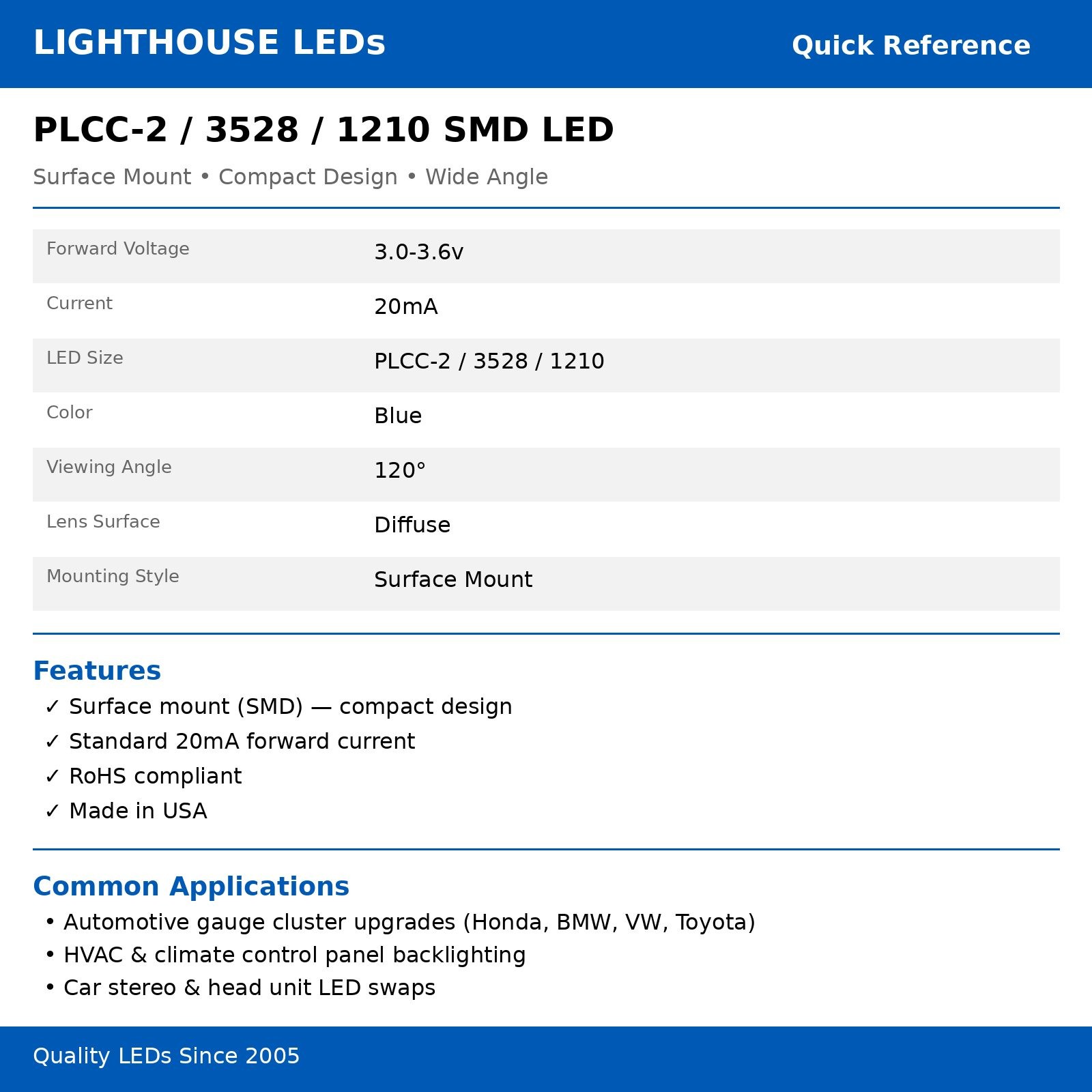

Additional Information
SizePLCC2/3528 - 1210 LED
ColorBlue
Luminosity/Brightness1000 mcd
Forward Voltage3.0-3.6v
Current20mA
Wavelength468-470 nm
Viewing Angle120 Degrees
Mount StyleSMD (Surface Mount Diode)
Lens ColorClear
LED Brightness ClassSuper/Ultra/Extreme

Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!
10 x LED PLCC2 1210 3528 Blue SMD LEDs Light Super Ultra Bright Gauge PLCC-2

These blue PLCC-2 / 3528 / 1210 SMD LEDs are the go-to replacement for automotive instrument cluster backlighting — the exact footprint found in dozens of factory gauge clusters from the late 1990s through the 2010s.

Each LED runs on a forward voltage of 3.0–3.6V at 20mA, emitting a true blue at 462.5nm with 1,000mcd of output through a clear diffuse lens. The 120° viewing angle spreads light broadly across cluster diffusers and HVAC panels, and the standard PLCC-2 / 3528 / 1210 two-pad footprint drops directly onto most factory PCBs without modification.

Common applications

  • Honda / Acura clusters: Honda Accord 1998–2002 (26 LEDs), Honda Civic EG/EK 1992–2000 (23 LEDs), Honda Element 2003–2011, Honda CR-V 2002–2006, Acura TL 2004–2008 (3G), Acura RL 2005–2012
  • BMW clusters: E46 1999–2006 (323i/325i/328i/330i/M3, 24–30 PLCC-2), E36 1992–1999, E39 1996–2004 5 Series
  • VW / Audi clusters: Golf/GTI Mk4 1999–2005 (24 PLCC-2), Audi A4 B6/B7 2002–2008 (30–40 LEDs, 2 per needle), Audi A6 C5, Jetta Mk3/Mk4
  • GM trucks and SUVs: Chevy Silverado / GMC Sierra 2003–2006, Tahoe, Suburban, Yukon, Avalanche, Escalade — same platform; also Cobalt 2005–2010 and Pontiac G5
  • Jeep / Dodge: Jeep Wrangler TJ 1997–2006, Jeep Cherokee XJ 1984–1996 (22-piece), Dodge Ram 1500/2500/3500 2002–2006
  • Toyota / Subaru / Infiniti: Toyota Corolla 2011, Tacoma 2005–2011, Lexus IS300 2001–2005; Subaru Impreza/WRX 2002–2007; Infiniti G35 2003–2007 (~36 LEDs per cluster)

Wiring & power notes

DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.

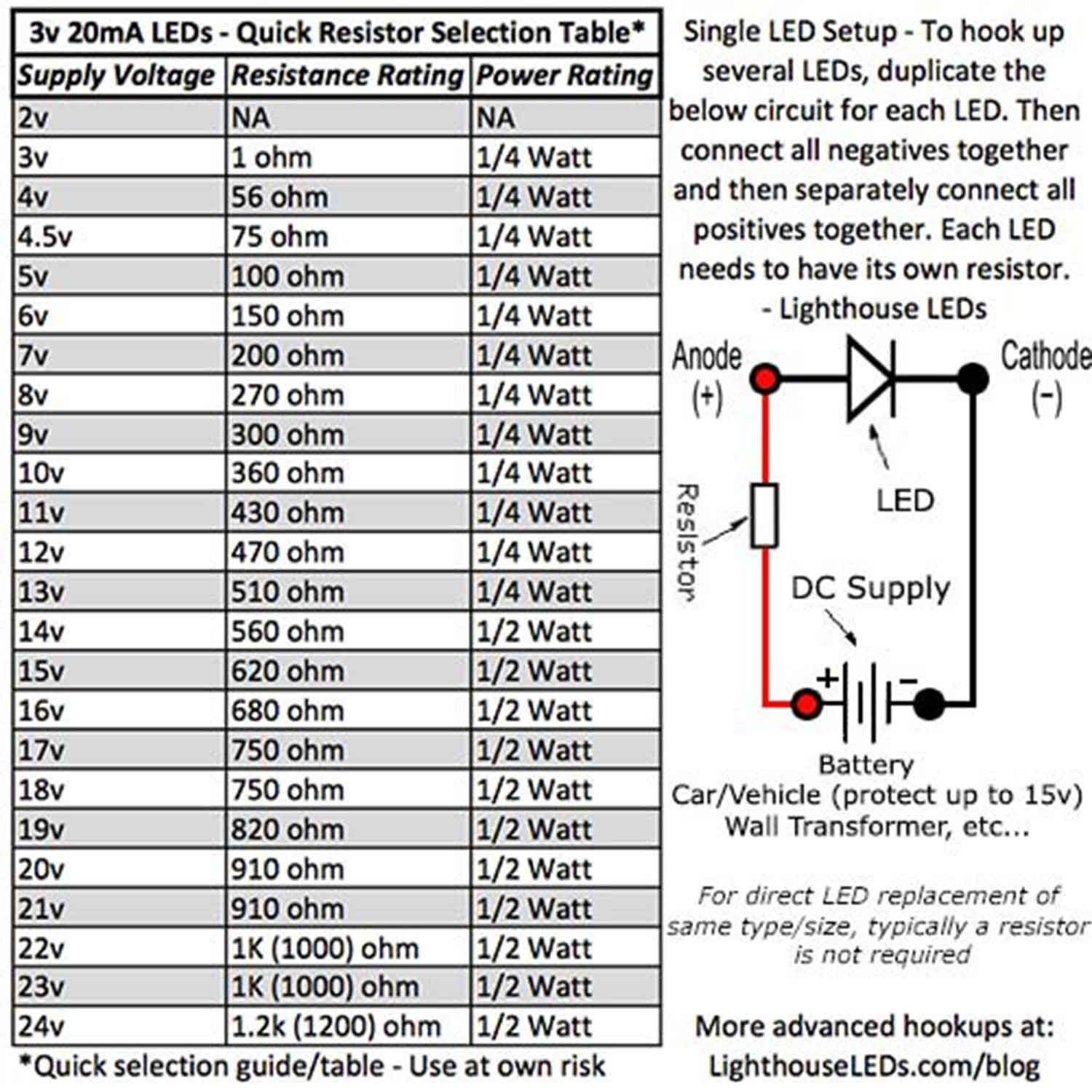

Resistor quick reference — 3V LEDs (blue, green, white, UV) at 20mA:

Supply VoltageResistorPower Rating
4V56Ω1/4W
5V100Ω1/4W
6V150Ω1/4W
7V200Ω1/4W
8V270Ω1/4W
9V300Ω1/4W
10V360Ω1/4W
11V430Ω1/4W
12V470Ω1/4W
13V510Ω1/4W
14V560Ω1/2W
15V620Ω1/2W

Prefer not to calculate resistor values? Our 20mA LED Current Limiter eliminates the math entirely. Active constant-current drive to 20mA across a 4–45V DC supply — ideal for automotive circuits where voltage fluctuates. Multiple LEDs in series share one driver.

Building with this LED

Need supporting components? We carry a few staples that pair directly with this LED:

  • Thin magnet wire for SMD pads: 30 AWG Kynar wire — solid core, Teflon jacket, ideal for hand-soldering to 0402/0603/SMD pads without lifting them.
