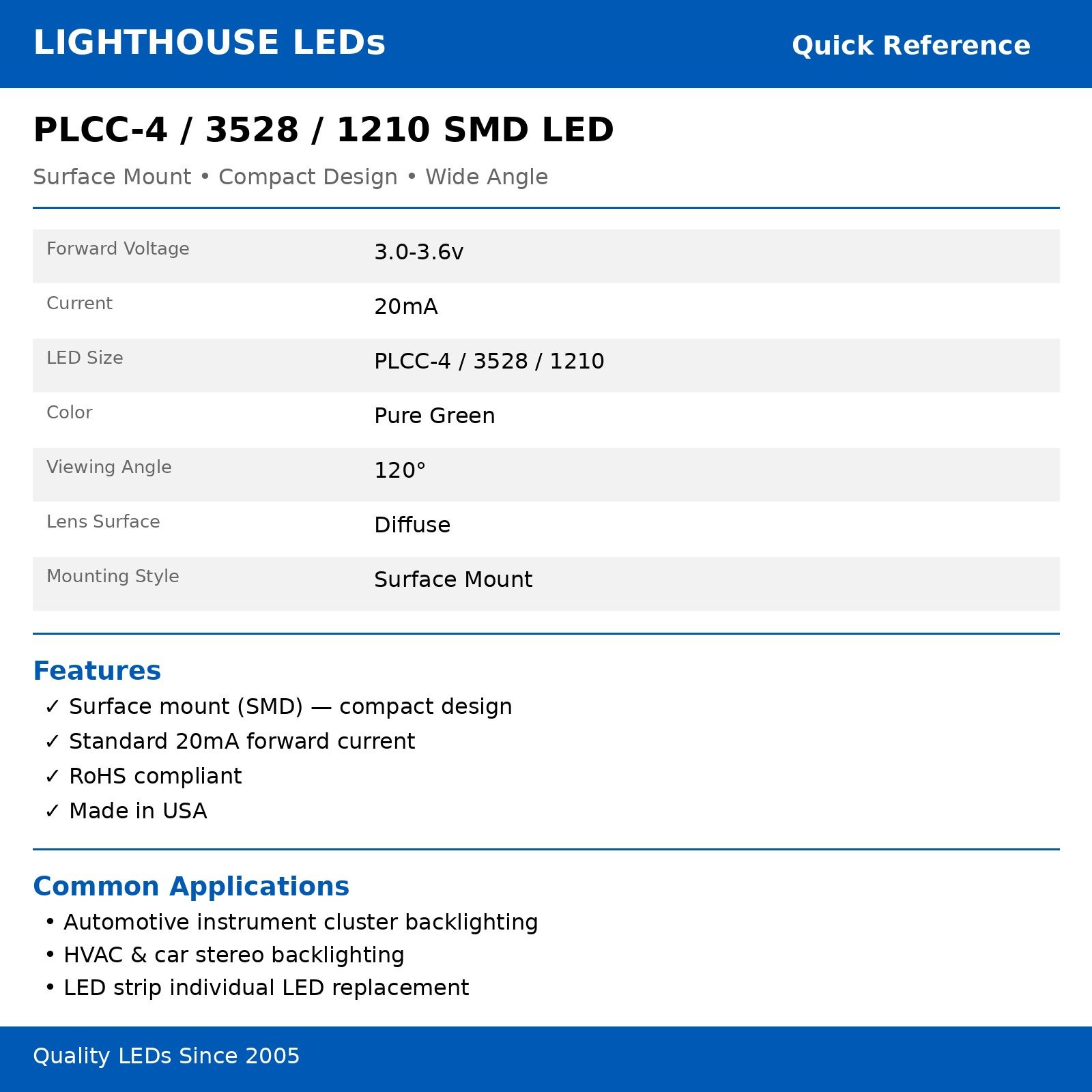

| Size | PLCC4 / 3528 / 1210 LED |
|---|---|
| Color | Pure Green |
| Luminosity/Brightness | 1800 mcd |
| Forward Voltage | 3.0-3.6v |
| Current | 20mA each Chip/Diode - 3 Chips/Diodes |
| Wavelength | 525-530 nm |
| Viewing Angle | 120 Degrees |
| Mount Style | SMD (Surface Mount Diode) |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!

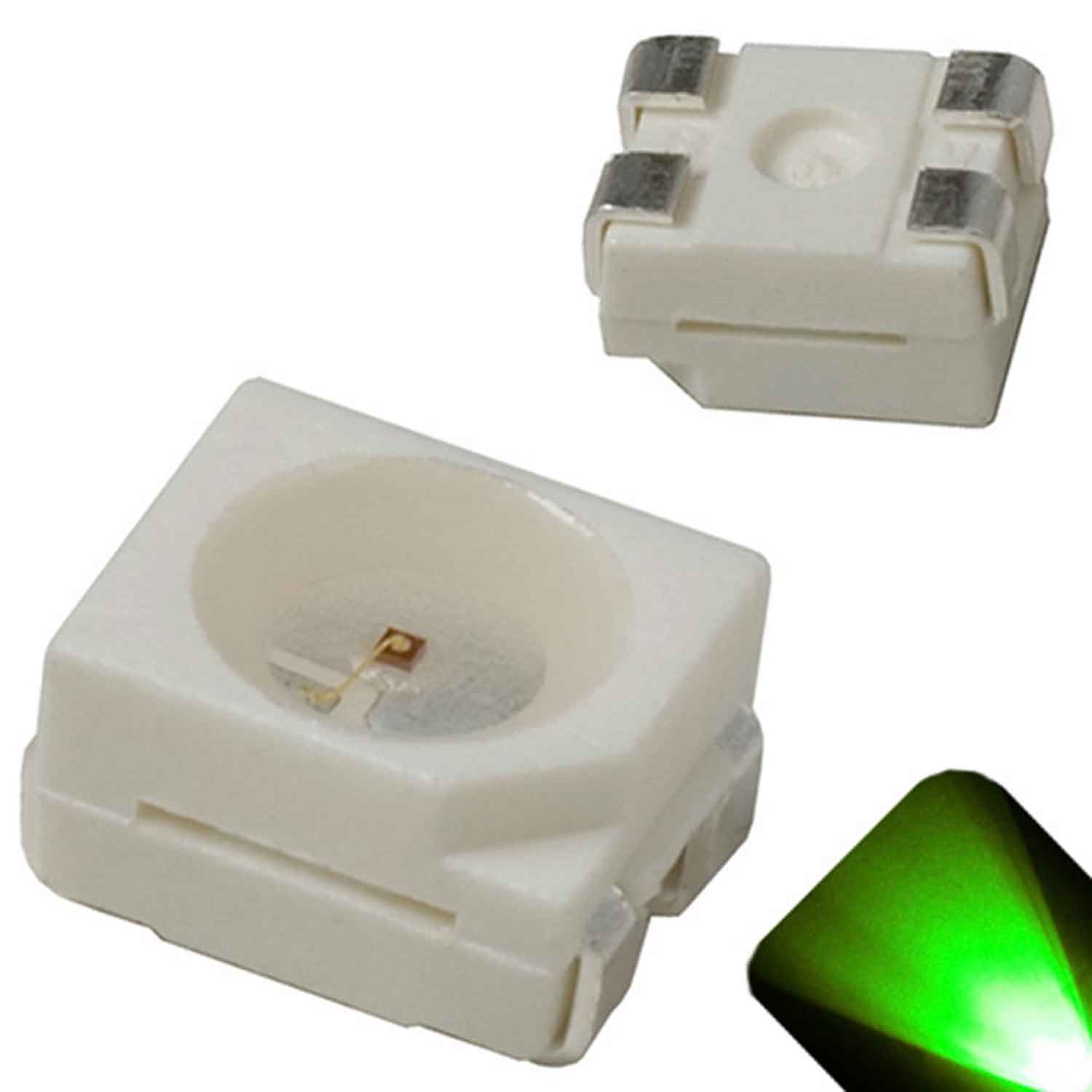

These PLCC-4 / 3528 / 1210 pure green SMD LEDs deliver a sharp 520nm green at 1,800 mcd — bright enough for instrument cluster swaps, RC lighting builds, and indicator work where a clean, vivid green matters.
Each LED runs on 3.0–3.6V forward voltage at 20mA, emitting at 520nm with a wide 120° viewing angle through a clear diffuse lens. The PLCC-4 3528 footprint (also cataloged as 1210) is one of the most common SMD LED packages in automotive clusters and consumer electronics, making these a direct replacement in a wide range of applications.
Common applications
- Automotive instrument clusters: Used extensively in Honda Accord 1998–2002, Honda Civic 1992–2000, BMW E46 (323i/325i/328i/330i), VW Golf/GTI Mk4, Audi A4 B6/B7, Chevy Silverado/GMC Sierra 2003–2006, Dodge Ram 2002–2006, Jeep Wrangler TJ, Subaru Impreza/WRX 2002–2007, and Infiniti G35 2003–2007 among many others.
- HVAC and climate control panels: Honda Element, CR-V, Pilot, and Acura MDX backlight replacements — pure green gives a factory-correct look on platforms where OEM used green illumination.
- RC vehicles: 1:10 scale truck and car lighting (headlights, underlighting, cockpit indicators) where the 3528 pad size solves layout-constrained builds.
- DIY electronics and maker projects: Status indicators, panel lighting, custom backlit controls where a reliable 520nm green is needed at a consistent output level.
- Model railroad and scale layout signals: Reproduced signal heads and grade crossing indicators in HO and N scale layouts where point-source brightness matters at small scale.
Wiring & power notes
DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
Resistor quick reference — 3V LEDs (blue, green, white, UV) at 20mA:
| Supply Voltage | Resistor | Power Rating |
|---|---|---|
| 4V | 56Ω | 1/4W |
| 5V | 100Ω | 1/4W |
| 6V | 150Ω | 1/4W |
| 7V | 200Ω | 1/4W |
| 8V | 270Ω | 1/4W |
| 9V | 300Ω | 1/4W |
| 10V | 360Ω | 1/4W |
| 11V | 430Ω | 1/4W |
| 12V | 470Ω | 1/4W |
| 13V | 510Ω | 1/4W |
| 14V | 560Ω | 1/2W |
| 15V | 620Ω | 1/2W |
Prefer not to calculate resistor values? Our 20mA LED Current Limiter eliminates the math entirely. Active constant-current drive to 20mA across a 4–45V DC supply — ideal for automotive circuits where voltage fluctuates. Multiple LEDs in series share one driver.
Building with this LED
Need supporting components? We carry a few staples that pair directly with this LED:
- Thin magnet wire for SMD pads: 30 AWG Kynar wire — solid core, Teflon jacket, ideal for hand-soldering to 0402/0603/SMD pads without lifting them.
