| Size | 1W Star LED |
|---|---|
| Color | Pure Green |
| Luminosity/Brightness | 100 lm (Lumens) |
| Forward Voltage | 3.2-3.6v |
| Current | 350mA |
| Wavelength | 520-530nm |
| Viewing Angle | 140 Degrees |
| Mount Style | Surface Mount |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!
These 1-watt pure green star LEDs deliver a focused 25° beam at 520 nm — the true green wavelength that reads as vivid and saturated rather than yellow-green or lime. If your project demands a clean, unmistakable green point source, this is the LED for it.
Each LED runs at 3.2–3.6V forward voltage at 20mA, produces 100 lumens from a compact 5mm package, and uses a clear lens for maximum intensity at the beam center. The narrow 25° viewing angle concentrates output where you aim it, making these well-suited to indicator lights, signal heads, and any build where the LED is viewed straight-on rather than from the side.
Common applications
- Model railroad signal heads — correct green aspect color for HO, N, and O scale block signals; compatible with Atlas, Tortoise, and NCE DCC signal decoders
- Automotive gauge and dash lighting — instrument cluster swaps in classic trucks, Jeep TJ/LJ gauge pods, and custom shift indicators where green matches OEM aesthetics
- RC vehicle lighting — roof-mounted work lights, underbody glow, and rear marker lights on 1:10 crawlers and 1:8 buggies
- Cosplay and prop builds — power cell indicators, reactor cores, and helmet HUD lighting where a tight, intense green beam reads well under stage or convention lighting
- DIY indicator panels — status lights on custom electronics enclosures, CNC control panels, and perfboard power monitors
- Aquarium and vivarium accents — moonlight simulation and plant-zone indicators where intensity and color purity matter

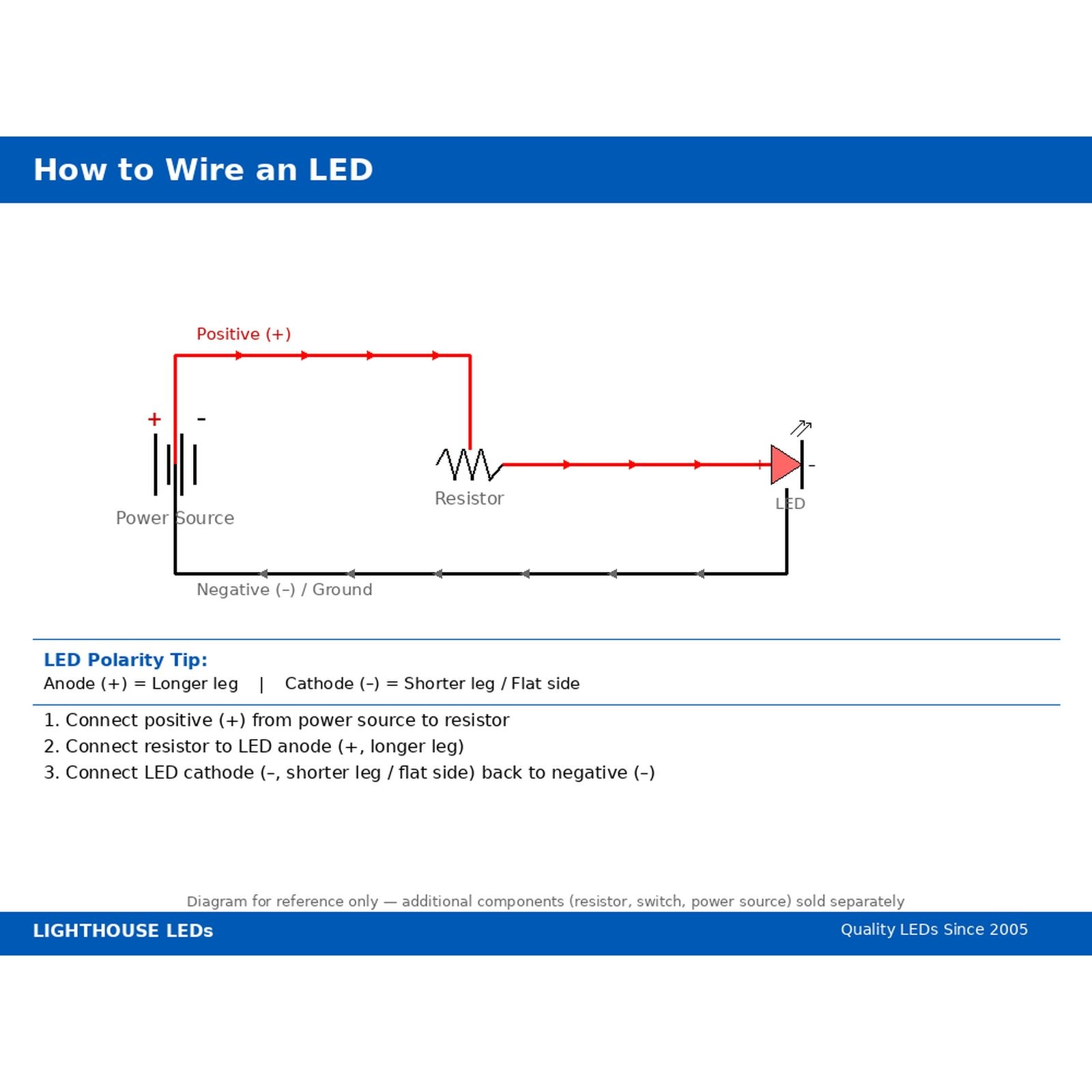

Wiring & power notes
DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
Building with this LED
Need supporting components? We carry a few staples that pair directly with this LED:
- Thin lead-extension wire: 30 AWG Kynar wire — solid core, Teflon jacket, perfect for extending LED leads in tight spaces.
- Hookup wire for power runs: 26 AWG Kynar wire — thicker conductor for supply rails and longer runs without voltage drop.
- Bare tinned bus bar: 24 AWG tinned copper — solid core bare wire for bus-bar power distribution on perfboard builds and LED arrays.
- DIY timer / blinker circuit: NE555 Timer IC — the classic 8-pin DIP chip for building LED blinker, PWM dimmer, and tone-generator circuits without needing a microcontroller.
Quality LEDs made in the USA since 2005.
