Wireless Reversing Camera 9 LED IR + 4.3"  LCD Mirror Monitor Car Rear View Kit
4.3" TFT Car LCD Mirror Monitor
Wireless Transmitter Receiver Kit
Simple to installation , Easy to use Easy to mount

Reverse Camera

*Car Rearview /Reverse /Backup camera
*High Definition and Wide Viewing Angles
*Waterproof and Night vision
* Pickup device : HD7070 sensor
* System: PAL/NTSC
* Validity pixel: PAL: 628*586 NTSC: 656*492
* Sensor area: 4.5mm*4.2mm
* Horizontal definition: 380 TV Line
*Shutter speed: 1/60-1/20000
* Minimum illumination: 01-0.5LUX/F=1.2 (0 Lux with IR on)
* Voltage: DC-12V 200ma;
*Video Output : RCA Connector,1.0vP>P,75Q
*Consumption : Max 300mA with IR on
*Operating Temp:-20°C~75°CRH 95% max
*Lens Angle:90 degree
*Weight:60g (Camera only)

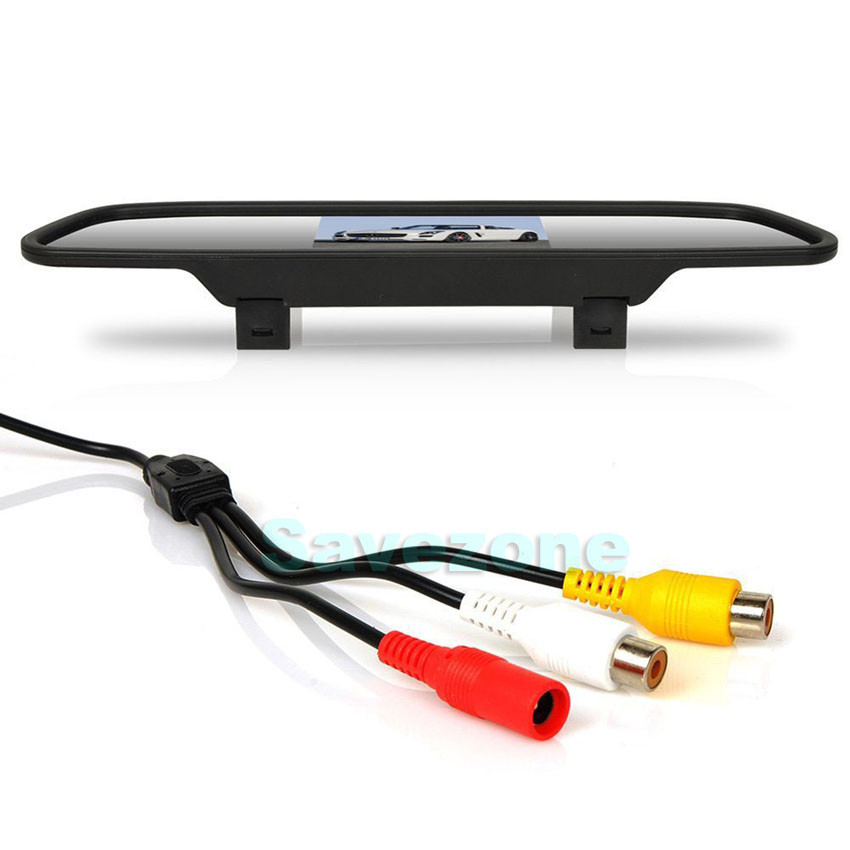

Monitor:

Function: Car Rear View Mirror Monitor
Display Screen: TFT-LCD

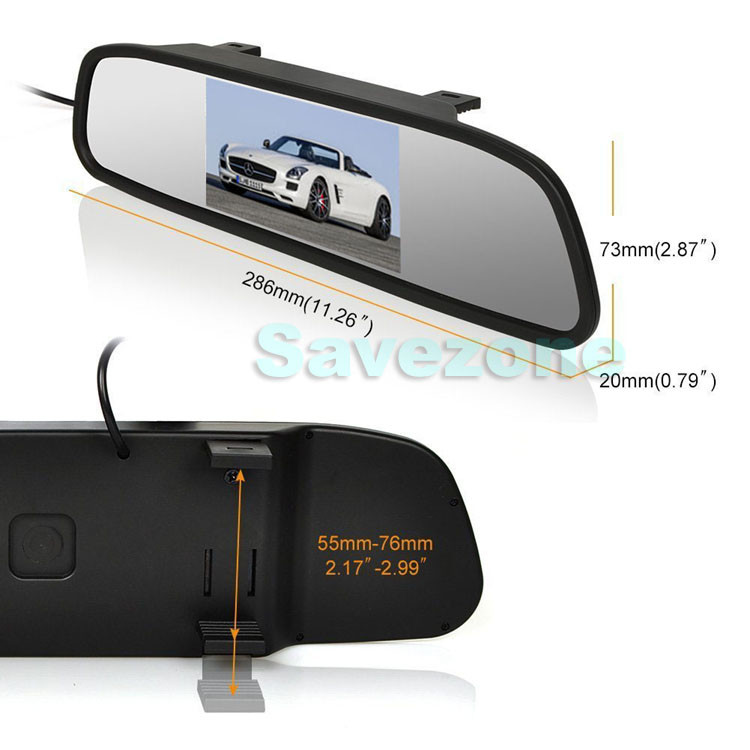

Display size : 4.3 Inch
Display Resolution: 480 x RGB x 272pixels
TV System: PAL/NTSC
Power: < / = 3W
Power supply: DC 12V
Video: 1 AV input auto switching
Environment Humidity: 10% ~ 90%
Operating Voltage: DC 9V-16V
Operating temperature: -20 ~ 60 degree Celsius
Storage temperature: -40 ~ 85 degree Celsius
Installation: Install on the Dashboard, Easy for installation and uninstallation
Car Make: All 12V Car

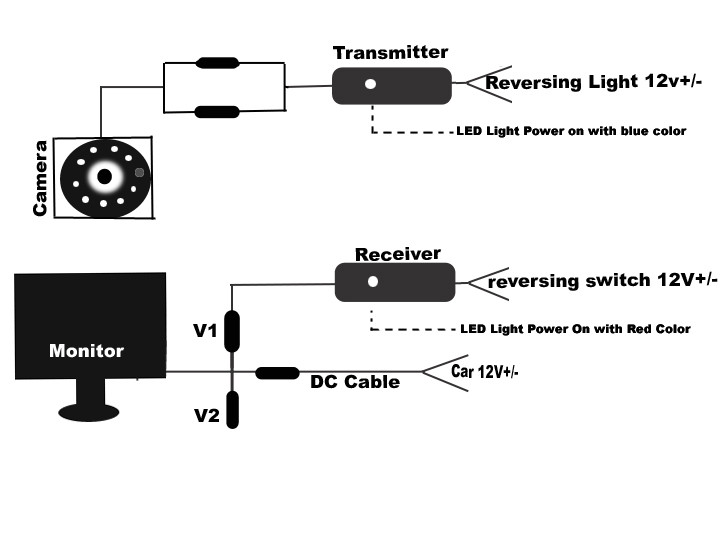

Wireless Receiver &Transmitter kit

Transmitter is build with one video input yellow plug and a DC outplut red plug,
receiver only build with a yellow plug video output,
please do not mislead which one is receiver,which one is transmitter,
the receiver will turn on with red light when it get power,
the transmitter will turn on with blue light when it get power,
receiver is need to connect with the monitor side,
transmitter is need to connect with the camera side,

for the monitor,please install it with car 12v+/- by dc cable

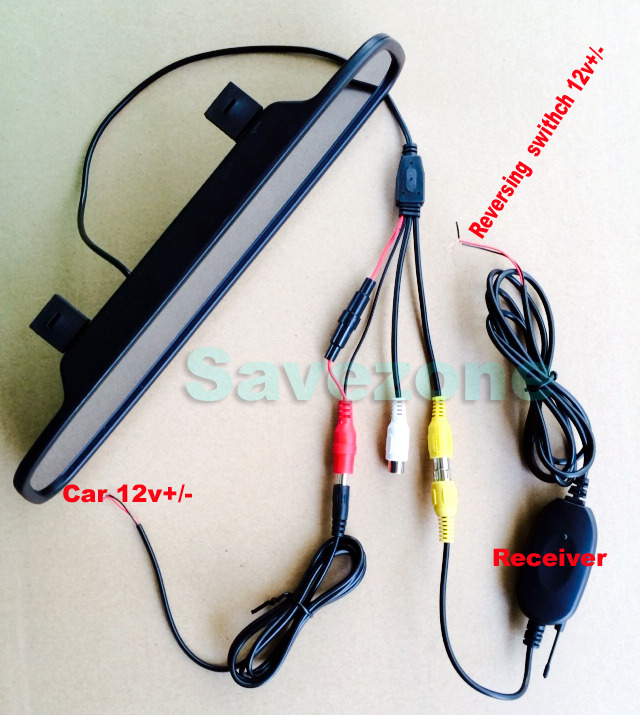

for the reciever,please connect it with the monitor video input by the yellow  plug,and connect the reciever with the car reversing control wire 12v+/ground
(The reversing control wire 12v+ is come from the reversing gearbox  switch,please find it out with your vehicle before installed this goods)

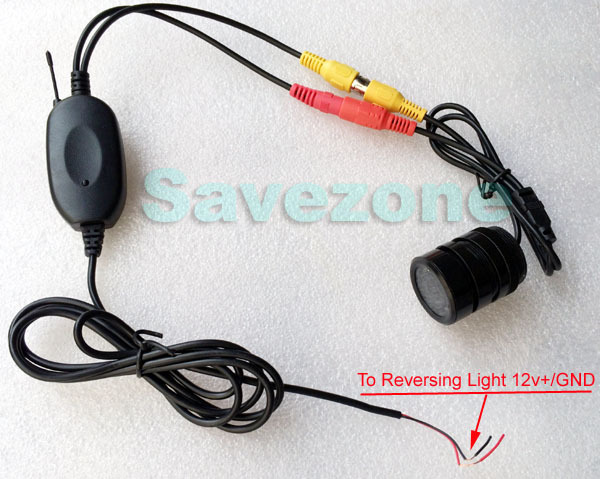

for the camera,please conenct it with the transmitter (red plug to red  plug,yellow plug to yellow plug)
for the transmitter,please connect it with your reversing light 12v+/ground
all is ok now,
when your vehicle's reversing gear is selected,the receiver and the transmitter  will get power
then the camera will work,and you can see the video by the monitor,
when you complete reversing,the camera and the receiver transmitter will  automatically turn off,

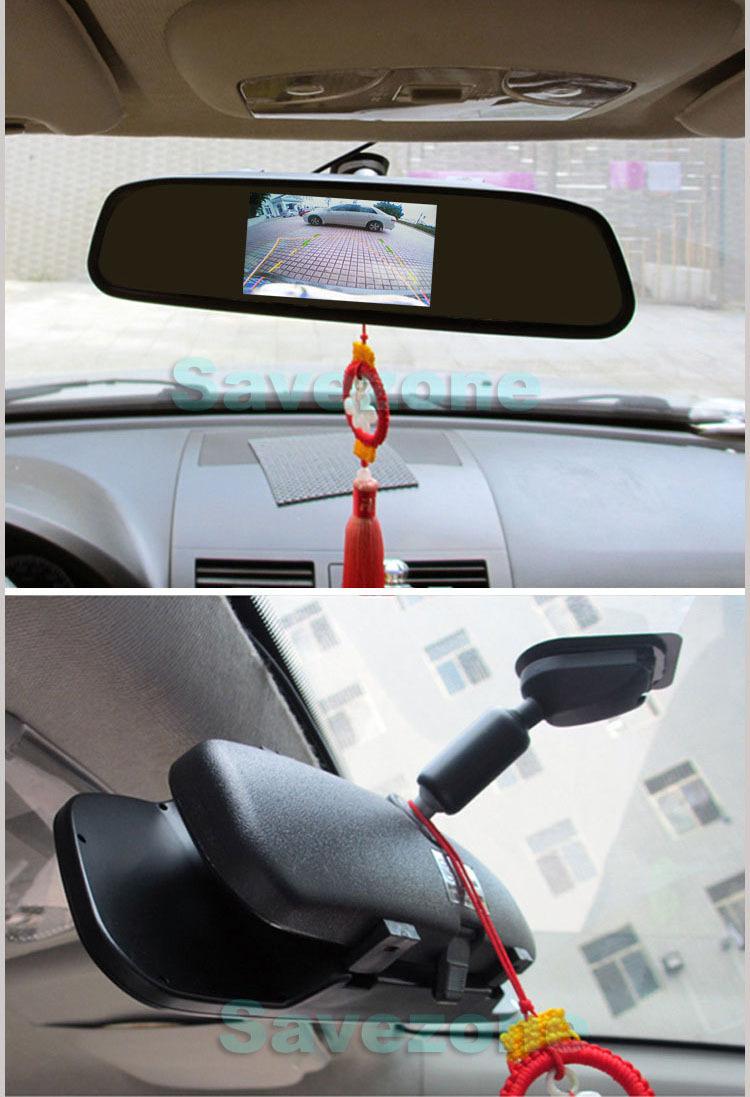

then the monitor looks like a rear view mirror

Package:

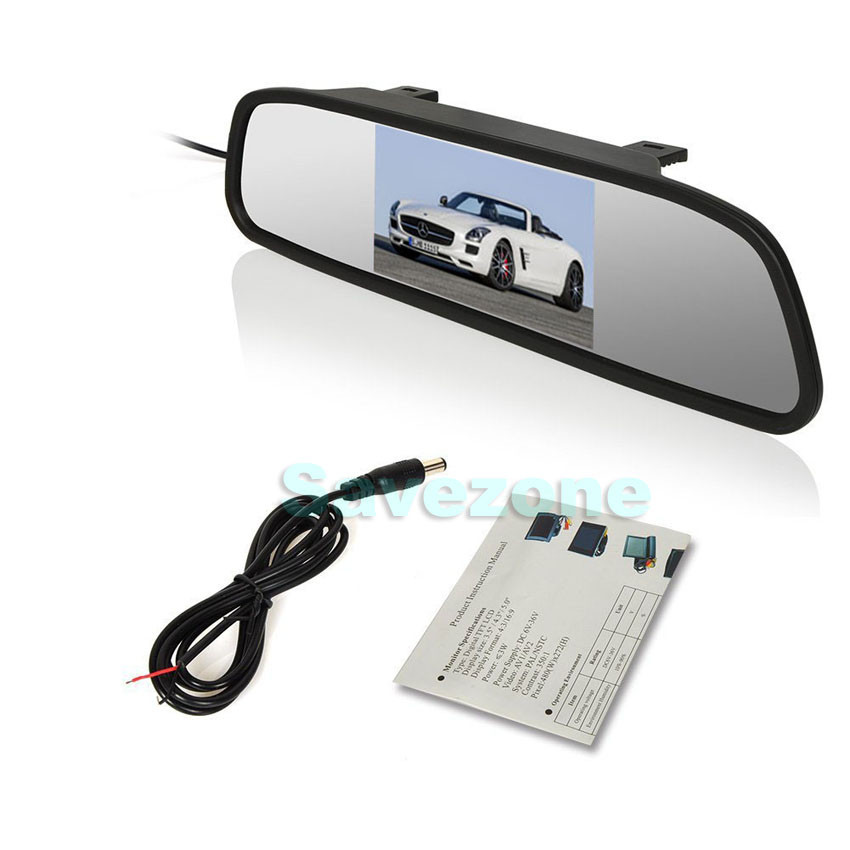

1 x 4.3 inch TFT LCD Monitor
1 x 9 IR wireless reversing camera
1 x DC cable
1 x Free Hole Saw28mm
