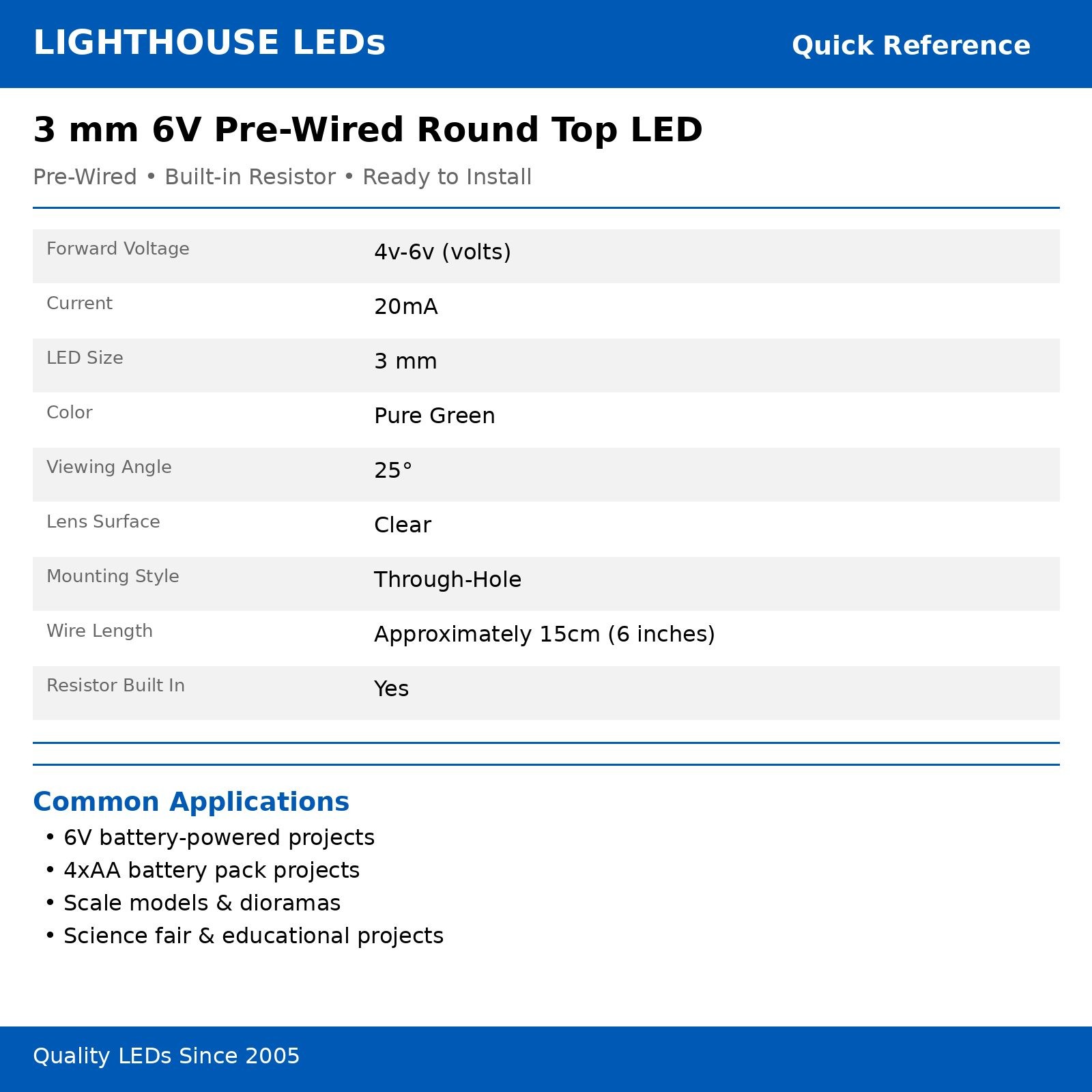

| Size | 3mm Pre-Wired Round Top |
|---|---|
| Color | Pure Green |
| Luminosity/Brightness | 10,000-12,000 mcd |
| Forward Voltage | 4v-6v (volts) |
| Wire Length | Approximately 15cm (6 inches) |
| Resistor Built In | Yes |
| Additional Resistors Required | No |
| Shrink Wrapped Connections | Yes |
| Current | 20mA |
| Wavelength | 515-525nm |
| Viewing Angle | 20-30 Degrees |
| Mount Style | Custom |
| Lens Color | Clear |
| LED Brightness Class | Super/Ultra/Extreme |
| Operating Voltage | 4v-6v (volts) |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!
These pre-wired 3mm pure green LEDs are ready to install straight out of the package — the resistor is already built in, so there's no soldering or math required. Designed for 6V DC systems, they also run cleanly on 3V, 4V, and 5V sources, making them a practical choice for model railroads, RC builds, marine panels, and microcontroller projects alike.
Each LED emits a focused pure green at 520nm with a 25° viewing angle and a clear lens, producing 10,000–12,000 mcd of brightness — vivid and directional without scattering. The 3mm package draws 20mA at up to 6V DC, with the pre-wired resistor handling current limiting across the 3V–6V range. Approximately 15cm (6 inches) of lead wire is attached, long enough for most panel or chassis installs without splicing.
Common applications
- Model railroading signals: HO and N scale block signals, crossing flashers, and yard indicators — pure green is the standard "clear/go" signal color, and the 6V rating pairs directly with common layout DC supply voltages
- RC crawlers and truck bodies: running lights and marker lights on Traxxas TRX-4, Axial SCX10, and TRX-6 semi builds where a 5V or 6V receiver pack powers the light kit
- Marine livewell and panel lighting: green livewell LEDs are widely used to attract baitfish; also suits bilge pump, blower, and battery switch indicator lights on helm panels
- Ham and CB radio meter backlights: direct replacement for burned-out incandescent S-meter lamps in Cobra 29, Uniden Bearcat 880, Icom IC-706, and similar rigs — green matches original OEM color on many units
- Arduino and Raspberry Pi projects: the 3V–6V range covers 3.3V and 5V GPIO outputs without a separate resistor on a breadboard or PCB
- Automotive indicator lights: dashboard cluster warning and indicator lamps in older vehicles (pre-2010) where 6V accessory circuits or 5V regulated lines power interior indicators

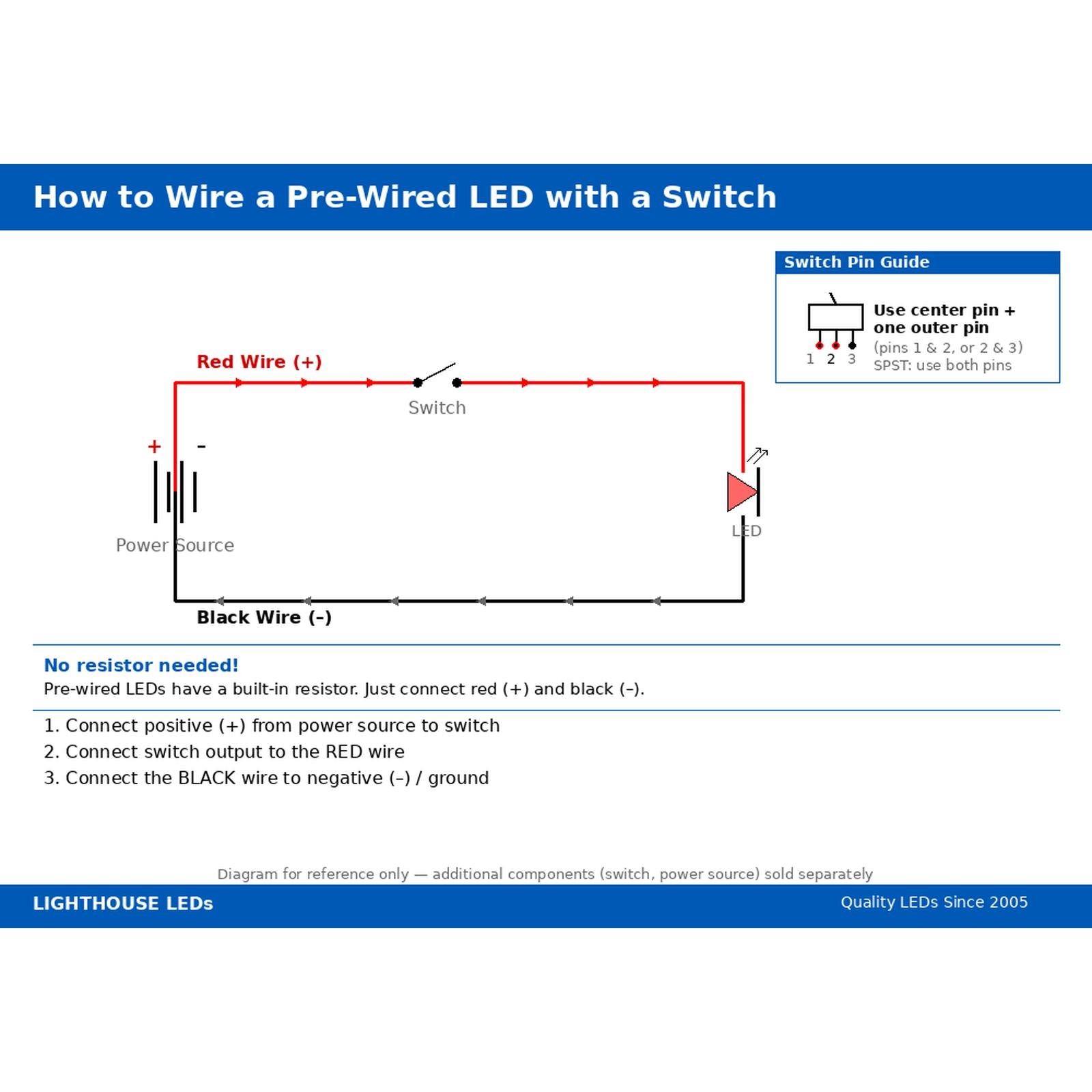

Wiring & power notes
DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
Quality LEDs made in the USA since 2005.
Related products from our store
- 26 AWG Paired Black/Red Wire — 50 ft (matches the lead spec)
- 1/16" Heat Shrink — Black
- 1/16" Heat Shrink — Red
