Product Features:

1. Powered by RISC-V32, delivering high-speed processing while maintaining ultra-low power consumption

2. Integrates multiple wireless protocols, including Wi-Fi 6 and Bluetooth 5

3. Features built-in high-capacity memory and supports external flash storage expansion

4. Multiple programmable GPIOs, compatible with various general-purpose peripheral interfaces

5. Suitable for smart home applications, industrial IoT, and low-power sensing devices



Product Overview:

The ESP32-C6 is a Wi-Fi 6-enabled SoC that integrates 2.4 GHz, Wi-Fi 6, Bluetooth 5 (LE), and 802.15.4 protocols, providing IoT products with robust security mechanisms and abundant memory resources. It features a high-performance 160 MHz RISC-V 32-bit processor and a low-power RISC-V 32-bit processor with a maximum clock speed of 20 MHz, along with 512 KB of SRAM, 320 KB of ROM, and support for external flash memory. The ESP32-C6 features 30 (QFN40) or 22 (QFN32) programmable GPIO pins and supports SPI, UART, I2C, I2S, RMT, TWAI, PWM, motor control PWM, and SDIO. It also integrates a 12-bit ADC and a temperature sensor, and is an ultra-low-power, pin-compatible module with the ESP32 series, making it suitable for a wide range of IoT applications.



Specifications:

Core Controller: ESP32-C6

Processor Architecture: 32-bit RISC-V single-core processor, clock speed up to 160 MHz

Memory: Built-in 320 KB ROM, 512 KB SRAM, 16 KB low-power SRAM; supports external flash

High-Performance Core: Up to 160 MHz

Low-Power Core: Up to 20 MHz

Wireless: 32-bit RISC-V MCU & 2.4 GHz Wi-Fi 6 & Bluetooth 5 (LE) & IEEE 802.15.4

30 (QFN40) or 22 (QFN32) programmable GPIO pins, supporting SPI, UART, I2C, I2S, RMT, TWAI, and PWM

Product Dimensions: 58.1 mm × 25.5 mm



Applications: Smart home, wireless sensing, industrial IoT, low-power battery-powered devices, Zigbee gateways, Thread devices



Product Contents:

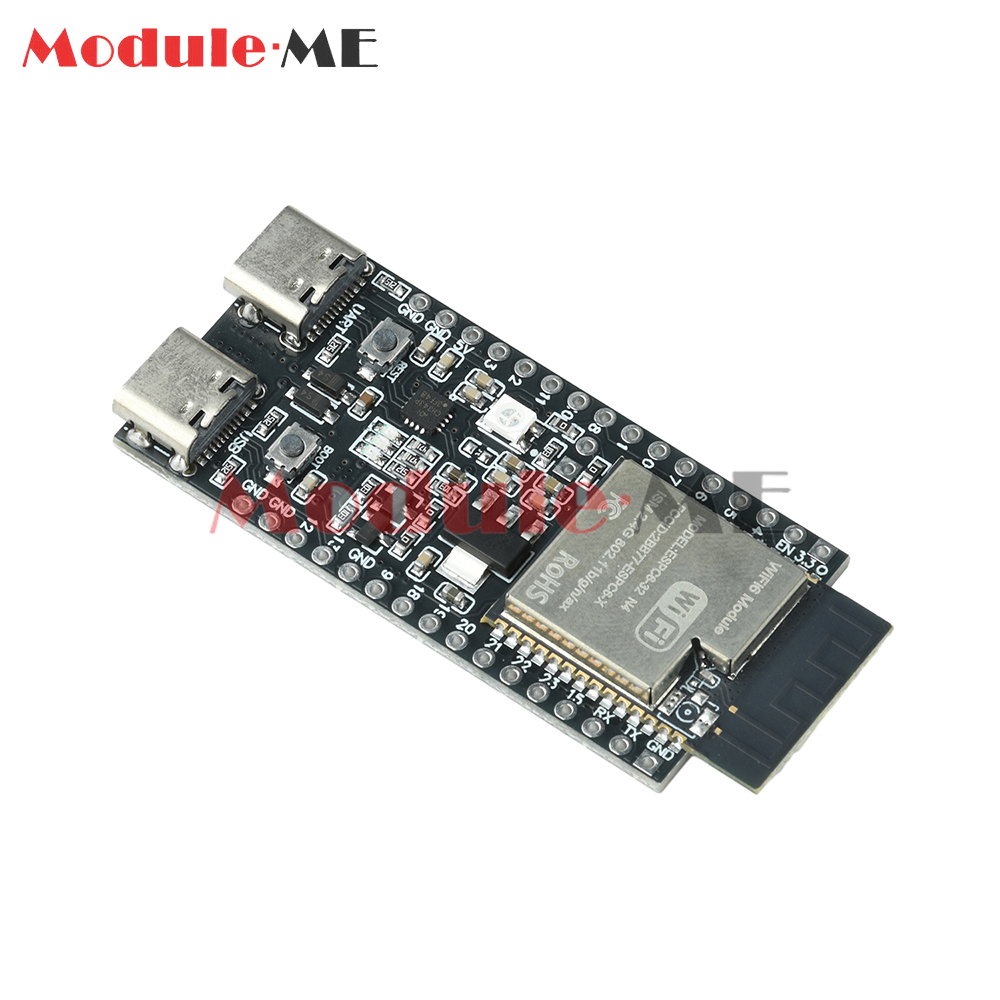

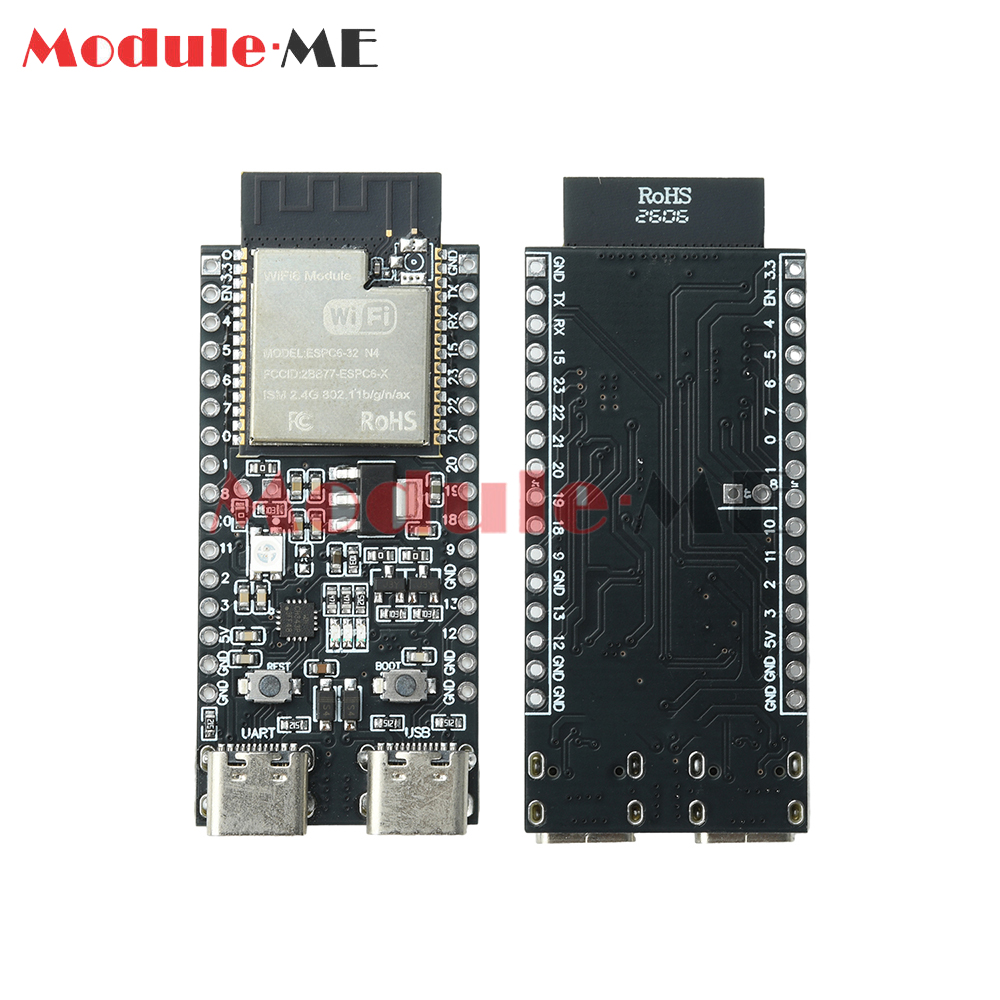

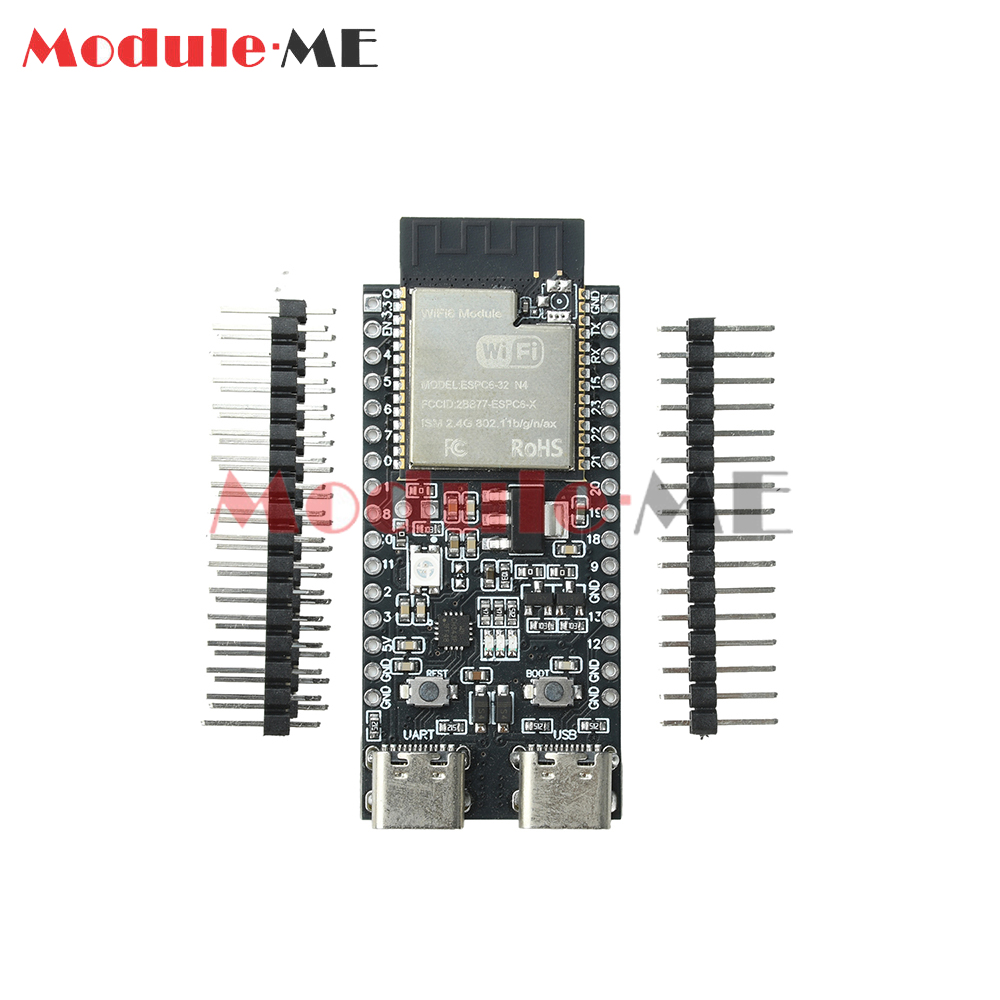

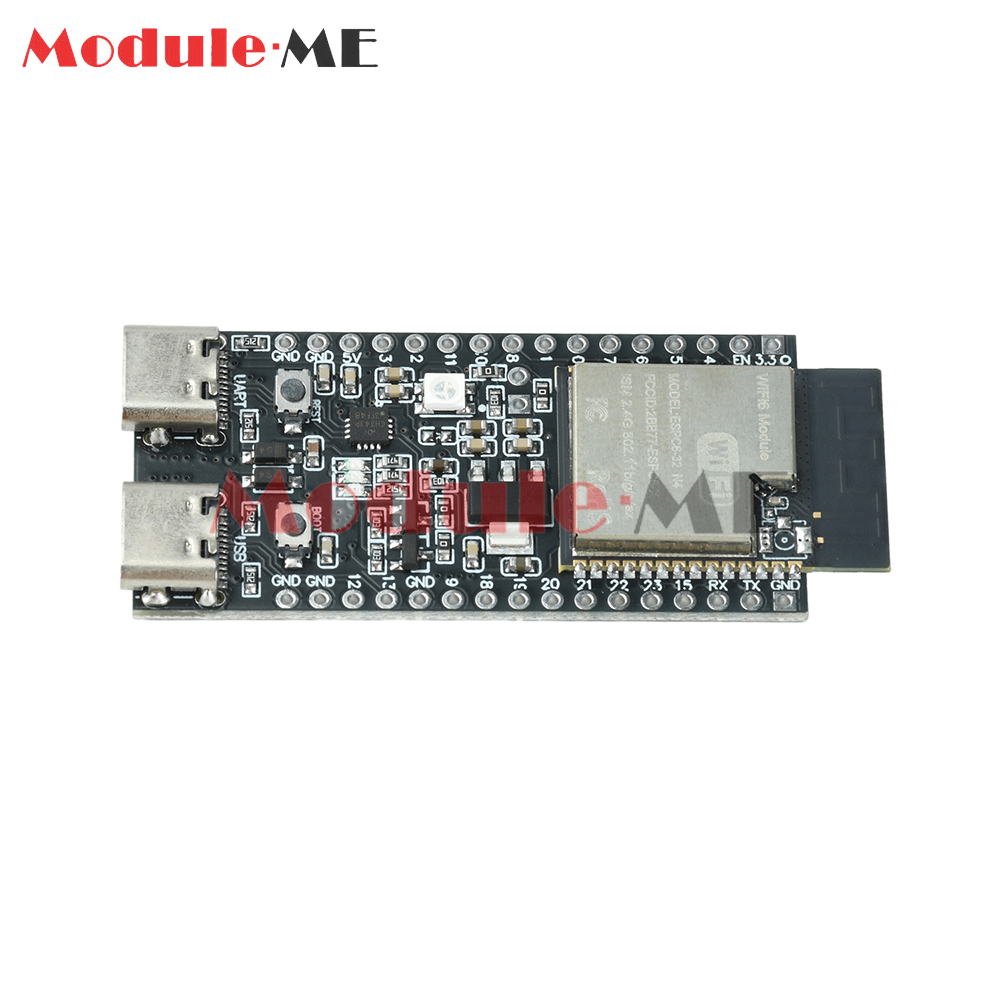

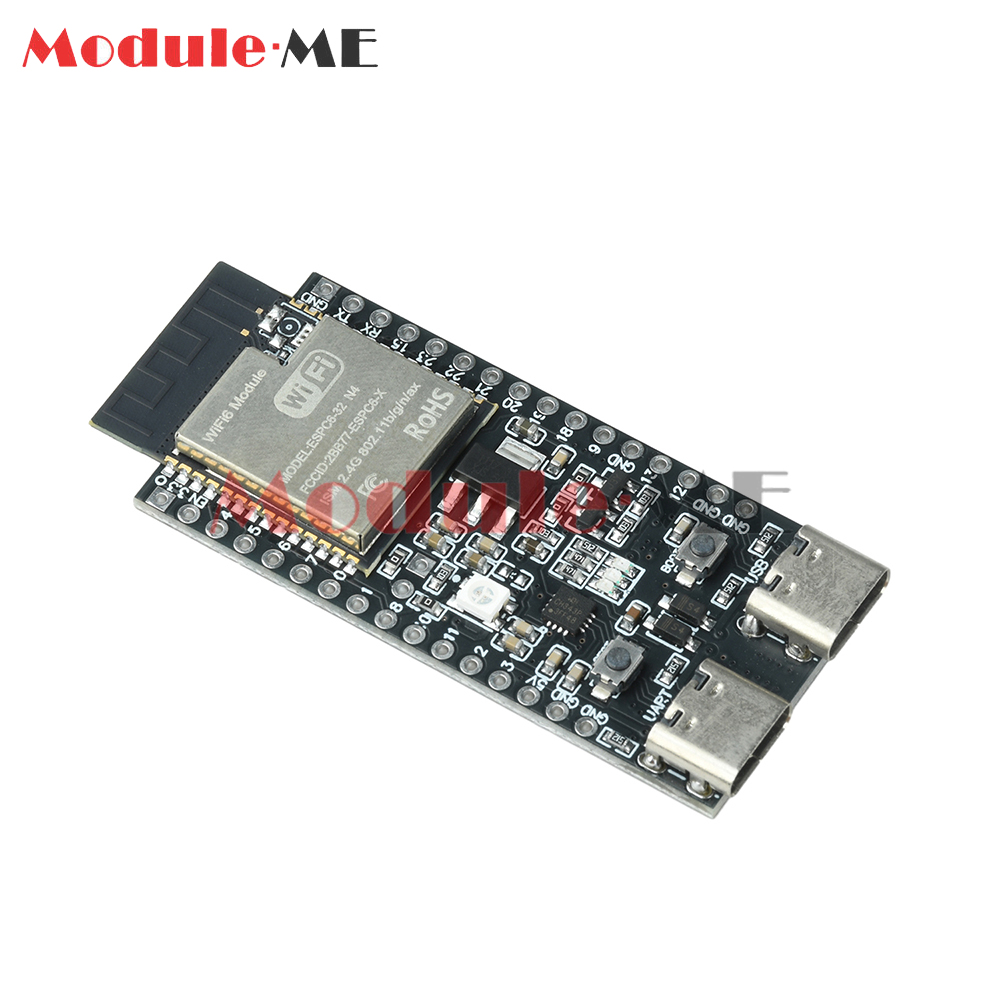

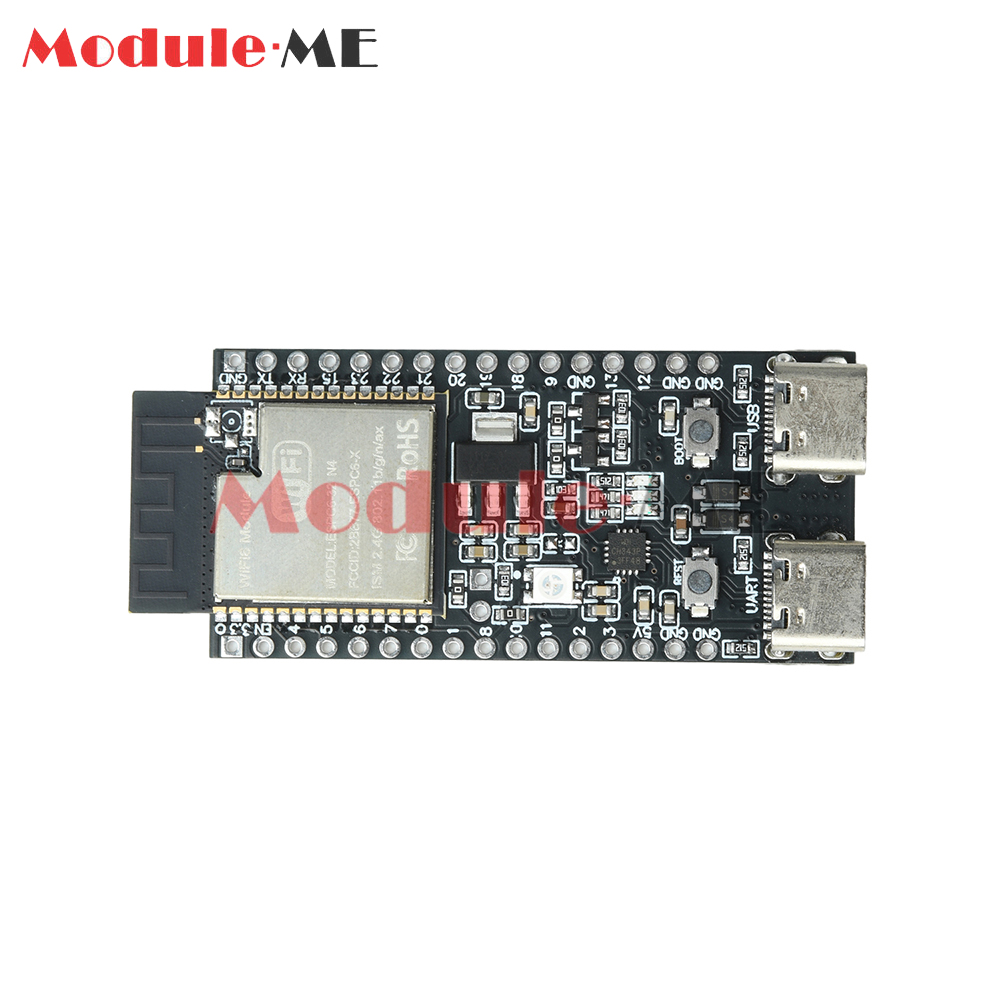

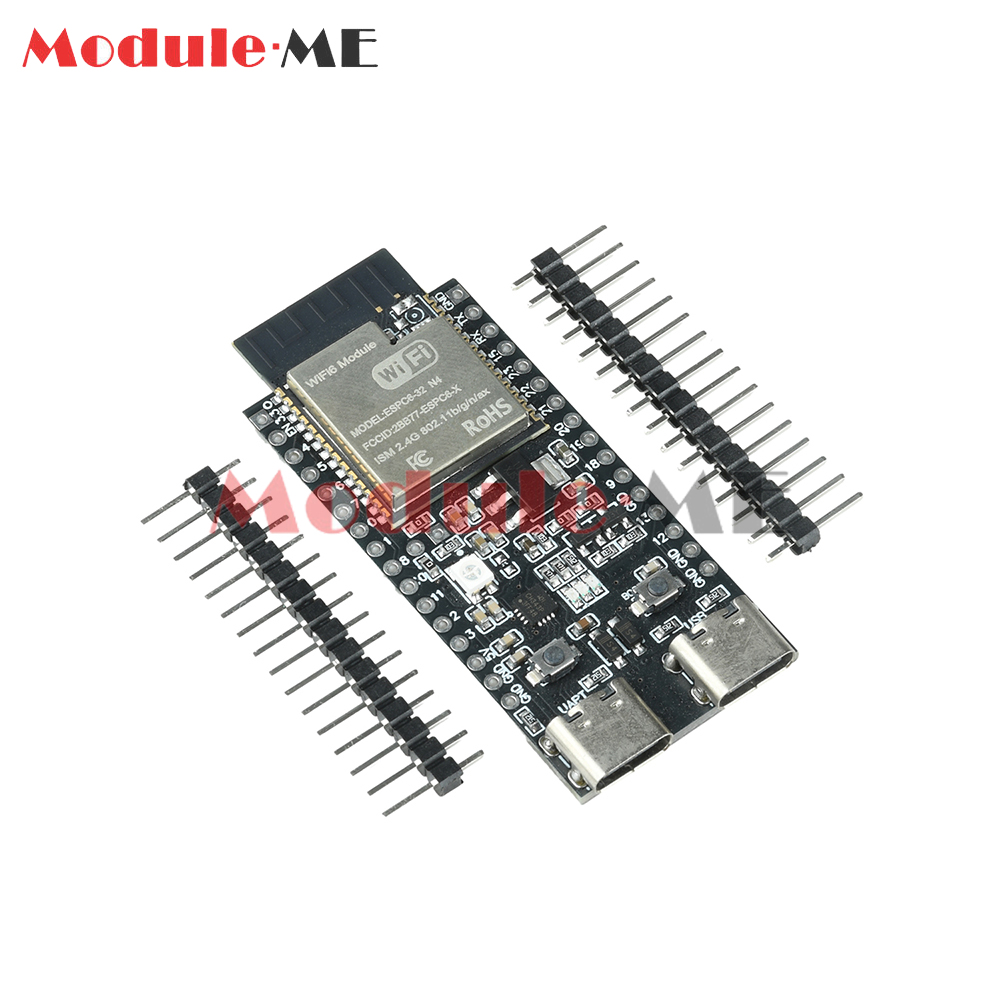

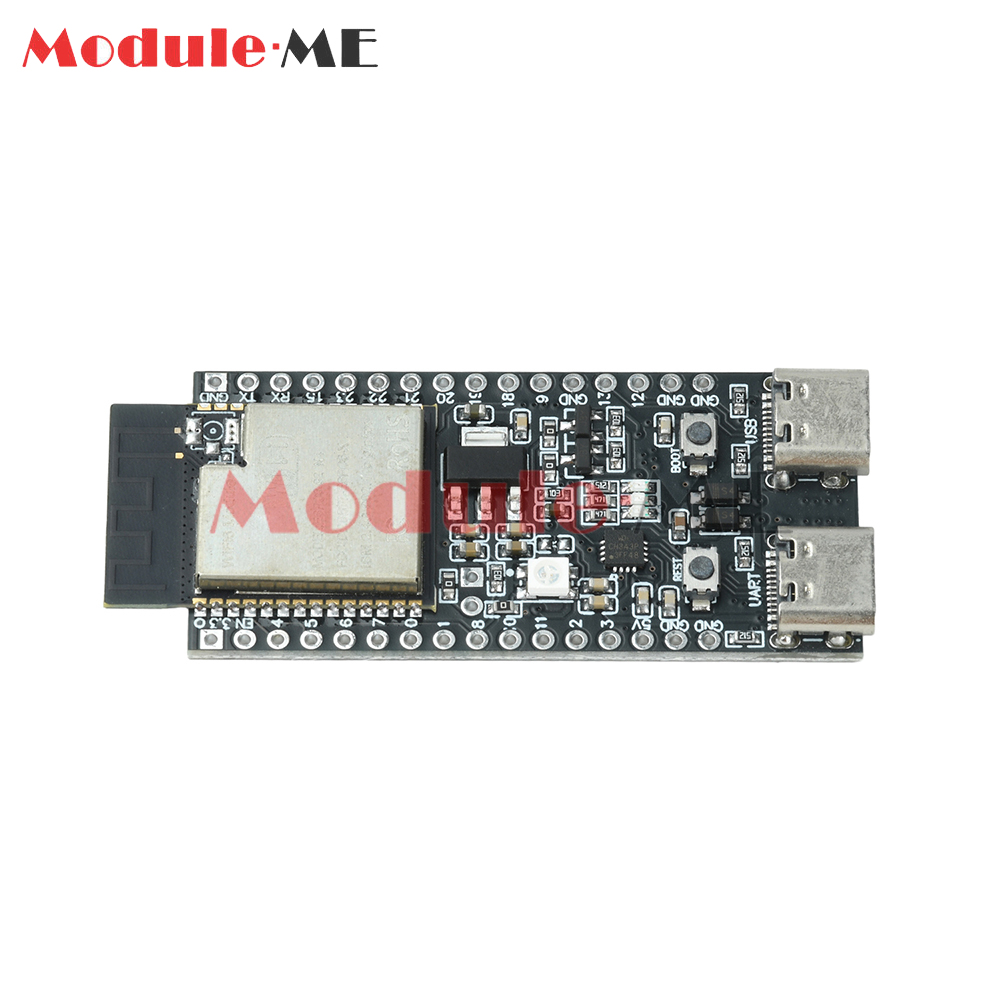

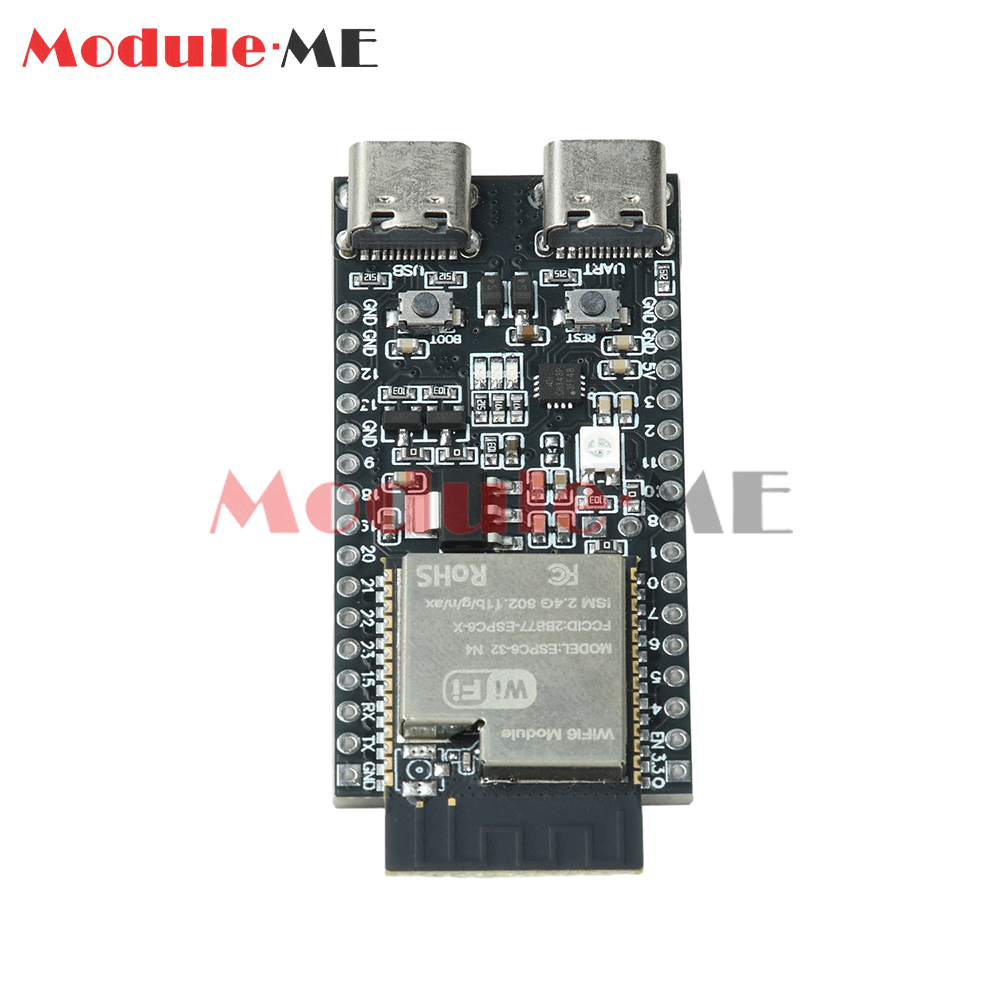

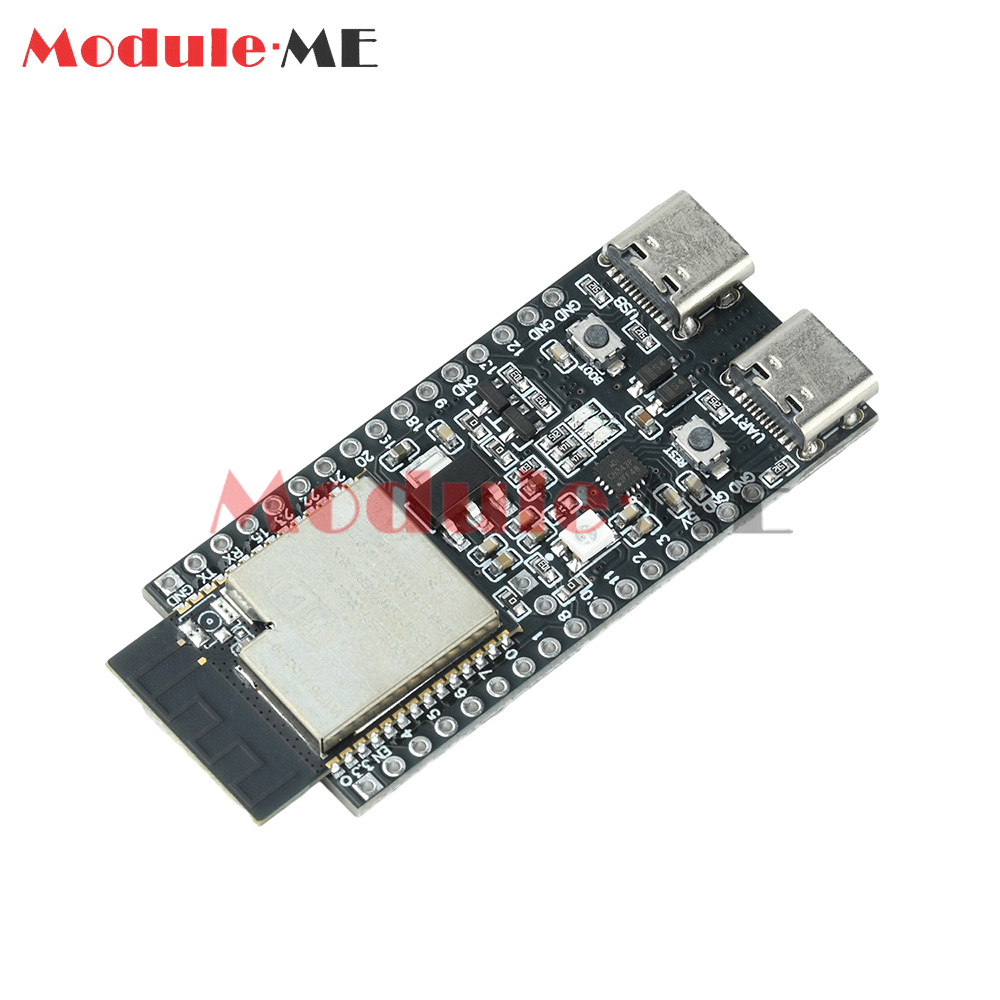

1x Development Board
