3.7V Battery Powered Bluetooth 6.0 Dual Channel 2*5W Amplifier Module Type C
Product Features:

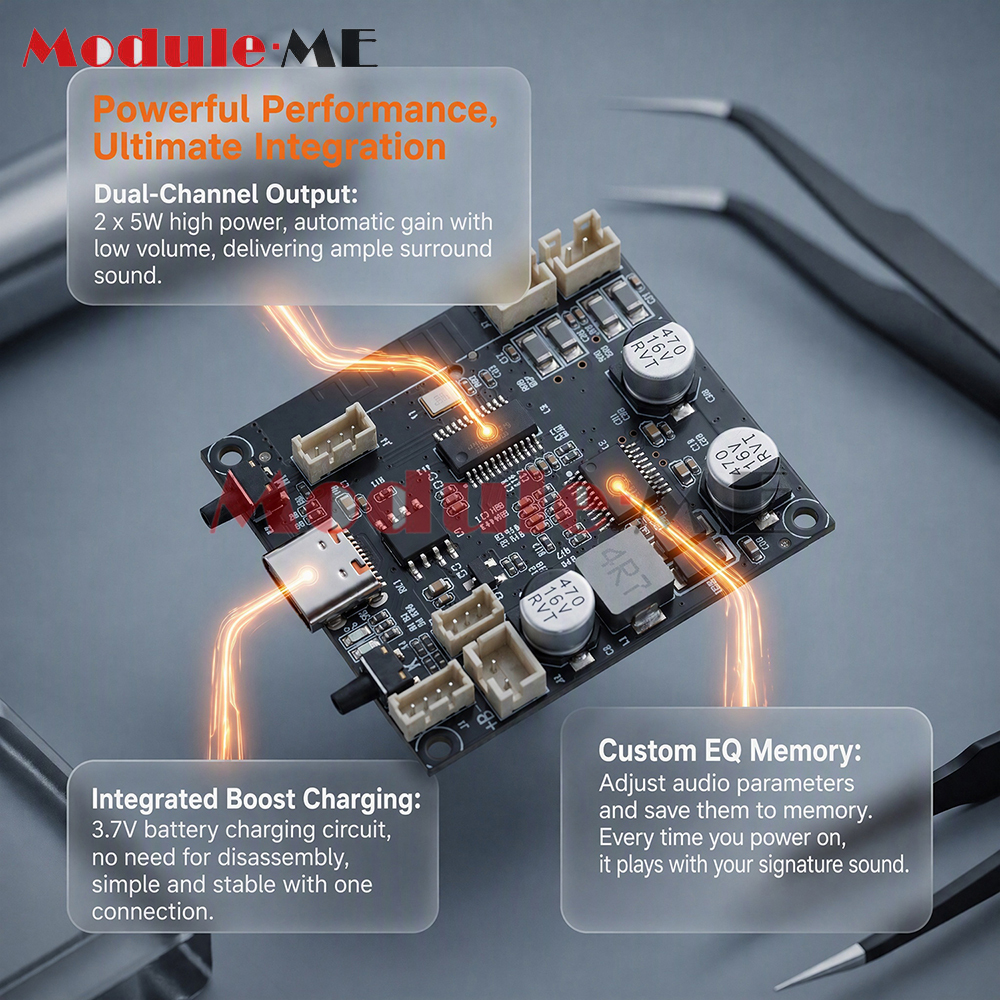

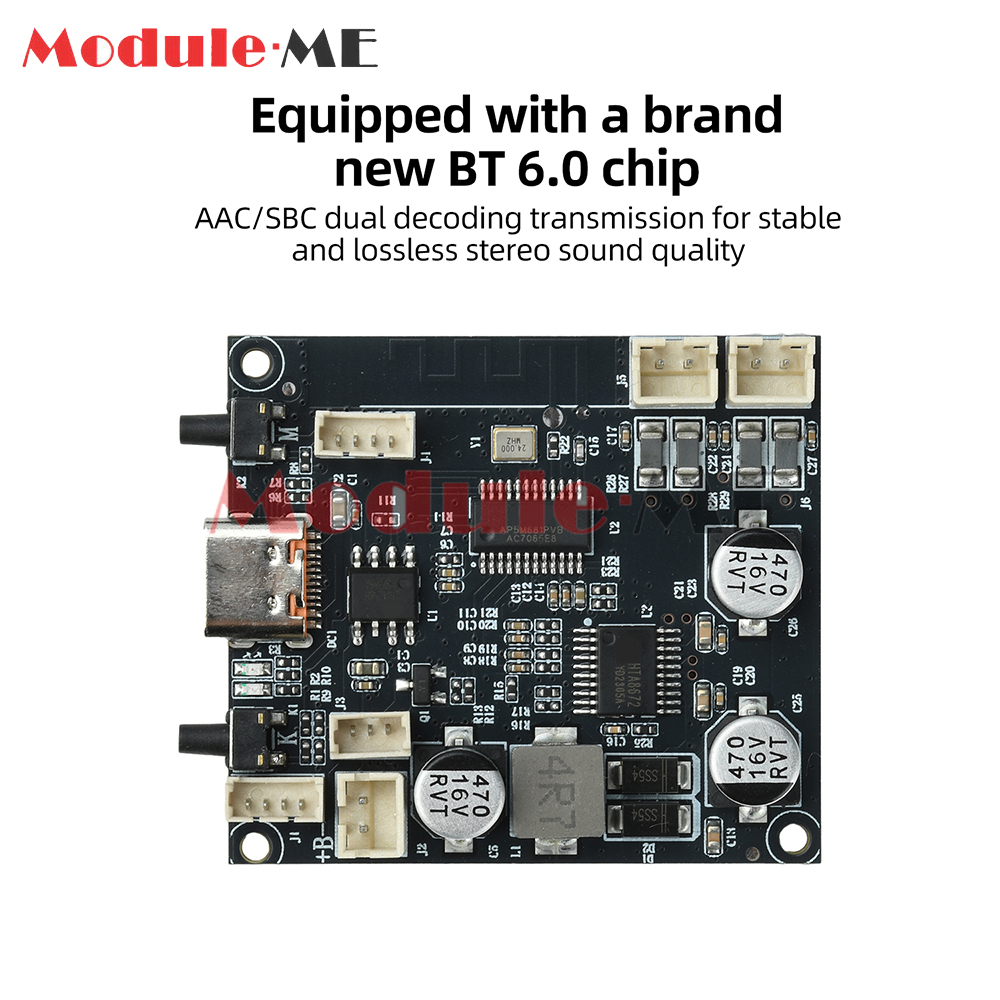

1. Equipped with a brand-new Bluetooth 6.0 chip, supporting AAC/SBC dual decoding for stable, lossless stereo sound quality
2. Supports 2×5W high-power stereo output; automatically enhances bass at low volumes for a richer, more immersive sound
3. Features an integrated charging and boost circuit; powered by a 3.7V battery, allowing for charging without disassembling the device
4. Supports permanent saving of sound tuning parameters; custom EQ settings are automatically applied upon each startup

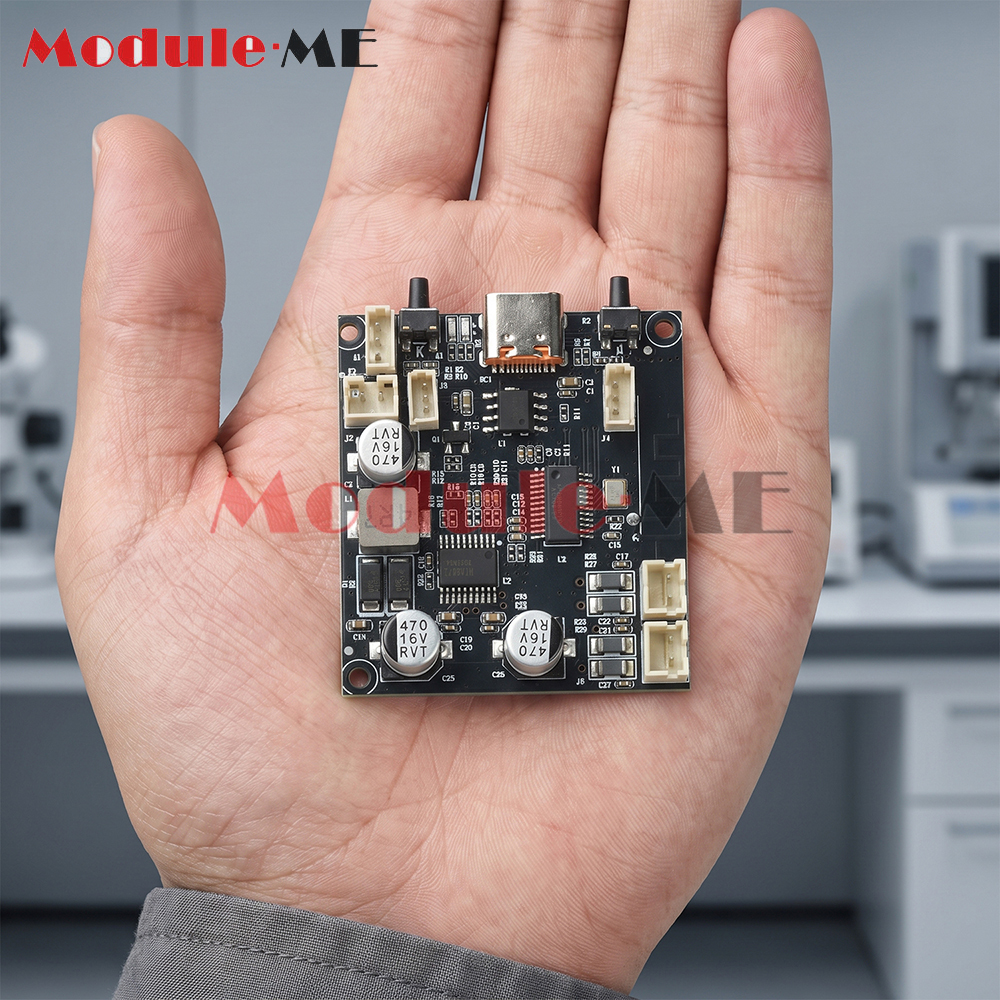

5. Low-power standby design; compact and portable, ideal for DIY portable Bluetooth speaker modifications

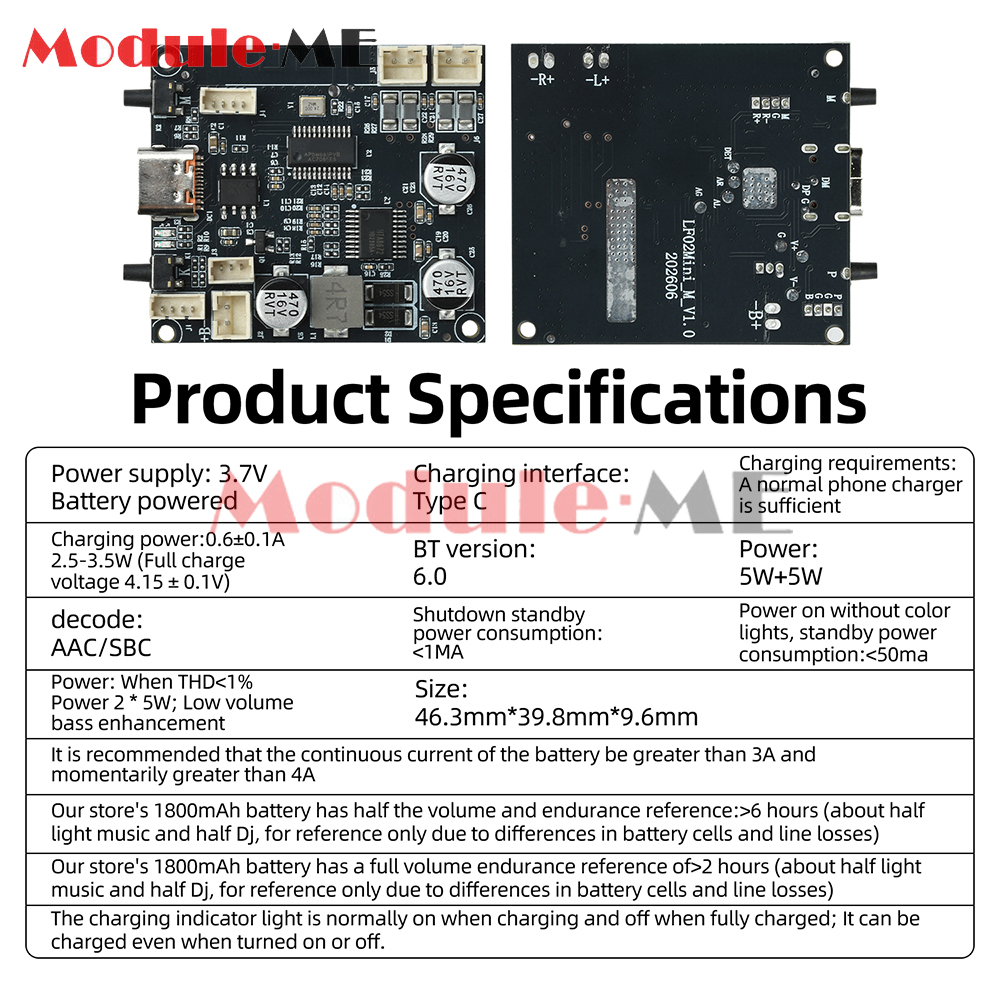

Product Specifications:

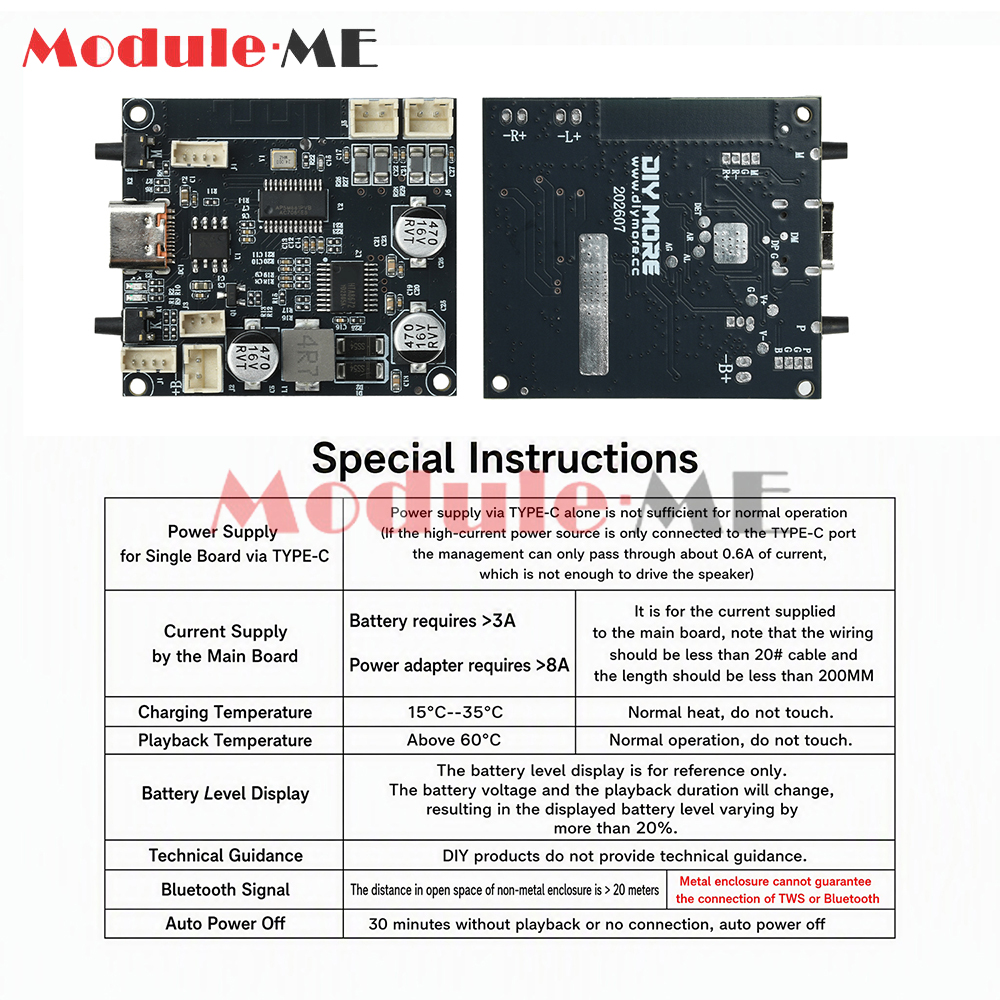

Power Supply: 3.7V battery-powered (recommended continuous battery current >3A, peak current >4A)

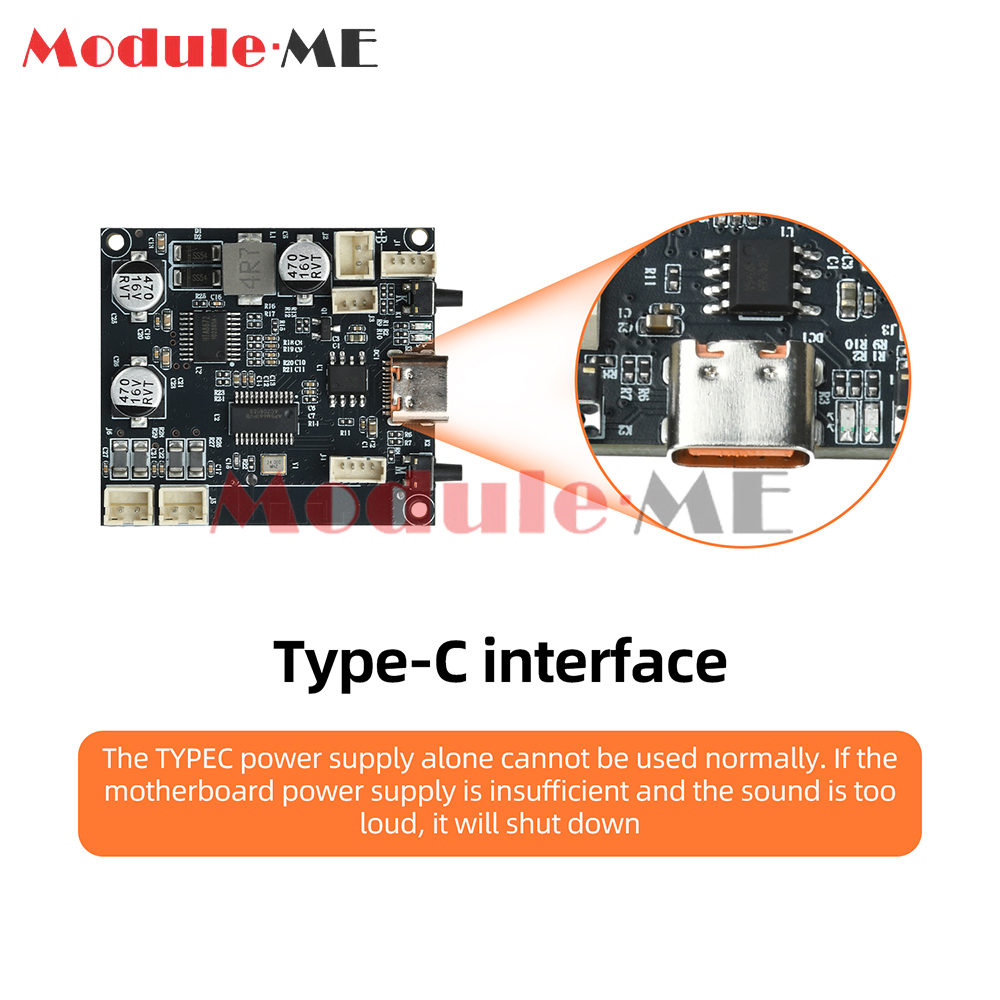

Charging Port: Type-C
Charging Requirements: Any standard smartphone charger will work
Charging Power: 0.6±0.1A / 2.5–3.5W (full charge voltage: 4.15±0.1V)
Bluetooth Version: 6.0
Power Output: 5W + 5W
Codecs: AAC/SBC
Power Consumption in Standby Mode (Power Off): <1 mA
Power Output: 2×5W at THD <1%; Bass boost at low volumes
Power Consumption in Standby Mode (Power On, No LED Lights): <50 mA
Estimated Battery Life with Our Store’s 1,800 mAh Battery at Half Volume: >6 hours (approximately half light music and half DJ music; for reference only due to variations in battery cells and cable loss)
Estimated battery life at full volume with our 1800 mAh battery: >2 hours (approximately half light music and half DJ music; for reference only due to variations in battery cells and cable loss)
Charging indicator: Remains lit during normal charging and turns off when fully charged; charging is possible whether the device is on or off.

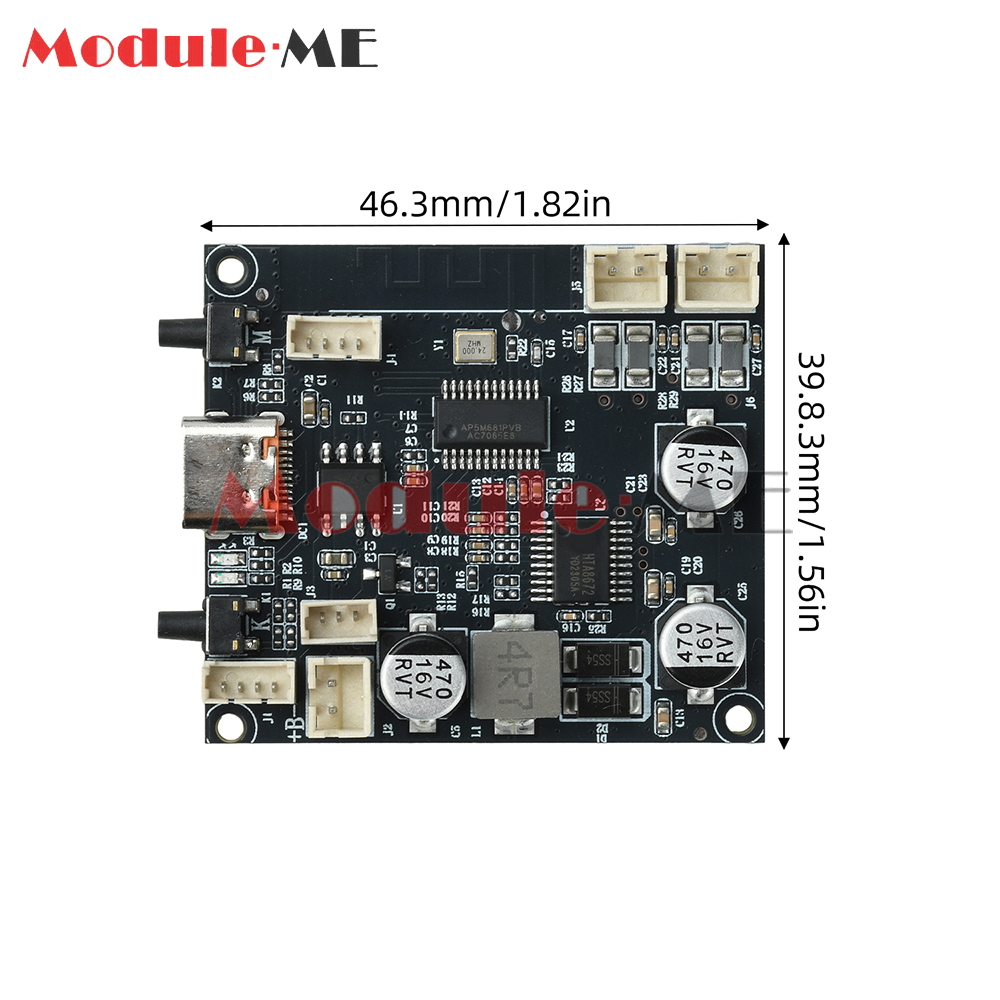

Dimensions: 46.3 mm × 39.8 mm × 9.6 mm

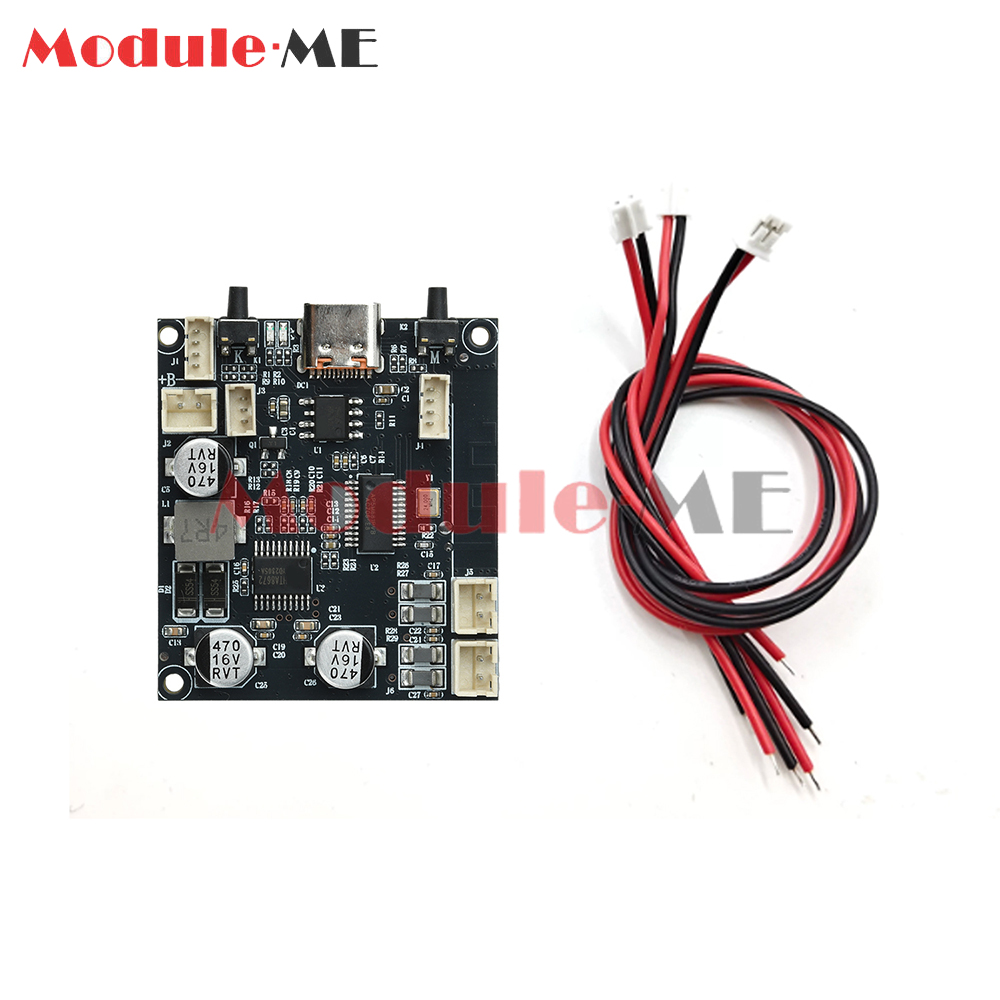

Product Contents:
1 × Power Amplifier Module
3 × Terminal Cables
