Control To Scs Sentinel OpenGate 1 Torantrieben MVE0057 CB100 24V+Transmitter

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.

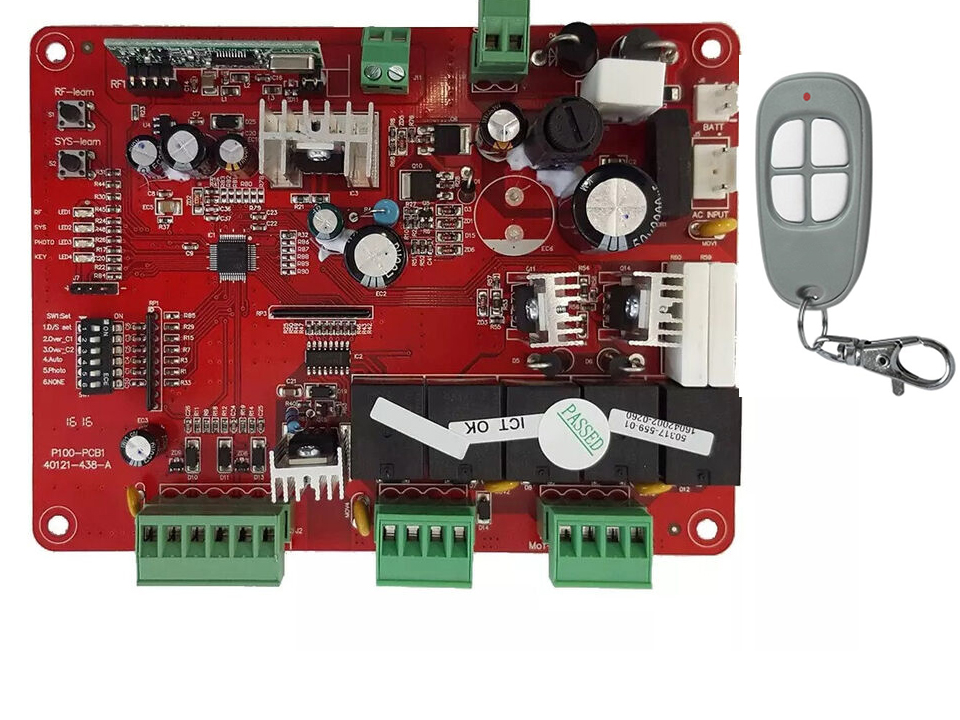

SCS Sentinel controller P100 PCB2 MPD0050A
Gate control 24V for swing gate drive

Suitable for many SCS Sentinel gate operators

Characteristics:

  • Control for automatic swing gates
  • Automatic closing adjustable
  • Obstacle detection with automatic rewind
  • LED display for easy programming
  • Pedestrian function (partial opening)
  • Connection for light barrier (photocells)
  • Connection for warning lamp/flashing light
  • Connection for external button or key switch
  • Expandable with accessories (antenna, code lock, GSM module)
  • Multiple remote controls programmable
  • Emergency unlocking possible in the event of a power failure

Technical data:

  • Control model: P100-PCB2
  • Board number: 40121-414-A
  • PCB identifier: MPD0050A
  • Motor supply: 24V DC
  • Maximum output current: 2.5A
  • Radio frequency: 433.92 MHz
  • Coding: Rolling Code
  • Working temperature: -20°C to +60°C
  • Auto-close time adjustable
  • Connection for light barriers
  • Connection for warning lamp
  • Connection for external button
  • Certification: CE/LVD

Security:

  • Motor overload protection
  • Thermal protection against overheating
  • Short circuit and overvoltage protection
  • Safety connection for light barriers
  • Backup battery connection possible

Compatibility:

  • SCS Sentinel OpenGate Series
  • SCS Sentinel SimplyOpen Series
  • SCS Sentinel SG series
  • additional 24V DC swing gate drives with P100 control

Scope of delivery:

  • 1 x control board P100-PCB2

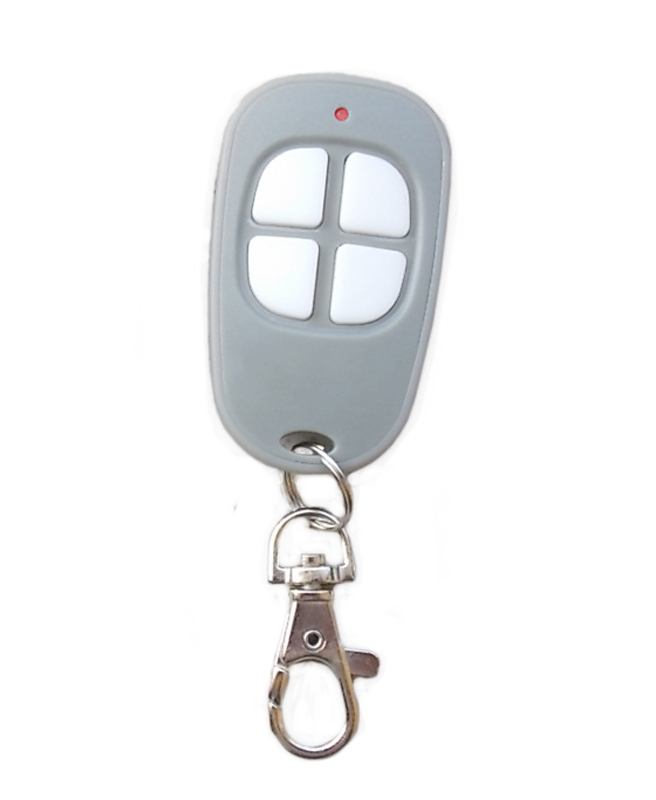

  • 1 x original hand transmitter
