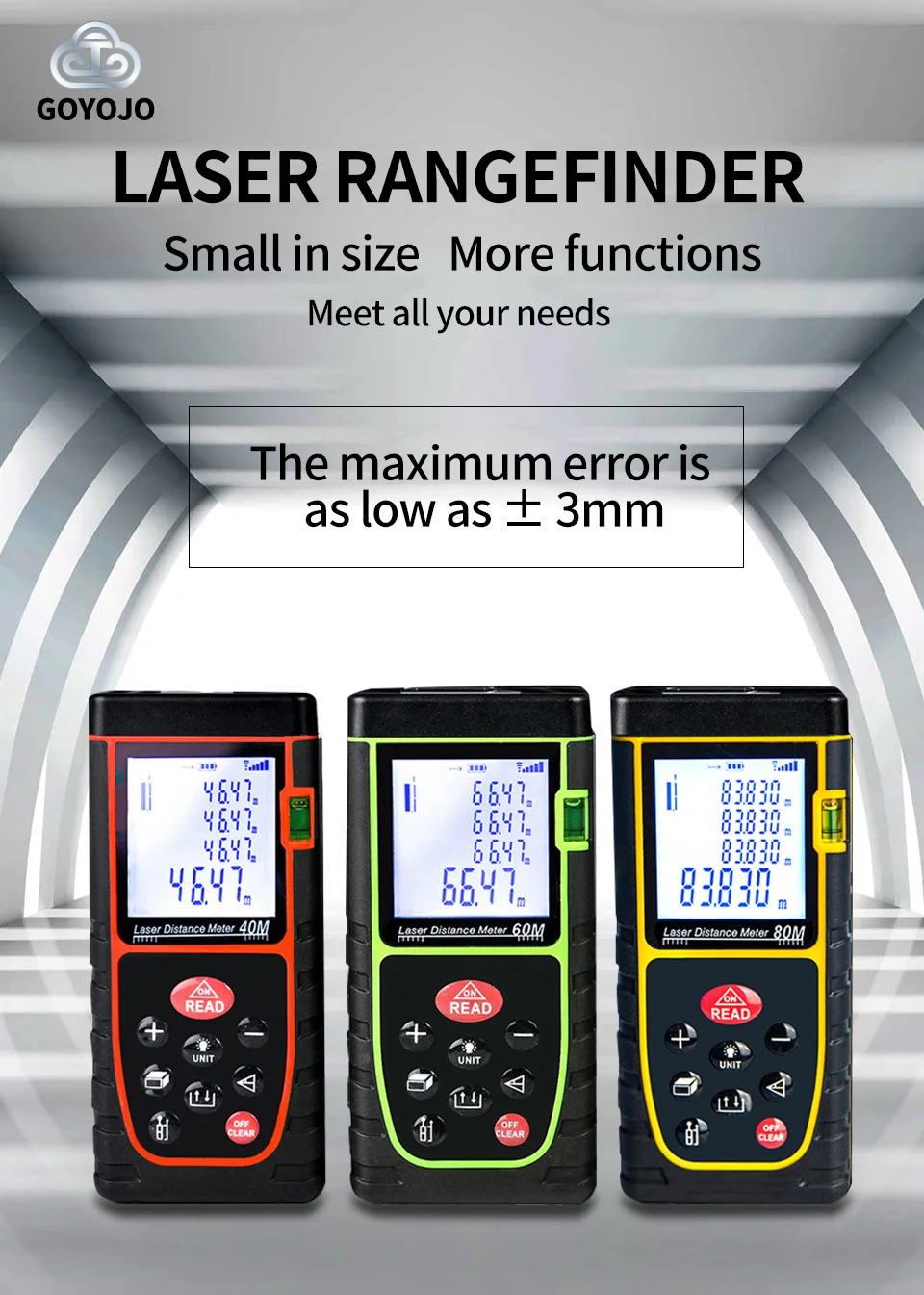

Product Introduction

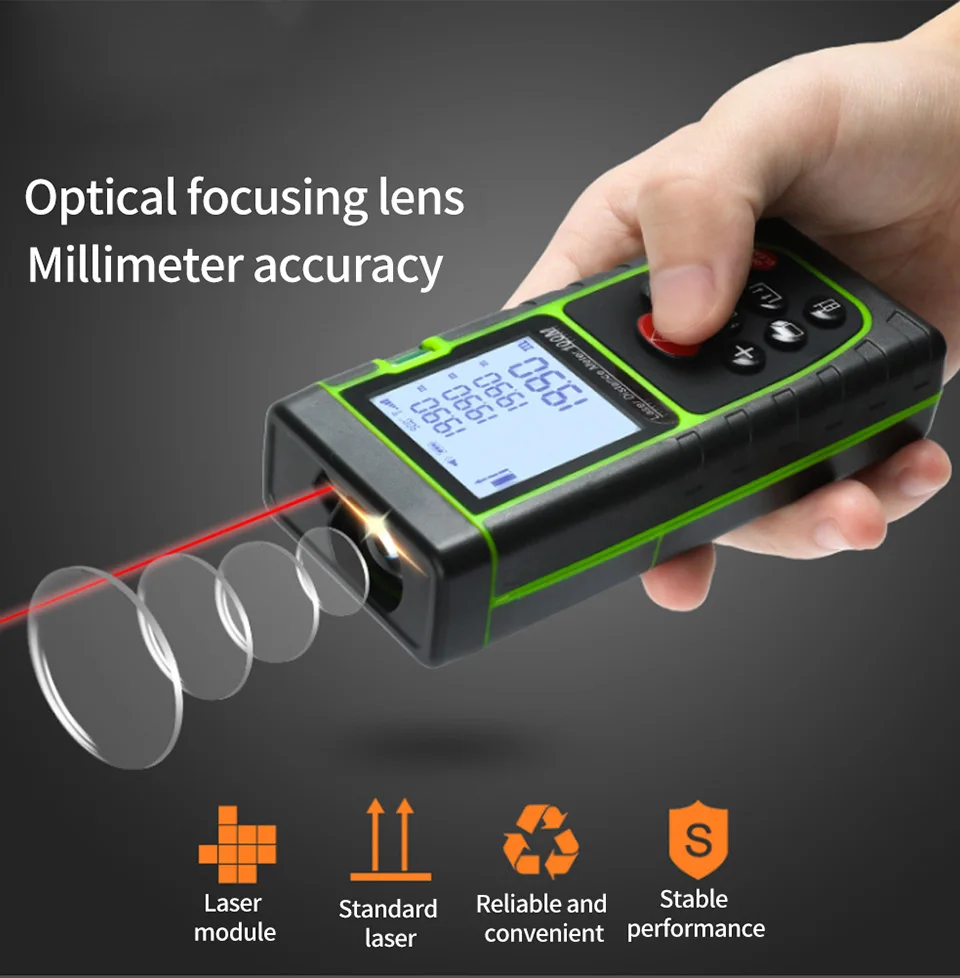

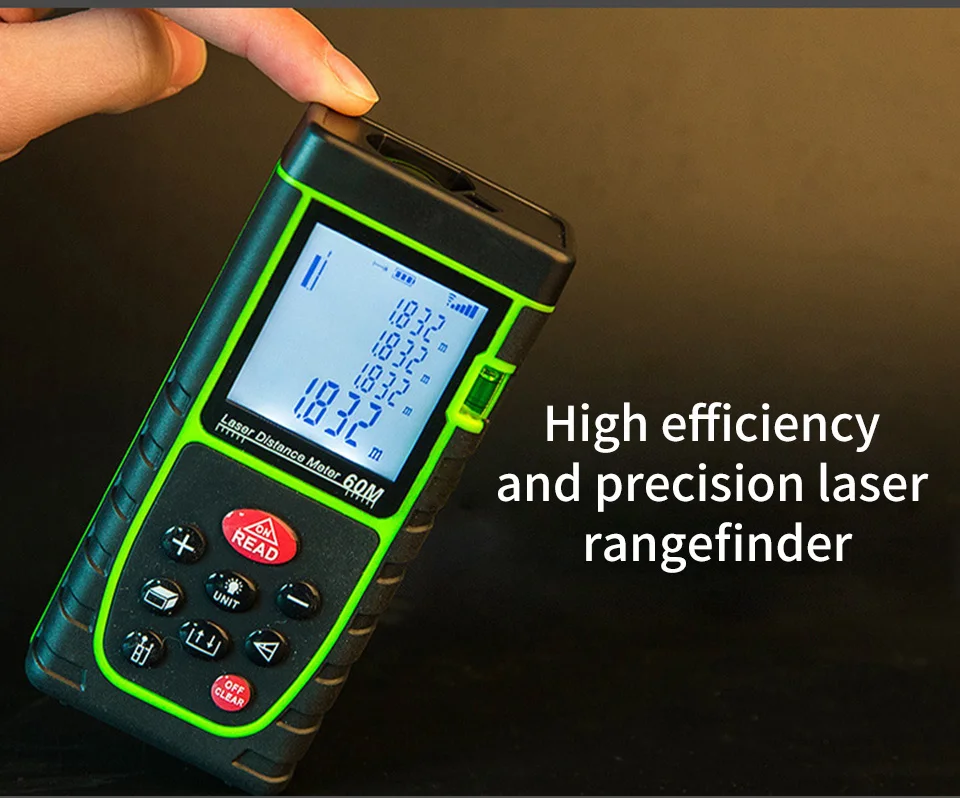

Laser rangefinder is a non-contact detection instrument with high measurement accuracy, small size, easy to use, dustproof, moisture-proof, etc.
It is mainly used for construction measurement, engineering acceptance, furniture acceptance, fire fighting facilities and other occasions.
Technical parameters
|
Measurement accuracy
|
±3mm
|
|
Unit
|
m /in /ft
|
|
Measuring range (without reflector)
|
0.03-40m/60m/80m/100m
|
|

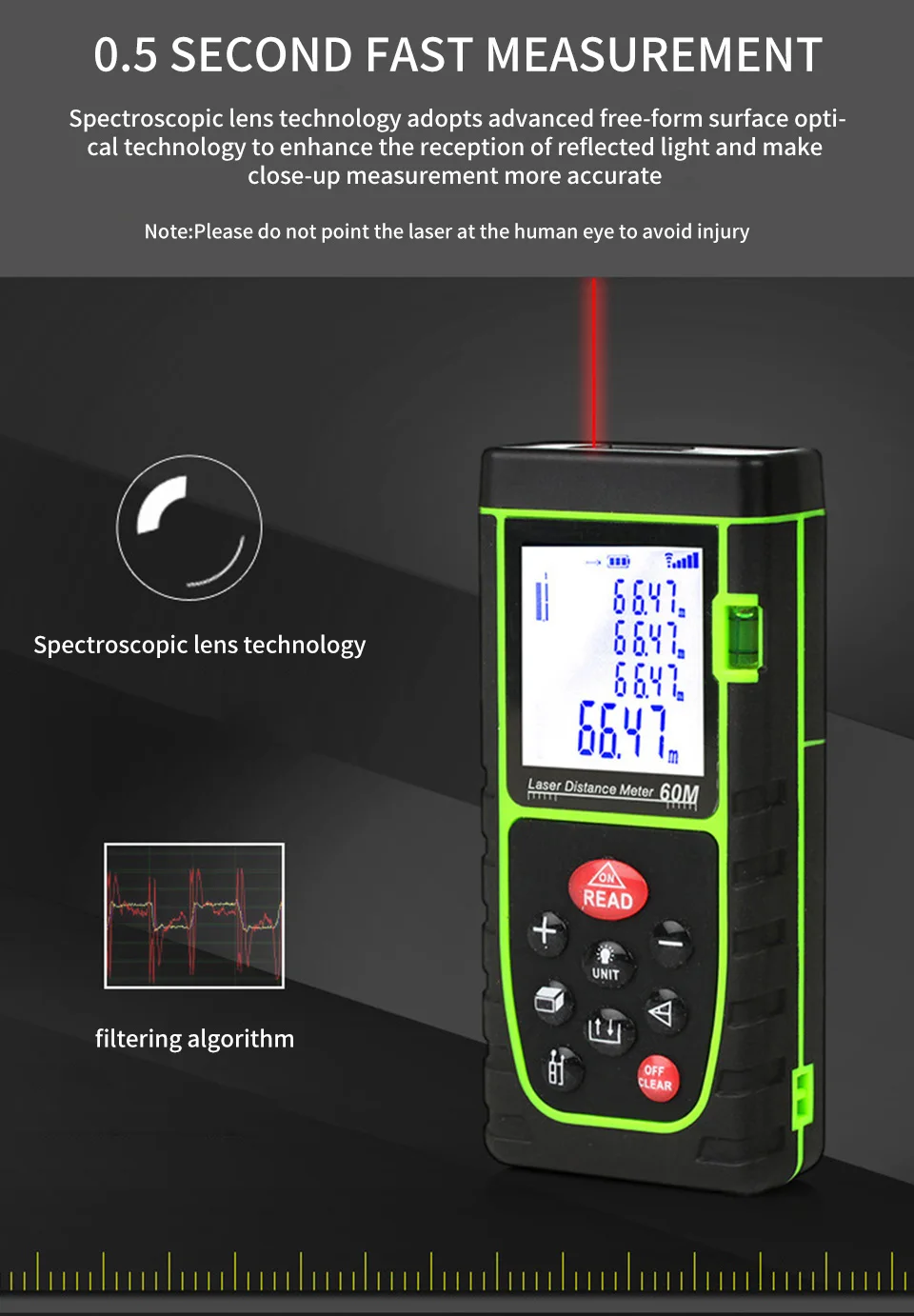

Measuring time
|
0.1-3 seconds
|
|
Laser class
|
Ⅱ class
|
|
Laser type
|
635nm, ＜1mw
|
|

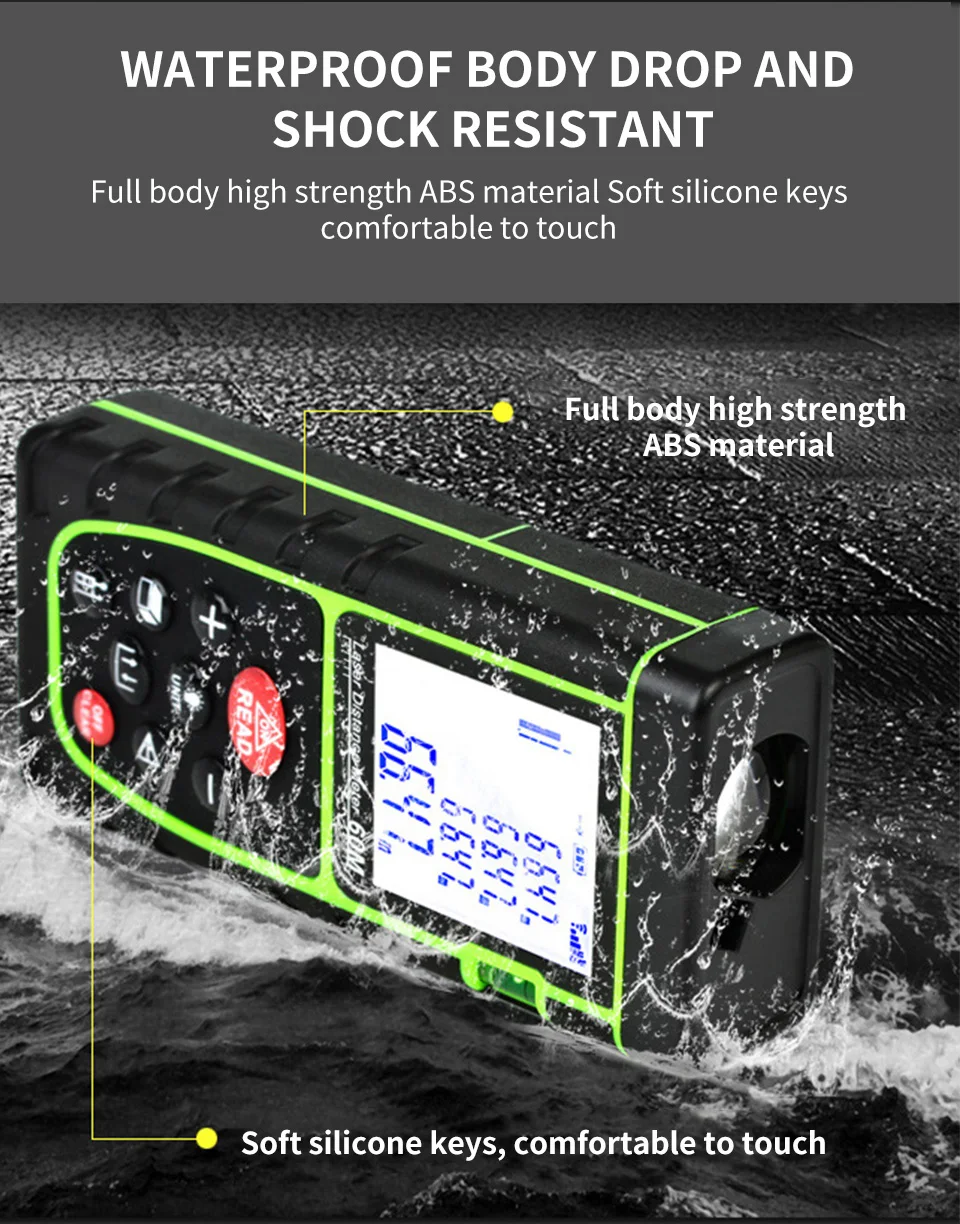

Dustproof and waterproof
|
OP54
|
|
Automatic laser shutdown
|
60 seconds
|
|
Automatic shutdown
|
480 seconds
|
|
Illumination
|
white LED light
|
|
|

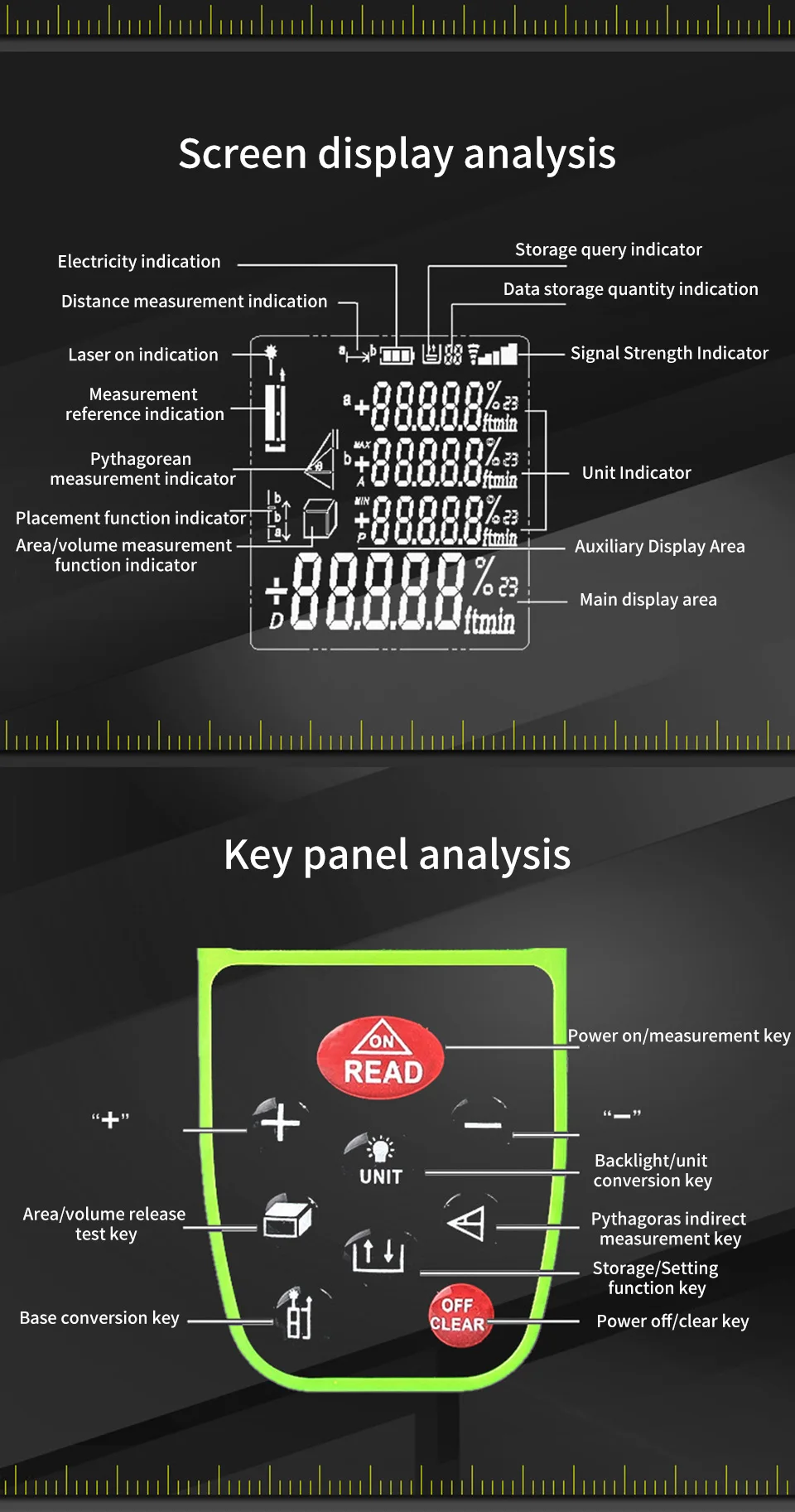

Measurement reference switching;
Data clearing; Power display;
Data storage; Signal strength indication;
Continuous measurement;

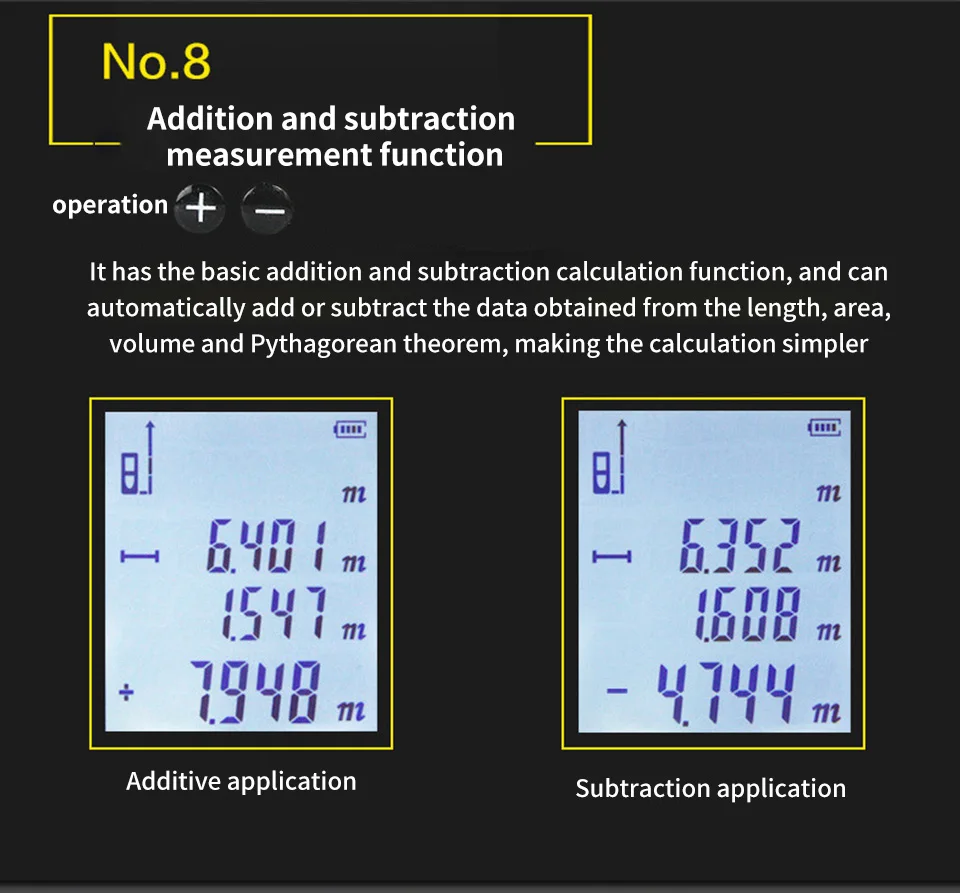

Addition/subtraction (distance/area/volume);

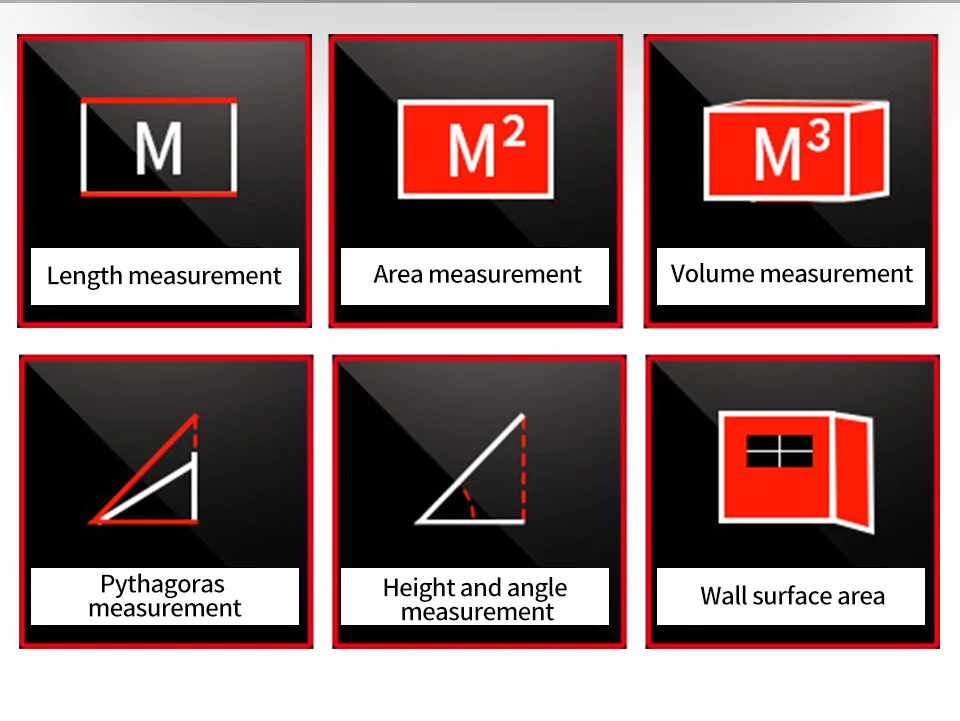

Area/Volume/Thumbnail measurement function
|
|

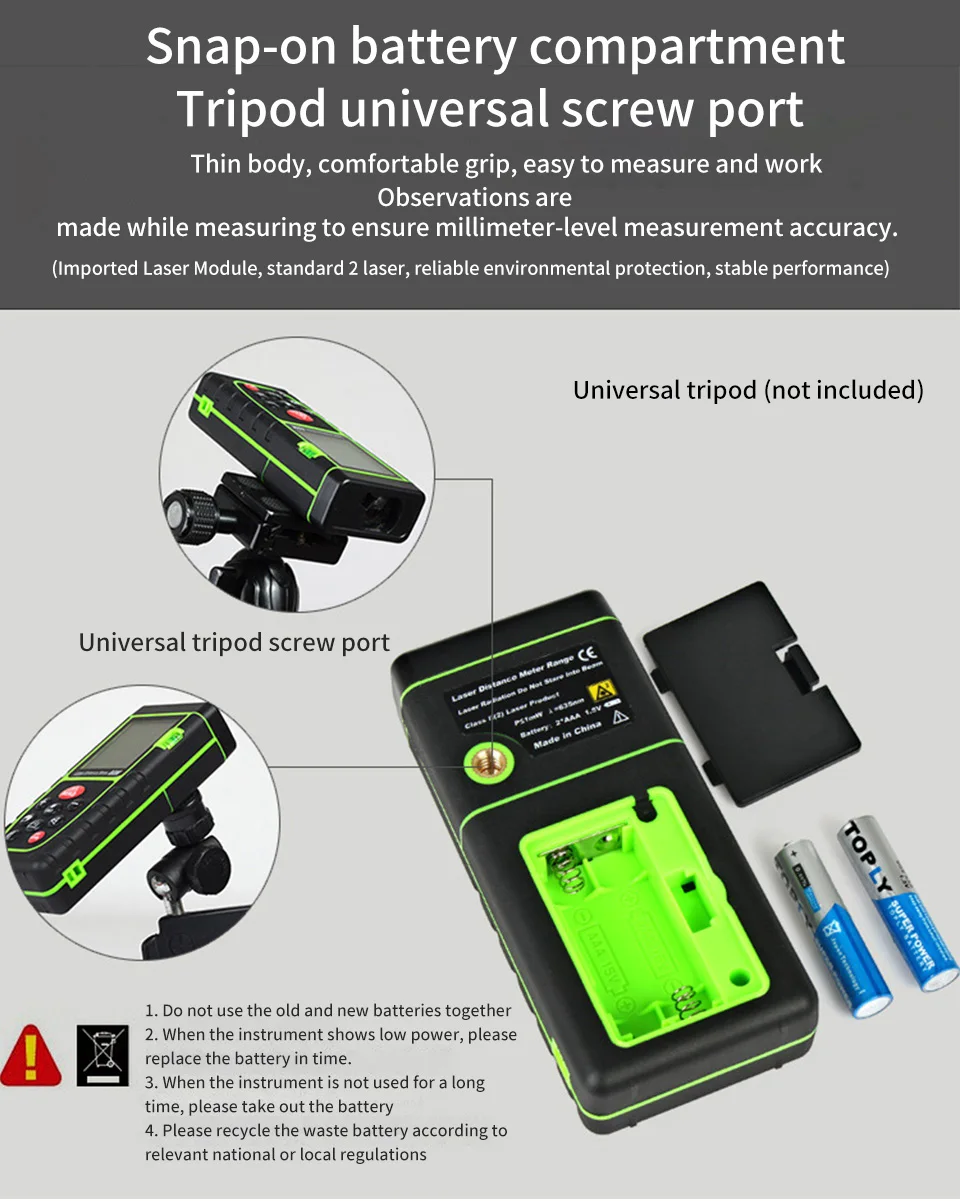

Battery type
|
AAA carbon battery (2*1.5V) not included
|
|

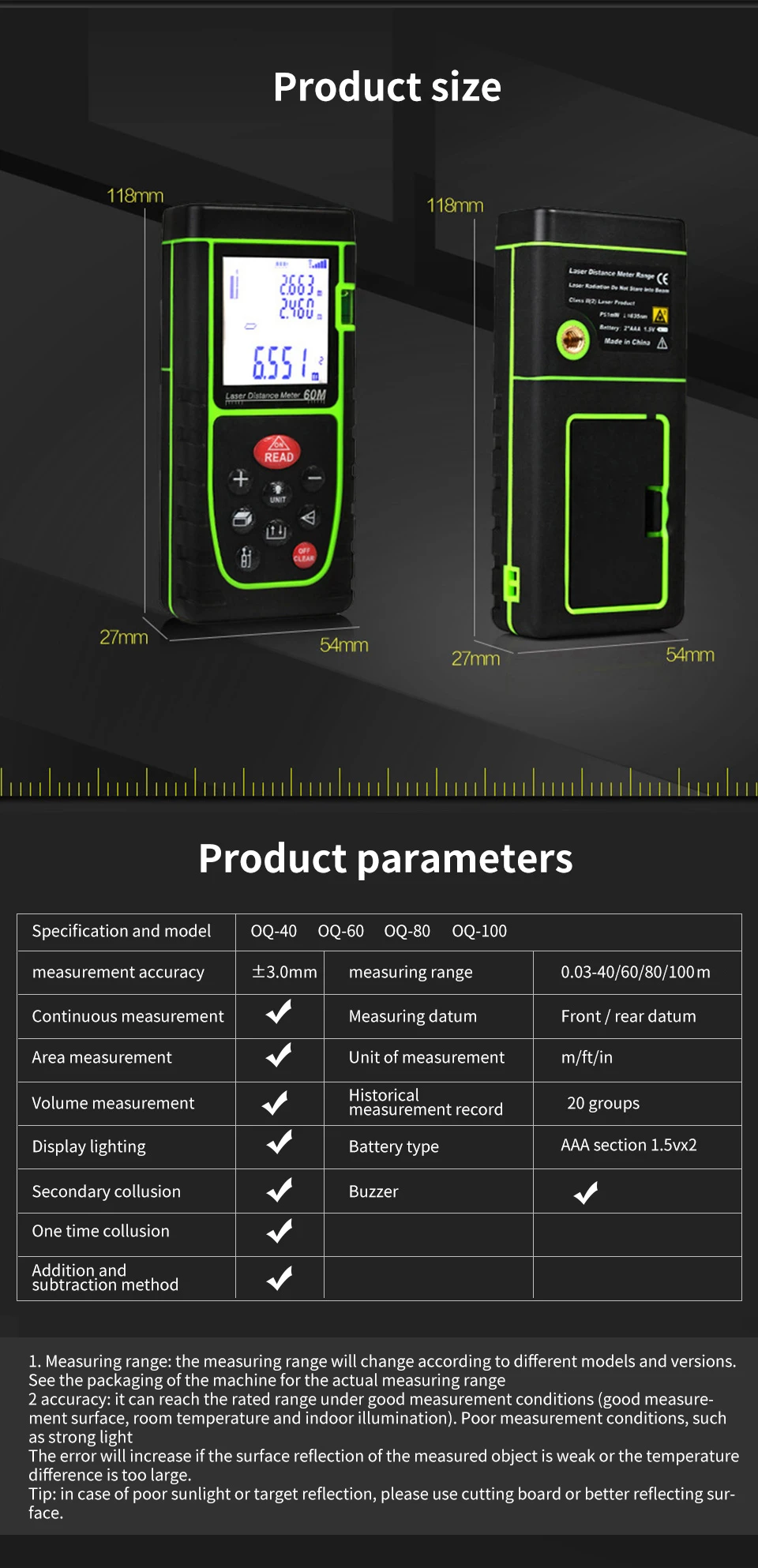

Product size
|
118*54*27mm
|
|
Weight
|
81g
|
|
Working temperature range
|
0℃-40℃
|
|
Storage temperature range
|
-20℃-60℃
|
